PWR1123 datasheet, PDF - EEWORLD Datasheet

PWR1123: DescriptionDC-DC Unregulated Power Supply Module, 1 Output, 3W, Hybrid,; CategoryPower/power management The power supply circuit; File Size377KB，4 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric View All

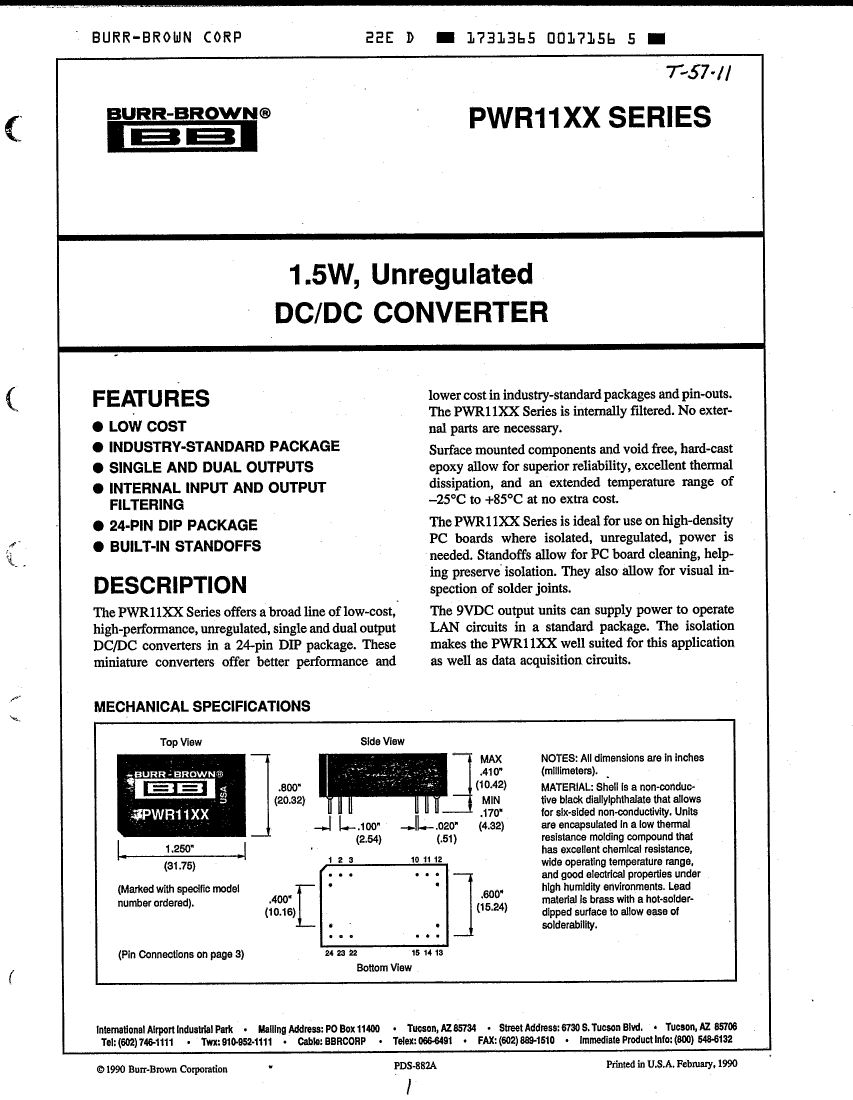

PWR1123 Overview

DC-DC Unregulated Power Supply Module, 1 Output, 3W, Hybrid,

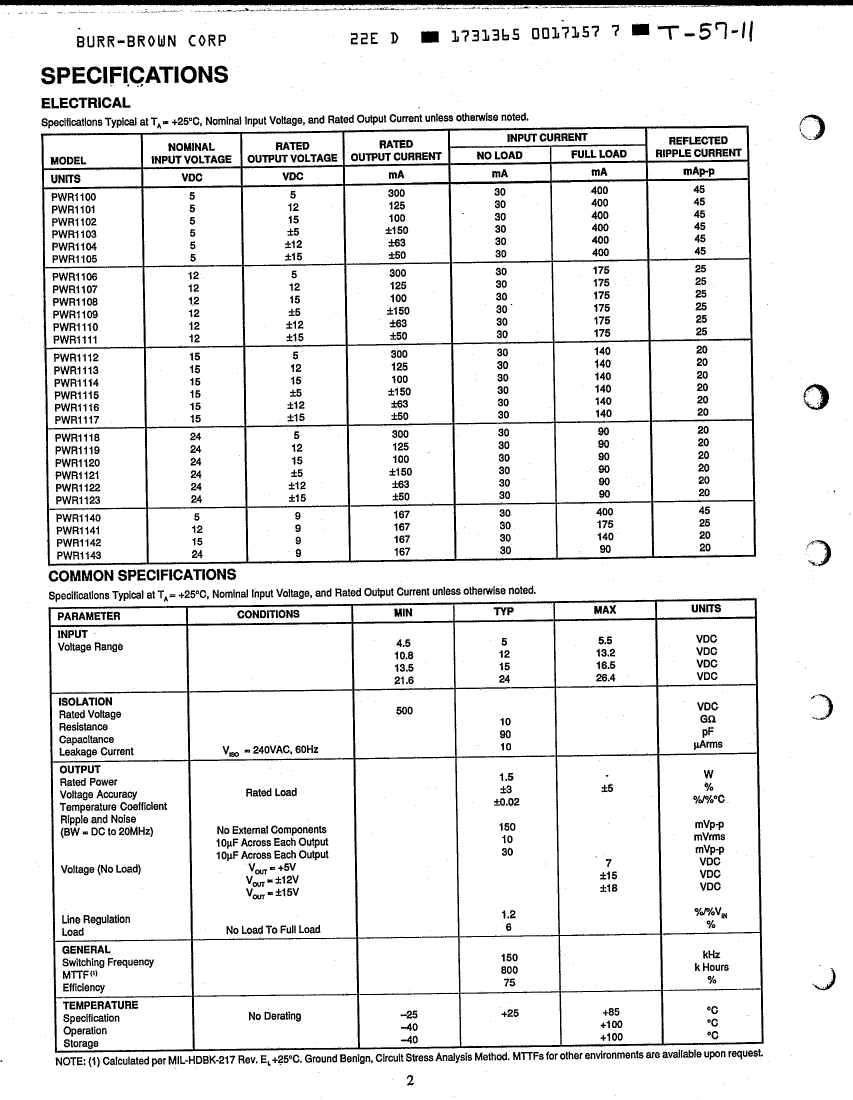

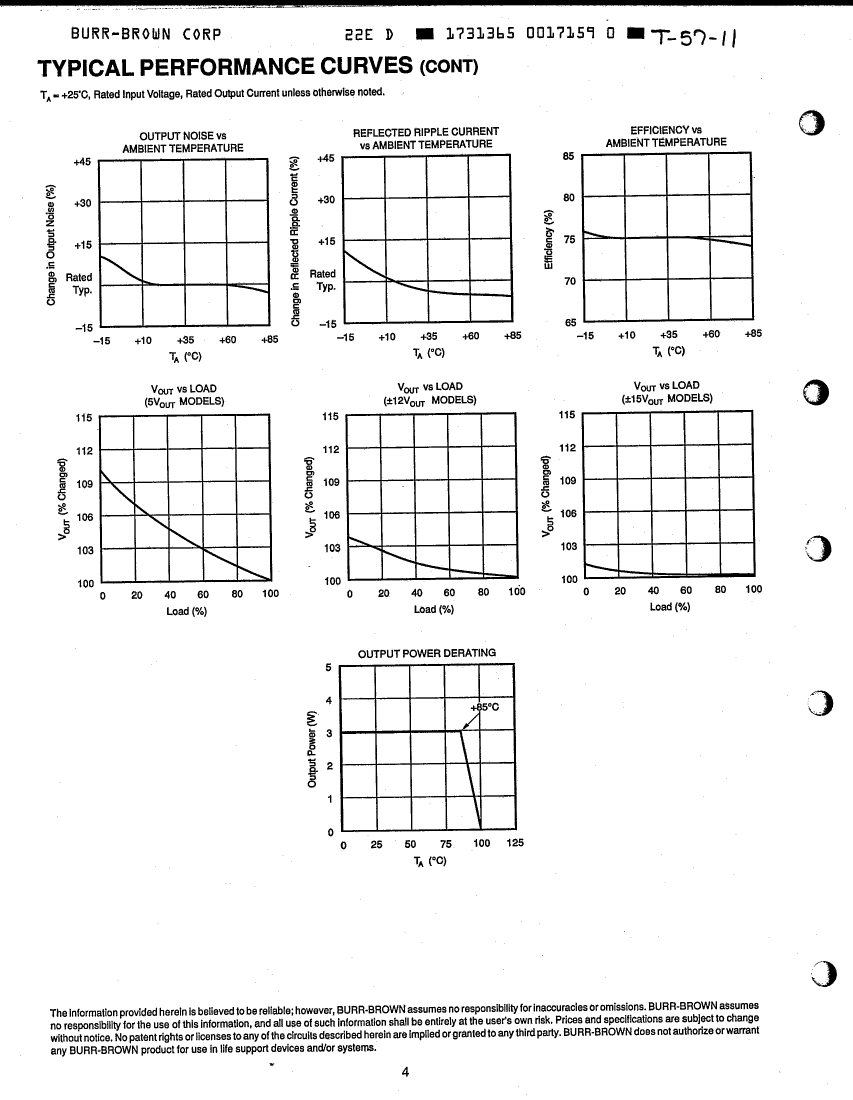

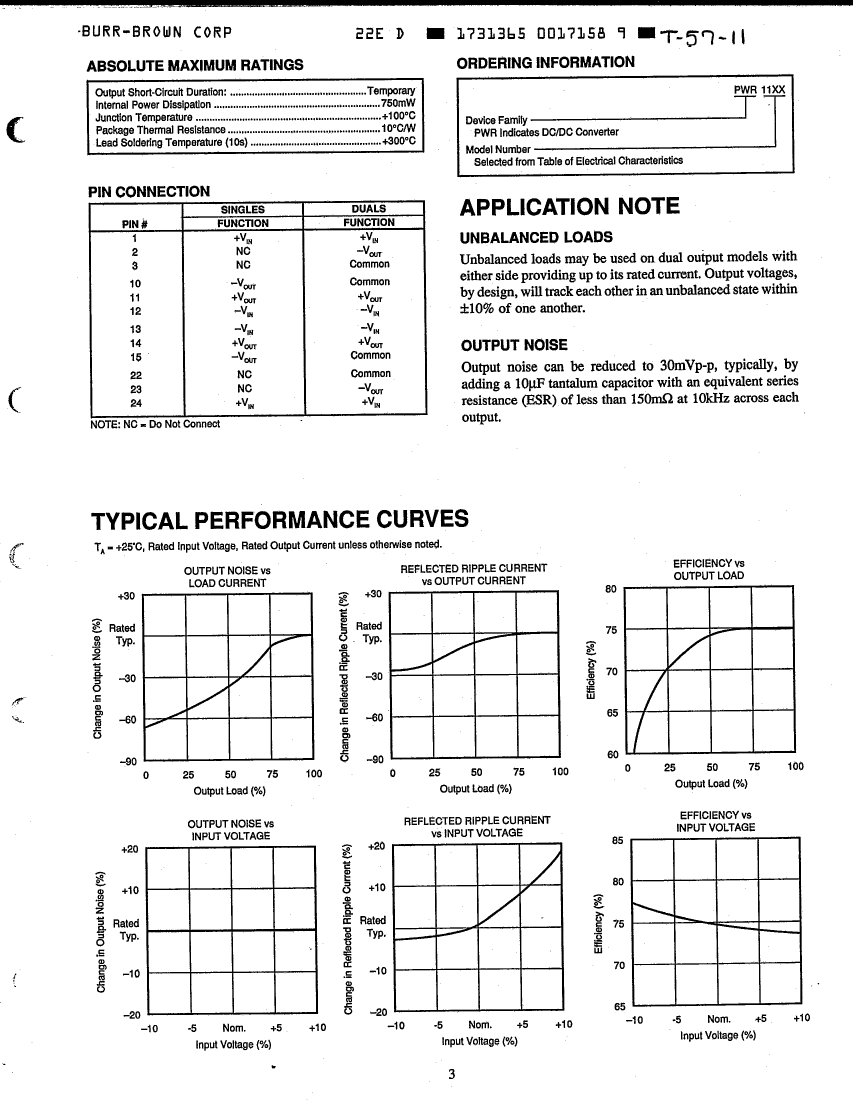

Parameter Name	Attribute value
Maker	Burr-Brown
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	57.6 V
Minimum input voltage	38.4 V
Nominal input voltage	48 V
JESD-30 code	R-PDIP-P12
Number of functions	1
Output times	1
Number of terminals	12
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Nominal output voltage	12 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Protect	CURRENT
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	3 W
Fine-tuning/adjustable output	NO
