PMB 8818T P
Contents
Product Program . . . . . . . . . . . . . . . . . . . . . . 2
Mechanical Data . . . . . . . . . . . . . . . . . . . . . . 2
Connections . . . . . . . . . . . . . . . . . . . . . . . . . 2
Absolute Maximum Ratings . . . . . . . . . . . . . 3
Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Qualification Specification . . . . . . . . 4
Safety Specification . . . . . . . . . . . . . . . . . . . 5
Adjusted to 1.0 Vout - Data . . . . . . . . . . . . . . 6
Adjusted to 1.2 Vout - Data . . . . . . . . . . . . . . 9
Adjusted to 1.5 Vout - Data . . . . . . . . . . . . . 12
Adjusted to 1.8 Vout - Data . . . . . . . . . . . . . 15
Adjusted to 2.5 Vout - Data . . . . . . . . . . . . . 18
Adjusted to 3.3 Vout - Data . . . . . . . . . . . . . 21
Adjusted to 5.0 Vout - Data . . . . . . . . . . . . . 24
EMC Specification . . . . . . . . . . . . . . . . . . . 27
.
Operating Information . . . . . . . . . . . . . . . . . 28
Thermal Considerations . . . . . . . . . . . . . . . 30
Soldering Information . . . . . . . . . . . . . . . . . 31
Delivery Package Information . . . . . . . . . . . 31
Compatibility with RoHS requirements . . . . 31
Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Sales Offices and Contact Information . . . . 32
DC/DC regulator
Input 8.3 - 16 V
Output 16 A
Key Features
• Wide input, 8.3 - 16 Vdc
• Programmable output, 0.75 - 5.5 Vdc
• Monotonic start up into pre-biased output
• Under voltage protection
• Short circuit protection
• Remote sense
• Remote On/Off
• Design for Environment (DfE)
• European Commission Directive 2002/95/EC
(RoHs) compliant

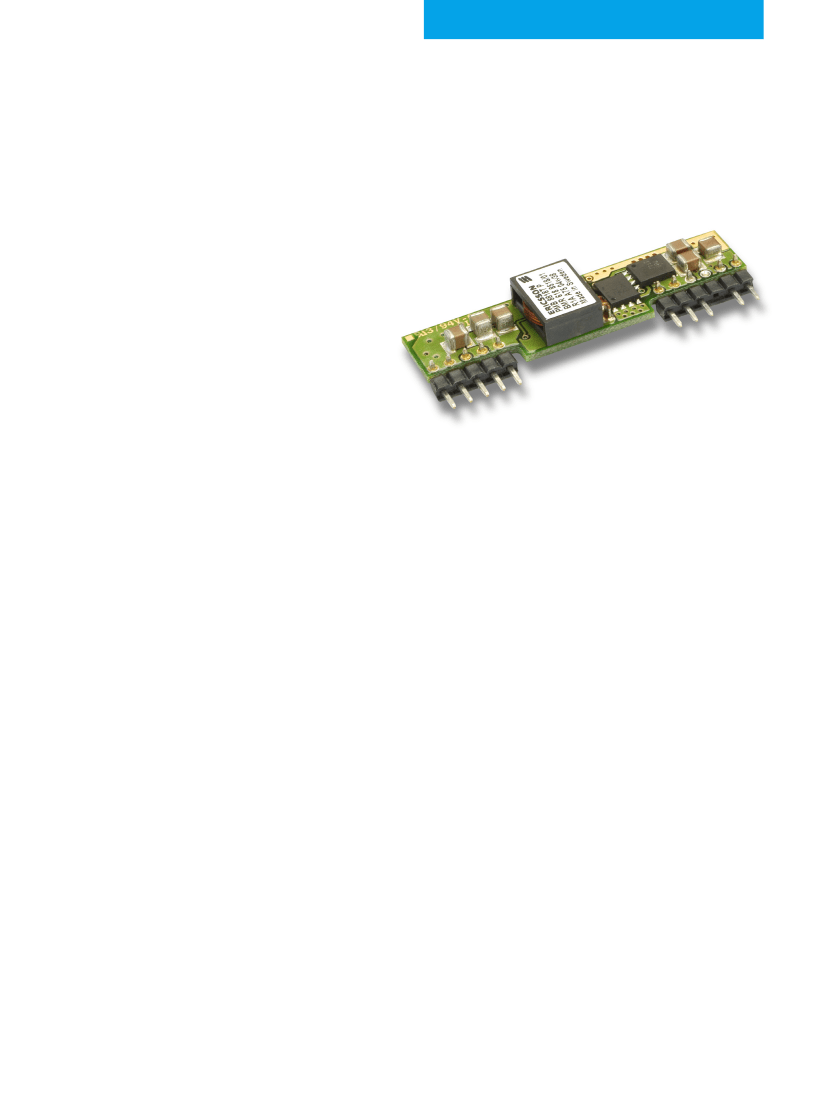

The PMB series of SIL DC/DC regulators (POL) are in-
tended to be used as local distributed power sources in
distributed power architecture. The single in-line design
makes the PMB series suitable for applications where
boardspace is limited. The high efficiency and high reli-
ability of the PMB series makes them particularly suited
for the communications equipment of today and tomor-
row.
These products are manufactured using the most advanced
technologies and materials to comply with environmental
requirements. Designed to meet high reliability requirements
of systems manufacturers, the PMB responds to world-class
specifications.
Ericsson Power Modules is an ISO 9001/14001 certified
supplier.
E
Datasheet
Product Program
V
O
/I
O
max
Output 1
0.75 - 5.50/16 A
1.0 V/16 A
1.2 V/16 A
1.5 V/16 A
8.3 - 16 V
1.8 V/16 A
2.5 V/16 A
3.3 V/16 A
5 V/16 A
V
I
8.3 - 16 V
P
O
max
80 W
16 W
19.2 W
24 W
28.8 W
40 W
52.8 W
80 W
Ordering No.
PMB 8818T P
PMB 8118NA P
PMB 8118LA P
PMB 8218H P
PMB 8218G P
PMB 8419 P
PMB 8510 P
PMB 8811 P
Comment
Released
On request
On request
On request
On request
On request
On request
On request
Option
Negative Remote Control logic
Suffix
N
Example
PMB 8818T PN
Mechanical Data
pin length 3,60 [0.142]
50,8 [2.00]
13,20 [0.520]
(Note 1)
Connections
Pin
1-2
3
1
Designation
+ Out
+ S
+ Out
GND
GND
+ In
Vadj
RC
Function
Output Voltage
Remote sensing
Output Voltage
Ground*
Ground*
Input Voltage
Output voltage adjust
2,54 [0.100] (7x)
35,56 [1.400]
48,26 [1.900]
(1,27 [0.05])
4
5
6
7,40 [0.291]
8,80 [0.346]
7-8
9
51,80 [2.039]
48,26 [1.900]
8,5 [0.33] max
pin length 3,60 [0.142]
10
50,8 [2.00]
Remote control
13,20 [0.520]
* Should be connected together through a ground plane.
(Note 1)
1 2 3 4 5
6 7 8
choke
9 10
1
m [inch]
s specified):
Recommended footprint (customer board), no components within border.
7,0 [0.27]
Holes: Ø1,0 [0.04] through plated holes with Ø1,5 [0.06] pads on both sides.
Note 1: For other pin lengths, refer to Product program/Ordering information
2,54 [0.100] (7x)
35,56 [1.400]
48,26 [1.900]
(1,27 [0.05])
]
7,40 [0.291]
9 10
pin length 3,60 [0.142]
8,5 [0.33] max
50,8 [2.00]
1
1
E
choke
1
Pins
2
Material: Copper alloy
6 7 8
3 4 5
Plating: Matte tin over nickel
7,0 [0.27]
2,54 in mm (7x)
Dimensions [0.100] [inch]
Tolerances (unless specified):
35,56 [1.400]
x,x +/-0,5 [0.02]
x,xx +/-0,25 [0.01]
48,26 [1.900]
51,80 [2.039]
48,26 [1.900]
(1,27 [0.05])
Recommended footprint (customer board), no components within
Holes: Ø1,0 [0.04] through plated holes with Ø1,5 [0.06] pads on b
Note 1: For other pin lengths, refer to Product program/Ordering in
7,40 [0.291]
8,80 [0.346]
PMB 8818T P Datasheet
1
EN/LZT 146 066 R2A © Ericsson Power Modules, April 2007
13,20 [0.520]
Weight
7.7g
51,80 [2.039]
48,26 [1.900]
(Note 1)
8,80 [0.346]
Absolute Maximum Ratings
Characteristics
T
ref
T
S
V
I
V
tr
V
RC
min
-45
-55
-0.3
-0.3
Negative logic
Positive logic
-0.3
-0.3
typ
max
+115
+125
16
40
16
16
Unit
˚C
˚C
Vdc
Vdc
Vdc
Vdc
Maximum Operating Temperature, see thermal considerations
Storage temperature
Input voltage
Input voltage transient
Remote control voltage
Stress in excess of Absolute Maximum Ratings may cause permanent damage. Absolute Maximum Ratings, sometimes referred to as no destruction limits, are
normally tested with one parameter at a time exceeding the limits of Output data or Electrical Characteristics. If exposed to stress above these limits, function
and performance may degrade in an unspecified manner.
Input
T
ref
= -30 ... +90 ˚C, V
I
= 8.3...16 V unless otherwise specified
Typ values specified at: T
ref
= +25 ˚C, V
I
nom, I
o
max = 16 A
Characteristics
VI
V
loff
V
Ion
Conditions
min
8.3
typ
12
7.8
8.0
30
max
16
Unit
V
V
V
µF
Input voltage range
Turn-off input voltage
Turn-on input voltage
Input capacitance
V
o
= 1.00 V
V
o
= 1.20 V
V
o
= 1.50 V
V
o
= 1.80 V
V
o
= 2.50 V
V
o
= 3.30 V
V
o
= 5.00 V
I
o
max
I
o
max
C
I
485
520
580
640
805
985
1280
40
170
190
210
250
310
350
450
580
625
695
770
965
1180
1520
mW
mW
mW
mW
mW
mW
mW
mW
mV
p-p
mV
p-p
mV
p-p
mV
p-p
mV
p-p
mV
p-p
mV
p-p
P
Ii
Input idling power
I
o
= 0 A, V
I
= 12 V
P
RC
Input stand-by power
V
I
= 12 V, RC activated
V
o
= 1.00 V
V
o
= 1.20 V
V
o
= 1.50 V
V
o
= 1.80 V
V
o
= 2.50 V
V
o
= 3.30 V
V
o
= 5.00 V
V
I
ac
Input ripple
1)
20 Hz ... 5 MHz
V
I
= 12 V, I
o =
1.0 x I
o
max
1) Measured with 4 x 4.7 µF ceramic capacitors
Fundamental Circuit Diagram
+IN
+OUT
+SENSE
GND
GND
PWM
controller
Vadj
Error
amplifier
Ref
RC
RC
Block
GND
GND
PMB 8818T P Datasheet
EN/LZT 146 066 R2A © Ericsson Power Modules, April 2007
Product Qualification Specification
Characteristics
Random Vibration
Mechanical shock
(half sinus)
Lead integrity
Temperature cycling
IEC 60068-2-64
IEC 60068-2-27
IEC 60068-2-21 Ub
JESD22-A104-B
G
Frequency
Acceleration density
Peak acceleration
Duration
Simultaneous bending
Temperature
Number of cycles
Temperature
Humidity
Duration
Bias
Solder immersion depth
Time for onset of wetting
Wetting force
Temperature
Duration
Temperature
Duration
5 ... 500 Hz
0.5 g
2
/Hz
50 g
11 ms
All leads
-40 ... +125 ˚C
300
+85 ˚C
85 % RH
1000 hours
max input voltage
2 mm
< 2.5 s
> 200 mN/m
-45 ˚C
72 h
+125 ˚C
1000 h
Accelerated damp heat
JESD22-A101-B
Solderability
IEC 60068-2-54
(Aged according to JESD22-A101-
B, 240h no bias)
IEC 60068-2-1
JESD22-A103-B
A
Cold (in operation)
High temperature storage
PMB 8818T P Datasheet
EN/LZT 146 066 R2A © Ericsson Power Modules, April 2007
Safety Specification
General information.
Ericsson Power Modules DC/DC converters and DC/DC regulators
are designed in accordance with safety standards
IEC/EN/UL 60 950,
Safety of Information Technology Equipment.
Isolated DC/DC converters.
It is recommended that a fast blow fuse with a rating
twice the maximum input current per selected product
be used at the input of each DC/DC converter. If an input filter is
used in the circuit the fuse should be placed in front of the input
filter.
In the rare event of a component problem in the input filter or in the
DC/DC converter that imposes a short circuit on the input source,
this fuse will provide the following functions:
• Isolate the faulty DC/DC converter from the input power source
so as not to affect the operation of other parts of the system.
• Protect the distribution wiring from excessive current and power
loss thus preventing hazardous overheating.
The galvanic isolation is verified in an electric strength test. The test
voltage (V
ISO
) between input and output is 1500 Vdc or 2250 Vdc for
60 seconds (refer to product specification). Leakage current is less
than 1µA at nominal input voltage.
IEC/EN/UL60950 contains requirements to prevent injury or
damage due to the following hazards:
• Electrical
shock
• Energy
hazards
• Fire
• Mechanical
and heat hazards
• Radiation
hazards
• Chemical
hazards
On-board DC-DC converters are defined as component power
supplies. As components they cannot fully comply with the
provisions of any Safety requirements without “Conditions of
Acceptability”. It is the responsibility of the installer to ensure that
the final product housing these components complies with the
requirements of all applicable Safety standards and Directives for
the final product.
24 V dc systems.
Component power supplies for general use should comply with
the requirements in IEC60950, EN60950 and UL60950 “Safety of
information technology equipment”.
The input voltage to the DC/DC converter is SELV (Safety Extra Low
Voltage) and the output remains SELV under normal and abnormal
operating conditions.
There are other more product related standards, e.g.
IEC61204-7 “Safety standard for power supplies",
IEEE802.3af “Ethernet LAN/MAN Data terminal equipment
power”, and ETS300132-2 “Power supply interface at the input
to telecommunications equipment; part 2: DC”, but all of these
standards are based on IEC/EN/UL60950 with regards to safety.
48 and 60 V dc systems.
If the input voltage to Ericsson Power Modules DC/DC converter
is 75 V dc or less, then the output remains SELV (Safety Extra Low
Voltage) under normal and abnormal operating conditions.
Single fault testing in the input power supply circuit should be
performed with the DC/DC converter connected to demonstrate
that the input voltage does not exceed 75 V dc.
If the input power source circuit is a DC power system, the source
may be treated as a TNV2 circuit and testing has demonstrated
compliance with SELV limits and isolation requirements equivalent
to Basic Insulation in accordance with IEC/EN/UL 60 950.
Ericsson Power Modules DC/DC converters and DC/DC regulators
are UL 60 950 recognized and certified in accordance with EN 60
950.
The flammability rating for all construction parts of the products
meets UL 94V-0.
The products should be installed in the end-use equipment, in
accordance with the requirements of the ultimate application.
Normally the output of the DC/DC converter is considered as SELV
(Safety Extra Low Voltage) and the input source must be isolated by
minimum Double or Reinforced Insulation from the primary circuit
(AC mains) in accordance with IEC/EN/UL 60 950.
Non-isolated DC/DC regulators.
The input voltage to the DC/DC regulator is SELV (Safety Extra Low
Voltage) and the output remains SELV under normal and abnormal
operating conditions.
It is recommended that a slow blow fuse with a rating
twice the maximum input current per selected product
be used at the input of each DC/DC regulator.
PMB 8818T P Datasheet
EN/LZT 146 066 R2A © Ericsson Power Modules, April 2007
京公网安备 11010802033920号
EEWORLD
