CX3225SBFREQ1D0FLJZZ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> CX3225SBFREQ1D0FLJZZ

Preview

CX3225SBFREQ1D0FLJZZ: DescriptionParallel - Fundamental Quartz Crystal, 12MHz Min, 13.999MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-4; CategoryPassive components Crystal/resonator; File Size141KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric Compare View All

CX3225SBFREQ1D0FLJZZ Overview

Parallel - Fundamental Quartz Crystal, 12MHz Min, 13.999MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-4

CX3225SBFREQ1D0FLJZZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kyocera
package instruction	ROHS COMPLIANT, CERAMIC PACKAGE-4
Reach Compliance Code	compliant
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.0015%
frequency tolerance	10 ppm
load capacitance	8 pF
Manufacturer's serial number	CX3225
Installation features	SURFACE MOUNT
Maximum operating frequency	13.999 MHz
Minimum operating frequency	12 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
physical size	L3.2XB2.5XH0.55 (mm)/L0.126XB0.098XH0.022 (inch)
Series resistance	300 Ω
surface mount	YES

Preview

Download Datasheet

View All

Crystal Units

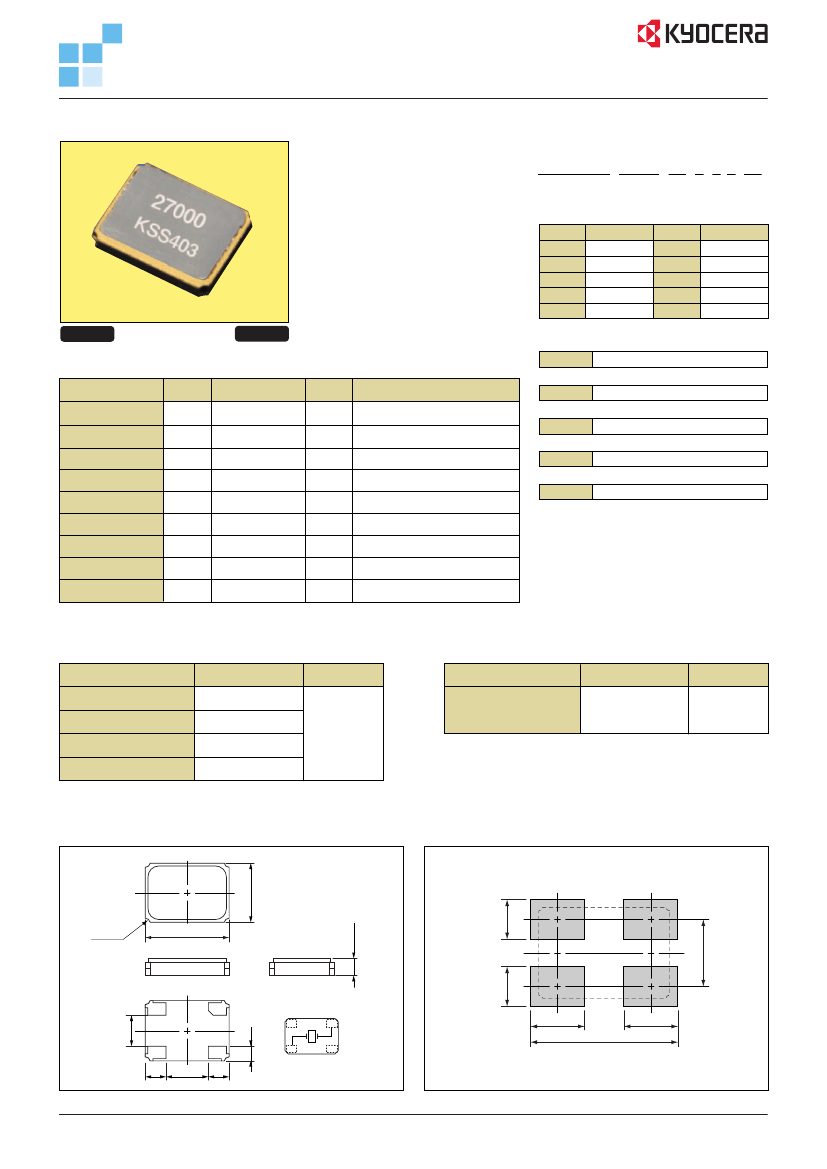

Surface Mount Type CX3225SB (CX-101F)

3.2×2.5mm for Mobile Communications, SRWI

How to Order

CX3225SB 26000 D0 F L J ZZ

①

②

③ ④ ⑤⑥ ⑦

①Code

②Typical

Frequencies

Code Freq.(kHz)

12000

12000.000

13000

13000.000

13560

13560.000

16000

16000.000

19200

19200.000

③Load

Capacitance

D0

8pF

Units

kHz

––––

10

-6

Features

• Reference frequency

for telecommunication systems

• Reflow compatible

• Using ceramic package resulting

in high reliability

• Small and low profile

Applications

• Mobile Communications, Bluetooth,

Wireless LAN

Code

20000

26000

32000

38400

40000

Freq.(kHz)

20000.000

26000.000

32000.000

38400.000

40000.000

Pb Free

RoHS Compliant

*Please inquire about frequencies other than the above.

Specifications

Items

Frequency Range

Overtone Order

Frequency Tolerance

Frequency Temp. Characteristics

Symbol

f

_nom

OT

f

_tol

f

_tem

R1

DL

CL

T

_use

T

_stg

Specification

12000 to 54000

Fundamental

10

15

Table 1

Table 2

8

30

to

85

40

to

85

Remarks

④Frequency

Stability

1010

-6

F

⑤Operating

Temperature Range

L

30°C

to

85°C

@ 25°C

ref.@ 25°C Over Operating Temp. Range

⑥Frequency

Temperature Stability

J

1510

-6

⑦Special

ZZ

Custom Specification

10

-6

ohm

W

pF

°C

Motional Series Resistance

Level of Drive

Load Capacitance

Operating Temp. Range

Storage Temp. Range

* Please inqurie about specifications other than the above.

Table1 Motional Series Resistances

Frequency Range

12000 to 13999kHz

14000 to 15999kHz

16000 to 26999kHz

27000 to 54000kHz

Motional Series Resistance

300

200

100

50

ohm

Units

Table2 Level of Drive

Frequency Range

12000 to 54000kHz

Level of Drive

10 (100 max.)

Units

W

Dimensions

#4

#3

2.50.1

(Unit : mm)

Recommended Land Pattern

(Unit : mm)

4-R0.2

3.20.1

0.550.05

#1

#2

1.05

#1

#2

GND

0.75

CONNECTION

#4 (TOP VIEW) #3

HOT

1.05

1.0

1.3

3.6

1.3

HOT

#4

1.0

1.2

1.0

#3

#1

#2

GND

1.85

CX3225SBFREQ1D0FLJZZ Related Products

	CX3225SBFREQ1D0FLJZZ	CX3225SBFREQ3D0FLJZZ	CX3225SBFREQ2D0FLJZZ	CX3225SBFREQ4D0FLJZZ
Description	Parallel - Fundamental Quartz Crystal, 12MHz Min, 13.999MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-4	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 16 MHz - 26.999 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 14 MHz - 15.999 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4	Parallel - Fundamental Quartz Crystal, 27MHz Min, 54MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-4
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	unknown	unknown	compliant
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	10 µW	10 µW	10 µW	10 µW
frequency stability	0.0015%	0.0015%	0.0015%	0.0015%
frequency tolerance	10 ppm	10 ppm	10 ppm	10 ppm
load capacitance	8 pF	8 pF	8 pF	8 pF
Manufacturer's serial number	CX3225	CX3225	CX3225	CX3225
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	13.999 MHz	26.999 MHz	15.999 MHz	54 MHz
Minimum operating frequency	12 MHz	16 MHz	14 MHz	27 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C
physical size	L3.2XB2.5XH0.55 (mm)/L0.126XB0.098XH0.022 (inch)	L3.2XB2.5XH0.55 (mm)/L0.126XB0.098XH0.022 (inch)	L3.2XB2.5XH0.55 (mm)/L0.126XB0.098XH0.022 (inch)	L3.2XB2.5XH0.55 (mm)/L0.126XB0.098XH0.022 (inch)
Series resistance	300 Ω	100 Ω	200 Ω	50 Ω
