CPT40060D datasheet, PDF - EEWORLD Datasheet

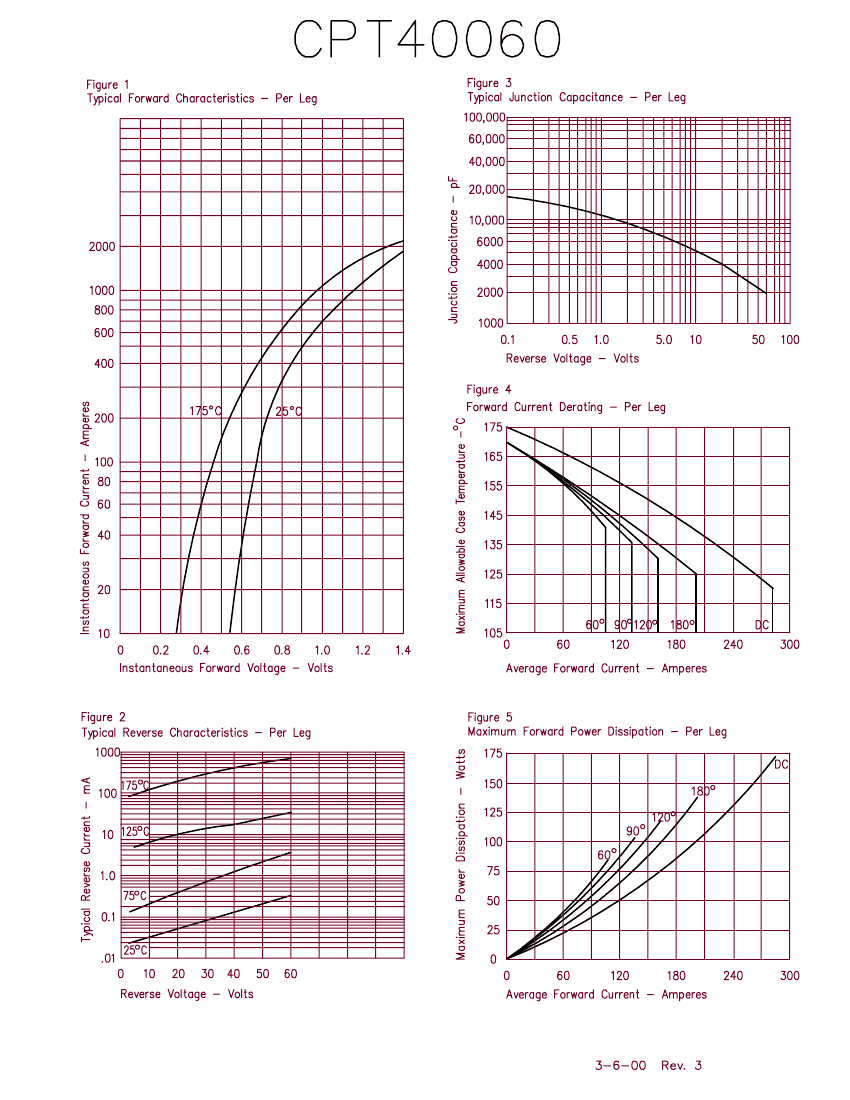

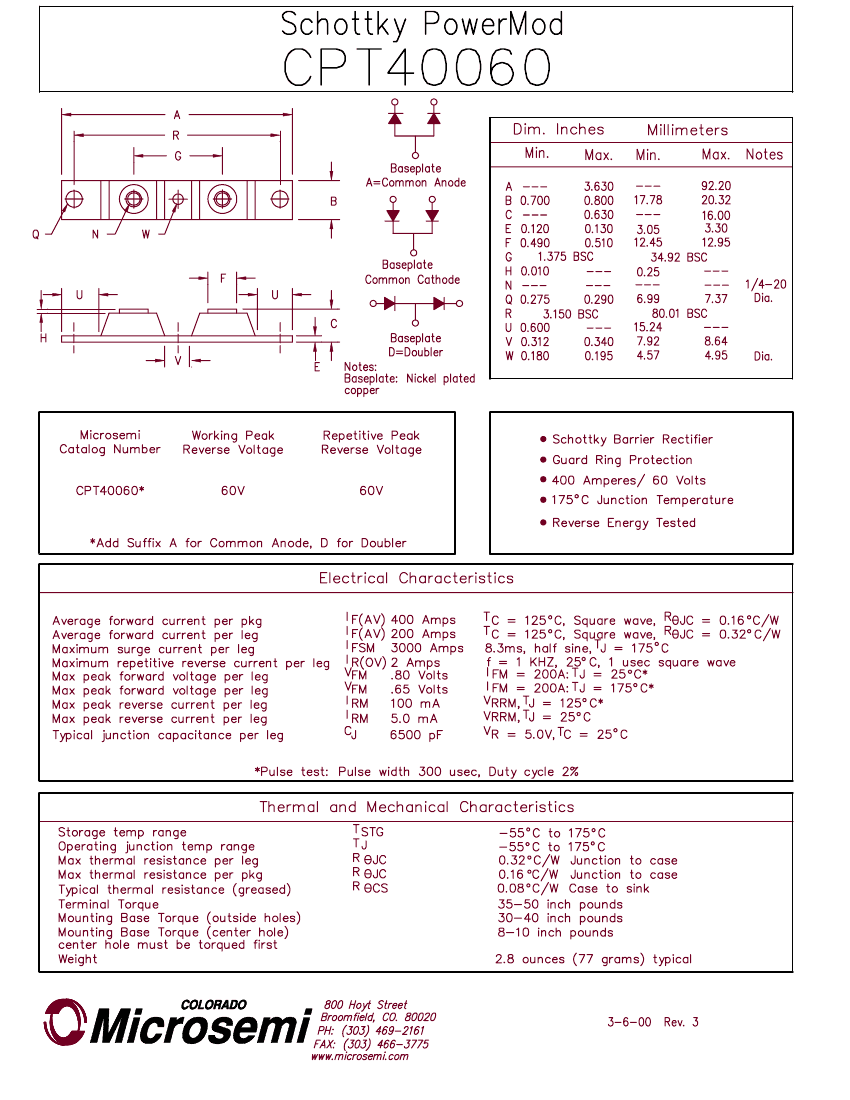

CPT40060D: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 200A, 60V V(RRM), Silicon, PACKAGE-2; CategoryDiscrete semiconductor diode; File Size145KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Environmental Compliance

Download Datasheet Parametric Compare View All

CPT40060D Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 200A, 60V V(RRM), Silicon, PACKAGE-2

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Microsemi
package instruction	PACKAGE-2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
application	POWER
Shell connection	ANODE AND CATHODE
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.8 V
JESD-30 code	R-XUFM-X2
Maximum non-repetitive peak forward current	3000 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	200 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	60 V
surface mount	NO
technology	SCHOTTKY
Terminal form	UNSPECIFIED
Terminal location	UPPER

	CPT40060D	CPT40060A
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 200A, 60V V(RRM), Silicon, PACKAGE-2	Rectifier Diode, Schottky, 1 Phase, 2 Element, 200A, 60V V(RRM), Silicon, PACKAGE-2
Is it Rohs certified?	conform to	conform to
Maker	Microsemi	Microsemi
package instruction	PACKAGE-2	PACKAGE-2
Contacts	2	2
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
application	POWER	POWER
Shell connection	ANODE AND CATHODE	ANODE
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.8 V	0.8 V
JESD-30 code	R-XUFM-X2	R-XUFM-X2
Maximum non-repetitive peak forward current	3000 A	3000 A
Number of components	2	2
Phase	1	1
Number of terminals	2	2
Maximum operating temperature	175 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C
Maximum output current	200 A	200 A
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	60 V	60 V
surface mount	NO	NO
technology	SCHOTTKY	SCHOTTKY
Terminal form	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER
