26LS32/B2A-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> 26LS32/B2A-T

26LS32/B2A-T: DescriptionIC QUAD LINE RECEIVER, CQCC20, CERAMIC, LCC-20, Line Driver or Receiver; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size100KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Related ProductsFound20parts with similar functions to 26LS32/B2A-T

Download Datasheet Parametric Compare View All

26LS32/B2A-T Overview

IC QUAD LINE RECEIVER, CQCC20, CERAMIC, LCC-20, Line Driver or Receiver

26LS32/B2A-T Parametric

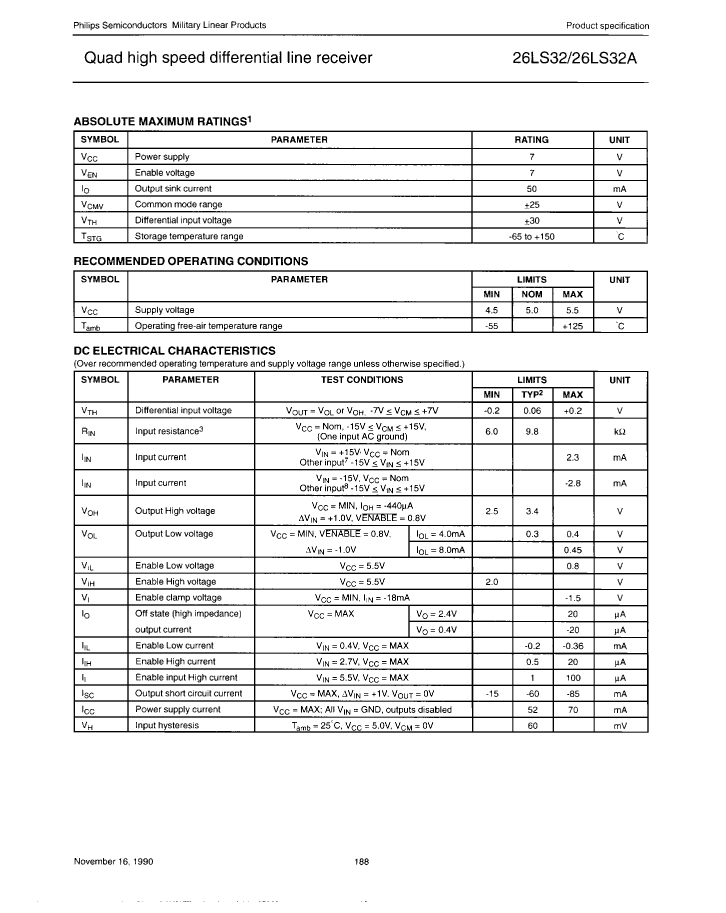

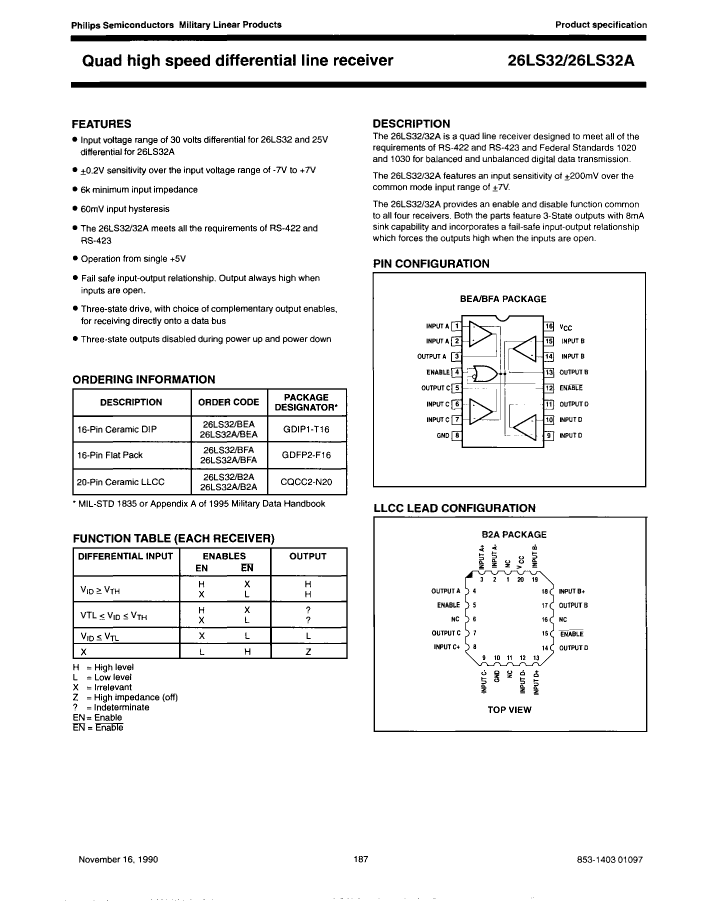

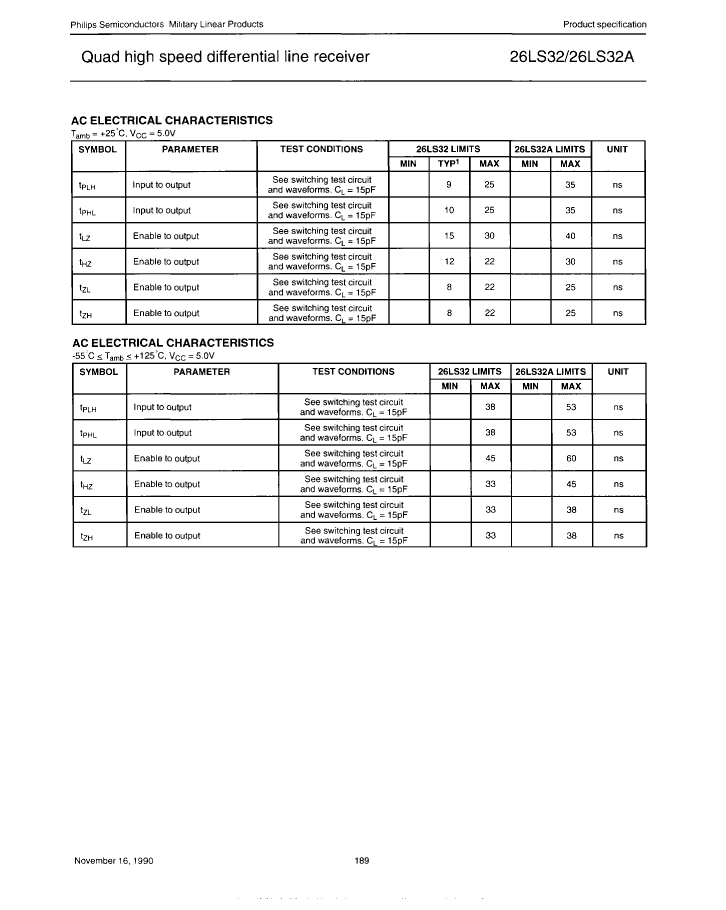

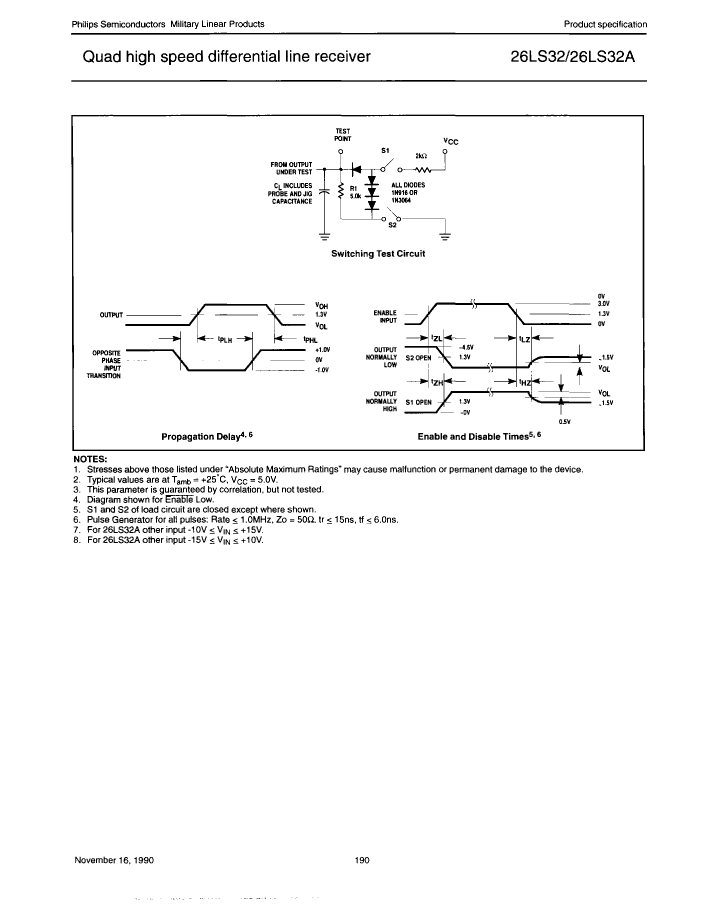

Parameter Name	Attribute value
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	20
Reach Compliance Code	unknow
ECCN code	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER
Interface standards	EIA-422; EIA-423; FED STD 1020; FED STD 1030
JESD-30 code	S-CQCC-N20
length	8.89 mm
Number of functions	4
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum receive delay	38 ns
Number of receiver bits	1
Maximum seat height	1.905 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.89 mm
Base Number Matches	1

Preview

Download Datasheet

View All

26LS32/B2A-T Related Products

	26LS32/B2A-T	26LS32/BEA	26LS32/BFA-T	26LS32/BFA	26LS32A/BEA	26LS32A/BFA	26LS32A/BFA-T	26LS32A/B2A-T	26LS32A/B2A	26LS32/B2A
Description	IC QUAD LINE RECEIVER, CQCC20, CERAMIC, LCC-20, Line Driver or Receiver	IC QUAD LINE RECEIVER, CDIP16, CERAMIC, DIP-16, Line Driver or Receiver	IC QUAD LINE RECEIVER, CDFP16, CERAMIC, DFP-16, Line Driver or Receiver	IC QUAD LINE RECEIVER, CDFP16, CERAMIC, DFP-16, Line Driver or Receiver	IC QUAD LINE RECEIVER, CDIP16, CERAMIC, DIP-16, Line Driver or Receiver	IC QUAD LINE RECEIVER, CDFP16, CERAMIC, DFP-16, Line Driver or Receiver	IC QUAD LINE RECEIVER, CDFP16, CERAMIC, DFP-16, Line Driver or Receiver	IC QUAD LINE RECEIVER, CQCC20, CERAMIC, LCC-20, Line Driver or Receiver	IC QUAD LINE RECEIVER, CQCC20, CERAMIC, LCC-20, Line Driver or Receiver	IC QUAD LINE RECEIVER, CQCC20, CERAMIC, LCC-20, Line Driver or Receiver
Parts packaging code	QLCC	DIP	DFP	DFP	DIP	DFP	DFP	QLCC	QLCC	QLCC
package instruction	QCCN,	DIP,	DFP,	DFP,	DIP,	DFP,	DFP,	QCCN,	QCCN,	QCCN,
Contacts	20	16	16	16	16	16	16	20	20	20
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER
Interface standards	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030
JESD-30 code	S-CQCC-N20	R-GDIP-T16	R-CDFP-F16	R-CDFP-F16	R-GDIP-T16	R-CDFP-F16	R-CDFP-F16	S-CQCC-N20	S-CQCC-N20	S-CQCC-N20
Number of functions	4	4	4	4	4	4	4	4	4	4
Number of terminals	20	16	16	16	16	16	16	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	DIP	DFP	DFP	DIP	DFP	DFP	QCCN	QCCN	QCCN
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	IN-LINE	FLATPACK	FLATPACK	IN-LINE	FLATPACK	FLATPACK	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum receive delay	38 ns	38 ns	38 ns	38 ns	53 ns	53 ns	53 ns	53 ns	53 ns	38 ns
Number of receiver bits	1	1	1	1	1	1	1	1	1	1
Maximum seat height	1.905 mm	5.08 mm	2.159 mm	2.159 mm	5.08 mm	2.159 mm	2.159 mm	1.905 mm	1.905 mm	1.905 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	NO	YES	YES	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE	FLAT	FLAT	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	QUAD	QUAD	QUAD
width	8.89 mm	7.62 mm	6.731 mm	6.731 mm	7.62 mm	6.731 mm	6.731 mm	8.89 mm	8.89 mm	8.89 mm
Base Number Matches	1	1	1	1	1	1	1	1	1	1
length	8.89 mm	19.535 mm	-	-	19.535 mm	-	-	8.89 mm	8.89 mm	8.89 mm
