SF1606G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SF1606G

SF1606G: DescriptionRectifier Diode, 1 Phase, 2 Element, 16A, 400V V(RRM), Silicon, TO-220AB, PLASTIC PACKAGE-3; CategoryDiscrete semiconductor diode; File Size321KB，3 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric Compare View All

SF1606G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SF1606G	-	-	View	Buy Now

SF1606G Overview

Rectifier Diode, 1 Phase, 2 Element, 16A, 400V V(RRM), Silicon, TO-220AB, PLASTIC PACKAGE-3

SF1606G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fagor Electrónica
Parts packaging code	TO-220AB
package instruction	PLASTIC PACKAGE-3
Contacts	3
Reach Compliance Code	not_compliant
application	ULTRA FAST RECOVERY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e3
Maximum non-repetitive peak forward current	125 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	16 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal surface	TIN
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

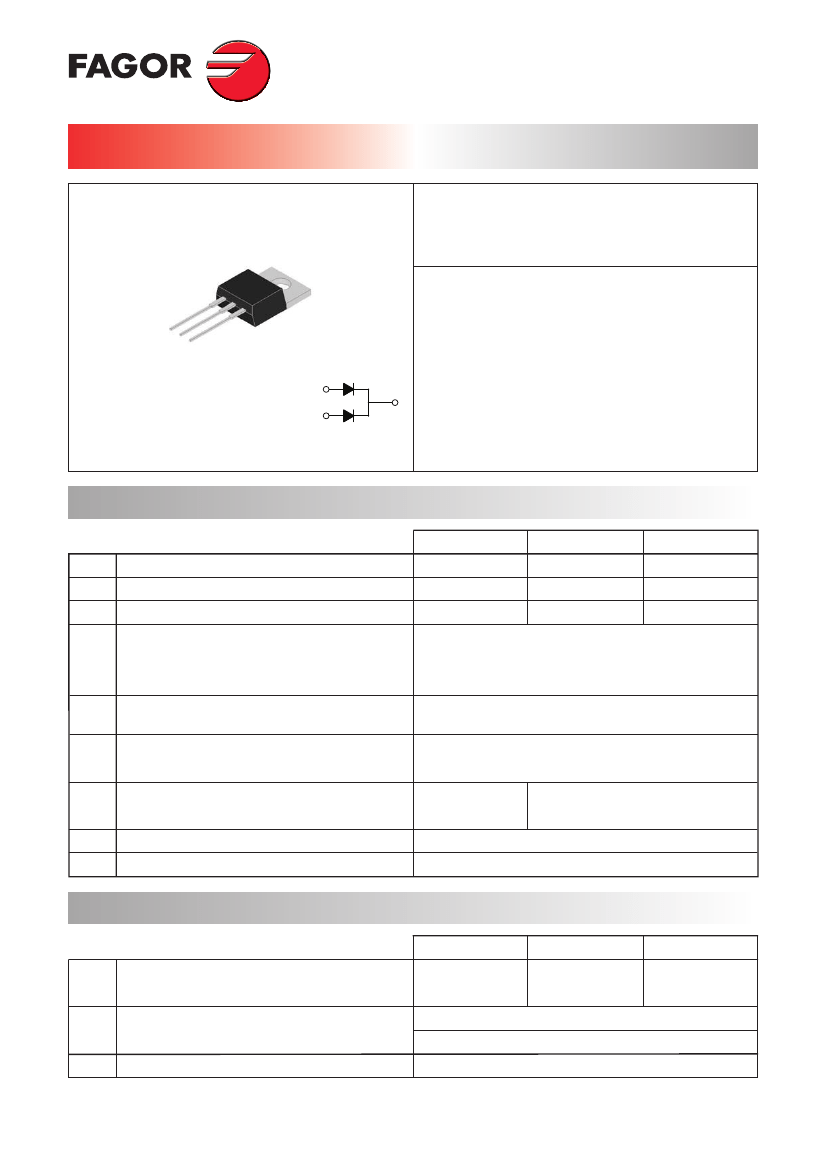

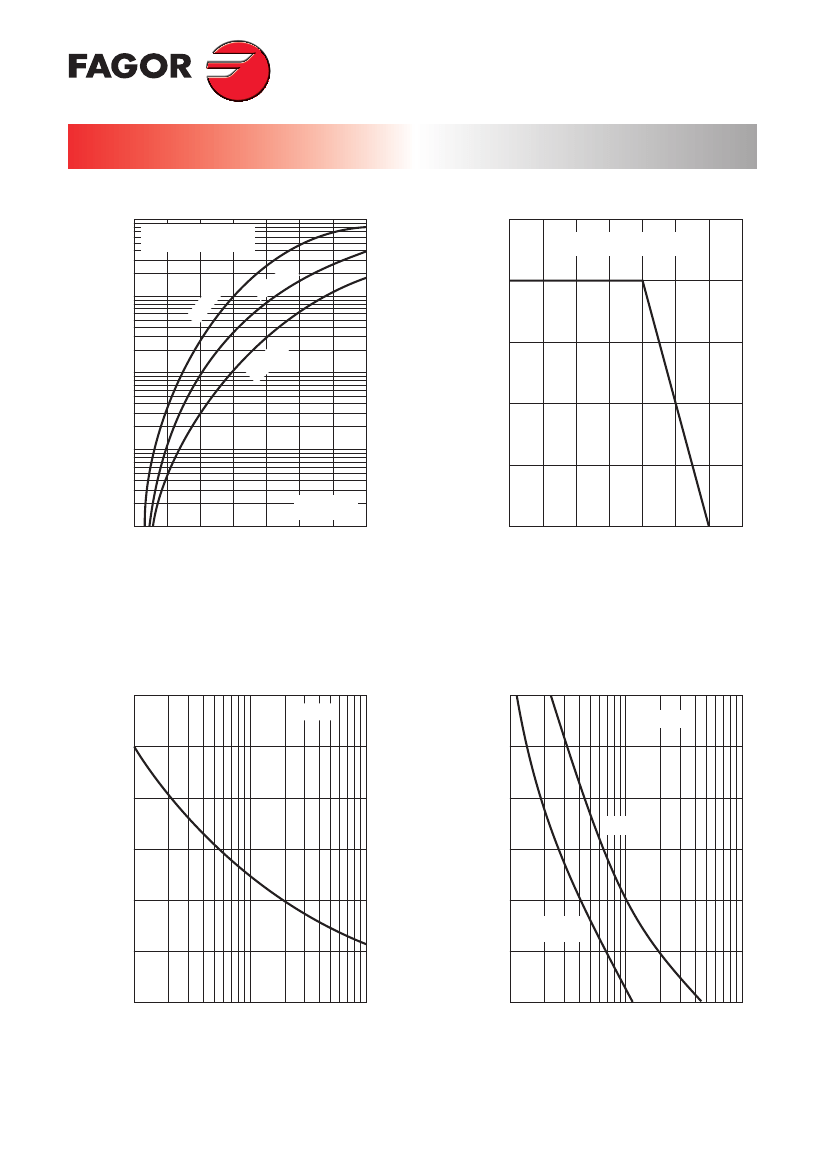

SF16G

16 Amp. Glass Passivated Ultrafast Recovery Rectifier

TO-220AB

Voltage

200 to 600 V

• Glass Passivated Junction

• High current capability

Current

16 A

• The plastic material

U/L recognition 94 V-0

Case

• Terminals: Leads solderable per

MIL-STD202

• Low forward Voltage drop

Common Cathode

Suffix "C"

Absolute Maximum Ratings, according to IEC publication No. 134

SF1604G

200

140

200

RRM

RMS

F (AV)

Peak recurrent reverse voltage (V)

Maximum RMS voltage (V)

Maximum DC blocking voltage (V)

Maximum Average Forward current

at T

= 100 °C

(both diodes conducting)

8.3 ms. peak forward surge current

(Jedec Method)

SF1606G

400

280

400

16 A

SF1608G

600

420

600

FSM

stg

125 A

35 ns

80 pF

60 pF

– 65 to + 150 °C

Max. reverse recovery time from

= 0.5 A ; I

= 1 A ; I

= 0.25 A

Typical Junction Capacitance at 1 MHz

and reverse voltaje of 4V

Operating temperature range

Storage temperature range

Electrical Characteristics

SF1604G

thj-C

Max. forward voltage drop

at I

= 8 A

Max. Instantaneous reverse

current at V

= V

RRMax

Typical Thermal Resistance

= 25 °C

= 100 °C

0.975 V

SF1606G

1.3 V

10 µA

400 µA

1.5 °C/W

SF1608G

1.7 V

Jul - 07

SF1606G Related Products

	SF1606G	SF1608GC	SF1604G	SF1608G
Description	Rectifier Diode, 1 Phase, 2 Element, 16A, 400V V(RRM), Silicon, TO-220AB, PLASTIC PACKAGE-3	Rectifier Diode,	Rectifier Diode, 1 Phase, 2 Element, 16A, 200V V(RRM), Silicon, TO-220AB, PLASTIC PACKAGE-3	Rectifier Diode, 1 Phase, 2 Element, 16A, 600V V(RRM), Silicon, TO-220AB, PLASTIC PACKAGE-3
Reach Compliance Code	not_compliant	compliant	not_compliant	not_compliant
Is it lead-free?	Lead free	-	Lead free	Lead free
Is it Rohs certified?	conform to	-	conform to	conform to
Maker	Fagor Electrónica	-	Fagor Electrónica	Fagor Electrónica
Parts packaging code	TO-220AB	-	TO-220AB	TO-220AB
package instruction	PLASTIC PACKAGE-3	-	R-PSFM-T3	R-PSFM-T3
Contacts	3	-	3	3
application	ULTRA FAST RECOVERY	-	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	CATHODE	-	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	-	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	-	SILICON	SILICON
Diode type	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	TO-220AB	-	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	-	R-PSFM-T3	R-PSFM-T3
JESD-609 code	e3	-	e3	e3
Maximum non-repetitive peak forward current	125 A	-	125 A	125 A
Number of components	2	-	2	2
Phase	1	-	1	1
Number of terminals	3	-	3	3
Maximum operating temperature	150 °C	-	150 °C	150 °C
Minimum operating temperature	-65 °C	-	-65 °C	-65 °C
Maximum output current	16 A	-	16 A	16 A
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	-	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	-	200 V	600 V
Maximum reverse recovery time	0.035 µs	-	0.035 µs	0.035 µs
surface mount	NO	-	NO	NO
Terminal surface	TIN	-	TIN	TIN
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	-	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
