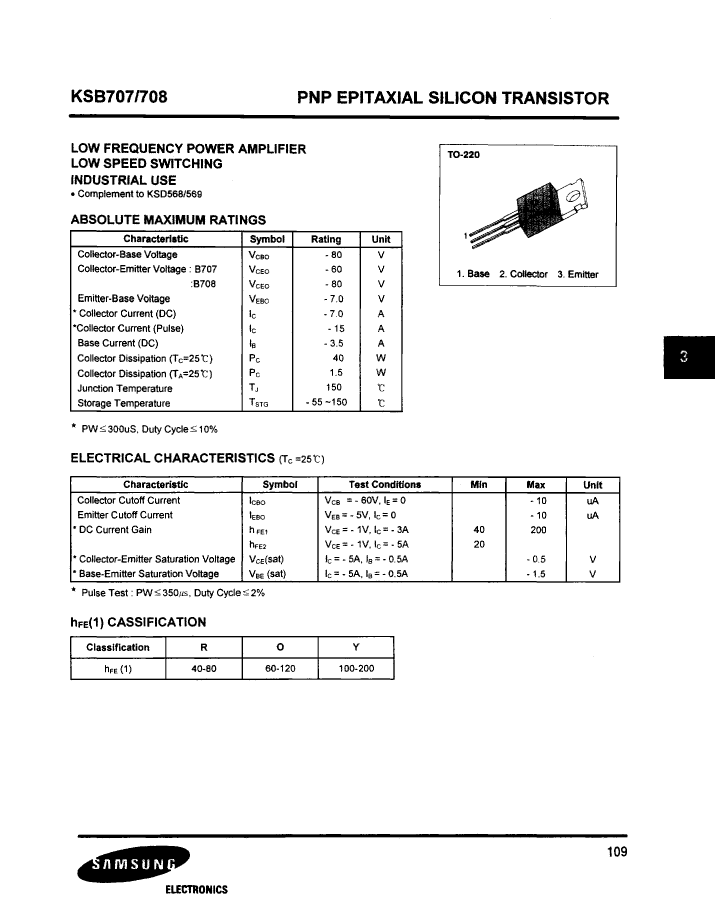

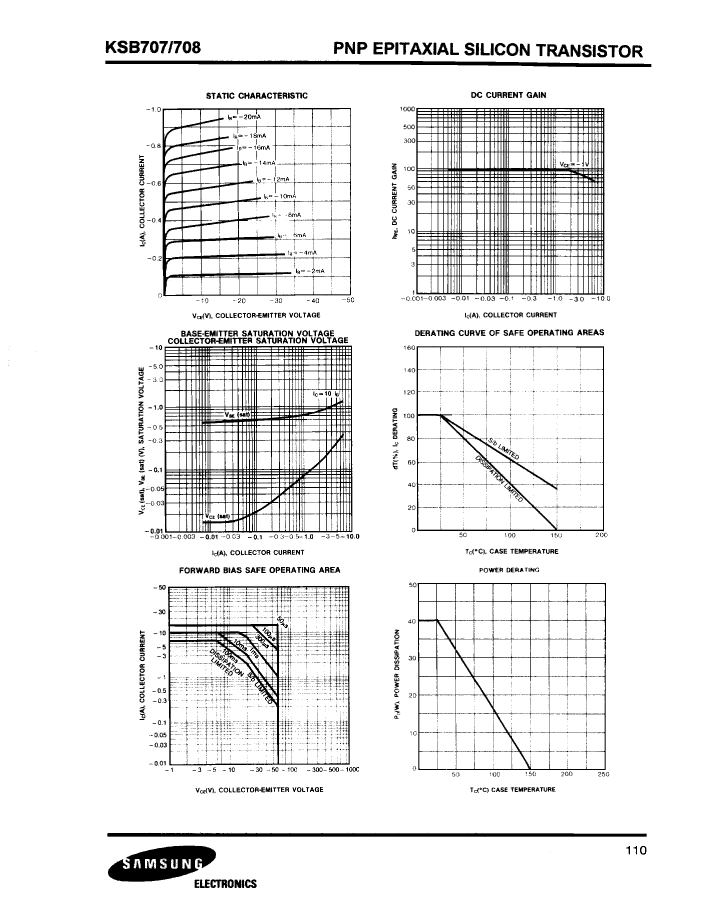

KSB708-R: DescriptionPower Bipolar Transistor, 7A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size85KB，2 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KSB708-R Overview

Power Bipolar Transistor, 7A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN

KSB708-R Parametric

Parameter Name	Attribute value
Maker	SAMSUNG
Parts packaging code	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	7 A
Collector-emitter maximum voltage	80 V
Configuration	SINGLE
Minimum DC current gain (hFE)	40
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Maximum power consumption environment	40 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
VCEsat-Max	0.5 V

Preview

Download Datasheet

View All

KSB708-R Related Products

	KSB708-R	KSB707-Y	KSB707-O	KSB708-Y	KSB707-R	KSB708	KSB708-O
Description	Power Bipolar Transistor, 7A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 7A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 7A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 7A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 7A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 7A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 7A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN
Parts packaging code	SFM	SFM	SFM	SFM	SFM	SFM	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	TO-220, 3 PIN	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	TO-220, 3 PIN
Contacts	3	3	3	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	7 A	7 A	7 A	7 A	7 A	7 A	7 A
Collector-emitter maximum voltage	80 V	60 V	60 V	80 V	60 V	80 V	80 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	40	100	60	100	40	20	60
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maker	SAMSUNG	SAMSUNG	-	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
Maximum power consumption environment	40 W	40 W	40 W	40 W	40 W	-	40 W
VCEsat-Max	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	-	0.5 V
