ROS-EDR6283/2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> ROS-EDR6283/2

ROS-EDR6283/2: DescriptionVoltage Controlled Oscillator, 1050MHz Min, 1580MHz Max; CategoryPassive components oscillator; File Size90KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ROS-EDR6283/2 Overview

Voltage Controlled Oscillator, 1050MHz Min, 1580MHz Max

ROS-EDR6283/2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Other features	TAPE AND REEL
Maximum control voltage	20 V
Minimum control voltage	1 V
JESD-609 code	e0
Modulation sensitivity	48 MHz/V
Installation features	SURFACE MOUNT
offset frequency	1 kHz
Maximum operating frequency	1580 MHz
Minimum operating frequency	1050 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	8 dBm
phase noise	-80 dBc/Hz
physical size	12.7mm x 12.7mm x 4.572mm
Maximum slew rate	30 mA
Nominal supply voltage	10 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

Engineering Development Model

Voltage Controlled Oscillator

Important Note

This model has been designed, built and tested in our engineering

department. Performance data represents model capability.

At present it is a non-catalog model. On request, we can supply a

final specification sheet, part number and price/delivery information.

Please click "Back", and then click "Contact Us" for Applications support.

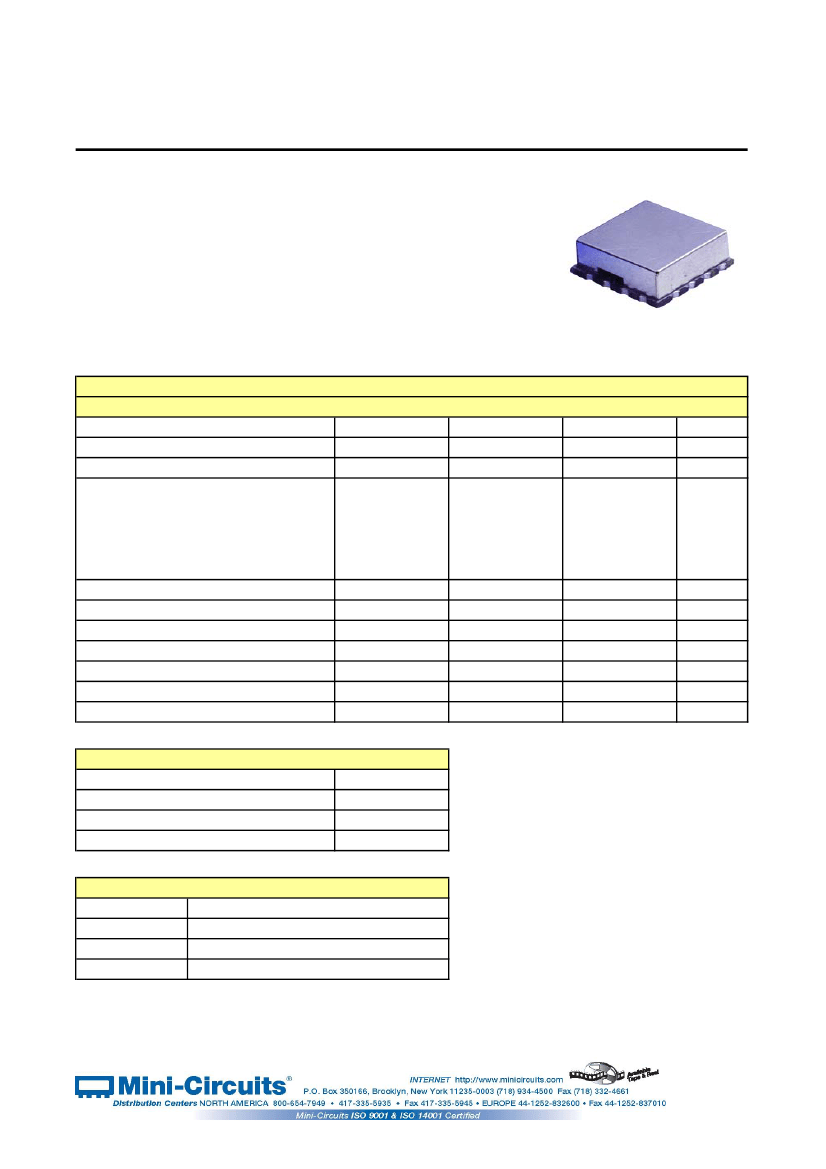

CASE STYLE : CK605

ROS-EDR6283/2

ELECTRICAL SPECIFICATIONS 50Ω

Parameter

Frequency

Tuning

Voltage

Power Output

Min.

1050

Typ.

Max.

1580

-80

-105

-127

-147

0.5

26 - 48

-13

170000

Units

MHz

dBm

dBc/Hz

MHz

MHz/V

dBc

kHz

Phase Noise

at 1 kHz offset

at 10 KHz offset

at 100 KHz offset

at 1000 kHz offset

Pulling at 12 dBr PK-PK all phases

Pushing at Vcc=5V±0.25V

Tuning Sensitivity

Harmonic Suppression

3 dB Modulation Bandwidth

Supply Voltage

Supply Current

MAXIMUM RATINGS

Operating Temperature

Storage Temperature

Absolute Supply Voltage (Vcc)

Absolute Tuning Voltage (Vtune)

-4

-55°C to 85°C

-55°C to 100°C

+12V

+22V

RF OUT

VCC

V-TUNE

GROUND

PIN CONNECTIONS

1,3,4,5,6,7,8,9,11,12,13,15,16

REV. X1

ROS-EDR6283/2

60522
