HAS SERIES - 30 WATT
DESCRIPTION

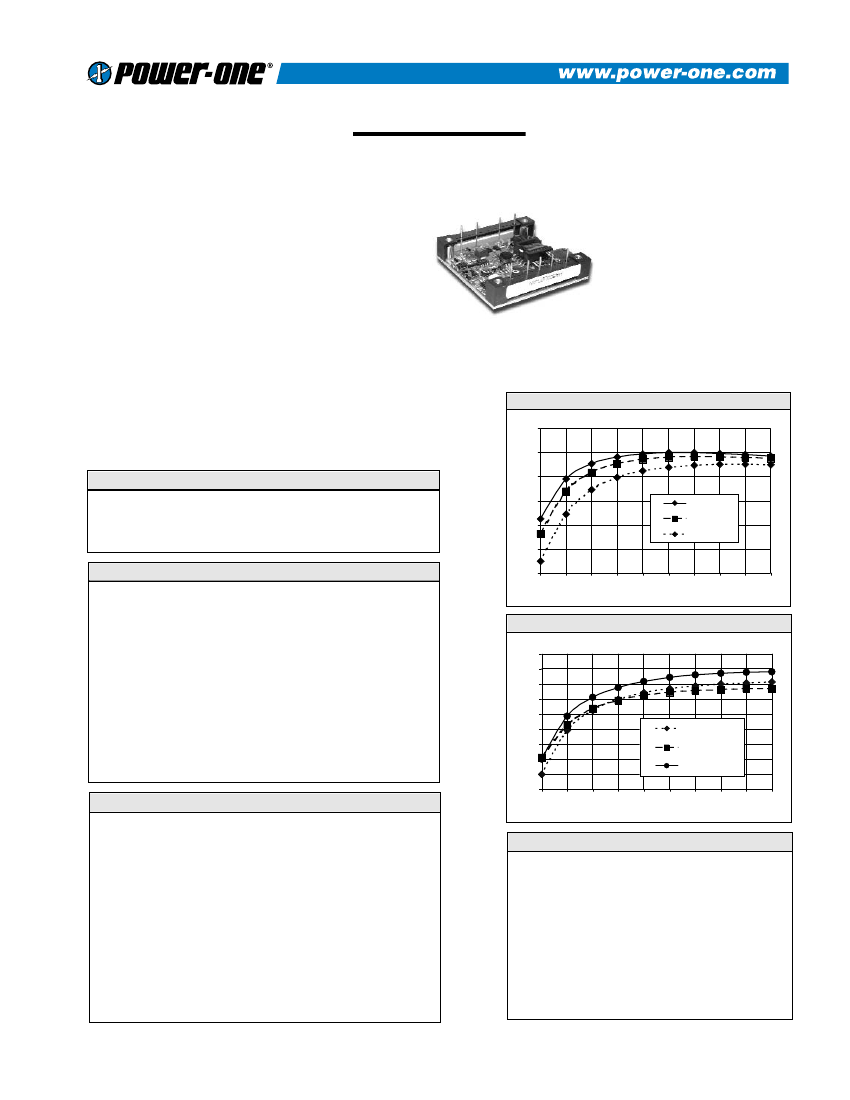

HAS DC/DC converters provide up to 30 watts of
output power in an industry-standard package and
footprint. With a maximum case temperature of
100°C, the HAS is well suited for the most
demanding telecom, networking, and industrial
applications. The HAS features 1500 VDC isolation,
short circuit, and overtemperature protection, as well
as six-sided shielding. The HAS series is available
with optional enable and voltage trim pins. Please see
the IAD series for dual output applications.
FEATURES
• Industry Standard
Half-Brick
• Low-Cost Design
• 100°C Baseplate
Operation
• Open-Frame Packaging
• 24V and 48V Input
Versions
• Input Pi Filter
• Optional Enable Logic
• 1500V Isolation
Efficiency vs. Load (24V Input)
90
TECHNICAL SPECIFICATIONS
Input
Voltage Range
24 VDC Nominal
48 VDC Nominal
Reflected Ripple
Output
Setpoint Accuracy
Line Regulation Vin Min. - Vin Max., Iout Rated
Load Regulation Iout Min. - Iout Max., Vin Nom.
Remote Sense Headroom
Minimum Output Current
Dynamic Regulation, Loadstep
Pk Deviation
Settling Time
Voltage Trim Range
Short Circuit / Overcurrent Protection
Current Limit Threshold Range, % of Iout Rated
OVP Trip Range
Remote Shutdown Reference
Shutdown Pin Current, Sourced At Off
General
Turn-On Time
Remote Shutdown
Switching Frequency
Isolation
Input - Output
Input - Case
Output - Case
Temperature Coefficient
Case Temperature
Operating Range
Storage Range
Humidity Max., Non-Condensing
Vibration, 3 Axes, 5 Min Each
MTBF† (Bellcore TR-NWT-000332)
Safety
Weight (Approx.)
REV. 08/01
10 mS
Positive/Negative Logic
250 kHz
1500 VDC
1050 VDC
500 VDC
0.03%/°C
-40 To +100°C
-40 To +125°C
95%
5 g, 10 - 55 Hz
2.5 X 106 hrs
UL, cUL, TUV
1.4 oz
±1%
0.2% Vout
0.2% Vout
0.5 VDC
10 %
25% Iout
4% Vout
500 ms
±10%
Hiccup
110 - 140%
115 - 140% Vout Nom.
Vin Negative
10 mA Max.
18 - 36 VDC
36 - 75 VDC
50 mA
85
EFFICIENCY %
80
HAS030YG-A
EFF. (18v)
EFF. (24v)
EFF. (36v)
65
60
10
20
30
40
50
60
70
80
90
100
LOAD %
75
70
Efficiency vs. Load (48V Input)
95
90
85
EFFICIENCY %
80
75
70
65
60
55
50
10
20
30
40
50
60
70
80
90
100
LOAD %
HAS030ZH-A
HAS030ZG-A
HAS030ZJ-A
Notes
† MTBF predictions may vary slightly from model to model.
Specifications typically at 25°C, normal line, and full load, unless
otherwise stated.
Soldering Conditions: I/O pins, 260°C, ten seconds; fully
compatible with commercial wave-soldering equipment.
Safety: Agency approvals may vary from model to model. Please
consult factory for specific model information.
Units are water-washable and fully compatible with commercial spray or
immersion post wave-solder washing equipment.
1

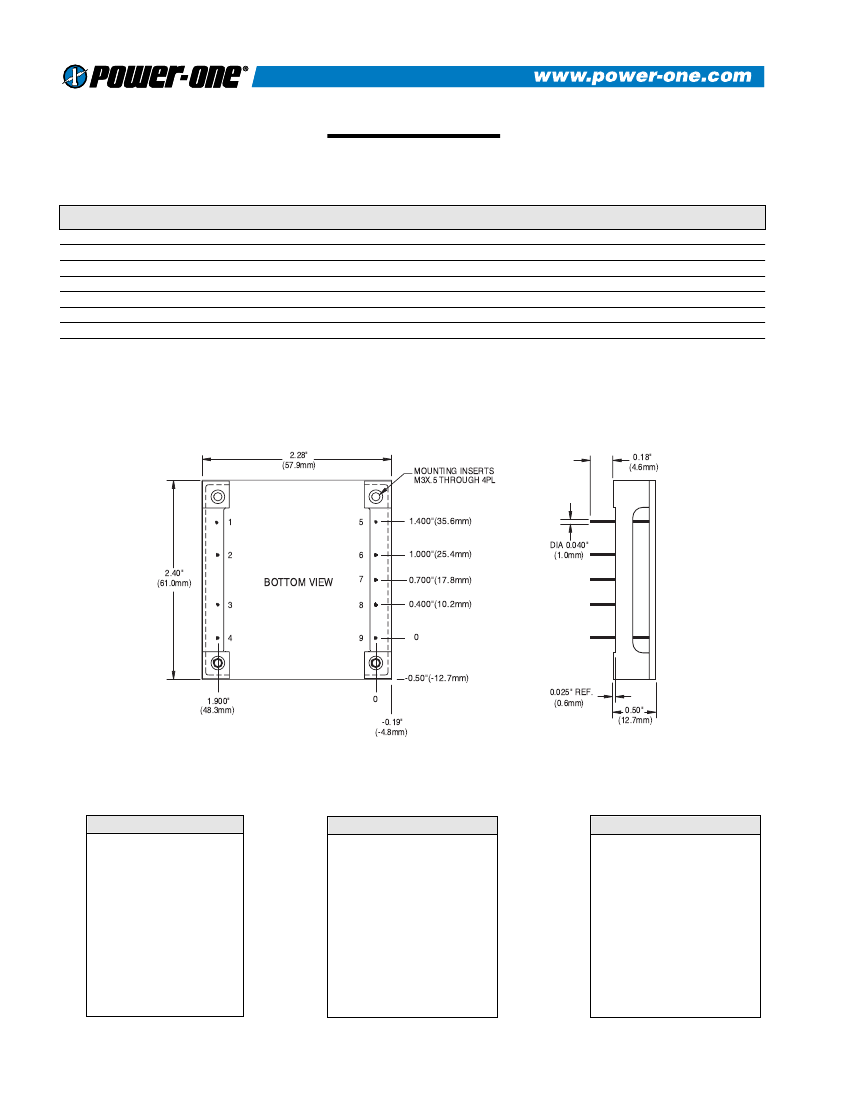

OPTIONS

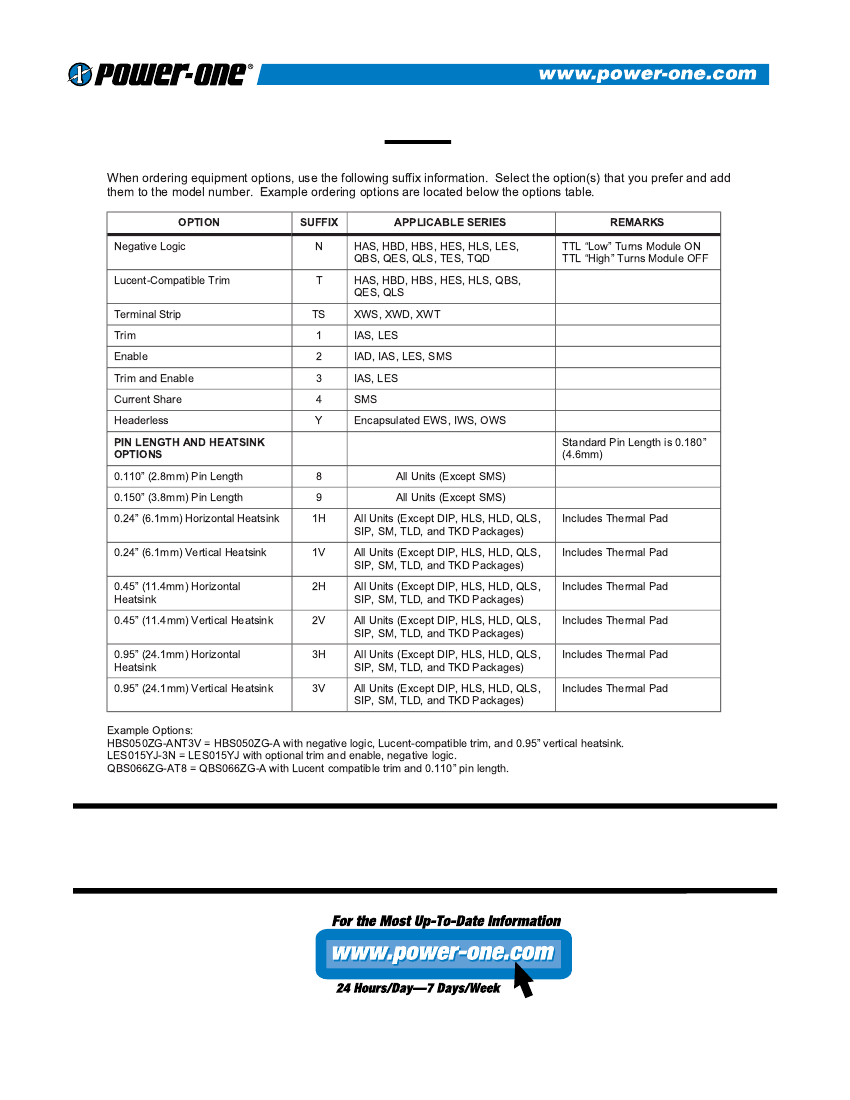

When ordering equipment options, use the following suffix information. Select the option(s) that you prefer and add
them to the model number. Example ordering options are located below the options table.
Negative Logic
OPTION
SUFFIX
N
T
Lucent-Compatible Trim
Terminal Strip
Trim
Enable
Trim and Enable
Current Share
Headerless
PIN LENGTH AND HEATSINK
OPTIONS
TS
1
2
3
4
Y
8
9
1H
1V
2H
2V
3H
3V
HAS, HBD, HBS, HES, HLS, LES,
QBS, QES, QLS, TES, TQD
HAS, HBD, HBS, HES, HLS, QBS,
QES, QLS
XWS, XWD, XWT
IAS, LES
IAD, IAS, LES, SMS
IAS, LES
SMS
Encapsulated EWS, IWS, OWS
All Units (Except SMS)
All Units (Except SMS)
All Units (Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
All Units (Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
All Units (Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
All Units (Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
All Units (Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
All Units (Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
APPLICABLE SERIES
TTL Low Turns Module ON
TTL High Turns Module OFF
REMARKS
0.110 (2.8mm) Pin Length
0.150 (3.8mm) Pin Length
0.24 (6.1mm) Horizontal Heatsink
0.24 (6.1mm) Vertical Heatsink
0.45 (11.4mm) Horizontal
Heatsink
0.45 (11.4mm) Vertical Heatsink
0.95 (24.1mm) Horizontal
Heatsink
0.95 (24.1mm) Vertical Heatsink
Standard Pin Length is 0.180
(4.6mm)
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Example Options:
HBS050ZG-ANT3V = HBS050ZG-A with negative logic, Lucent-compatible trim, and 0.95 vertical heatsink.
LES015YJ-3N = LES015YJ with optional trim and enable, negative logic.
QBS066ZG-AT8 = QBS066ZG-A with Lucent compatible trim and 0.110 pin length.
NUCLEAR AND MEDICAL APPLICATIONS Power-One products are not authorized for use as critical components in life support systems,
equipment used in hazardous environments, or nuclear control systems without the express written consent of the President of Power-One, Inc.
TECHNICAL REVISIONS The appearance of products, including safety agency certifications pictured on labels, may change depending on the
date manufactured. Specifications are subject to change without notice.
3
