LM336Z5 • LM336BZ5 Programmable Shunt Regulator
February 2002
Revised August 2005
LM336Z5 • LM336BZ5
Programmable Shunt Regulator
General Description
The LM336Z5 and LM336BZ5 integrated circuits are precision
5.0V shunt regulators. The monolithic IC voltage reference
operates as a low temperature coefficient 5.0V zener with 0.6
dynamic impedance. A third terminal on the LM336Z5 and
LM336BZ5 allows the reference voltage and temperature coeffi-
cient to be trimmed easily.
The LM336Z5 and LM336BZ5 are useful as precision 5.0V low
voltage references which makes it convenient to obtain a stable
reference from low voltage supplies. Further, since the
LM336Z5 and LM336BZ5 operate as shunt regulators, they can
be used as either a positive or negative voltage reference.
:
Features
O
Low Temperature Coefficient
O
Adjustable 4V to 6V
O
Wide Operating Range Current of 10mA to 400mA
O
Three Lead Transistor Package (TO-92)
O
0.6
:
Dynamic Impedance
O
r
1.0% Initial Tolerance Available
O
Guaranteed Temperature Stability
O
Easily Trimmed for Minimum Temperature Drift
O
Fast Turn On
Ordering Code:
Product Number
LM336Z5
LM336Z5X
LM336BZ50
TO-92
Package
Packing
Bulk
Tape and Reel
Bulk
Operating Temperature
0 C to +70 C
q
q
© 2005 Fairchild Semiconductor Corporation
DS400297
www.fairchildsemi.com
LM336Z5 • LM336BZ5

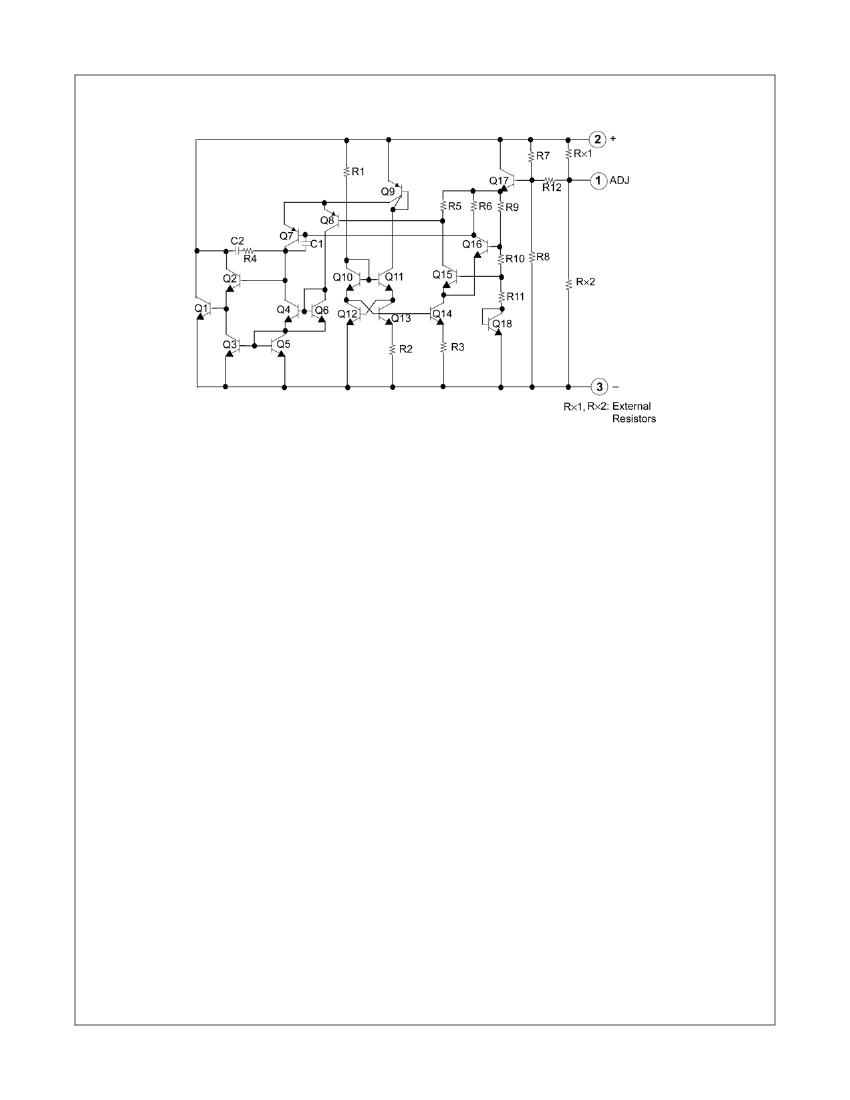

Internal Block Diagram
www.fairchildsemi.com
2
LM336Z5 • LM336BZ5
Absolute Maximum Ratings
(Note 1)
Parameter
Reverse Current
Forward Current
Operating Temperature Range
Storage Temperature Range
Symbol
IR
IF
TOPR
TSTG
Value
15
10
Unit
mA
mA
a
+70
60
a
+150
0
q
C
q
C
Note 1:
The Absolute Maximum Ratings are those values beyond which the safety of the device cannot be guaranteed. The device should not be operated at these limits. The
parametric values defined in the Electrical Characteristics tables are not guaranteed at the absolute maximum rating.
Electrical Characteristics
(0
q
C < T
A
< +70
q
C, unless otherwise specified)
LM336Z5
Parameter
Reverse Breakdown Voltage
Reverse Breakdown Change with Current
Reverse Dynamic Impedance
Temperature Stability
Reverse Breakdown Change with Current
Reverse Dynamic Impedance
Long Term Stability In Reference Voltage
Symbol
V
R
'
V
R
/
'
I
R
LM336BZ5
Max
5.2
20.0
2.0
12.0
24.0
2.5
–
Min
4.9
–
–
–
–
–
–
Typ
5.0
6.0
0.6
4.0
6.0
0.8
20.0
Max
5.1
20.0
2.0
12.0
24.0
2.5
–
Unit
V
mV
:
Conditions
Min
T
A
= +25
q
C, I
R
= 1mA
T
A
= +25
q
C, 600
P
A
d
I
R
d
10mA
T
A
= +25
q
C, I
R
= 1mA
I
R
= 1mA
600
P
A
d
I
R
d
10mA
I
R
= 1mA
I
R
= 1mA
4.8
–
–
–
–
–
–
Typ
5.0
6.0
0.6
4.0
6.0
0.8
20.0
Z
D
ST
T
'
V
R
/
'
I
R
mV
mV
:
ZD
ST
ppm/Khr
3
www.fairchildsemi.com
LM336Z5 • LM336BZ5

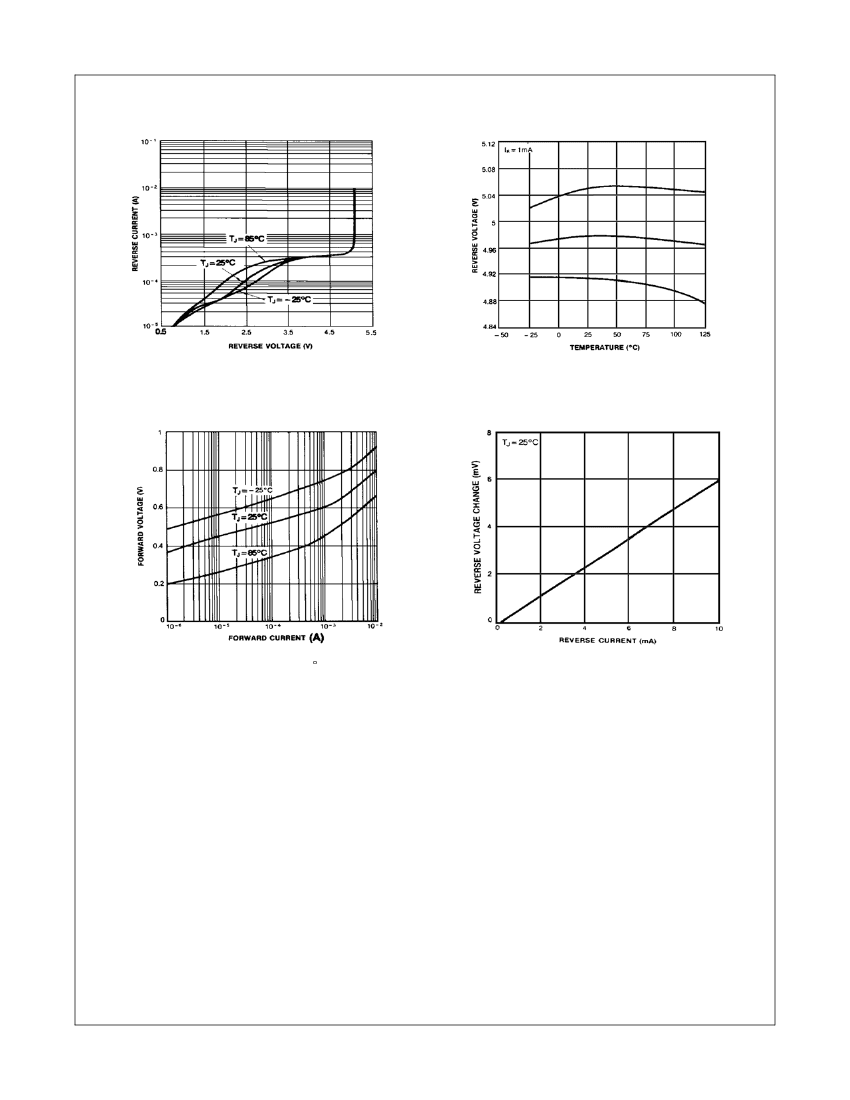

Typical Performance Characteristics
FIGURE 1. Reverse Voltage Change
FIGURE 2. Reverse Characteristics
FIGURE 3. Temperature ( C)
q
FIGURE 4. Forward Characteristics
www.fairchildsemi.com
4
