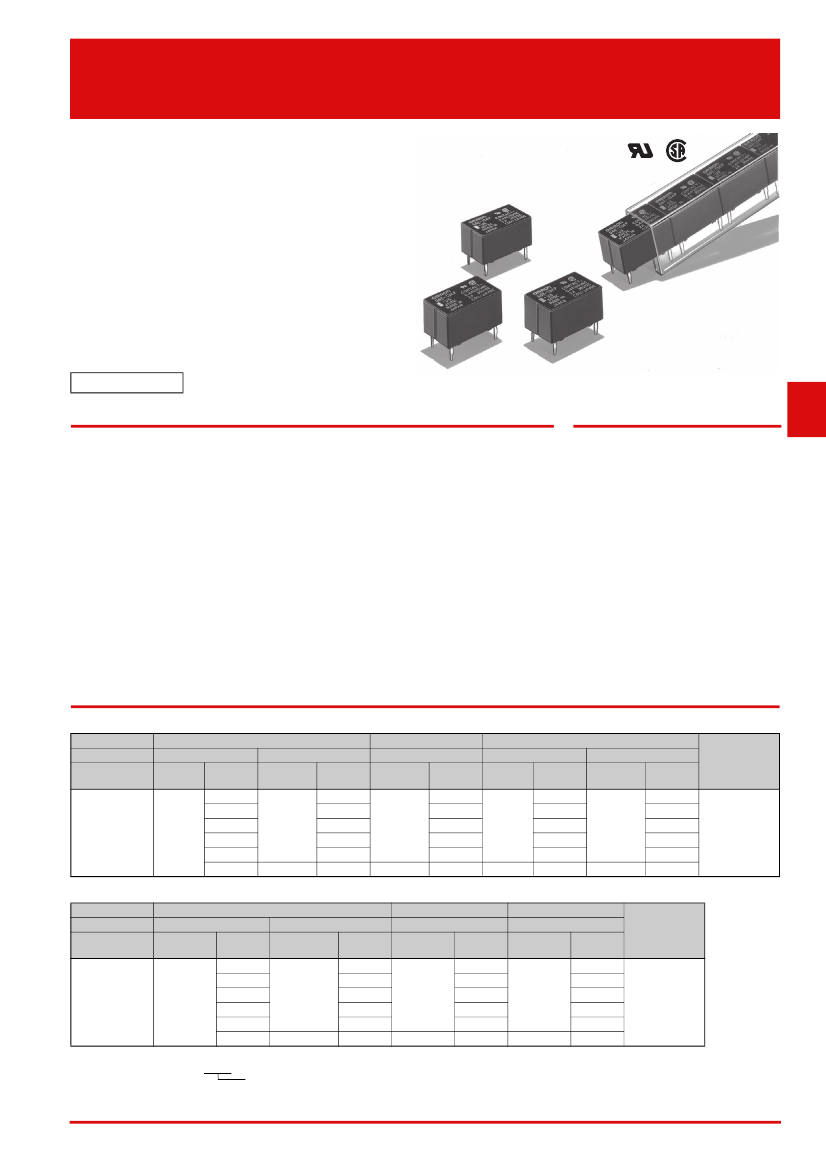

• High sensitivity: 98-mW (Rated power consumption:
200mW) pickup coil power.
• Impulse withstand voltage of 1,500V (10×160
μs)
meets
FCC requirements.
• Stick packing employed in consideration of supporting
automatic implementation.
• Plastic-sealed model that allows automatic soldering.
• New series of ultrasonically cleanable models is available.
• Standard model conforms to UL/CSA standards.
RoHS Compliant
■Model
Number Legend
G6E-
@
-@
@@ @ @
-@ -@
— ————— — —
1
2 3 4 5 6
7
8
1. Relay Function
None : Single-side stable
U : Single-winding
latching
K : Double-winding
latching
2. Number of poles/
Contact Form
1: 1-pole/SPDT (1c)
3. Contact Type
3: Bifurcated crossbar Ag
(Au-Alloy) contact
4. Enclosure Rating
4: Fully sealed
5. Terminals Shape
P: PCB terminals
6. Classification
None : Standard
L
: Low sensitivity coil
(400 mW)
■Application
Examples
•
•
•
•
Telecommunication equipment
Office automation machines
Industrial equipment
Security equipment
G
6
E
7. Approved Standards
US: UL, CSA
UL: FILE No.E41515
CSA: FILE No.LR31928
(
)
8. Special Function
None : Standard
U : For ultrasonically
cleanable
■Ordering
Information
●Standard
Models (UL, CSA certified)
Relay Function
Classification
Contact form
Single-side stable
Standard
Model
Rated coil
voltage
5 VDC
6 VDC
SPDT (1c)
G6E
-134P-US
9 VDC
12 VDC
24 VDC
48 VDC
−
G6E
-134PL-US
Low-sensitivity
Model
Rated coil
voltage
5 VDC
6 VDC
9 VDC
12 VDC
24 VDC
−
−
G6EU
-134P-US
Single-winding latching
Standard
Model
Rated coil
voltage
5 VDC
6 VDC
9 VDC
12 VDC
24 VDC
−
−
G6EK
-134P-US
Double-winding latching
Standard
Model
Rated coil
voltage
5 VDC
6 VDC
9 VDC
12 VDC
24 VDC
−
−
G6EK
-134PL-US
Low-sensitivity
Model
Minimum packing
unit
Rated coil
voltage
5 VDC
6 VDC
−
12 VDC
24 VDC
−
25 pcs/tube
●Models
for Ultrasonically Cleanable
Relay Function
Classification
Contact form
Standard
Model
Rated coil
voltage
5 VDC
6 VDC
SPDT (1c)
G6E
-134P-US-U
9 VDC
12 VDC
24 VDC
48 VDC
−
G6E
-134PL-US-U
Single-side stable
Low-sensitivity
Model
Rated coil
voltage
5 VDC
−
−
12 VDC
24 VDC
−
−
G6EU
-134P-US-U
Single-winding latching
Standard
Model
Rated coil
voltage
5 VDC
−
−
12 VDC
−
−
−
G6EK
-134P-US-U
Double-winding latching
Standard
Model
Minimum packing
unit
Rated coil
voltage
5 VDC
−
−
12 VDC
24 VDC
−
25 pcs/tube
Note: When ordering, add the rated coil voltage to the model number.
Example: G6E-134P-US 5 VDC
Rated coil voltage
1
G6E
■Ratings
●Coil:
Single-side Stable
Classification
Rated voltage
Rated
current
(mA)
40.0
33.3
22.2
16.7
8.3
8.3
79.4
66.6
44.3
33.3
16.7
Coil
resistance
(Ω)
125
180
405
720
2,880
5,760
63
90
203
360
1,440
70% max.
10% min.
170%
(at 23°C)
Approx. 400
170%
(at 23°C)
Approx. 400
70% max.
10% min.
190%
(at 23°C)
Approx. 200
Must operate Must release
voltage
voltage
(V)
(V)
% of rated voltage
Max.
voltage
(V)
Power
consumption
(mW)
Low Signal Relay
5 VDC
6 VDC
9 VDC
Standard
12 VDC
24 VDC
48 VDC
5 VDC
6 VDC
Low-sensitivity
9 VDC
12 VDC
24 VDC
●Coil:
Single-winding latching
Contact type
Rated voltage
5 VDC
Rated current
(mA)
40.0
33.3
22.2
16.7
8.3
Coil resistance
(Ω)
125
180
405
720
2,880
70% max.
70% max.
190%
(at 23°C)
Approx. 200
Approx. 200
Must set voltage Must reset voltage
(V)
(V)
% of rated voltage
Max. voltage
(V)
Power consumption
Set coil (mW)
Reset coil (mW)
G
6
E
Bifurcated
crossbar
6 VDC
9 VDC
12 VDC
24 VDC
●Coil:
Double-winding latching
Rated current (mA)
Classification
Rated voltage
Set coil
5 VDC
6 VDC
Standard
9 VDC
12 VDC
24 VDC
5 VDC
6 VDC
Low-sensitivity
9 VDC
12 VDC
24 VDC
40.0
33.3
22.2
16.7
8.3
79.4
66.6
44.3
33.3
16.7
Reset coil
40.0
33.3
22.2
16.7
8.3
79.4
66.6
44.3
33.3
16.7
Set coil
125
180
405
720
2,880
63
90
203
360
1,440
Reset coil
125
180
405
720
2,880
63
90
203
360
1,440
70% max.
70% max.
170%
(at 23°C)
Approx. 400
Approx. 400
70% max.
70% max.
190%
(at 23°C)
Approx. 200
Approx. 200
Coil resistance (Ω)
Must set
voltage
(V)
Must reset
voltage
(V)
% of rated voltage
Max.
voltage
(V)
Power consumption
Set coil
(mW)
Reset coil
(mW)
Note 1. The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of ±10%.
2. Operating characteristics are measured at a coil temperature of 23°C.
3. The maximum voltage is the highest voltage that can be imposed on the relay coil.
4. Refer to the engineering data for relations between the ambient temperature and maximum coil voltage.
●Contacts
Load
Item
Contact type
Contact material
Rated load
Rated carry current
Max. switching voltage
Max. switching current
0.4 A at 125 VAC;
2 A at 30 VDC
3A
250 VAC, 220 VDC
3A
Resistive load
Inductive load
(cosφ = 0.4; L/R = 7 ms)
Ag (Au-Alloy)
0.2 A at 125 VAC;
1 A at 30 VDC
Bifurcated crossbar
2
G6E
■Characteristics
(Including Models for Ultrasonically Cleanable)
Item
Relay Function
Contact resistance *1
Operate (set) time
Release (reset) time
Min. set pulse width
Min. reset pulse width
Insulation resistance *2
Impulse withstand Between coil and contacts
voltage
Between contacts of same polarity
Between coil and contacts
Dielectric strength
Between contacts of same polarity
Destruction
Vibration
resistance
Malfunction
Destruction
Shock resistance
Malfunction
Mechanical
Durability
Single-side Stable
Single-winding Latching
50 mΩ max.
5 ms max.
5 ms max.
15 ms
15 ms
Low Signal Relay
Double-winding Latching
−
−
Electrical
Failure rate (P level) (reference value) *3
Ambient operating temperature
Ambient operating humidity
Weight
1,000 MΩ min. (at 500 VDC)
2,500 V (10×160
μs)
(conforms to FCC part 68)
1,500 V (10×160
μs)
(conforms to FCC part 68)
1,500 VAC, 50/60 Hz for 1 min
1,000 VAC, 50/60 Hz for 1 min
10 to 55 to 10 Hz, 2.5 mm single amplitude (5 mm double amplitude)
10 to 55 to 10 Hz, 1.65 mm single amplitude (3.3 mm double amplitude)
1,000 m/s
2
300 m/s
2
100,000,000 operations min. (at 36,000 operations/hr)
100,000 operations min. (0.4 A at 125 VAC resistive load; 0.2 A at 125 VAC inductive load)
(at 1,800 operations/hr)
500,000 operations min. (2 A at 30 VDC resistive load; 1 A at 30 VDC inductive load)
(at 1,800 operations/hr)
200,000 operations min. (3 A at 30 VDC resistive load) (at 1,800 operations/hr)
10
μA
at 10 mVDC
-40°C to 70°C (with no icing or condenstion)
5% to 85%
Approx. 2.7 g
Note: The values here are initial values.
*1. The contact resistance was measured with 1 A at 5 VDC using a voltage-drop method.
*2. The insulation resistance was measured with a 500 VDC Megger Tester applied to the same parts as those used for checking the dielectric strength.
*3. This value was measured at a switching frequency of 120 operations/min and the criterion of contact resistance is 50
Ω.
This value may vary depending on the switching frequency and operating environment. Always double-check relay suitability under actual operating conditions.
G
6
E
■Engineering
Data

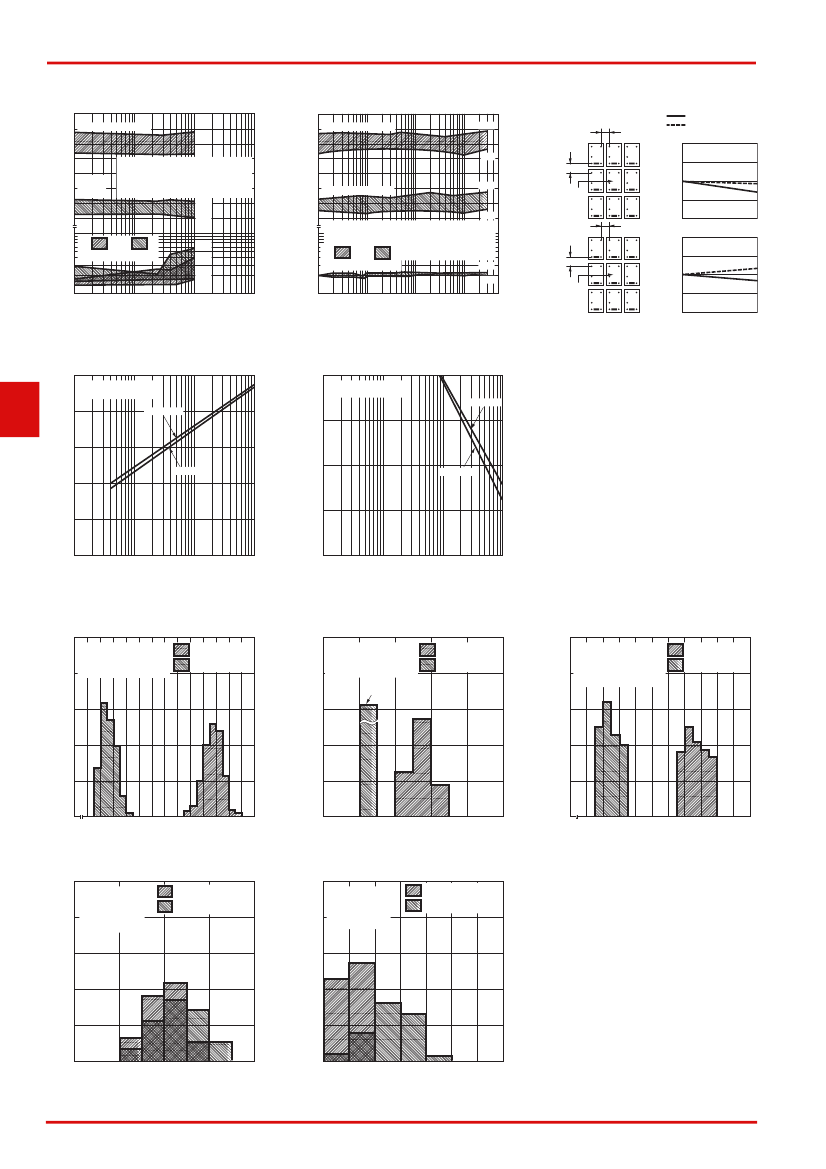

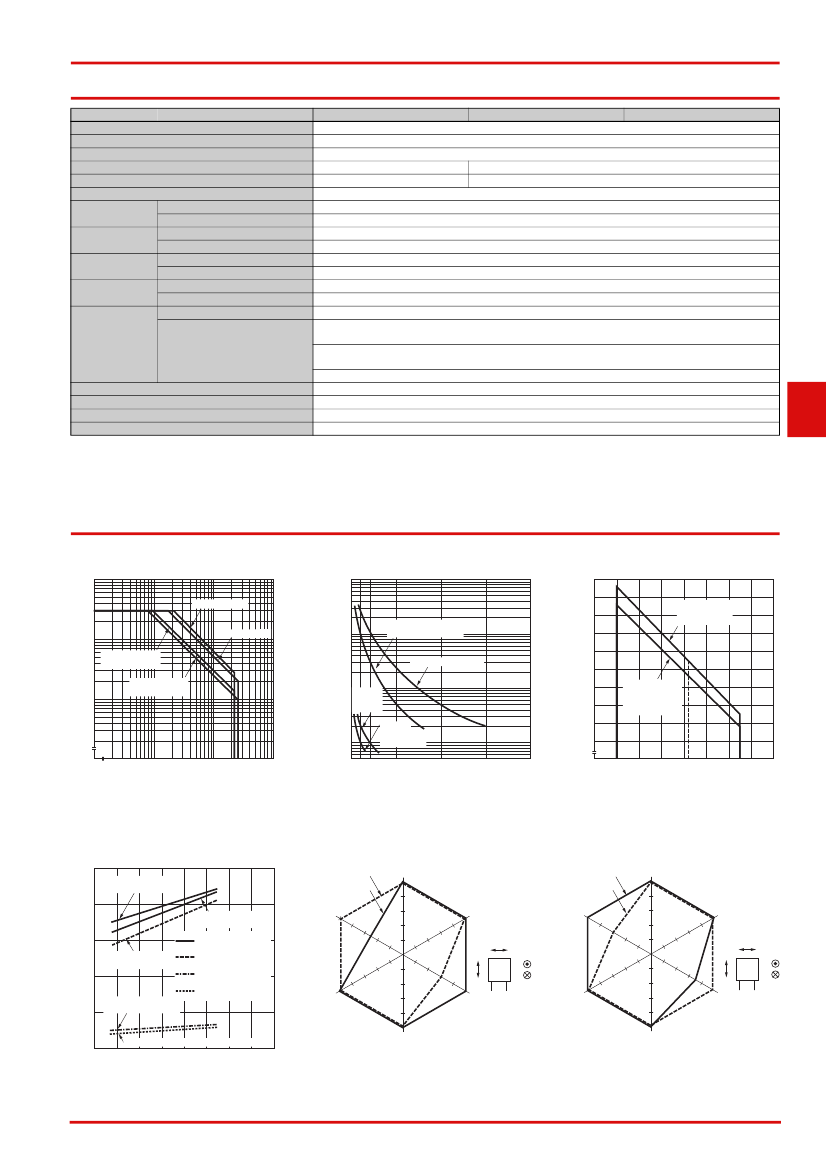

●Maximum
Switching Power
Switching
current (A)
10
5
3
2
1
0.5
0.4
0.3
0.2
0.1
0.05
0.03
DC inductive load
(L/R = 7 ms)
AC inductive load
(cos
φ
= 0.4)
DC resistive load
●Durability
Durability (x10
4
operations)
10,000
5,000
3,000
30
VDC inductive load
(L/R = 7 ms)
●Ambient
Temperature vs.
Maximum Coil Voltage
Maximum coil voltage (%)
280
260
240
220
200
180
G6E-134P-US
G6EK-134P-US
G6EU-134P-US
AC resistive load
1,000
500
300
30
VDC resistive load
100 125 VAC
resistive
50
load
30
125 VAC
inductive load
10
(cosφ = 0.4)
300
500 1,000
5
0 0.2 0.4
1
2
3
4
160
140
120
100
0
-50
-40
G6E-134PL-US
G6EK-134PL-US
G6EU-134P-US
Only
at
48VDC
0.01
0
3
5
10
20
30
50 100
-20
0
20
40
60
80
100
Switching
voltage (V)
Switching
current (A)
Ambient temperature (°C)
Note: The maximum coil voltage refers to the
maximum value in a varying range of
operating power voltage, not a continuous
voltage.
●Ambient
Temperature vs. Must
Operate or Must Release Voltage
On the
basis
of rated voltage (%)
100
Coil is
applied
with
130% of rated voltage
80
Coil is
applied
with
100% of rated voltage
60
Voltage not
applied
to
the coil
and
contacts
40
Coil is
applied
with
100% of rated voltage
Hot
start
voltage
(max. value)
Cold
start
voltage
(max. value)
Release voltage
at
hot
start
(min. value)
Release voltage
at
cold
start
(min. value)
●Shock
Malfunction
G6E-134P-US
De-energized
Energized
Y
1,000
G6EK-134P-US
Reset
Set
Y
1,000
X
1,000
500
0
600
1,000
Z'
Z
1,000
Shock
direction
X
X'
Y
Z
Z'
Y'
Coil terminal
Contact terminal
X'
1,000
X
1,000
Z
1,000
600
Shock
direction
X
X'
Y
Z
Z'
Y'
Coil terminal
Contact terminal
0
1,000
Z'
700
X'
1,000
20
1,000
0
-40
-20
Voltage not
applied
to the coil
and
contacts
0
20
40
60
80
100 120
Ambient temperature (°C)
Y'
Unit: m/s
2
Sample:
G6E-134P-US 24 VDC
Number of Relays: 10 pcs
1,000
Y'
Unit: m/s
2
Sample:
G6EK-134P-US 12 VDC
Number of Relays: 20 pcs
Test Conditions: Shock is applied in ±X, ±Y, and ±Z directions three times each with and without energizing the

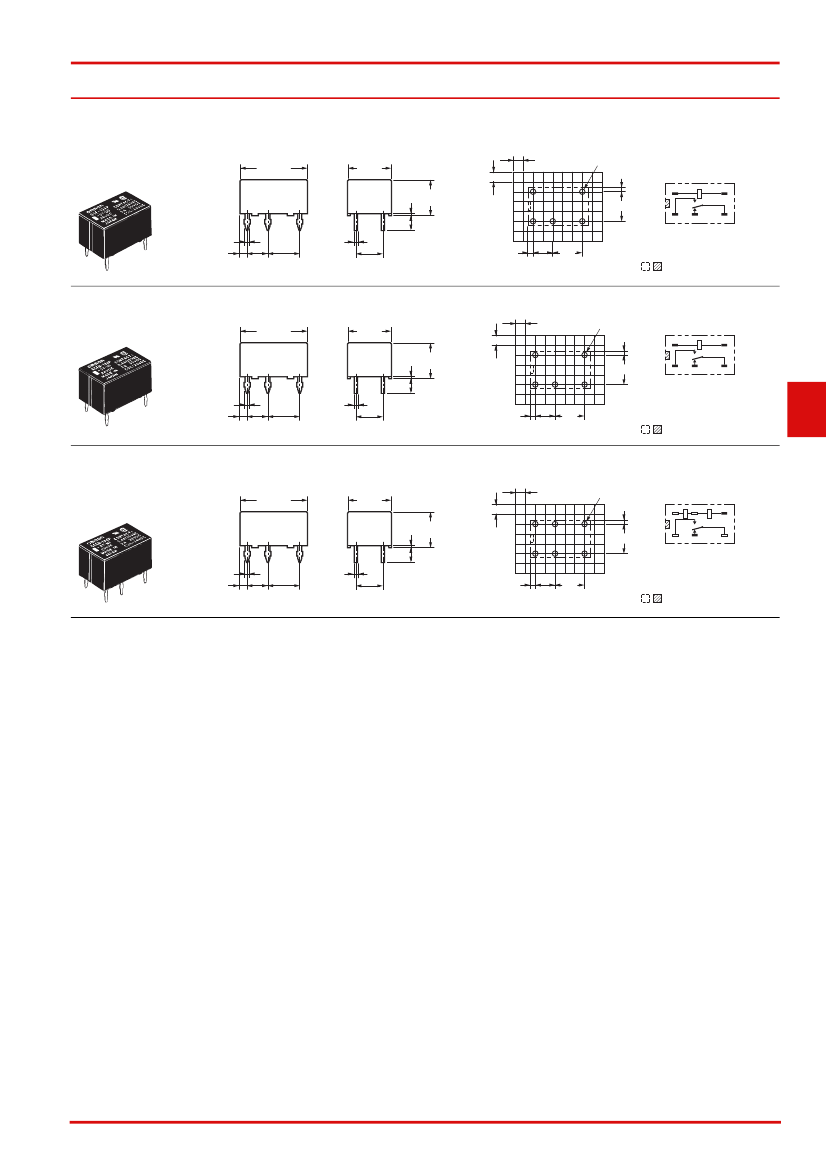

Relays to check the number of contact malfunction.
