DBA60B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DBA60B

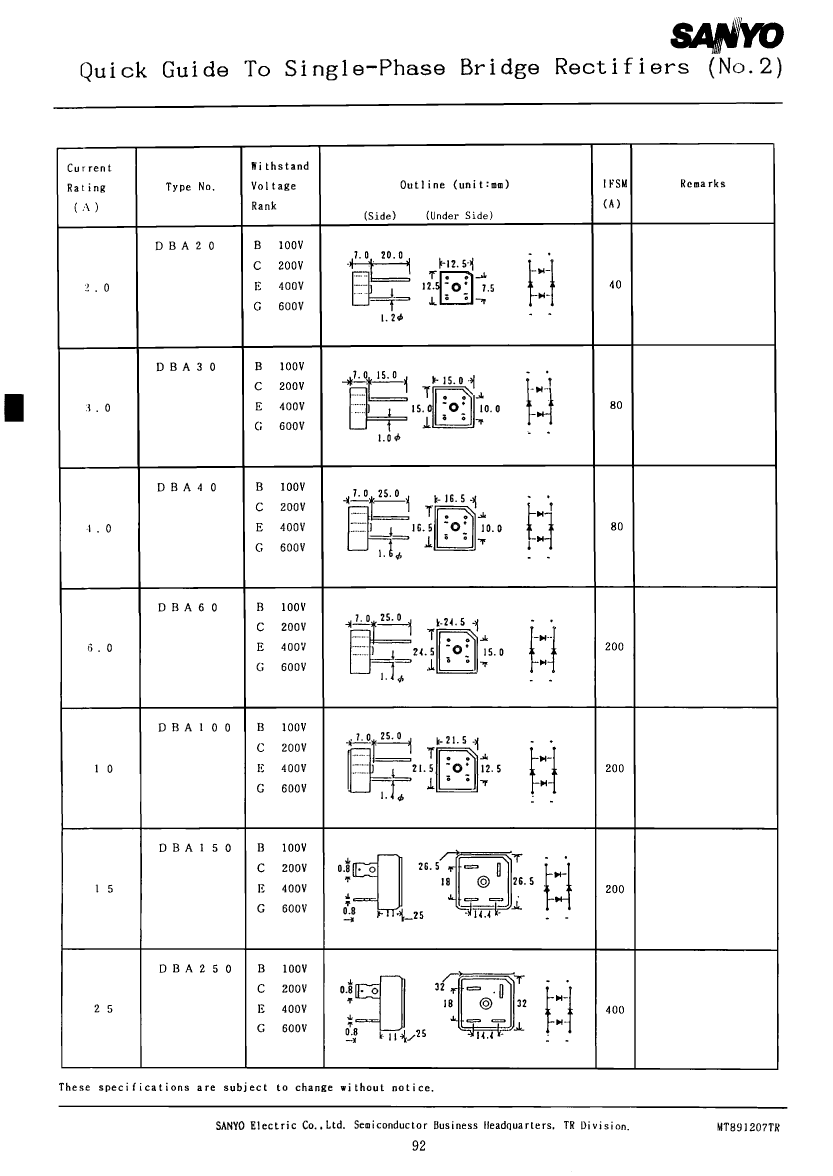

DBA60B: DescriptionBridge Rectifier Diode, 1 Phase, 6A, 100V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size29KB，1 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

DBA60B Overview

Bridge Rectifier Diode, 1 Phase, 6A, 100V V(RRM), Silicon

DBA60B Parametric

Parameter Name	Attribute value
Maker	SANYO
Reach Compliance Code	unknown
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	S-PUFM-W4
Maximum non-repetitive peak forward current	200 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	6 A
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
surface mount	NO
Terminal form	WIRE
Terminal location	UPPER

Preview

Download Datasheet

View All

DBA60B Related Products

	DBA60B	DBA250E	DBA100B	DBA150B	DBA250B	DBA60E	DBA100E	DBA150E
Description	Bridge Rectifier Diode, 1 Phase, 6A, 100V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 25A, 400V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 10A, 100V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 15A, 100V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 25A, 100V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 6A, 400V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 10A, 400V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 15A, 400V V(RRM), Silicon
Maker	SANYO	SANYO	SANYO	SANYO	SANYO	SANYO	SANYO	SANYO
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1 V	1.1 V	1 V	1 V	1.1 V	1.1 V	1 V
JESD-30 code	S-PUFM-W4	S-PUFM-D4	S-PUFM-W4	S-PUFM-D4	S-PUFM-D4	S-PUFM-W4	S-PUFM-W4	S-PUFM-D4
Maximum non-repetitive peak forward current	200 A	400 A	200 A	200 A	400 A	200 A	200 A	200 A
Number of components	4	4	4	4	4	4	4	4
Phase	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	6 A	25 A	10 A	15 A	25 A	6 A	10 A	15 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	400 V	100 V	100 V	100 V	400 V	400 V	400 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	SOLDER LUG	WIRE	SOLDER LUG	SOLDER LUG	WIRE	WIRE	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
package instruction	-	S-PUFM-D4	S-PUFM-W4	S-PUFM-D4	S-PUFM-D4	-	S-PUFM-W4	S-PUFM-D4
