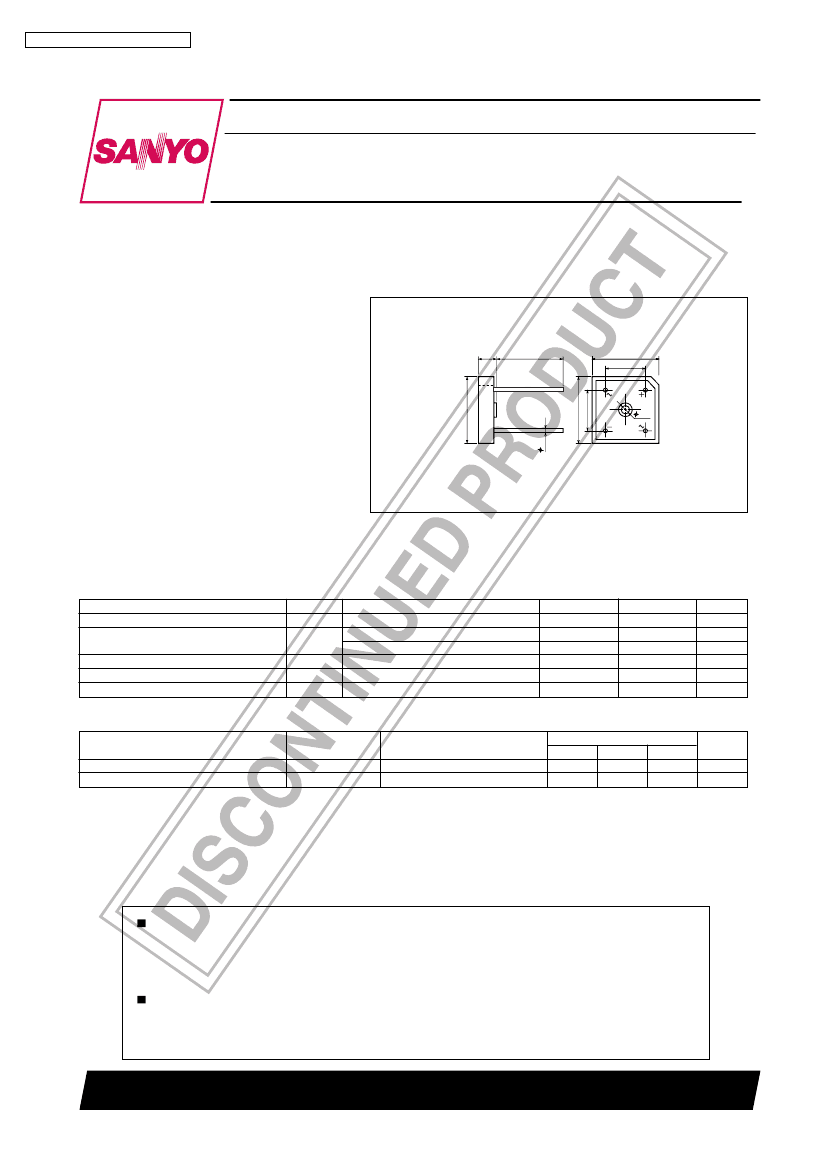

Ordering number : ENN650D
DBA60
Diffused Junction Silicon Diode
DBA60
6.0A Single-Phase Bridge Rectifier
Features
•
•
•
•
Package Dimensions
unit : mm
1091
[DBA60]
Plastic molded structure.
Glass passivation for high reliability.
Peak reverse voltage : VRM=200, 600V.
Average rectified current : IO=6.0A.
7.0
25.0 min
24.5
15.0
24.5
24.5
15.0
3.2
Specifications
Absolute Maximum Ratings
at Ta=25
°
C
Parameter
Peak Reverse Voltage
Average Recitified Current
Surge Forward Current
Junction Temperature
Storage Temperature
Symbol
VRM
IO
IFSM
Tj
Tstg
Conditions
Ta=40°C
Ta=40°C, mounted on an 80!80!1.5mm
3
Al fin
50Hz sine wave, 1 cycle
DBA60C
200
¨
¨
¨
¨
¨
DBA60G
600
3.5
6.0
200
150
--30 to +150
Unit
V
A
A
A
°C
°C
Electrical Characteristics
at Ta=25
°
C
Parameter
Forward Voltage
Reverse Current
Note : Mountiong torque : 0.49N·m max.
Symbol
VF
IR
Conditions
IF=3.0A
VR : At each VRM
min
Ratings
typ
max
1.05
10
Unit
V
µA
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft's
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
41000 GI IM / 71598 HA (KT) / 8033 KI, TS No.650-1/3
1.4
DBA60
7

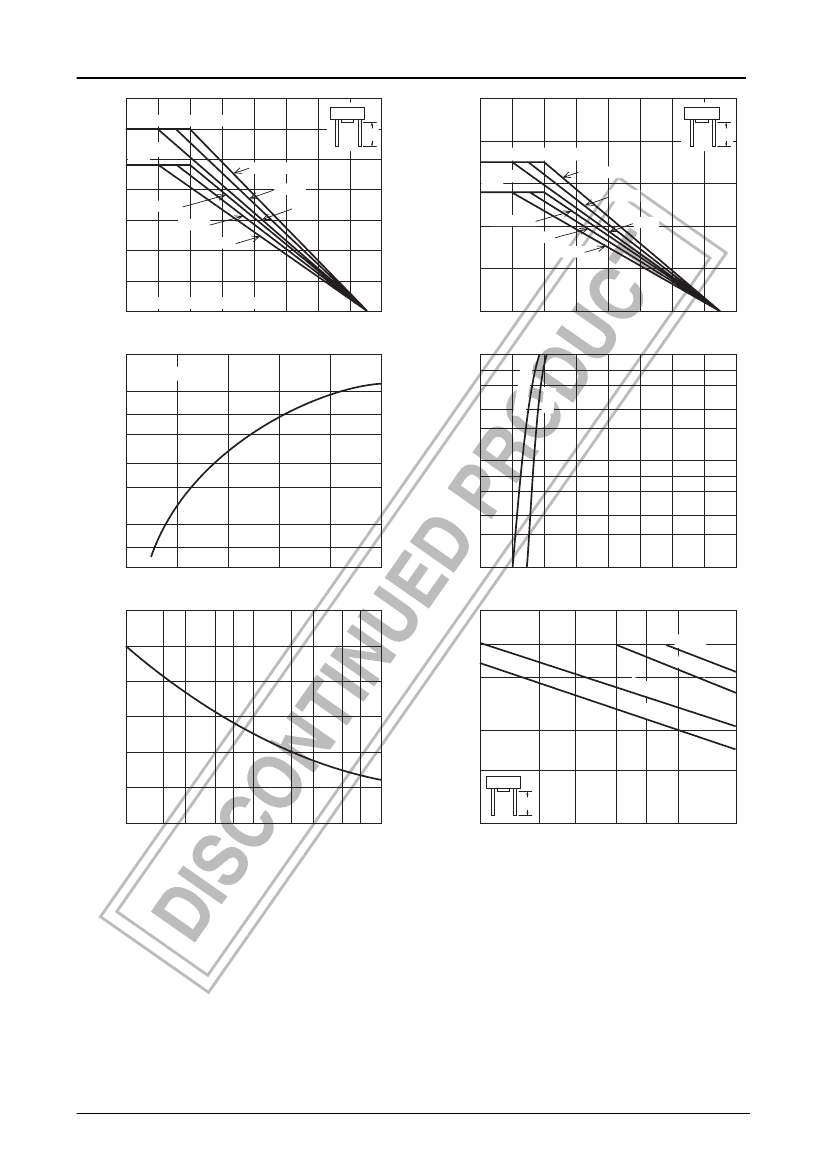

IO -- Ta
L
5
IO -- Ta
L
Average Rectified Current, IO -- A
6
Average Rectified Current, IO -- A
Resistive, inductive load
Capacitive
load
4
5
Resistive, inductive load
3
L=25mm
15mm
4
Capacitive
load
L=25mm
15mm
L=25mm
15mm
5mm
5mm
L=25mm
3
5mm
5mm
15mm
2
2
1
1
0
0
With an 80!80!1.5mm
3
Al fin
20
40
60
80
100
120
140
160
0
0
20
40
60
80
100
120
140
160
ID01181
10
7
5
Ambient Temperature, Ta --
°C
2
Ambient Temperature, Ta --
°C
ID01182
Fin Size(half side) -- IO
Ta=40°C
Fin : 1.5mm Al fin
Forward Current, IF -- A
IF -- VF
Ta=150
°
C
0
0.5
Fin size (Half side) -- cm
2
7
5
3
2
3
2
1.0
7
5
3
2
10
7
5
3
4
5
6
7
8
ID01183
5
0.1
1.0
1.5
2.0
2.5
3.0
3.5
4.0
Average Rectified Current, IO -- A
240
25
°C
100
Forward Voltage, VF -- V
ID01184
IFSM -- n
Soldering Temperature -- t
L=1
Surge Foward Current, IFSM -- A
200
4
Soldering Temperature --
°C
10m
3
5mm
m
160
5mm
1.5m
m
120
50H
80
z
2
40
L
0
1.0
2
3
5
7
10
2
3
5
100
ID01185
7
100
1.0
2
3
5
7
10
2
ID01186
Number of Cycles Applied Continuously, n
Soldering Dip Time, t -- s
No.650-2/3
DBA60
Specifications of any and all SANYO products described or contained herein stipulate the performance,
characteristics, and functions of the described products in the independent state, and are not guarantees
of the performance, characteristics, and functions of the described products as mounted in the customer’s
products or equipment. To verify symptoms and states that cannot be evaluated in an independent device,
the customer should always evaluate and test devices mounted in the customer’s products or equipment.
SANYO Electric Co., Ltd. strives to supply high-quality high-reliability products. However, any and all
semiconductor products fail with some probability. It is possible that these probabilistic failures could
give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire,
or that could cause damage to other property. When designing equipment, adopt safety measures so
that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective
circuits and error prevention circuits for safe design, redundant design, and structural design.
In the event that any or all SANYO products(including technical data,services) described or
contained herein are controlled under any of applicable local export control laws and regulations,
such products must not be exported without obtaining the export license from the authorities
concerned in accordance with the above law.
No part of this publication may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording, or any information storage or retrieval system,
or otherwise, without the prior written permission of SANYO Electric Co., Ltd.
Any and all information described or contained herein are subject to change without notice due to
product/technology improvement, etc. When designing equipment, refer to the "Delivery Specification"
for the SANYO product that you intend to use.
Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not
guaranteed for volume production. SANYO believes information herein is accurate and reliable, but
no guarantees are made or implied regarding its use or any infringements of intellectual property rights
or other rights of third parties.
This catalog provides information as of April, 2000. Specifications and information herein are subject to
change without notice.
PS No.650-3/3
