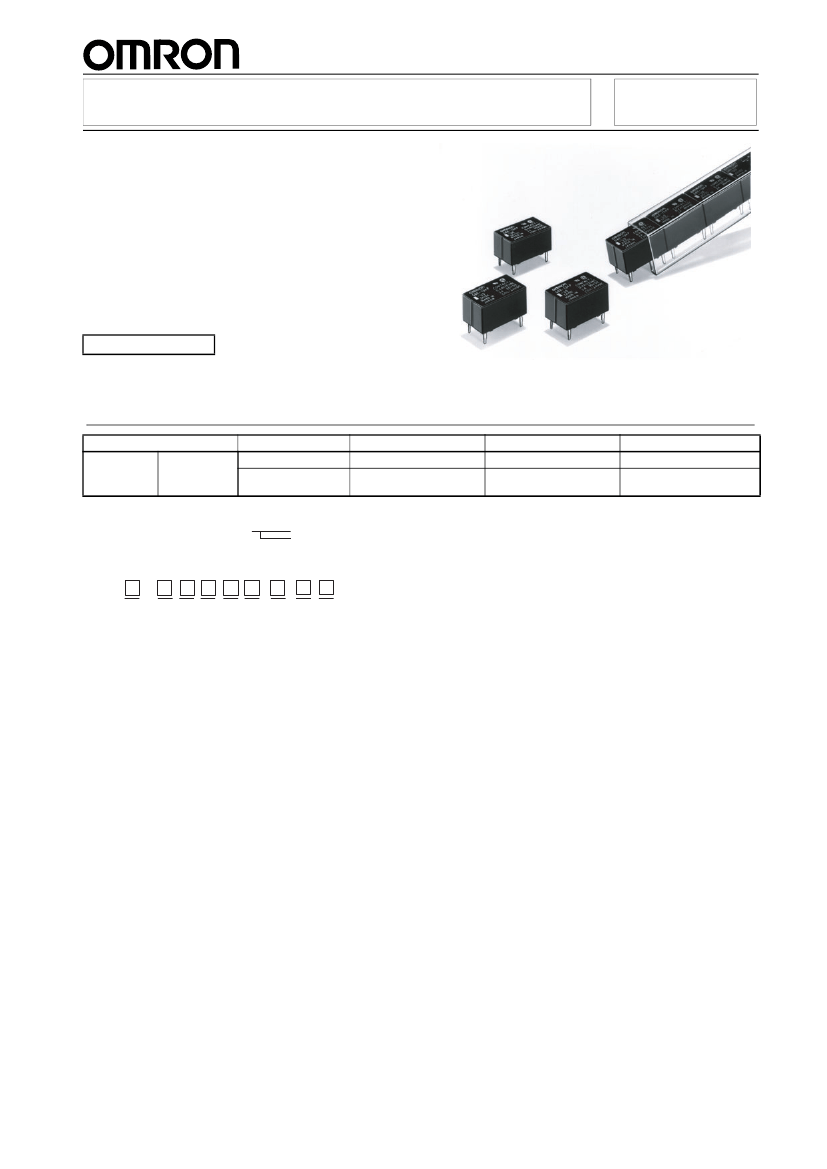

PCB Relay
Subminiature, Sensitive SPDT Signal
Switching Relay
■
■
■
■
■
G6E
High sensitivity: 98-mW pickup coil power.
Impulse withstand voltage meets FCC Part 68
requirements.
Fully sealed construction.
Unique moving loop armature reduces relay size,
magnetic interference, and contact bounce time.
Single- and double-winding latching types also
available.
RoHS Compliant
Refer to pages 16 to 17 for details.
R
C
Single-winding latching Double-winding latching
G6EU-134P-US
G6EU-134C-US
G6EK-134P-US
G6EK-134C-US
Ordering Information
Contact form
SPDT
Bifurcated
crossbar
Terminal
Straight terminal
Self-clinching termi-
nal
Single-side stable
G6E-134P-US
G6E-134C-US
Note:
When ordering, add the rated coil voltage to the model number.
Example: G6E-134P-US 12 VDC
Rated coil voltage
Model Number Legend
G6E
1
-
2 3 4
5 6
-
7
-
8 9
VDC
1. Relay Function
None: Single-side stable
U:
Single-winding latching
K:
Double-winding latching
2. Contact Form
1:
SPDT
3. Contact Type
7. Approved Standards
3: Bifurcated crossbar
US: UL, CSA certified
Ag (Au-Alloy) contact
8. Special Function
9: Bifurcated crossbar
U: For ultrasonically cleanable
AgNi (Au-Alloy) contact
9. Rated Coil Voltage
4. Enclosure Ratings
3, 5, 6, 9, 12, 24, 48 VDC
4: Fully sealed
5. Terminals
P: Straight PCB
C: Curved tail
6. Special Function
L: Low sensitivity coil (400 mW)
57
G6E
G6E
Specifications
■
Coil Ratings
3 VDC
66.7 mA
45
Ω
Armature OFF
Armature ON
0.08
0.06
5 VDC
40 mA
125
Ω
0.18
0.17
6 VDC
33.3 mA
180
Ω
0.31
0.24
9 VDC
22.2 mA
405
Ω
0.62
0.50
12 VDC
16.7 mA
720
Ω
1.20
0.99
24 VDC
8.3 mA
2,880
Ω
4.70
3.90
48 VDC
8.3 mA
5,760
Ω
5.35
5.12
Single-side Stable, Bifurcated Crossbar Contact Type
Rated voltage
Rated current
Coil resistance
Coil inductance
(H) (ref. value)
Must operate voltage
Must release voltage
Max. voltage
Power consumption
70% max. of rated voltage
10% min. of rated voltage
190% of rated voltage at 23°C
Approx. 200 mW
170% of rated voltage at
23°C
Approx. 400 mW
Single-winding Latching, Bifurcated Crossbar Contact Type
Rated voltage
Rated current
Coil resistance
Coil inductance
(H) (ref. value)
Must set voltage
Must reset voltage
Max. voltage
Power consumption
Armature OFF
Armature ON
3 VDC
66.7 mA
45
Ω
0.05
0.04
5 VDC
40 mA
125
Ω
0.13
0.12
6 VDC
33.3 mA
180
Ω
0.19
0.17
9 VDC
22.2 mA
405
Ω
0.45
0.40
12 VDC
16.7 mA
720
Ω
0.84
0.79
24 VDC
8.3 mA
2,880
Ω
3.56
3.10
70% max. of rated voltage
70% max. of rated voltage
190% of rated voltage at 23°C
Approx. 200 mW
Double-winding Latching, Bifurcated Crossbar Contact Type
Rated voltage
Set coil
Rated current
Coil resistance
Coil inductance
(H) (ref. value)
Reset coil
Rated current
Coil resistance
Coil inductance
(H) (ref. value)
Must set voltage
Must reset voltage
Max. voltage
Power consumption
Note:
Armature OFF
Armature ON
Armature OFF
Armature ON
3 VDC
66.7 mA
45
Ω
0.03
0.03
66.7 mA
45
Ω
0.03
0.03
5 VDC
40 mA
125
Ω
0.09
0.08
40 mA
125
Ω
0.09
0.08
6 VDC
33.3 mA
180
Ω
0.12
0.11
33.3 mA
180
Ω
0.12
0.11
9 VDC
22.2 mA
405
Ω
0.25
0.22
22.2 mA
405
Ω
0.25
0.22
12 VDC
16.7 mA
720
Ω
0.44
0.41
16.7 mA
720
Ω
0.44
0.41
24 VDC
8.3 mA
2,880
Ω
1.66
1.62
8.3 mA
2,880
Ω
1.66
1.62
70% max. of rated voltage
70% max. of rated voltage
190% of rated voltage at 23°C
Set coil: Approx. 200 mW
Reset coil: Approx. 200 mW
1.
The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of
±10%.
2.
Operating characteristics are measured at a coil temperature of 23°C.
3.
The maximum voltage is the highest voltage that can be imposed on the relay coil.
■
Contact Ratings
Resistive load (cosφ = 1)
0.4 A at 125 VAC; 2 A at 30 VDC
Ag (Au-Alloy)
3A
250 VAC, 220 VDC
3A
50 VA, 60 W
10
µA
at 10 mVDC
–6
Load
Rated load
Contact material
Rated carry current
Max. switching voltage
Max. switching current
Max. switching power
Failure rate (reference value) (See note.)
Note:
Inductive load (cosφ = 0.4; L/R = 7 ms)
0.2 A at 125 VAC; 1 A at 30 VDC
3A
25 VA, 30 W
P level:
λ
60
= 0.1 x 10 /operation
This value was measured at a switching frequency of 120 operations/min and the criterion of contact resistance is 50
Ω.
This value
may vary depending on the operating environment. Always double-check relay suitability under actual operating conditions.
58
G6E
■
G6E
Characteristics
50 mΩ max.
5 ms max. (approx. 2.9 ms; 48 VDC type: approx. 2.4 ms)
5 ms max. (approx. 1.3 ms)
Latching type: 15 ms min. (at 23°C)
Mechanical: 36,000 operations/hr
Electrical: 1,800 operations/hr (under rated load)
1,000 MΩ min. (at 500 VDC)
1,500 VAC, 50/60 Hz for 1 min between coil and contacts
1,000 VAC, 50/60 Hz for 1 min between contacts of same polarity
1,500 V (10 x 160
µs)
(conforms to FCC Part 68)
Destruction: 10 to 55 to 10 Hz, 2.5-mm single amplitude (5-mm double amplitude)
Malfunction: 10 to 55 to 10 Hz, 1.65-mm single amplitude (3.3-mm double amplitude)
Destruction: 1,000 m/s
2
Malfunction: 300 m/s
2
Mechanical: 100,000,000 operations min. (at 36,000 operations/hr)
Electrical: 100,000 operations min. (0.4 A at 125 VAC resistive load;
0.2 A at 125 VAC inductive load)
500,000 operations min. (2 A at 30 VDC resistive load;
1 A at 30 VDC inductive load)
200,000 operations min. (3 A at 30 VDC resistive load)
Operating:
−40°C
to 70°C (with no icing)
5% to 85%
Approx. 2.7 g
Contact resistance (See note 1.)
Operate (set) time (See note 2.)
Release (reset) time (See note 2.)
Min. set/reset signal width
Max. operating frequency
Insulation resistance (See note 3.)
Dielectric withstand voltage
Impulse withstand voltage
Vibration resistance
Shock resistance
Endurance
Ambient temperature
Ambient humidity
Weight
Note:
Note:
The values here are initial values.
1.
The contact resistance was measured with 1 A at 5 VDC using a voltage-drop method.
2.
Values in parentheses are actual values.
3.
The insulation resistance was measured with a 500-VDC megohmmeter applied to the same parts as those used for checking
the dielectric strength.
■
Approved Standards
Contact form
Coil ratings
3 to 48 VDC
Contact ratings
0.2 A, 250 VAC (general use)
0.6 A, 125 VAC (general use)
2 A, 30 VDC (resistive)
0.6 A, 125 VDC (resistive, Ag contact only)
UL508 (File No. E41515)/CSA C22.2, No.14 (File No. LR31928)
SPDT
59
G6E
G6E

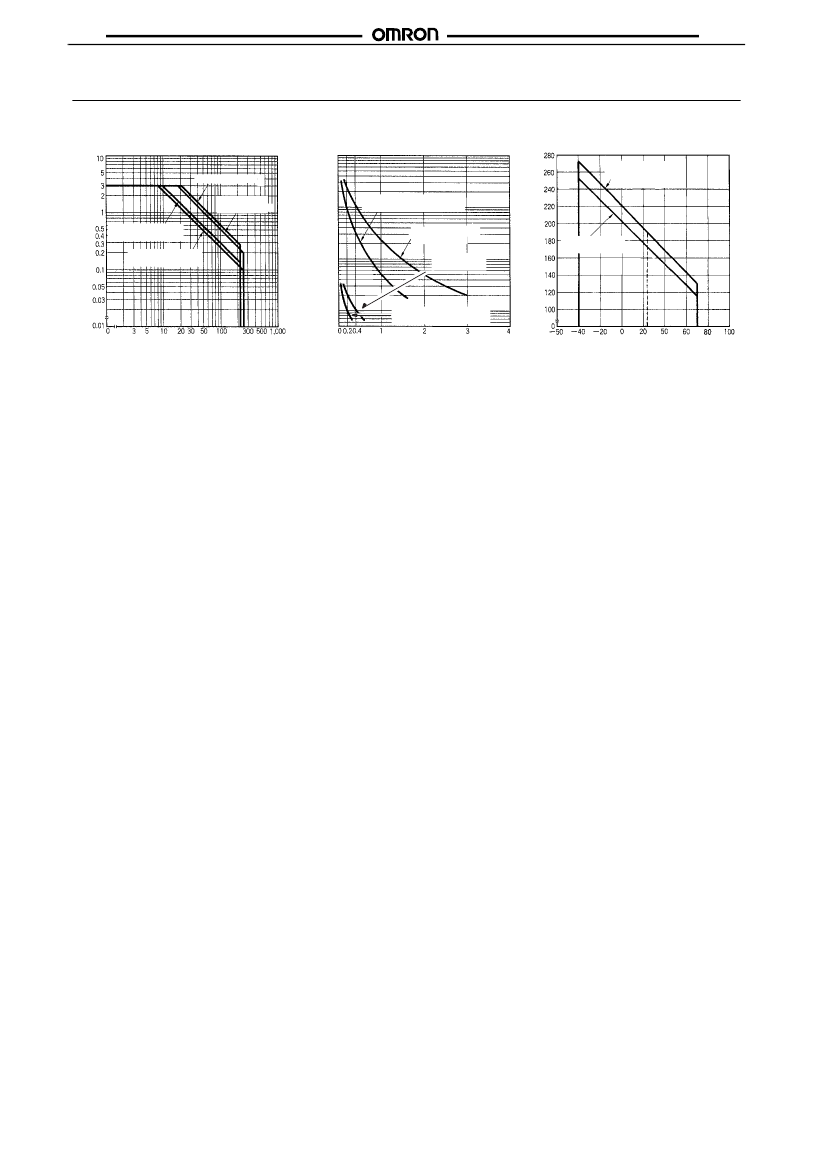

Engineering Data
Maximum Switching Power
Endurance (x10
3
operations)
Switching current (A)
Endurance
Maximum coil voltage (%)
100,000
50,000
30,000
10,000
5,000
3,000
1,000
500
300
100
50
125-VAC inductive load
(cosφ = 0.4)
30-VDC inductive load
(L/R = 7 ms)
30-VDC resistive
load
125-VAC
resistive load
Ambient Temperature vs.
Maximum Coil Voltage
G6E-134P-US
G6EK-134P-US
G6EU-134P-US
DC resistive load
AC resistive
load
DC inductive load
(L/R = 7 ms)
AC inductive load
(cosf = 0.4)
G6E-134P-US
Only at 48VDC
Switching voltage (V)
Switching current (A)
Ambient temperature (°)
Note:
The maximum coil voltage refers to the
maxi-mum value in a varying range of
operating power voltage, not a
continuous voltage.
60
G6E
G6E

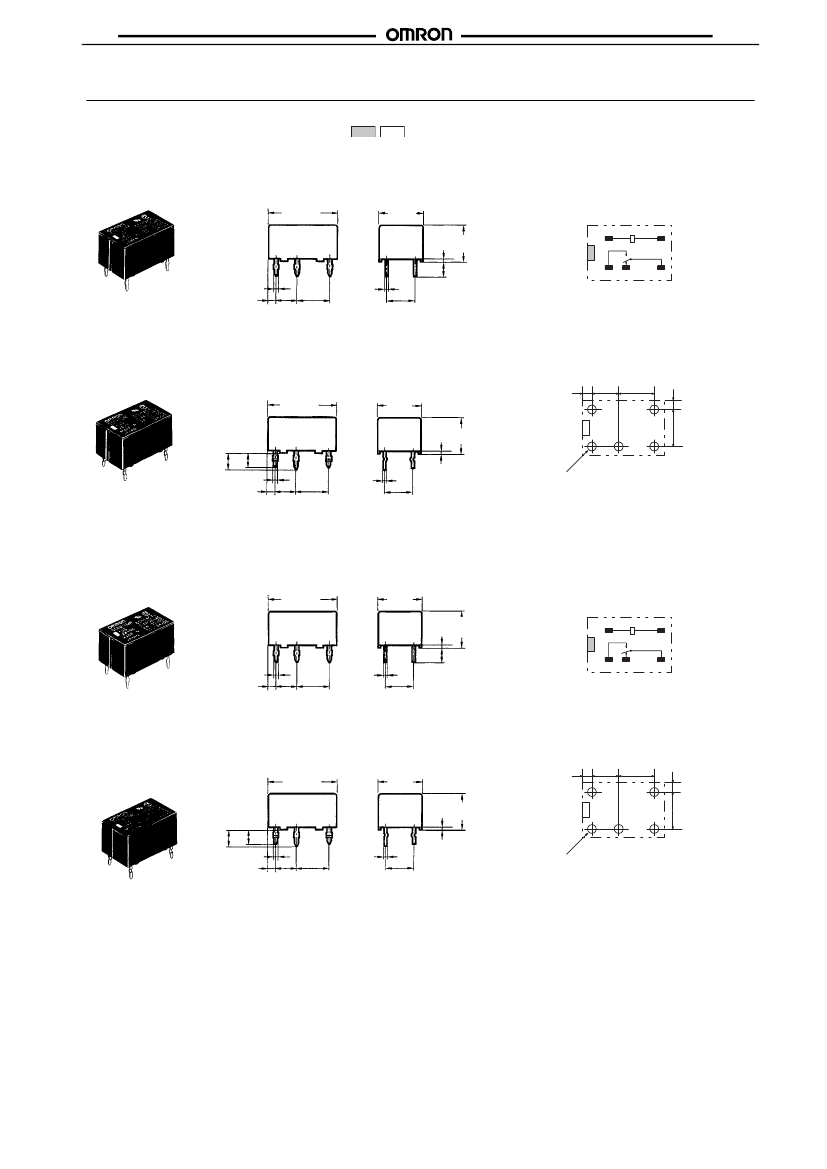

Dimensions
Note:
1.
All units are in millimeters unless otherwise indicated.
2.
Orientation marks are indicated as follows:
G6E-134P-US
G6E-194P-US
16 max.
(15.9) *
10 max.
(9.9) *
8 max.
0.3 (7.9) *
3.5
0.6
1.6
5.08 7.62
*Average value
0.25
7.62
Terminal Arrangement/
Internal Connections
(Bottom View)
1+
-6
12 10
7
G6E-134C-US
G6E-194C-US
16 max.
(15.9) *
10 max.
(9.9) *
8 max.
0.3 (7.9) *
3.16
2.86
0.6
1.6
5.08 7.62
*Average value
0.25
7.62
(1.65)
Mounting Holes
(Bottom View)
Tolerance:
±0.1
5.08
7.62
(1.19)
7.62
Five, 1.0-dia. holes
G6EU-134P-US
G6EU-194P-US
16 max.
(15.9) *
10 max.
(9.9) *
8 max.
0.3 (7.9) *
3.5
0.6
1.6
5.08 7.62
*Average value
0.25
7.62
Terminal Arrangement/
Internal Connections
(Bottom View)
+1
-
12 10
S
-6
R +
7
G6EU-134C-US
G6EU-194C-US
16 max.
(15.9) *
10 max.
(9.9) *
0.3 8 max.
(7.9) *
3.16
2.86
0.6
1.6
0.25
5.08 7.62
*Average value
7.62
(1.65)
Mounting Holes
(Bottom View)
Tolerance:
±0.1
5.08
7.62
(1.19)
7.62
Five, 1.0-dia. holes
61
