DFC15TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DFC15TR

DFC15TR: DescriptionRectifier Diode, 1 Phase, 1 Element, 1.5A, 1500V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size54KB，2 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

DFC15TR Overview

Rectifier Diode, 1 Phase, 1 Element, 1.5A, 1500V V(RRM), Silicon,

DFC15TR Parametric

Parameter Name	Attribute value
Objectid	1481060862
package instruction	O-PALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
application	FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	45 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1500 V
Maximum reverse recovery time	0.3 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

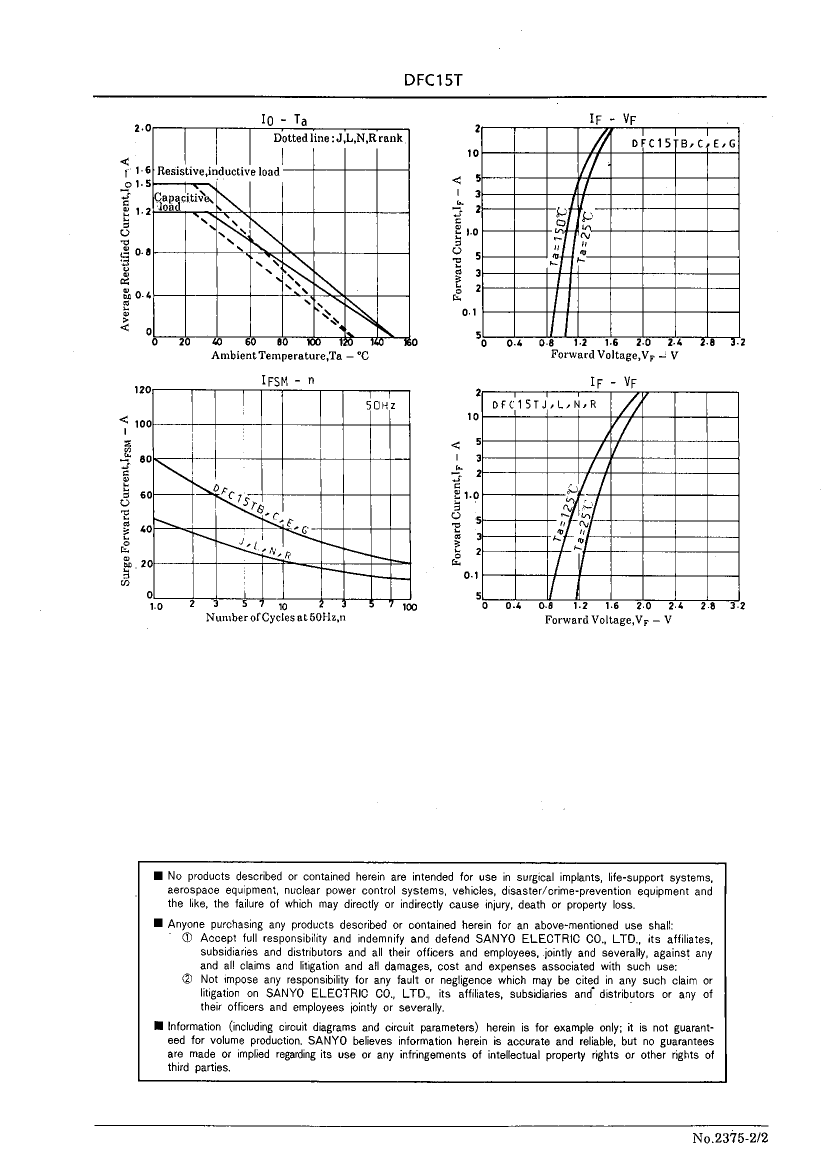

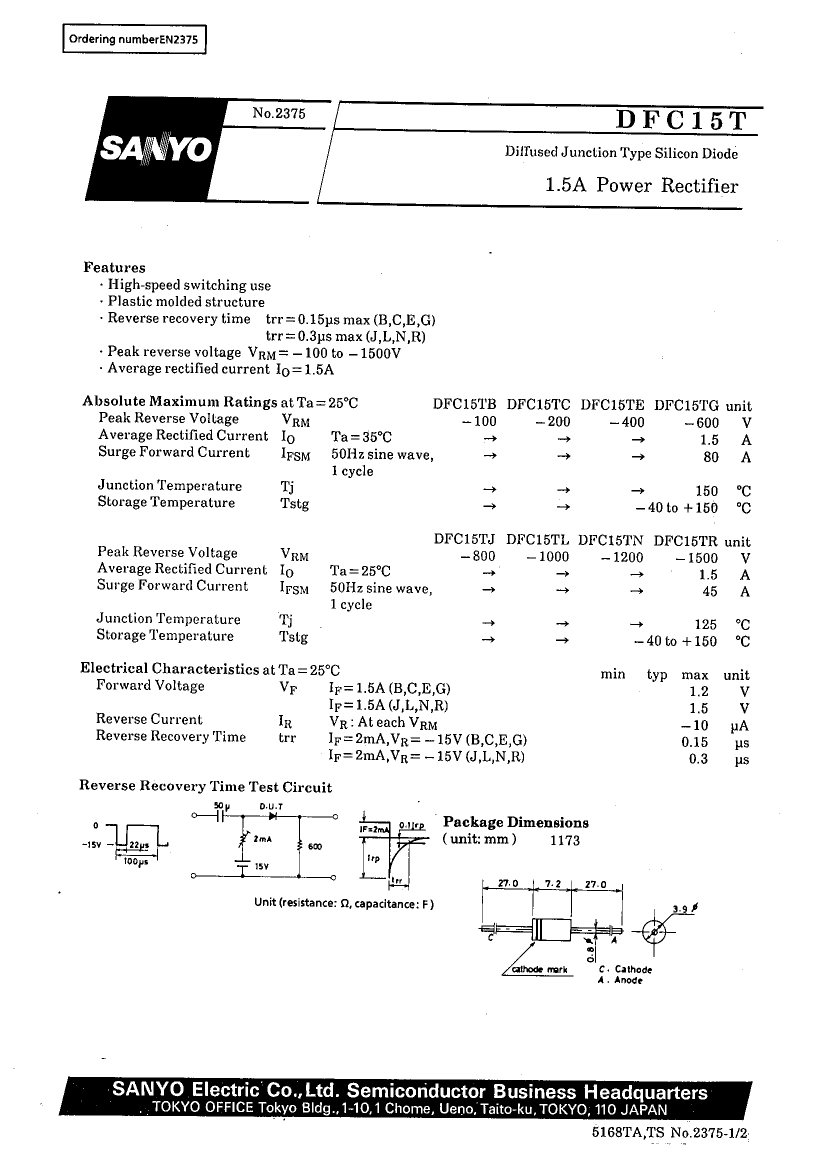

Preview

Download Datasheet

View All

DFC15TR Related Products

	DFC15TR	DFC15TB	DFC15TG	DFC15TN	DFC15TE	DFC15TJ	DFC15TL	DFC15TC
Description	Rectifier Diode, 1 Phase, 1 Element, 1.5A, 1500V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 1.5A, 100V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 1.5A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 1.5A, 1200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 1.5A, 400V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 1.5A, 800V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 1.5A, 1000V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 1.5A, 200V V(RRM), Silicon,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	POWER	FAST RECOVERY	POWER	FAST RECOVERY	POWER
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V	1.2 V	1.2 V	1.5 V	1.2 V	1.5 V	1.5 V	1.2 V
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	45 A	80 A	80 A	45 A	80 A	45 A	45 A	80 A
Number of components	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1500 V	100 V	600 V	1200 V	400 V	800 V	1000 V	200 V
Maximum reverse recovery time	0.3 µs	0.15 µs	0.15 µs	0.3 µs	0.15 µs	0.3 µs	0.3 µs	0.15 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Objectid	1481060862	-	1481060846	1481060859	1481060842	1481060851	1481060856	1481060837
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	-
