P.F-330SS: DescriptionGeneral Purpose Inductor, 33uH, 15%, 1 Element, Nickel-zinc-Core, SMD,; CategoryPassive components inductor; File Size464KB，2 Pages; ManufacturerNEC TOKIN ( KEMET Corporation ); Websitehttp://www.kemet.com

Download Datasheet Parametric View All

P.F-330SS Overview

General Purpose Inductor, 33uH, 15%, 1 Element, Nickel-zinc-Core, SMD,

P.F-330SS Parametric

Parameter Name	Attribute value
Maker	NEC TOKIN ( KEMET Corporation )
Reach Compliance Code	unknown
ECCN code	EAR99
core material	NICKEL-ZINC
DC Resistance	0.35 Ω
Nominal inductance(L)	33 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Maximum rated current	0.95 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Tolerance	15%

Preview

Download Datasheet

View All

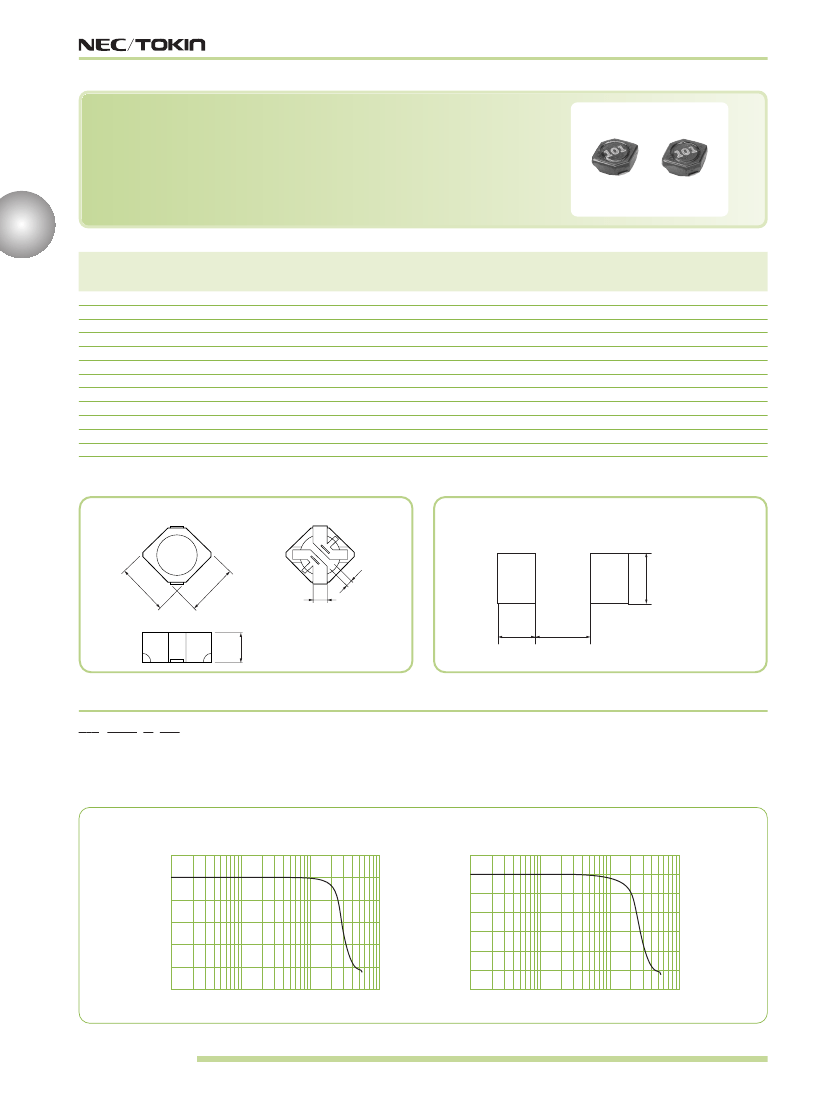

SMD-Type Inductors and Choke Coils

Leadless Power Inductors

P • F-SS Series

2

SMD-Type Inductors and Choke Coils

• Tape and Reel Dimensions (see page 118)

• Precautions (see page 124)

Model

Inductance

(µH)

DC resistance

(m ) max.

Rated current

(A)

P • F-100SS

P • F-120SS

P • F-150SS

P • F-180SS

P • F-220SS

P • F-330SS

P • F-470SS

P • F-680SS

P • F-101SS

P • F-121SS

P • F-151SS

P • F-221SS

10±20%

12±20%

15±20%

18±20%

22±20%

33±15%

47±15%

68±15%

100±10%

120±10%

150±10%

220±10%

120

140

180

220

240

350

470

710

1200

1400

1800

2400

• Storage temperature range: –25 to +85˚C

1.80

1.60

1.40

1.22

1.20

0.95

0.82

0.65

0.55

0.45

0.40

0.35

• Operating temperature range: –25 to +80˚C (Without self-temperature rise)

Shape and Dimensions

Inductance

7.

Recommended Land Pattern

7

2.2±0.2

b

3.2max.

a

0.

3

±

0.

2

0.

3

±

.

7

±

0.

a : 5.0

b : 3.5

c : 3.5

2

[mm]

c

[mm]

Numbering System

P½F -

Series

Inductance

Dimensions

NEC TOKIN control number

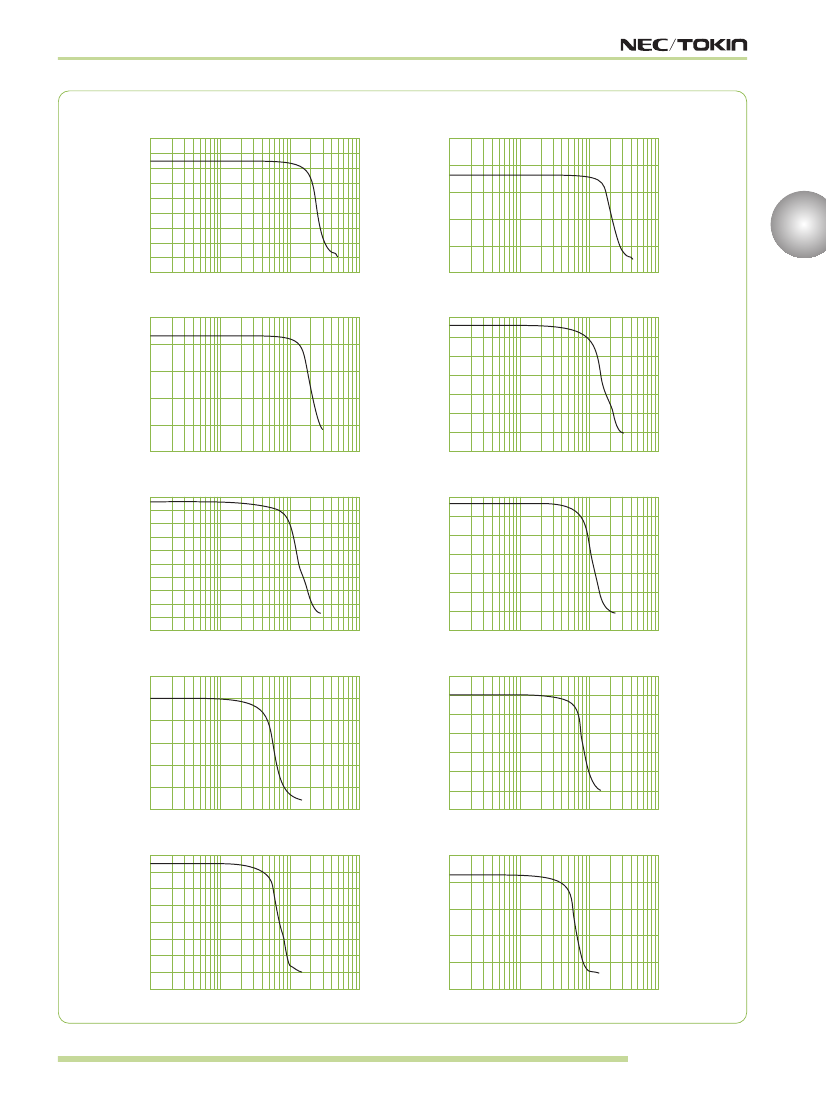

DC-Superposed Characteristics

P • F-100SS

12

14

12

10

P • F-120SS

Inductance ( H)

10

100

1000

10000

10

8

6

4

2

0

10

100

1000

10000

8

6

4

2

0

Idc (mA)

EMC GENERAL VOL.01
