DRA5G: DescriptionSilicon Controlled Rectifier, 7.8A I(T)RMS, 5000mA I(T), 600V V(DRM), 600V V(RRM), 1 Element, TO-220AB, TO-220, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size150KB，3 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

DRA5G Overview

Silicon Controlled Rectifier, 7.8A I(T)RMS, 5000mA I(T), 600V V(DRM), 600V V(RRM), 1 Element, TO-220AB, TO-220, 3 PIN

DRA5G Parametric

Parameter Name	Attribute value
Maker	SANYO
Parts packaging code	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknown
Other features	HIGH RELIABILITY
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	30 V/us
Maximum DC gate trigger current	40 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	60 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum leakage current	2 mA
On-state non-repetitive peak current	80 A
Number of components	1
Number of terminals	3
Maximum on-state current	5000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	7.8 A
Off-state repetitive peak voltage	600 V
Repeated peak reverse voltage	600 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Trigger device type	SCR

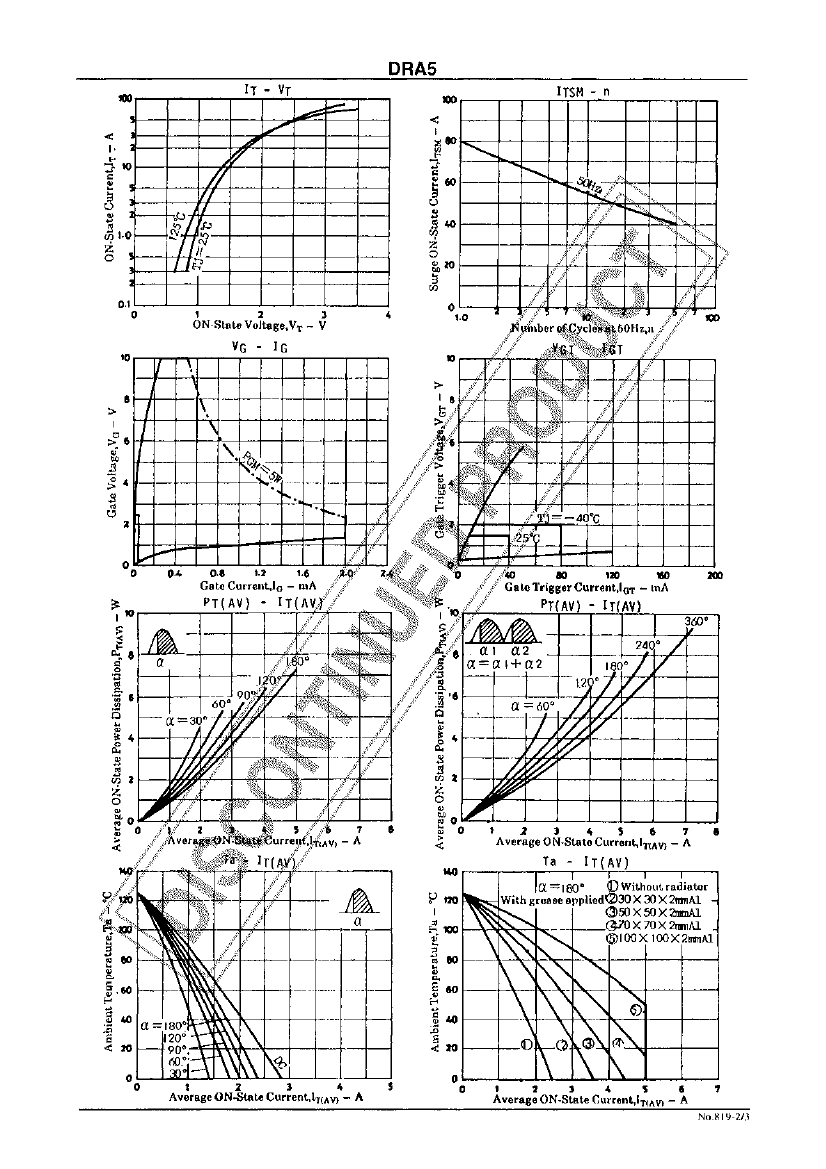

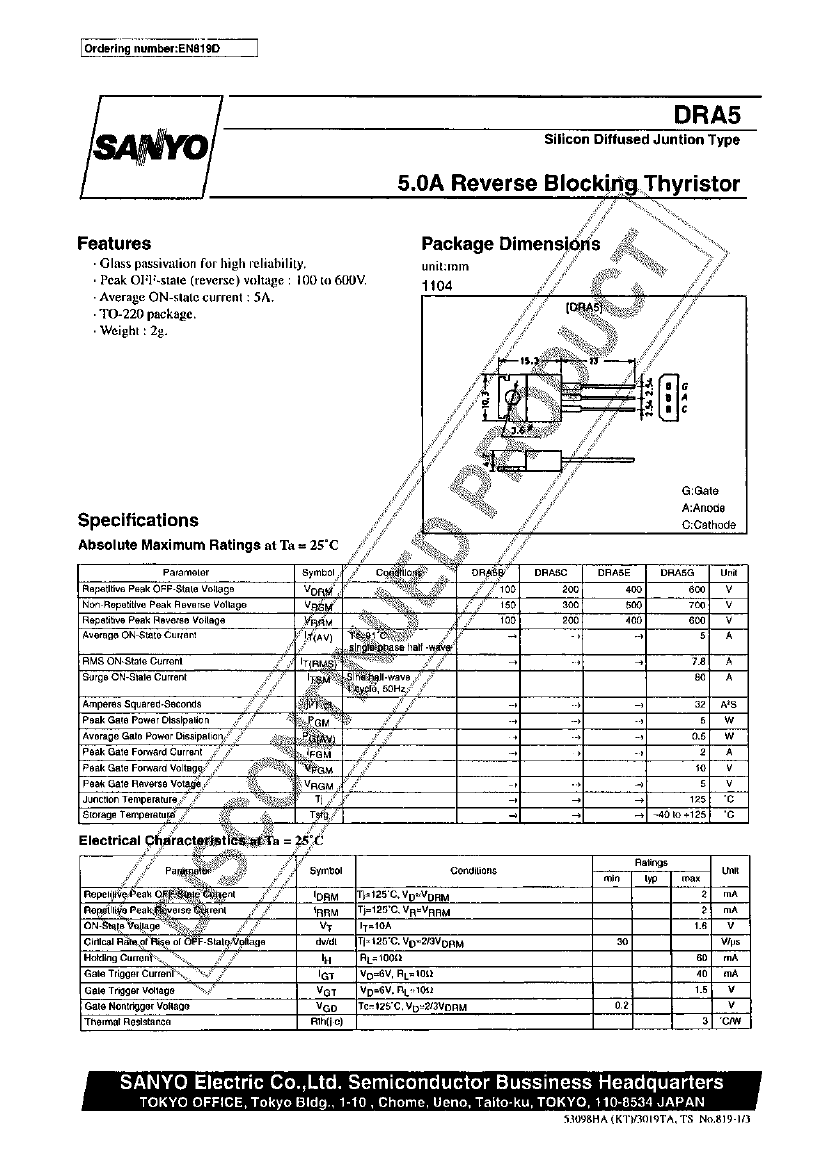

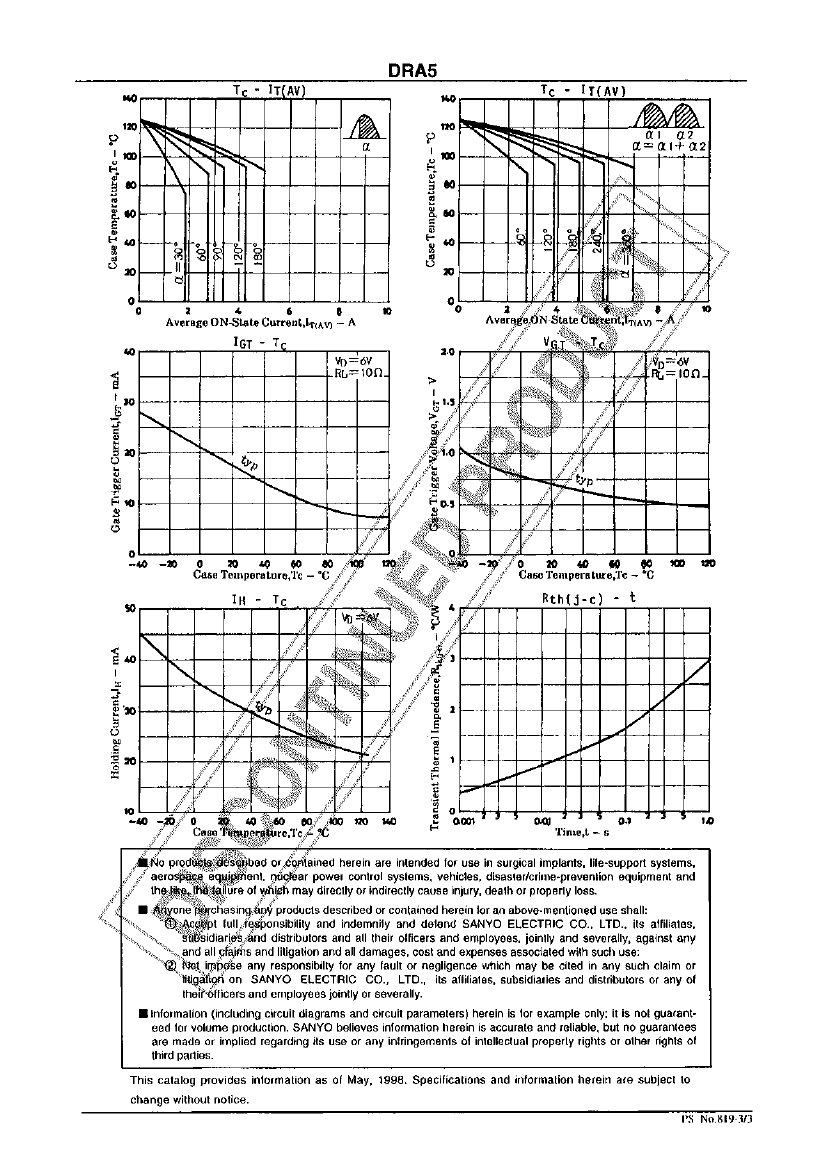

Preview

Download Datasheet

View All

DRA5G Related Products

	DRA5G	DRA5E	DRA5C	DRA5B
Description	Silicon Controlled Rectifier, 7.8A I(T)RMS, 5000mA I(T), 600V V(DRM), 600V V(RRM), 1 Element, TO-220AB, TO-220, 3 PIN	Silicon Controlled Rectifier, 7.8A I(T)RMS, 5000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-220AB, TO-220, 3 PIN	Silicon Controlled Rectifier, 7.8A I(T)RMS, 5000mA I(T), 200V V(DRM), 200V V(RRM), 1 Element, TO-220AB, TO-220, 3 PIN	Silicon Controlled Rectifier, 7.8A I(T)RMS, 5000mA I(T), 100V V(DRM), 100V V(RRM), 1 Element, TO-220AB, TO-220, 3 PIN
Maker	SANYO	SANYO	SANYO	SANYO
Parts packaging code	SFM	SFM	TO-220AB	TO-220AB
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Contacts	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	30 V/us	30 V/us	30 V/us	30 V/us
Maximum DC gate trigger current	40 mA	40 mA	40 mA	40 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	60 mA	60 mA	60 mA	60 mA
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum leakage current	2 mA	2 mA	2 mA	2 mA
On-state non-repetitive peak current	80 A	80 A	80 A	80 A
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Maximum on-state current	5000 A	5000 A	5000 A	5000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-30 °C	-30 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	7.8 A	7.8 A	7.8 A	7.8 A
Off-state repetitive peak voltage	600 V	400 V	200 V	100 V
Repeated peak reverse voltage	600 V	400 V	200 V	100 V
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Trigger device type	SCR	SCR	SCR	SCR
