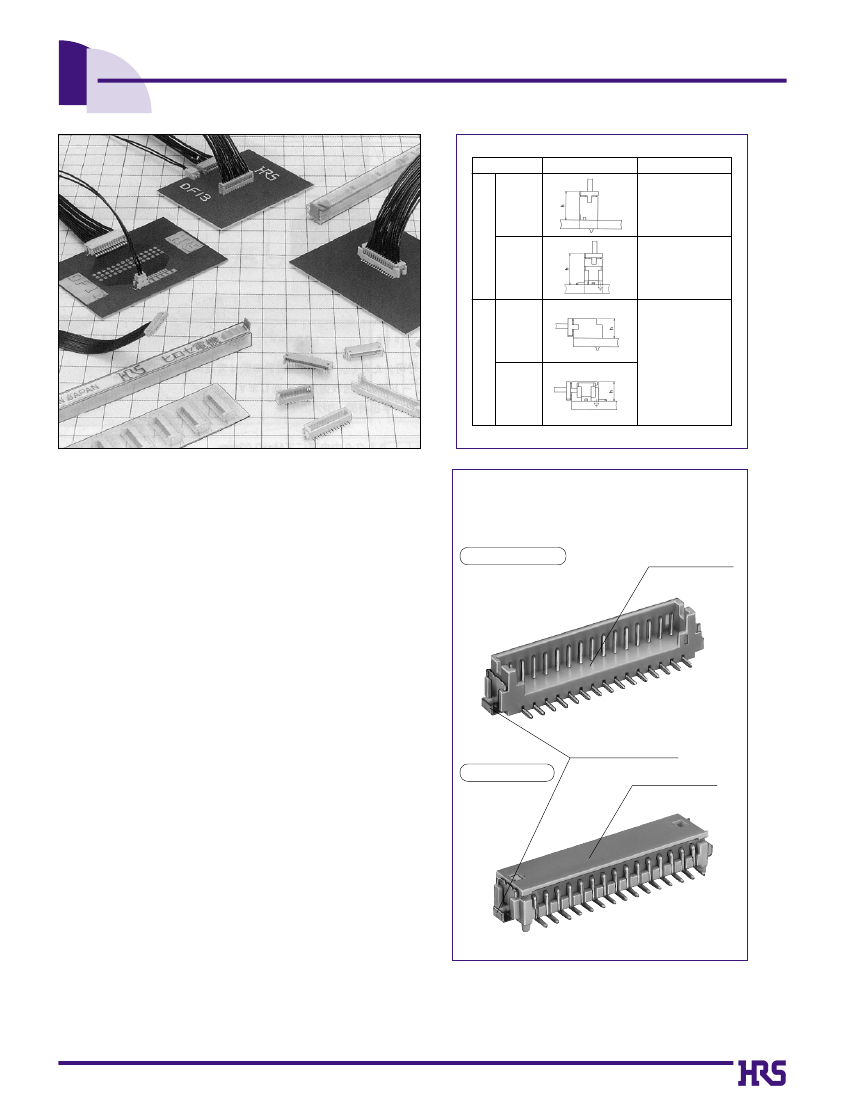

1.25mm Pitch Miniature Crimping Connector
DF13 Series
Type
DIP
Mounting Type
Mounting Height
5.3mm
Straight Type
SMT
5.8mm
Right Angle Type
DIP
3.6mm
SMT
sFeatures
1. Miniature Size
Designed in the low profile at mounting height 5.8mm.
(SMT mounting straight type)
(For DIP type, the mounting height is to 5.3mm to the
straight and 3.6mm at the right angle)
Correspond to Automatic Mounting
Secure the automatic plain area for the absorption
type automatic mounting machine.
Straight Type
Absorption area
2. Multi-contact
The double row type achieves the multi-contact up to 40
contacts, and secures 30% higher density in the mounting
area, compared with the single row type.
3. Correspond to Automatic Mounting
The header provides the grade with the vacuum absorption
area, and secures automatic mounting by the embossed
tape packaging.
In addition, the tube packaging can be selected.
4. Integral Basic Function Despite Miniature Size
The header is designed in a scoop-proof box structure, and
completely prevents mis-insertion.
In addition, the surface mounting (SMT) header is equipped
with the metal fitting to prevent solder peeling.
Right Angle Type
Metal fitting
Absorption area
sApplications
Note PC, mobile terminal, miniature type business equipment,
and other various consumer equipment, including video
camera
Figure 1
B183
sProduct
Specifications
Rating
Current rating 1A
Operating Temperature Range:
-35 to
+85ç
(Note 1)
Storage Temperature Range:
-10 to
+60ç
(Note 2)
Storage Moisture Range: 40
to
70%
Condition
100V DC
500V AC/1 minute
100mA
Measured at the square steel pin of 0.35±0.002mm
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-55ç: 30 minutes➝ 5
to
35ç: 10 minutes➝ 85ç: 30 minutes➝ 5
to
35ç: 10 minutes) 5 cycles
Tin plating: 30 cycles
Gold plating: 50 cycles
9.Resistance to Soldering heat
No deformation of components affecting performance.
Flow: 250ç for 10 seconds
Manual soldering: 300ç for 3 seconds
Reflow: At the recommended temperature profile
Manual soldering: 300ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Voltage rating 150V AC Operating Moisture Range: 40
to
80%
Specification
500M
ohms min.
No flashover or insulation breakdown.
30m ohms max.
No electrical discontinuity of 1µs or more
Contact resistance: 30m
ohms
max. Insulation resistance: 500M
ohms
min.
(Note 2)
Item
1.Insulation Resistance
2.Withstanding voltage
3.Contact Resistance
5.Vibration
7.Temperature Cycle
4.Single Insertion/Extraction Force 0.3N (30gf) min., 3N (300gf) max.
6.Humidity
(Steady state)
Contact resistance: 30m
ohms
max. Insulation resistance: 500M
ohms
min.
8.Durability (Mating/un-mating) Contact resistance: 30m
ohms
max.
sMaterial
Product
Crimping Socket
Crimping Contact for Socket
Pin Header (Through hole)
Part
Insulator
Contact
Insulator
Contact
Insulator
Pin Header (SMT)
Contact
Metal Fitting
Material
Polyamide
Phosphor copper
Polyamide
Brass
Polyamide
Brass
Phosphor copper
Finish
Beige
Tin plated or gold plated
Beige
Tin plated
Beige
Tin plated or gold plated
Tin plated
Remarks
UL94V-0
--
--
UL94V-0
--
--
UL94V-0
--
--
--
--
sOrdering
Information
qConnector
DF13
q
: DF13
: Blank: With boss
A: Without boss
#
-
*
S - 1.25 C
w
e
r
t
y
t
Contact Pitch: 1.25mm
y
Contact Type
C : Crimping socket / DSA : Straight through hole
DS : Right angle through hole / V : Straight SMT
H : Right angle SMT
q
Series Name
w
Style Symbol
V Type
e
Number of Contacts
r
Single row: 2
to
12, 14, 15
r
Double row: 10, 20, 30, 40
B: With boss, embossed tape type
r
Connector Type
C: Without boss, embossed tape type
t
S: Single row socket / P: Single row pin header
t
DS: Double row socket / DP: Double row pin header
qContact
DF 13 - 2630 SCF A
q
w
e
q
Applicable Cable Size 2630: AWG26
to
30
w
Packaging Type SCF: Socket Contact/Reel
e
Plating Type
Blank: Tin plated
A : Gold plated
B184
sSingle
Row Socket
[Specific No.] -
**,
(**)
Blank: 1 bag: 100 pcs.
Photo: Contact insertion
Number of Contacts
Part Number
CL No.
A
1.25
2
DF13-2S-1.25C(**) 536-0001-4-**
2.50
3
DF13-3S-1.25C(**) 536-0002-7-**
3.75
4
DF13-4S-1.25C(**) 536-0003-0-**
5.00
5
DF13-5S-1.25C(**) 536-0004-2-**
6.25
6
DF13-6S-1.25C(**) 536-0005-5-**
7.50
7
DF13-7S-1.25C(**) 536-0006-8-**
8.75
8
DF13-8S-1.25C(**) 536-0007-0-**
Note 1.The quantity at the specific No. "None" is delivered
B
4.15
5.40
6.65
7.90
9.15
10.40
11.65
per bag
Part Number
DF13- 9S-1.25C(**)
DF13-10S-1.25C(**)
DF13-11S-1.25C(**)
DF13-12S-1.25C(**)
DF13-14S-1.25C(**)
DF13-15S-1.25C(**)
Number of Contacts
CL No.
9
536-0008-3-**
10
536-0009-6-**
11
536-0010-5-**
12
536-0011-8-**
14
536-0013-3-**
15
536-0014-6-**
A
10.00
11.25
12.50
13.75
16.25
17.50
Unit: mm
B
12.90
14.15
15.40
16.65
19.15
20.40
(100 pcs.). If needed, please select and order the products per bag.
sDouble
Row Socket
Photo: Contact insertion state
Unit: mm
Part Number
DF13-10DS-1.25C(**)
DF13-20DS-1.25C(**)
DF13-30DS-1.25C(**)
DF13-40DS-1.25C(**)
Note:The quantity
Number of Contacts
CL No.
10
536-0550-2-**
20
536-0555-6-**
30
536-0560-6-**
40
536-0565-0-**
at the specific No. "Blank" is
A
B
[Specific No.] –
**,
(**)
Blank: 1 bag: 100 pcs.
5.00
10.40
11.25
16.65
17.50
22.90
23.75
29.15
delivered per bag (100pcs). If needed, please select and order the products per bag.
B185
sSingle

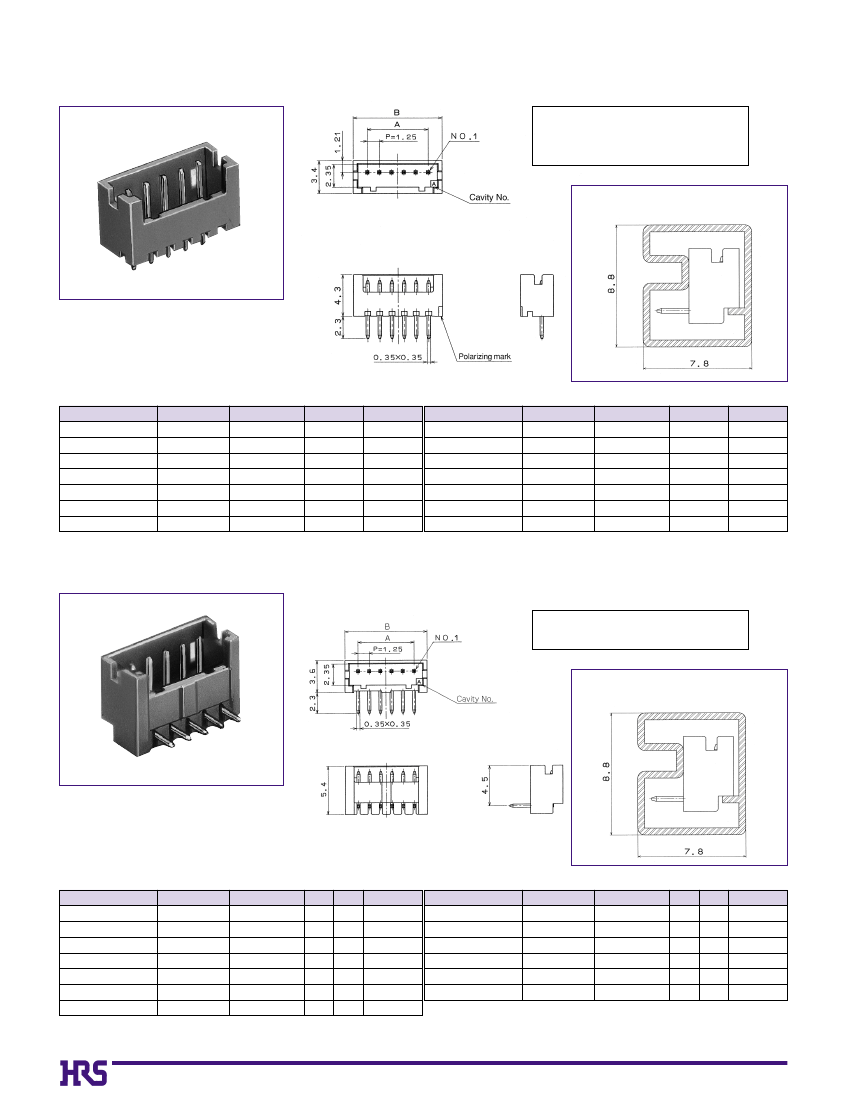

Row Straight Pin Header (Through hole)
[Specific No.] –
**,
(**)
Blank: Tin plated
20: Tin plated, tube packaging
BTube
Dimensions
qBoard
Through-hole Diameter:Ø0.6±0.03
Unit: mm
Number of Contacts
Number of Contacts
Part Number
CL No.
A
B
Part Number
CL No.
A
B
4.15
12.90
1.25
10.00
2
9
DF13-2P-1.25DSA(**) 536-0101-9-**
DF13- 9P-1.25DSA(**) 536-0108-8-**
5.40
14.15
2.50
11.25
3
10
DF13-3P-1.25DSA(**) 536-0102-1-**
DF13-10P-1.25DSA(**) 536-0109-0-**
6.65
15.40
3.75
12.50
4
11
DF13-4P-1.25DSA(**) 536-0103-4-**
DF13-11P-1.25DSA(**) 536-0110-0-**
7.90
16.65
5.00
13.75
5
12
DF13-5P-1.25DSA(**) 536-0104-7-**
DF13-12P-1.25DSA(**) 536-0111-2-**
9.15
17.90
6.25
15.00
6
13
DF13-6P-1.25DSA(**) 536-0105-0-**
DF13-13P-1.25DSA(**) 536-0112-5-**
10.40
19.15
7.50
16.25
7
14
DF13-7P-1.25DSA(**) 536-0106-2-**
DF13-14P-1.25DSA(**) 536-0113-8-**
11.65
20.40
8.75
17.50
8
15
DF13-8P-1.25DSA(**) 536-0107-5-**
DF13-15P-1.25DSA(**) 536-0114-0-**
Note 1.The quantity at the specific No. "None" is delivered per bag (100 pcs.). If needed, please select and order the products per bag.
sSingle
Row Right Angle Pin Header (Through hole)
[Specific No.] –
**,
(***)
(20): Tin plated tube packaging
BTube
Dimensions
qBoard
Through-hole Diameter:Ø0.6±0.03
Number of Contacts A
Part Number
CL No.
B Tube Packaging Quantity
Part Number
1.25 4.15
115
2
DF13-2P-1.25DS(**) 536-0151-7-**
DF13- 9P-1.25DS(**)
2.50 5.40
89
3
DF13-3P-1.25DS(**) 536-0152-0-**
DF13-10P-1.25DS(**)
3.75 6.65
72
4
DF13-4P-1.25DS(**) 536-0153-2-**
DF13-11P-1.25DS(**)
5.00 7.90
61
5
DF13-5P-1.25DS(**) 536-0154-5-**
DF13-12P-1.25DS(**)
6.25 9.15
52
6
DF13-6P-1.25DS(**) 536-0155-8-**
DF13-14P-1.25DS(**)
7.50 10.40
46
7
DF13-7P-1.25DS(**) 536-0156-0-**
DF13-15P-1.25DS(**)
8.75 11.65
41
8
DF13-8P-1.25DS(**) 536-0157-3-**
Note 1.Order the tube packaging product, multiplying the tube packaging quantity.
CL No.
536-0158-6-**
536-0159-9-**
536-0160-8-**
536-0161-0-**
536-0163-6-**
536-0164-9-**
Unit: mm
Number of Contacts A
B Tube Packaging Quantity
37
9
10.00 12.90
34
10
11.25 14.15
31
11
12.50 15.40
29
12
13.75 16.65
25
14
16.25 19.15
23
15
17.50 20.40
B186
BSingle

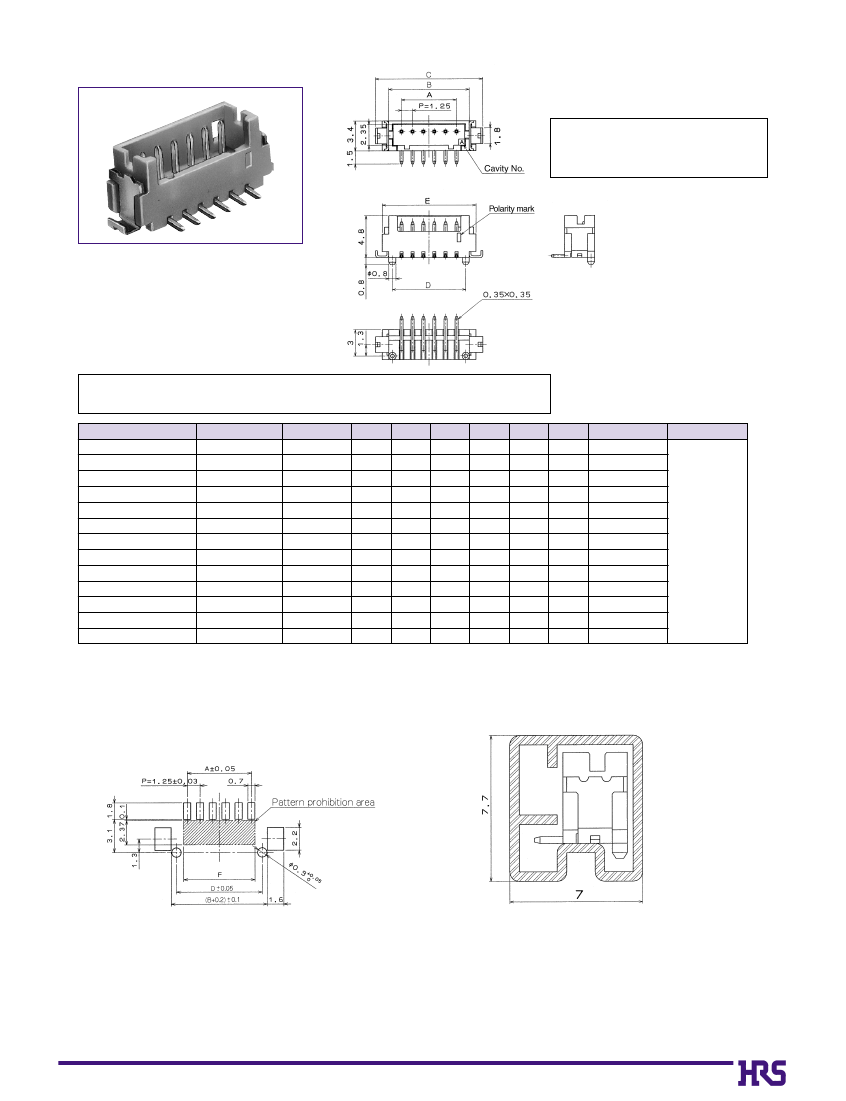

Row Straight Pin Header (SMT)
[Specific No.] –
**,
(**)
(20): Tin plated tube package
(50): Gold plated tube package
This pin header is a box type style. Therefore, the header has neither vacuum absorption
face nor embossed tape packaging specification.
Unit: mm
Part Number
DF13- 2P-1.25V(**)
DF13- 3P-1.25V(**)
DF13- 4P-1.25V(**)
DF13- 5P-1.25V(**)
DF13- 6P-1.25V(**)
DF13- 7P-1.25V(**)
DF13- 8P-1.25V(**)
DF13- 9P-1.25V(**)
DF13-10P-1.25V(**)
DF13-11P-1.25V(**)
DF13-12P-1.25V(**)
DF13-14P-1.25V(**)
DF13-15P-1.25V(**)
CL No.
536-0201-3-**
536-0202-6-**
536-0203-9-**
536-0204-1-**
536-0205-4-**
536-0206-7-**
536-0207-0-**
536-0208-2-**
536-0209-5-**
536-0210-4-**
536-0211-7-**
536-0213-2-**
536-0214-5-**
Number of Contacts
2
3
4
5
6
7
8
9
10
11
12
14
15
A
1.25
2.50
3.75
5.00
6.25
7.50
8.75
10.00
11.25
12.50
13.75
16.25
17.50
B
4.15
5.40
6.65
7.90
9.15
10.40
11.65
12.90
14.15
15.40
16.65
19.15
20.40
C
7.15
8.40
9.65
10.90
12.15
13.40
14.65
15.90
17.15
18.40
19.65
22.15
23.40
D
3.35
4.60
5.85
7.10
8.35
9.60
10.85
12.10
13.35
14.60
15.85
18.35
19.60
E
5.65
6.90
8.15
9.40
10.65
11.90
13.15
14.40
15.65
16.90
18.15
20.65
21.90
F
Tube Package Quantity
1.95
67
3.20
57
4.45
49
5.70
44
6.95
39
8.20
36
9.45
33
10.70
30
11.95
28
13.20
26
14.45
24
16.95
21
18.20
20
Remark
Guide post
Note:Please order the tube packaging products, multiplying the tube packaging quantity.
BPCB
mounting pattern
BTube
Dimensions
Note:If the pattern exists in the shaded area, and isn't treated with resist, it could touch the connector contact.
B187
