DTC12E-N datasheet, PDF - EEWORLD Datasheet

DTC12E-N: DescriptionTRIAC,400V V(DRM),12A I(T)RMS,TO-220; CategoryAnalog mixed-signal IC Trigger device; File Size98KB，3 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

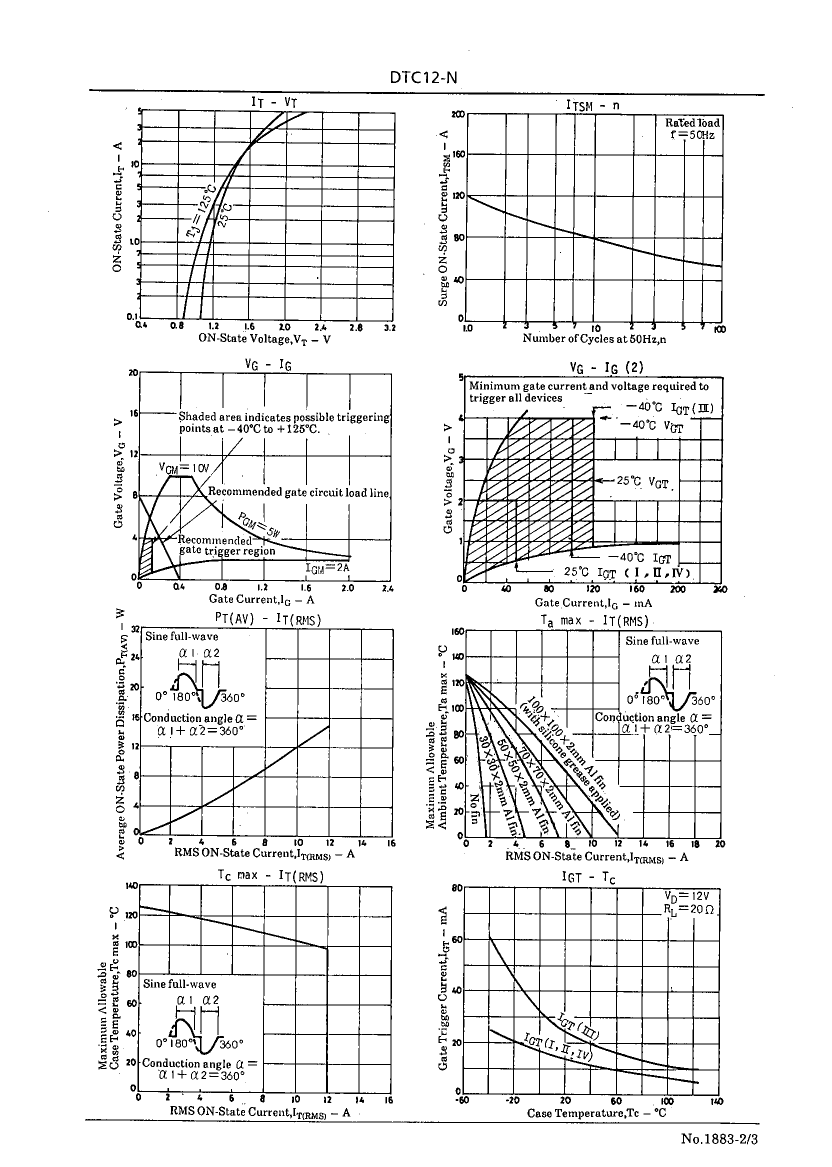

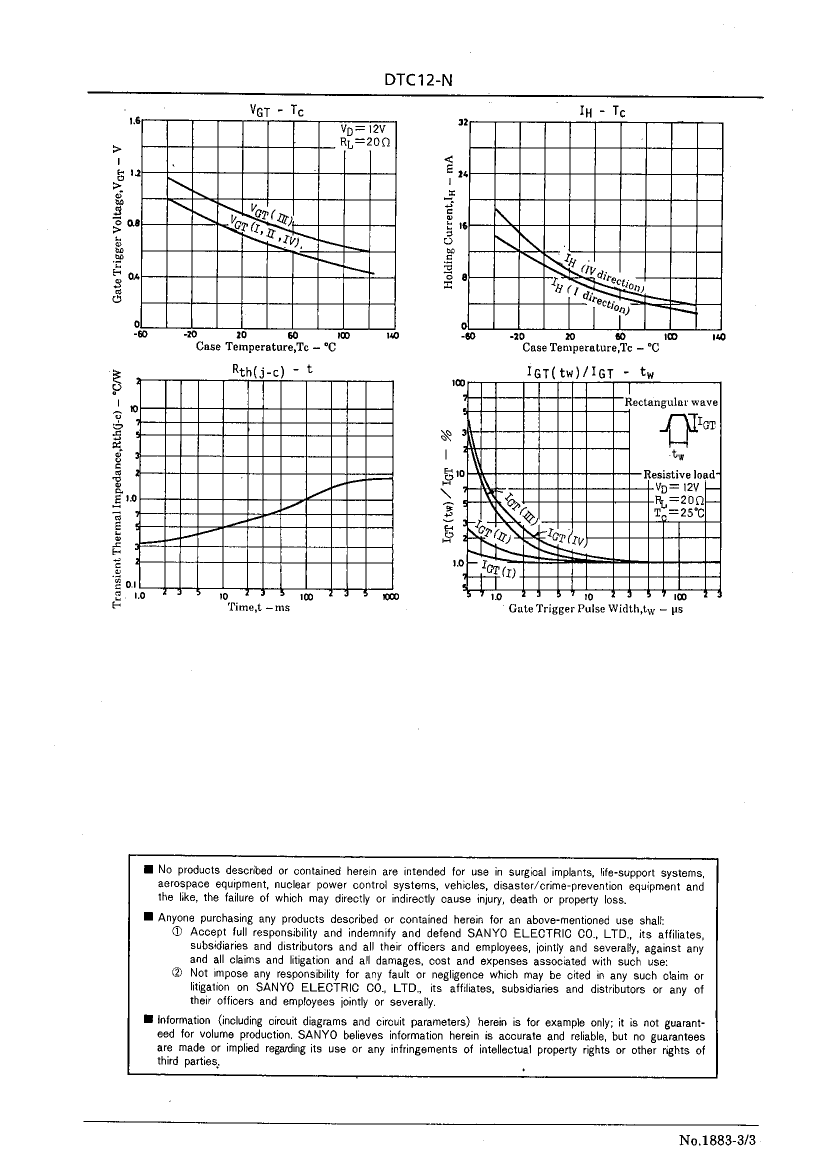

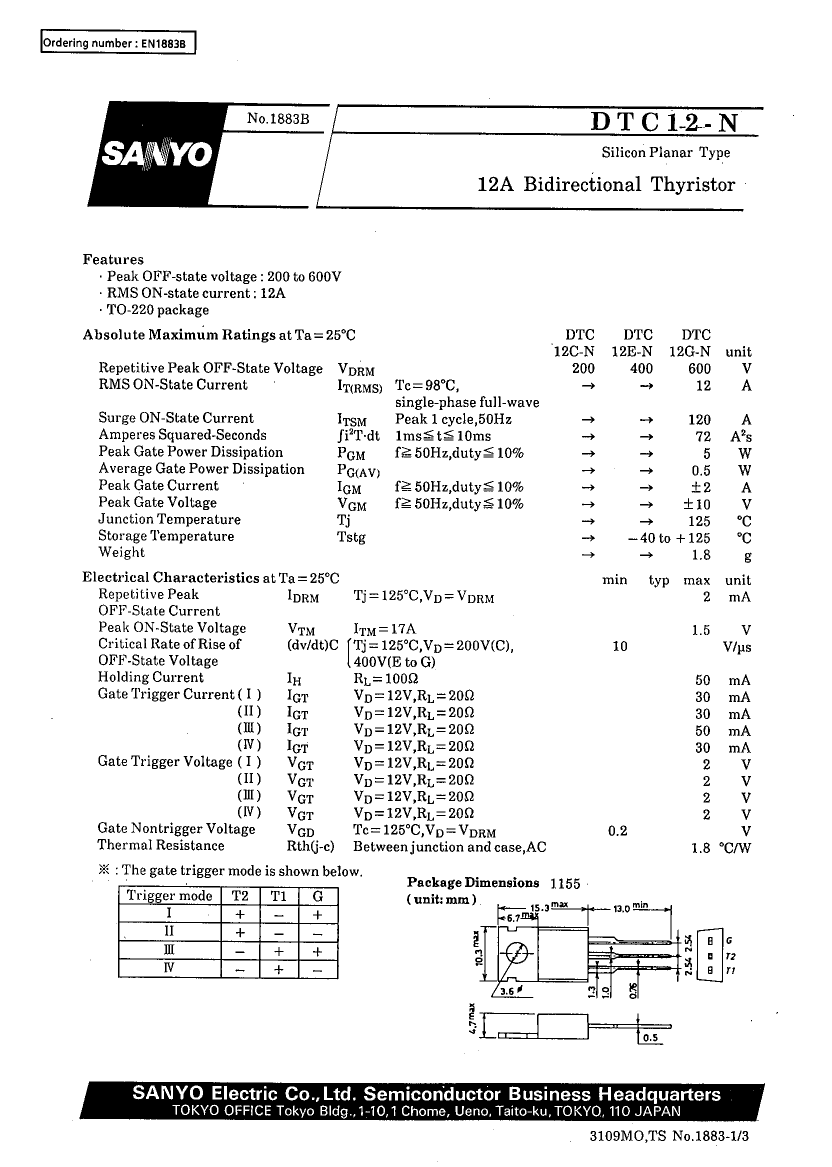

DTC12E-N Overview

TRIAC,400V V(DRM),12A I(T)RMS,TO-220

Parameter Name	Attribute value
Maker	ON Semiconductor
package instruction	,
Reach Compliance Code	compliant
Critical rise rate of commutation voltage - minimum value	10 V/us
Maximum DC gate trigger current	30 mA
Maximum DC gate trigger voltage	2 V
Maximum holding current	50 mA
Maximum leakage current	2 mA
Maximum on-state voltage	1.5 V
Maximum operating temperature	125 °C
Minimum operating temperature	-45 °C
Maximum rms on-state current	12 A
Off-state repetitive peak voltage	400 V
surface mount	NO
Trigger device type	TRIAC

	DTC12E-N	DTC12C-N	DTC12G-N
Description	TRIAC,400V V(DRM),12A I(T)RMS,TO-220	TRIAC,200V V(DRM),12A I(T)RMS,TO-220	TRIAC,600V V(DRM),12A I(T)RMS,TO-220
Maker	ON Semiconductor	ON Semiconductor	ON Semiconductor
Reach Compliance Code	compliant	compliant	compliant
Critical rise rate of commutation voltage - minimum value	10 V/us	10 V/us	10 V/us
Maximum DC gate trigger current	30 mA	30 mA	30 mA
Maximum DC gate trigger voltage	2 V	2 V	2 V
Maximum holding current	50 mA	50 mA	50 mA
Maximum leakage current	2 mA	2 mA	2 mA
Maximum on-state voltage	1.5 V	1.5 V	1.5 V
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-45 °C	-40 °C	-40 °C
Maximum rms on-state current	12 A	12 A	12 A
Off-state repetitive peak voltage	400 V	200 V	600 V
surface mount	NO	NO	NO
Trigger device type	TRIAC	TRIAC	TRIAC
