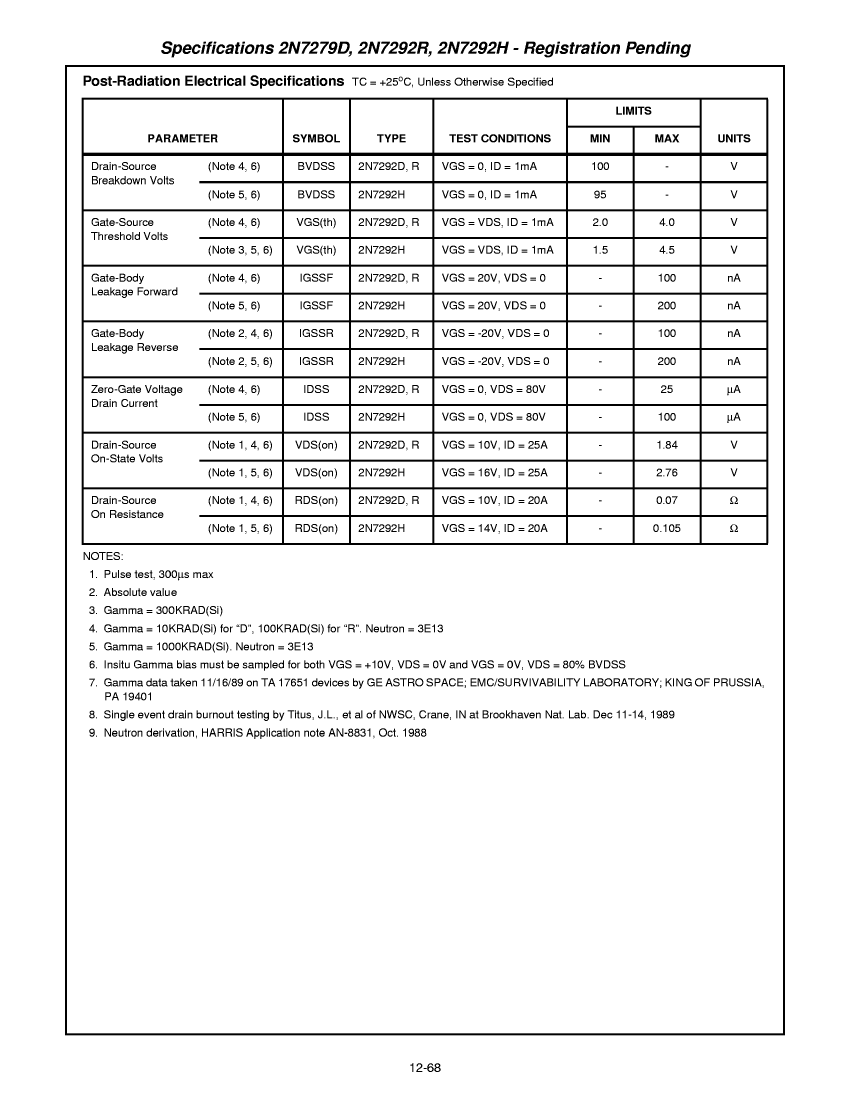

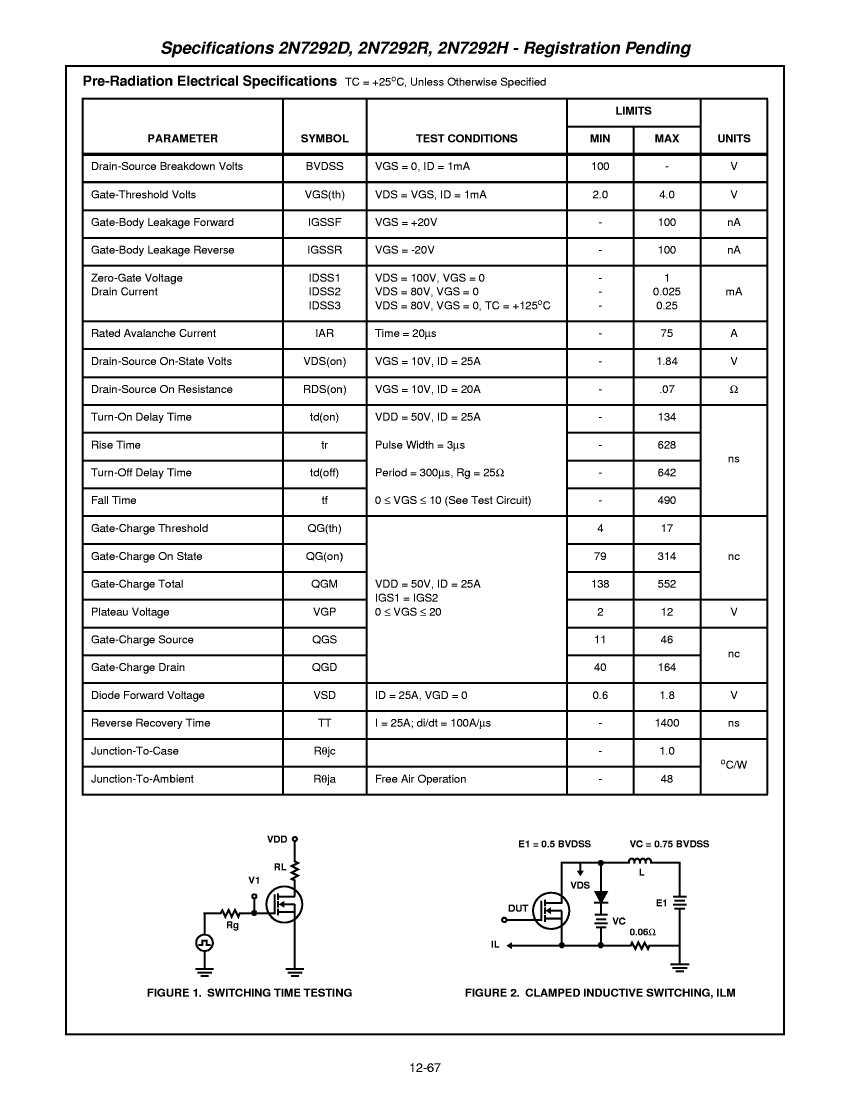

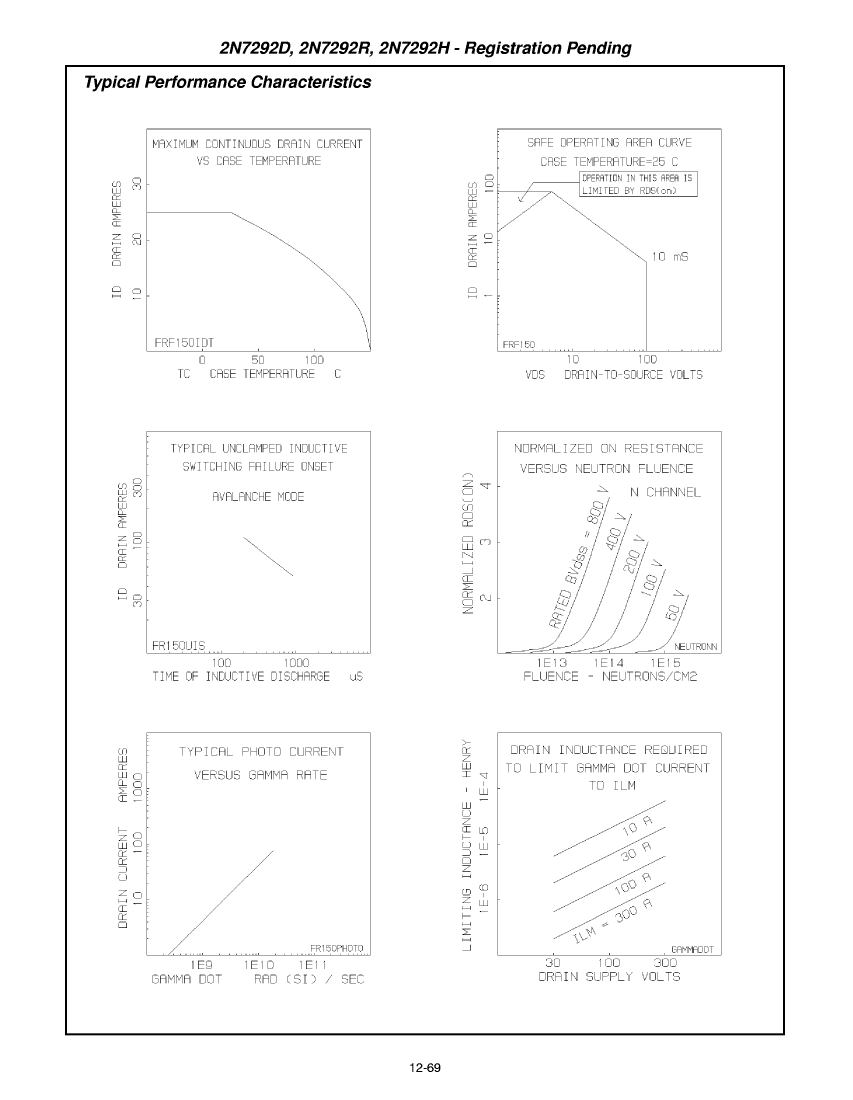

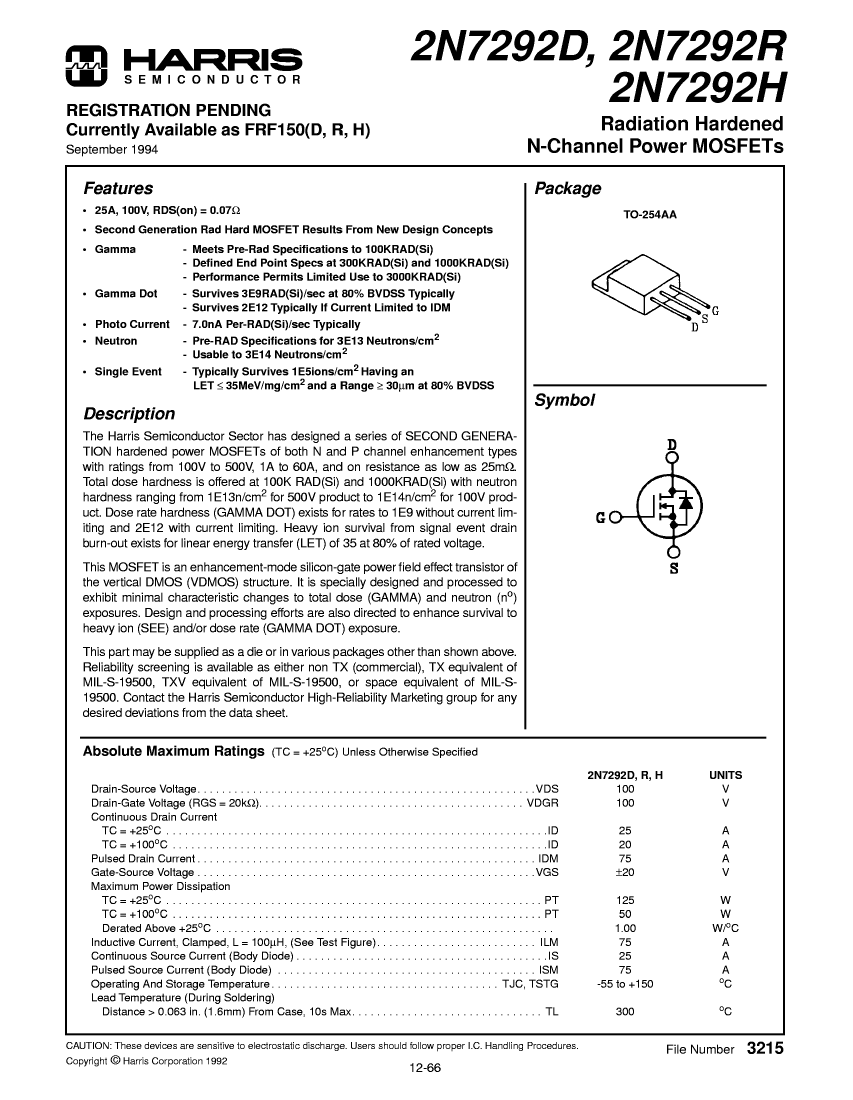

2N7292D2: DescriptionTRANSISTOR,MOSFET,N-CHANNEL,100V V(BR)DSS,25A I(D),TO-254AA; CategoryDiscrete semiconductor The transistor; File Size253KB，4 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

2N7292D2 Overview

TRANSISTOR,MOSFET,N-CHANNEL,100V V(BR)DSS,25A I(D),TO-254AA

2N7292D2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	_compli
Configuration	Single
Maximum drain current (Abs) (ID)	25 A
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-609 code	e0
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	125 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

2N7292D2 Related Products

	2N7292D2	2N7292H1	2N7292H2	2N7292H4	2N7292R2	2N7292R3	2N7292R4
Description	TRANSISTOR,MOSFET,N-CHANNEL,100V V(BR)DSS,25A I(D),TO-254AA	TRANSISTOR,MOSFET,N-CHANNEL,100V V(BR)DSS,25A I(D),TO-254AA	TRANSISTOR,MOSFET,N-CHANNEL,100V V(BR)DSS,25A I(D),TO-254AA	TRANSISTOR,MOSFET,N-CHANNEL,100V V(BR)DSS,25A I(D),TO-254AA	TRANSISTOR,MOSFET,N-CHANNEL,100V V(BR)DSS,25A I(D),TO-254AA	TRANSISTOR,MOSFET,N-CHANNEL,100V V(BR)DSS,25A I(D),TO-254AA	TRANSISTOR,MOSFET,N-CHANNEL,100V V(BR)DSS,25A I(D),TO-254AA
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	_compli	_compli	_compli	_compli	_compli	_compli	_compli
Configuration	Single	Single	Single	Single	Single	Single	Single
Maximum drain current (Abs) (ID)	25 A	25 A	25 A	25 A	25 A	25 A	25 A
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Maximum power dissipation(Abs)	125 W	125 W	125 W	125 W	125 W	125 W	125 W
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	1	1	1	1
