ERA.0S.304.CLLF
SUMMARY
# Wires
Low
High
Coax
Triax
Quad
Fiber
Fluidic
Series
Termination type
IP rating
Cable Ø
Matching parts
Status
Alternative part
4
0
0
0
0
0
0
0S
Female solder
50
0.00 - 0.00 mm
FFA.0S.304.CLAC17
active
Image is for illustrative purpose only
Download
Request a quote
Catalog
TECHNICAL DETAILS
Mechanics
Shell Style/Model
Keying
Housing Material
Cable Fixing
Variant
Weight
4.09 g
ERA*: Fixed receptacle, nut fixing
Hermaphroditic keying ("half moon" insert), plug has male pin 1
Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
: 0 - 0 mm
Performance
Configuration
Insulator
Rated Current
0S.304 : 4 Low Voltage
L: PEEK (UL 94 / V-0/3.2, depends on material thickness)
7 Amps
Specifications
Contact Type: Solder
Max. Matings: 5000
Contact Dia.: 0.7 mm (0.028in)
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
Bucket Dia.: 0.6 mm (0.024in)
Max. Solid Conductor: 0.25 mm^2 (AWG 24)
Max. Stranded Conductor: 0.14 mm^2 (AWG 26)
R (max): 6.1 mOhm
Vtest: 1060 V (AC), 1500 V (DC)
Others
Endurance (Shell): 5000 mating cycles
Temp (min / max): -55°C / +250°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >1000 hr
Climatical Category: 50/175/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
IP Rating: 50
DRAWINGS
Draws
Dimensions
A
mm.
in.
10
0,39
B
12.4
0,49
E
7
0,28
L
17.5
0,69
L2
18.0
0,71
M
1.2
0,05
S1
8.2
0,32
S3
11
0,43
e
M9x0.6
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3

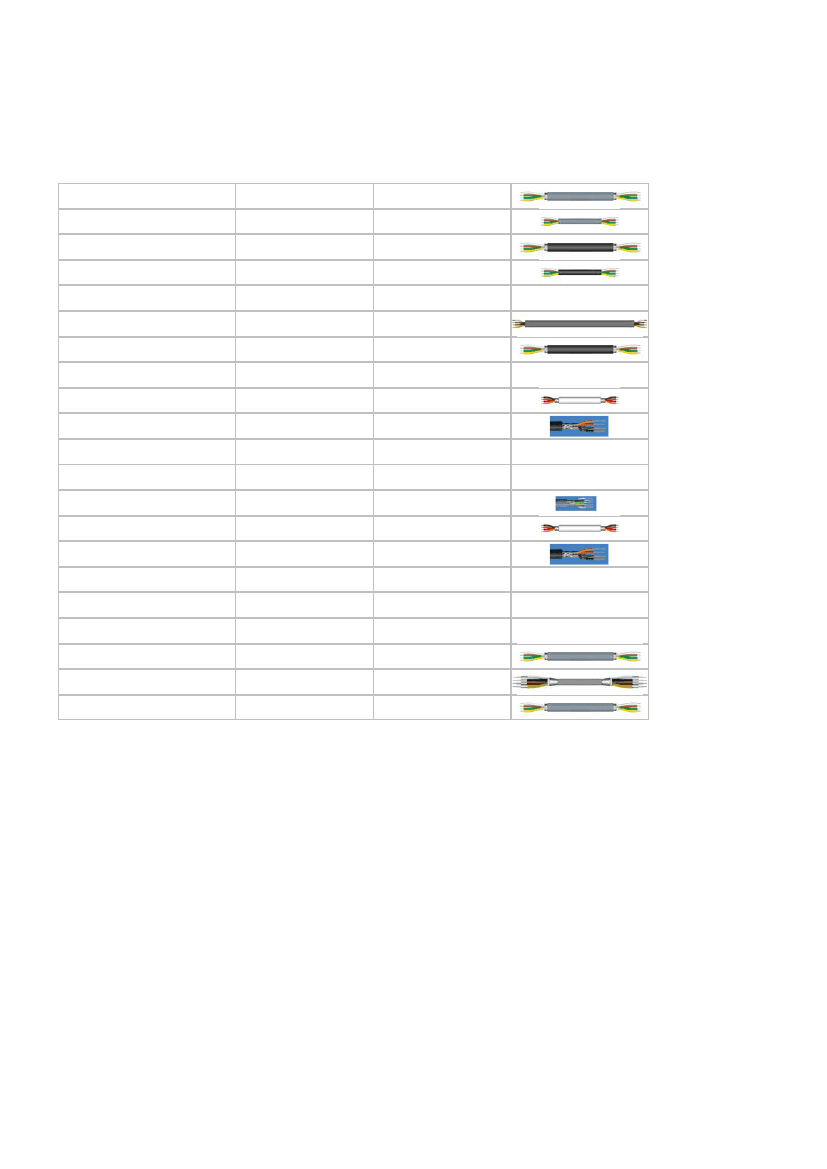

RECOMMENDED BY LEMO
Tools
None
Cables
CMN.04.T28.031PGCE
CMN.04.T28.031PGZE
CMN.04.T28.031PNCE
CMN.04.T28.031PNZE
CMN.04.T28.031QGC
004 041
004 050
004 080
004 260
004 280
040 080
040 086
040 140
040 240
040 260
080 080
080 082
080 084
140 250
417 920
CTR.75.030.121870G
TPR
PVC
PVC
PVC
PTFE
PVC
PVC
PVC
PVC
PTFE
PVC
PVC
PVC
PVC
PVC
PVC
PVC
Grey
Grey
Black
Grey
White
Black
Black
Blue
Black
White
Black
Grey
Red
Black
Grey
Grey
Grey
PVC
PVC
GREY
Grey
Black
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
3/3
