2RI60G-160 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 2RI60G-160

Preview

2RI60G-160: DescriptionRectifier Diode, 1 Phase, 2 Element, 60A, 1600V V(RRM), Silicon, R204, 3 PIN; CategoryDiscrete semiconductor diode; File Size98KB，2 Pages; ManufacturerFuji Electric Co., Ltd.

Download Datasheet Parametric Compare View All

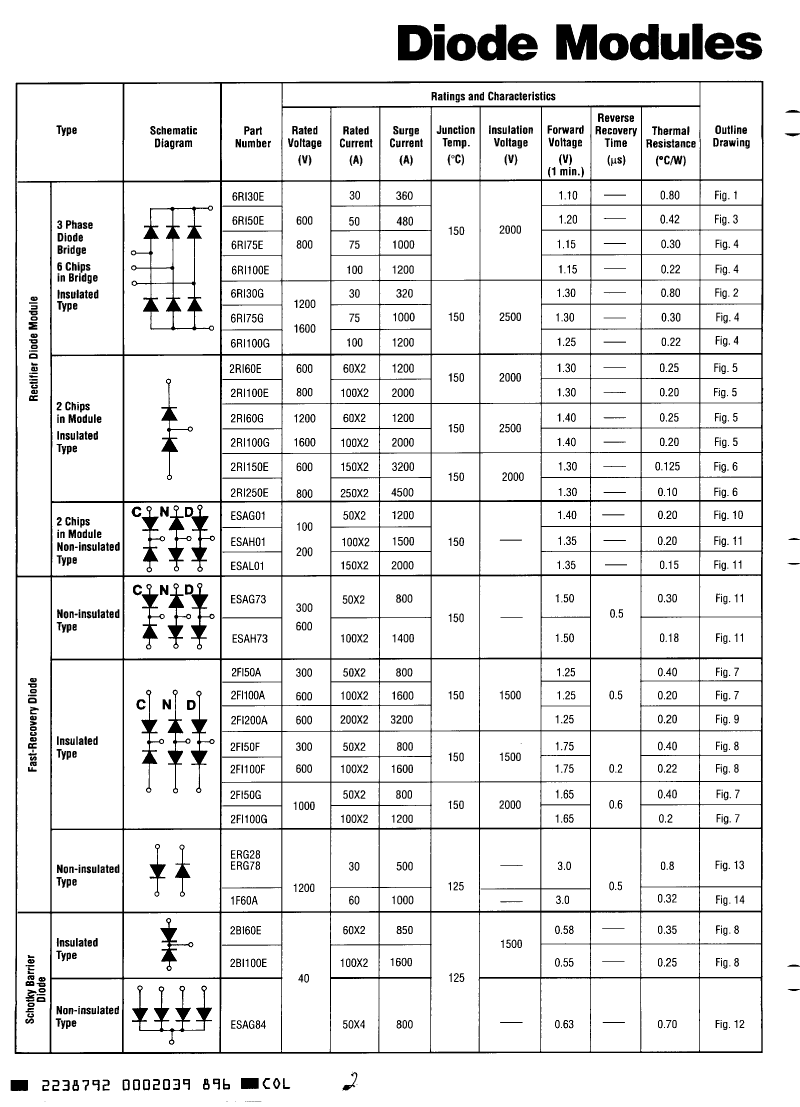

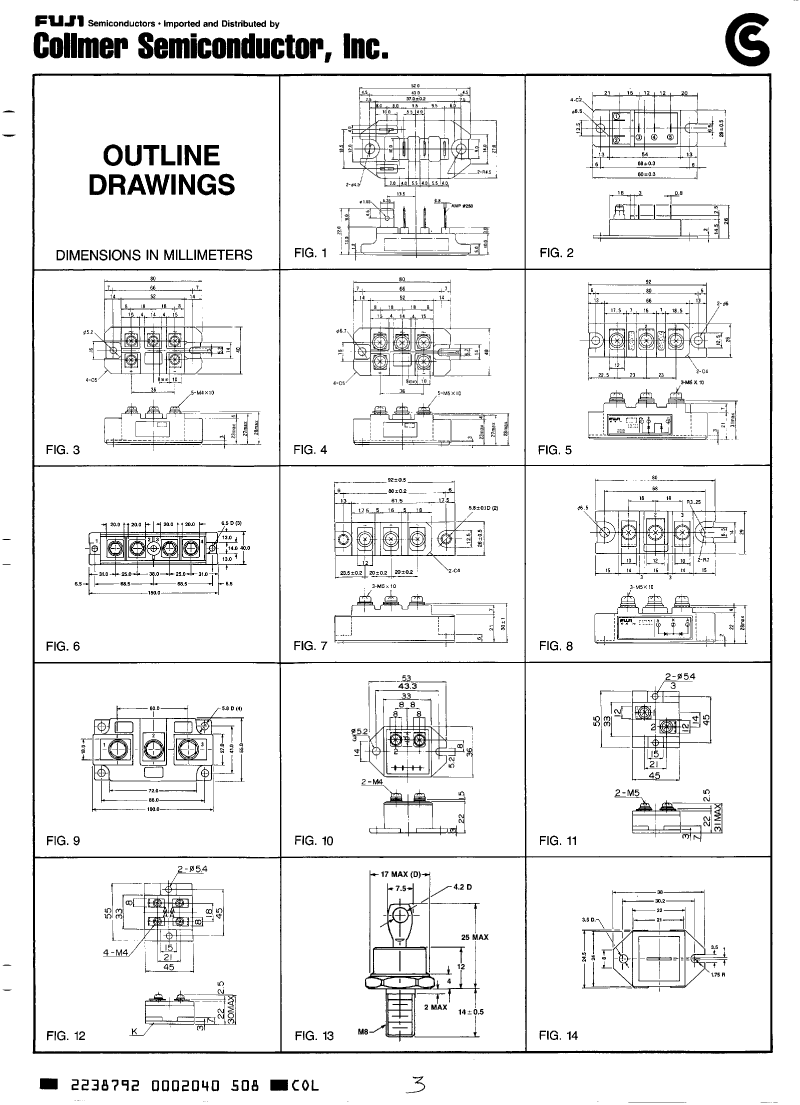

2RI60G-160 Overview

Rectifier Diode, 1 Phase, 2 Element, 60A, 1600V V(RRM), Silicon, R204, 3 PIN

2RI60G-160 Parametric

Parameter Name	Attribute value
package instruction	R-XUFM-X3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
application	POWER
Shell connection	ISOLATED
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V
JESD-30 code	R-XUFM-X3
Maximum non-repetitive peak forward current	1200 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	60 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1600 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Base Number Matches	1

Preview

Download Datasheet

View All

2RI60G-160 Related Products

	2RI60G-160	2RI60E-080	2RI100G-120	ESAL01-02N	ESAL01-01D	ESAL01-02D	ESAL01-01C
Description	Rectifier Diode, 1 Phase, 2 Element, 60A, 1600V V(RRM), Silicon, R204, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 60A, 800V V(RRM), Silicon, R204, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 100A, 1200V V(RRM), Silicon, R204, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 150A, 200V V(RRM), Silicon, MODULE-2	Rectifier Diode, 1 Phase, 2 Element, 150A, 100V V(RRM), Silicon, MODULE-2	Rectifier Diode, 1 Phase, 2 Element, 150A, 200V V(RRM), Silicon, MODULE-2	Rectifier Diode, 1 Phase, 2 Element, 150A, 100V V(RRM), Silicon, MODULE-2
package instruction	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2
Reach Compliance Code	unknow	unknow	unknow	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	POWER	POWER	POWER	POWER	POWER	POWER	POWER
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V	1.3 V	1.4 V	1.3 V	1.3 V	1.3 V	1.3 V
JESD-30 code	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2
Maximum non-repetitive peak forward current	1200 A	1200 A	2000 A	2000 A	2000 A	2000 A	2000 A
Number of components	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1
Number of terminals	3	3	3	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	60 A	60 A	100 A	150 A	150 A	150 A	150 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1600 V	800 V	1200 V	200 V	100 V	200 V	100 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Contacts	3	3	-	2	2	2	2
Base Number Matches	1	1	1	1	1	-	-
Maker	-	-	-	Fuji Electric Co., Ltd.	Fuji Electric Co., Ltd.	Fuji Electric Co., Ltd.	Fuji Electric Co., Ltd.
Parts packaging code	-	-	-	MODULE	MODULE	MODULE	MODULE
Other features	-	-	-	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE
Minimum operating temperature	-	-	-	-40 °C	-40 °C	-40 °C	-40 °C
