SCN8051HAFA44-T datasheet, PDF

SCN8051HAFA44-T: DescriptionIC 8-BIT, MROM, 7.5 MHz, MICROCONTROLLER, PQCC44, PLASTIC, LCC-44, Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size387KB，9 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric View All

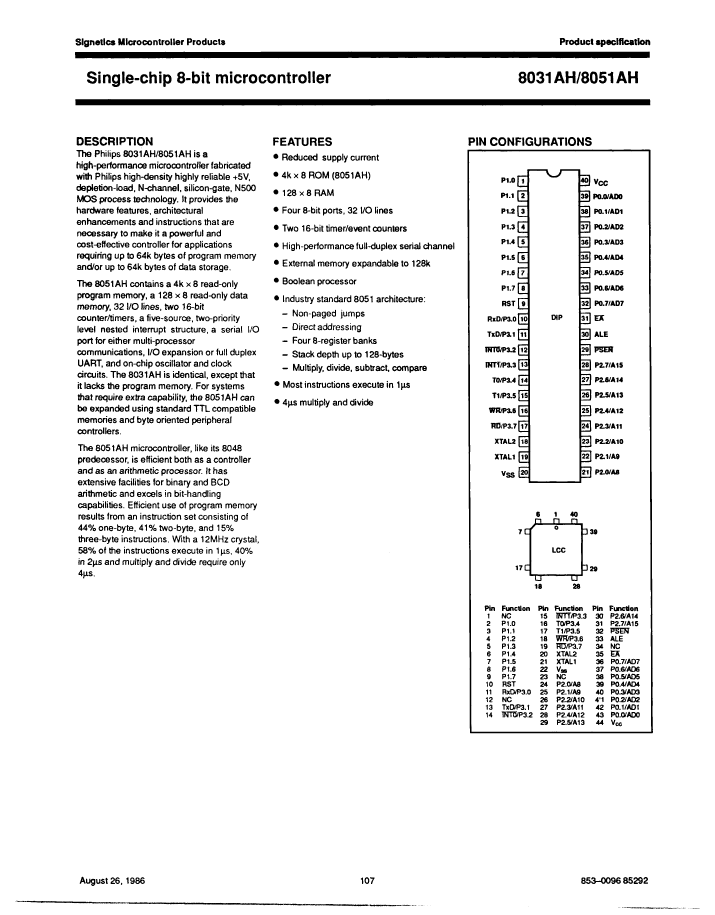

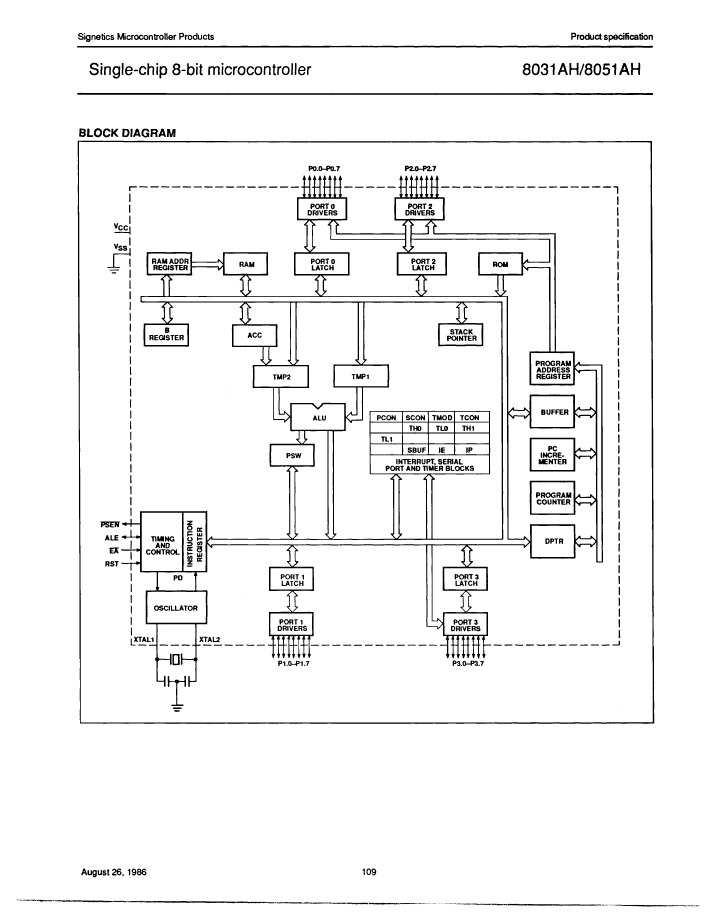

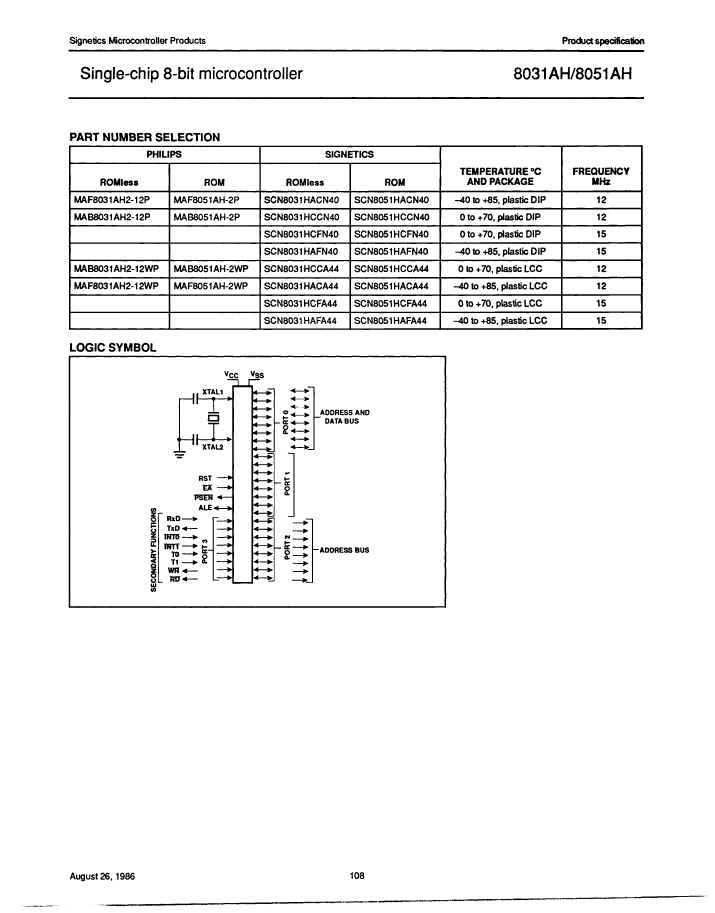

SCN8051HAFA44-T Overview

IC 8-BIT, MROM, 7.5 MHz, MICROCONTROLLER, PQCC44, PLASTIC, LCC-44, Microcontroller

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	LCC
package instruction	QCCJ,

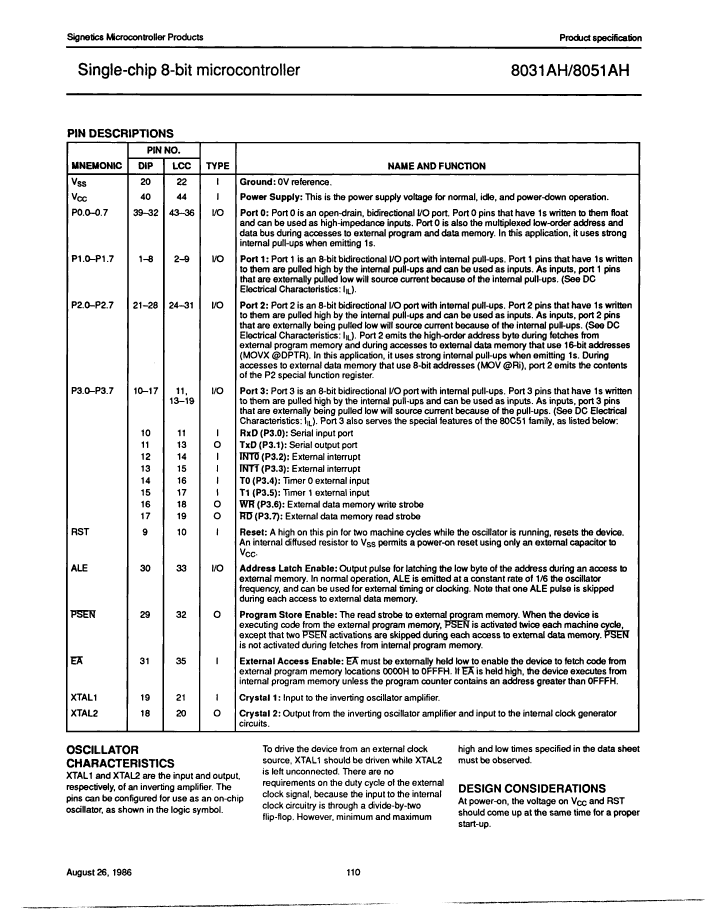

Contacts	44
Reach Compliance Code	unknown
Has ADC	NO
Other features	BOOLEAN PROCESSOR
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	15 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQCC-J44
length	16.5862 mm
low power mode	NO
Number of DMA channels
Number of external interrupt devices	2
Number of I/O lines	32
Number of serial I/Os	1
Number of terminals	44
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
RAM (number of words)	128
rom(word)	4000
ROM programmability	MROM
Maximum seat height	4.57 mm
speed	7.5 MHz

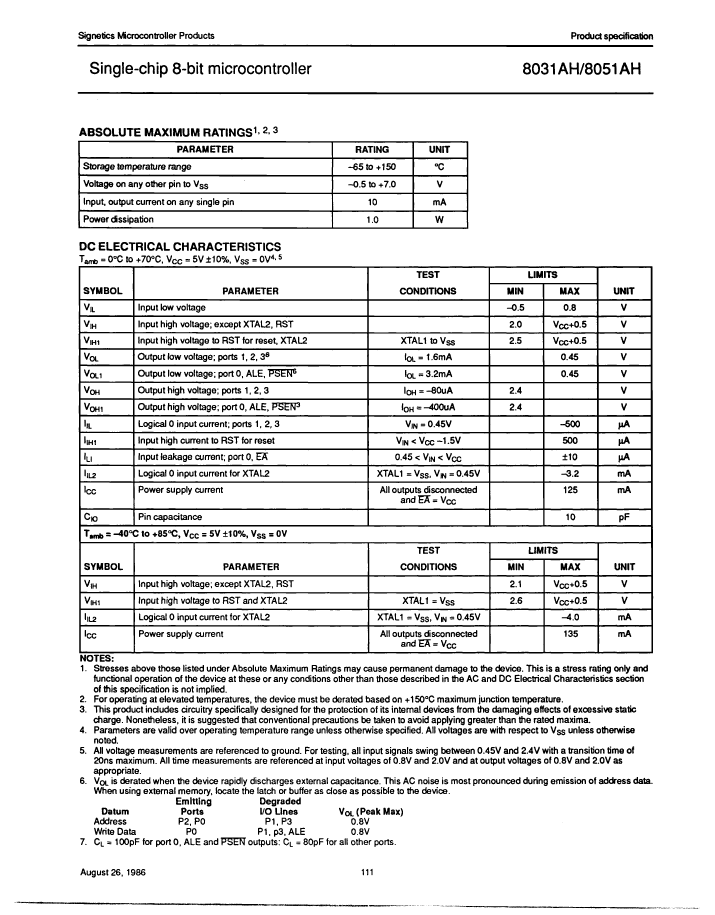

Maximum slew rate	135 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	NMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
