SPICE MODELS: DDTA113TE DDTA123TE DDTA143TE DDTA114TE DDTA124TE DDTA144TE DDTA115TE DDTA125TE
DDTA
(R1-ONLY SERIES)
E
PNP PRE-BIASED SMALL SIGNAL SOT-523
SURFACE MOUNT TRANSISTOR
Features
NEW PRODUCT
·
·
·
·
Epitaxial Planar Die Construction
Complementary NPN Types Available (DDTC)
Built-In Biasing Resistor, R1 only
Available in Lead Free/RoHS Compliant Version
(Note 2)
B
A
C
SOT-523
Dim
Min
0.15
0.75
1.45
¾
0.90
1.50
0.00
0.60
0.10
0.10
0.45
0°
Max
0.30
0.85
1.75
¾
1.10
1.70
0.10
0.80
0.30
0.20
0.65
8°
Typ
0.22
0.80
1.60
0.50
1.00
1.60
0.05
0.75
0.22
0.12
0.50
¾
B C
E
TOP VIEW
A
B
C
D
G
H
J
K
L
M
Mechanical Data
·
·
·
·
·
·
·
·
·
Case: SOT-523
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Solderable per MIL-STD-202, Method 208
Also Available in Lead Free Plating (Matte Tin Finish
annealed over Alloy 42 leadframe). Please see Ordering
Information, Note 4, on Page 2
Terminal Connections: See Diagram
Marking: Date Code and Marking Code (See Diagrams
& Page 2)
Weight: 0.002 grams (approx.)
Ordering Information (See Page 2)
K
G
H
M
N
J
D
L
R
1
B
C
N
a
All Dimensions in mm
E
P/N
DDTA113TE
DDTA123TE
DDTA143TE
DDTA114TE
DDTA124TE
DDTA144TE
DDTA115TE
DDTA125TE
R1 (NOM)
1KW
2.2KW
4.7KW
10KW
22KW
47KW
100KW
200KW
MARKING
P01
P03
P07
P12
P16
P19
P23
P25
SCHEMATIC DIAGRAM
Maximum Ratings
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Power Dissipation
@ T
A
= 25°C unless otherwise specified
Symbol
V
CBO
V
CEO
V
EBO
I
C
(Max)
P
d
R
qJA
T
j
, T
STG
Value
-50
-50
-5
-100
150
833
-55 to +150
Unit
V
V
V
mA
mW
°C/W
°C
Characteristic
Thermal Resistance, Junction to Ambient Air (Note 1)
Operating and Storage and Temperature Range
Note:
1. Mounted on FR4 PC Board with recommended pad layout at http://www.diodes.com/datasheets/ap02001.pdf.
2. No purposefully added lead.
DS30319 Rev. 4 - 2
1 of 3
www.diodes.com
DDTA (R1-ONLY SERIES) E
ã
Diodes Incorporated
Electrical Characteristics
@ T
A
= 25°C unless otherwise specified
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
Min
-50
-50
-5
¾
¾
Typ
¾
¾
¾
¾
¾
Max Unit
¾
¾
¾
-0.5
-0.5
V
V
V
mA
mA
I
C
= -50mA
I
C
= -1mA
I
E
= -50mA
V
CB
= -50V
V
EB
= -4V
I
C/
I
B
= -10mA/-1mA
I
C/
I
B
= -5mA/-0.5mA
I
C/
I
B
= -2.5mA/-.25mA
I
C/
I
B
= -1mA/-.1mA
I
C/
I
B
= -5mA/-0.5mA
I
C/
I
B
= -2.5mA/-.25mA
I
C/
I
B
= -1mA/-0.1mA
I
C/
I
B
= -.5mA/-.05mA
I
C
= -1mA, V
CE
= -5V
V
CE
= -10V, I
E
= 5mA,
f = 100MHz
DDTA113TE
DDTA123TE
DDTA143TE
DDTA114TE
DDTA124TE
DDTA144TE
DDTA115TE
DDTA125TE
Test Condition
NEW PRODUCT
Characteristic
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Emitter Cutoff Current
Collector-Emitter Saturation Voltage
V
CE(sat)
¾
¾
-0.3
V
DC Current Transfer Ratio
Gain-Bandwidth Product*
* Transistor - For Reference Only
h
FE
f
T
100
¾
250
250
600
¾
¾
MHz
Ordering Information
Device
DDTA113TE-7
DDTA123TE-7
DDTA143TE-7
DDTA114TE-7
DDTA124TE-7
DDTA144TE-7
DDTA115TE-7
DDTA125TE-7
Notes:
(Note 3)
Packaging
SOT-523
SOT-523
SOT-523
SOT-523
SOT-523
SOT-523
SOT-523
SOT-523
Shipping
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
4. For Lead Free/RoHS Compliant version part number, please add "-F" suffix to the part number above.
Example: DDTA125TE-7-F.
Marking Information
XXXYM
Date Code Key
Year
Code
Month
Code
Jan
1
2002
N
Feb
2
2003
P
XXX = Product Type Marking Code (See Page 1, e.g. P01 = DDTA113TE)
YM = Date Code Marking
Y = Year ex: N = 2002
M = Month ex: 9 = September
2004
R
Apr
4
May
5
2005
S
Jun
6
2006
T
Jul
7
Aug
8
2007
U
Sep
9
2008
V
Oct
O
Nov
N
2009
W
Dec
D
March
3
DS30319 Rev. 4 - 2
2 of 3
www.diodes.com
DDTA (R1-ONLY SERIES) E

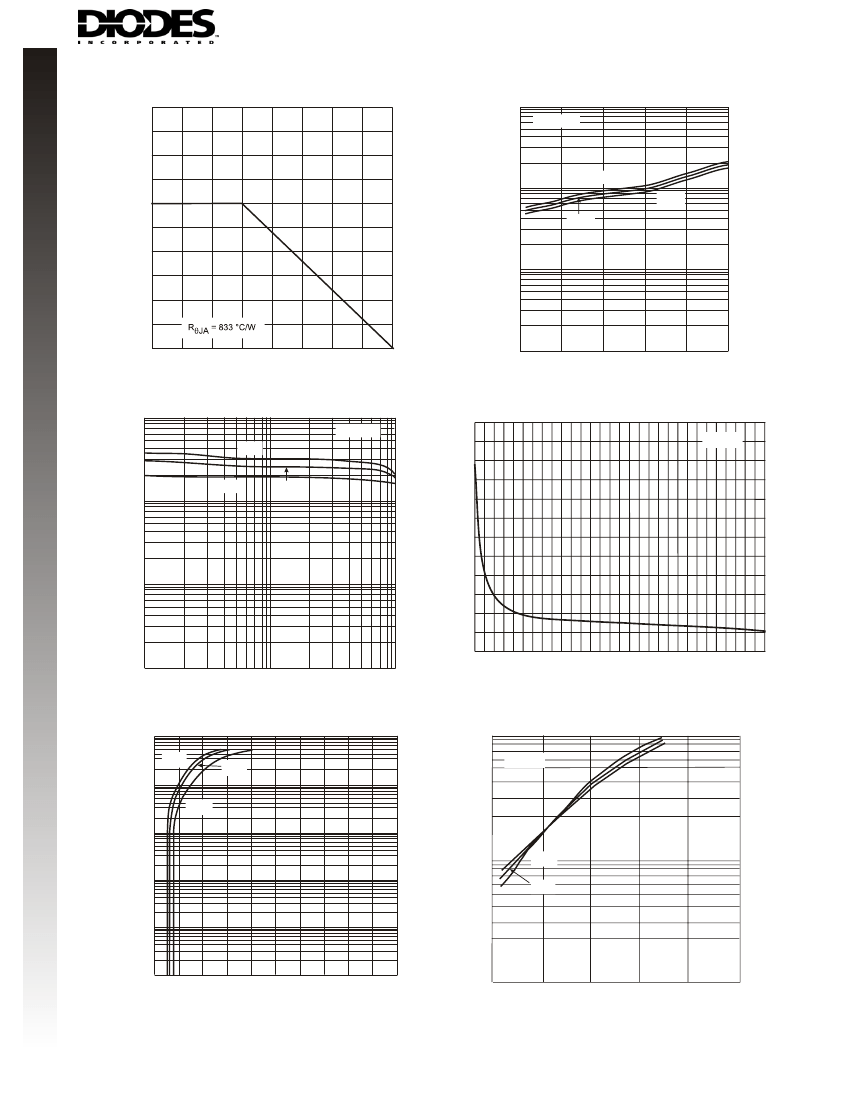

TYPICAL CURVES - DDTA114TE
NEW PRODUCT
V
CE(SAT)
, MAXIMUM COLLECTOR VOLTAGE (V)
250
P
d
, POWER DISSIPATION (MILLIWATTS)
1
I
C
/I
B
= 10
200
25°C
0.1
-25°C
75°C
150
100
0.01
50
0
-50
0
50
100
150
0.001
0
10
20
30
40
50
I
C
, COLLECTOR CURRENT (mA)
Fig. 2 V
CE(SAT)
vs. I
C
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 1 Derating Curve
1000
hFE, DC CURRENT GAIN (NORMALIZED)
V
CE
= 10
75°C
12
I
E
= 0V
10
25°C
-25°C
C
OB
, CAPACITANCE (pF)
100
8
6
4
2
0
10
1
1
10
I
C
, COLLECTOR CURRENT (mA)
Fig. 3 DC Current Gain
100
0
5
10
15
20
25
30
V
R
, REVERSE BIAS VOLTAGE (V)
Fig. 4 Output Capacitance
10
100
75°C
I
C
, COLLECTOR CURRENT (mA)
25°C
V
O
= 0.2
10
-25°C
1
V
in
, INPUT VOLTAGE (V)
-25°C
1
75°C
25°C
0.1
0.01
0.001
0
1
2
3
4
5
6
7
8
9
10
V
in
, INPUT VOLTAGE (V)
Fig. 5 Collector Current Vs. Input Voltage
1
0
10
20
30
40
50
I
C
, COLLECTOR CURRENT (mA)
Fig. 6 Input Voltage vs. Collector Current
DS30319 Rev. 4 - 2
3 of 3
www.diodes.com
DDTA (R1-ONLY SERIES) E
