MHR13TAJFREQ1 datasheet, PDF - EEWORLD Datasheet

MHR13TAJFREQ1: DescriptionHCMOS/TTL Output Clock Oscillator, 1MHz Min, 50MHz Max; CategoryPassive components oscillator; File Size54KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

MHR13TAJFREQ1 Overview

HCMOS/TTL Output Clock Oscillator, 1MHz Min, 50MHz Max

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	MtronPTI
Reach Compliance Code	unknown
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	MHR
Installation features	SURFACE MOUNT
Maximum operating frequency	50 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS/TTL
Output load	10 TTL, 50 PF
physical size	14mm x 9.8mm x 4.7mm
longest rise time	10 ns
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	40/60 %

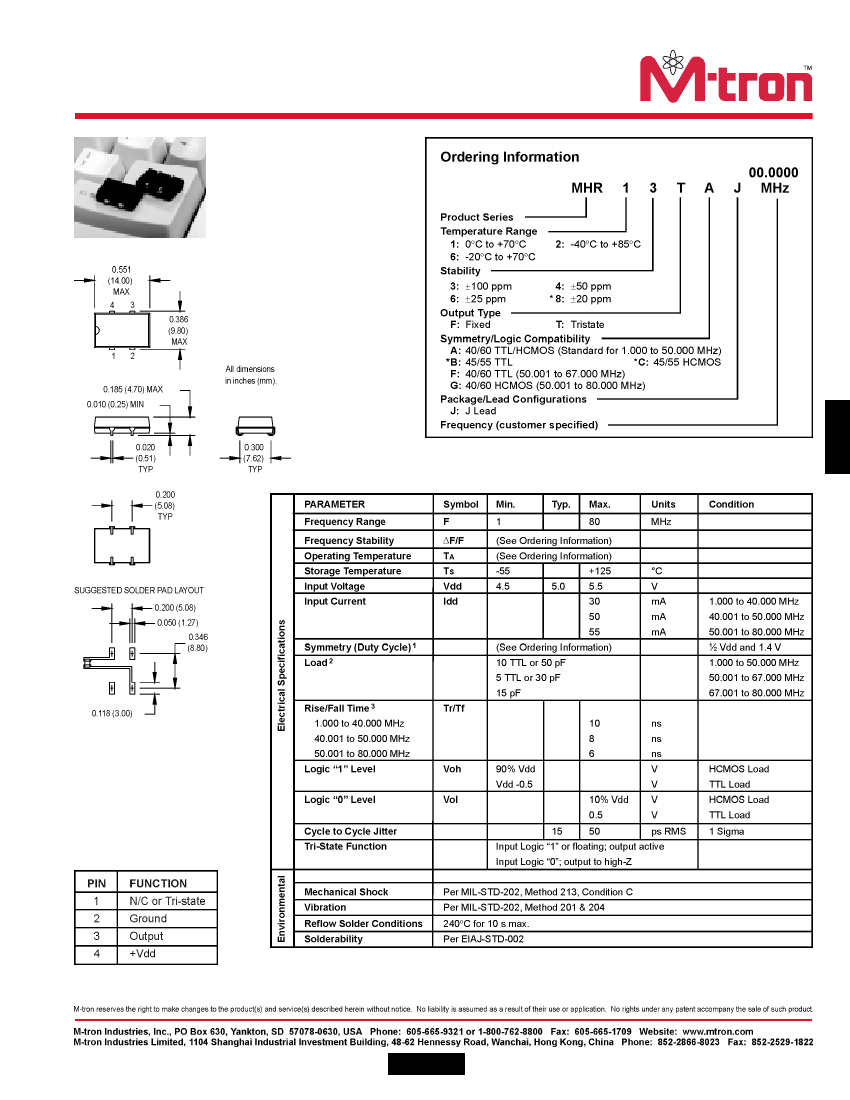

MHR Series 5.0 Volt HCMOS/TTL

Compatible Surface Mount Oscillators

* Consult factory regarding availability of “B” and “C” symmetry codes, and “8” stability code.

NOTE:

A capacitor of value 0.01

µF

or greater between Vdd and

Ground is recommended.

Pin Connections

1. Symmetry is measured at 1.4 V with TTL load, and at 50% Vdd with HCMOS load.

2. TTL load - See load circuit diagram #1 on page 92. HCMOS load - See load circuit diagram #2 on page 92.

2. Rise/fall times are measured between 0.5 V and 2.4 V for TTL load, and between 10% and 90% Vdd for HCMOS load.
