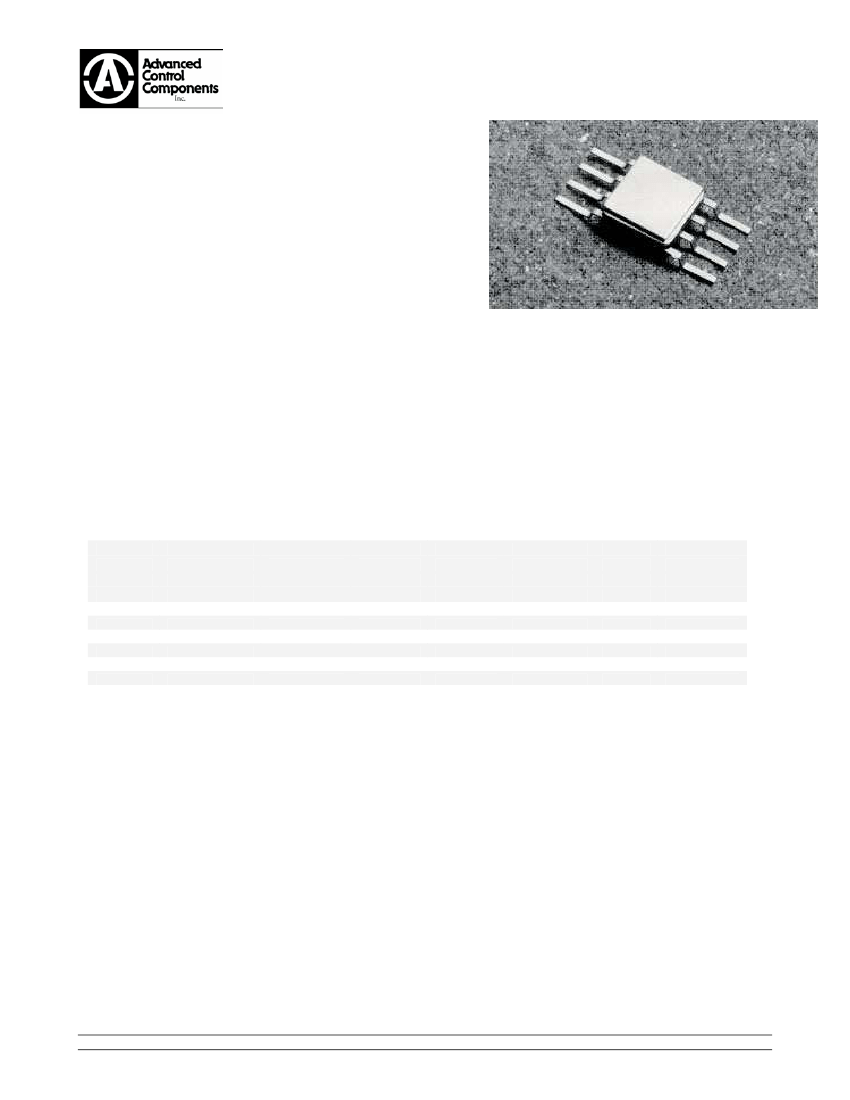

SURFACE MOUNT TUNNEL DETECTORS
Advanced Control Components offers a series of tunnel detectors built in
surface mount modules. These modules include complete detector circuits with
DC returns and RF bypass capacitors. Options include input pads or limiters to
modify the operational range or offer input protection. The small size of surface
mount packages allows for easier design and lower cost. They offer high
reliability and are hermetically sealed, making them ideal for operation in harsh
environments. Thermal stability is one of the prime advantages of tunnel diode
detectors. Frequencies range from 10MHz to 4GHz. The output will not vary
more than +/-0.15dB over the temperature range of -65°C to +100°C at these
low frequencies. They have high sensitivity without any bias needed for
operation. Standard output polarity is negative, but positive polarity output is an
option.
Features:
•
Thermal Stability
•
Small Size
•
No Bias Required
•
Low Video Impedance
Applications:
•
Transmitter Monitoring
•
Missile Guidance Systems
•
Input to Low-Noise Amplifiers
•
Broadband Or Narrowband ECM Receivers
•
Power and Signal Monitors
•
Doppler Radar and Beacon Receivers
•
Matched units available for Multi-channel Receivers, Amplitude Comparator Systems and Discriminators
Frequency
Range
(GHz)
0.01 - 0.5
0.25 - 0.75
0.5 - 1
0.5 - 2
1-2
0.1 - 4
2-4
Part (1)
Number
ACTM1114N
ACTM1133N
ACTM1146N
ACTM1136N
ACTM1137N
ACTM1129N
ACTM1130N
Minimum (2)
Sensitivity
K
(mV/mW)
800
900
1000
1000
1000
900
900
Flatness
vs
Frequency
(+/-dB)
0.3
0.2
0.2
0.2
0.2
0.4
0.3
Typical (3)
VSWR
2.3:1
2.3:1
2.3:1
2.3:1
2.3:1
2.3:1
2.3:1
Standard (4)
Video
Capacitance
(pF)
270
270
270
75
75
270
12
Standard
Case
Styles
M47
M47
M47
M47
M47
M47
M47
Optional
Case
Styles
M10
M10
M10
M10
M10
M10
M10
NOTES:
1) Standard output polarity is negative. If positive output is required, substitute “P” for “N” in part number.
2) Diode values can be changed to alter the level of sensitivity. As sensitivity is increased, VSWR will degrade. VSWR will improve as
sensitivity is lowered. Flatness and TSS will also be influenced by these changes. If your applications require something special,
please contact the factory.
3) VSWR measured at or below -20dBm input power level.
4) Video capacitance is used for RF bypass. This value can be changed if required for video response time or other considerations.
Contact the factory if value other than those shown are needed.
611 Industrial Way West, Eatontown, NJ 07724
tel: 732-460-0212 fax: 732-460-0214
sales@advanced-control.com
www.advanced-control.com
ENVIRONMENTAL SPECIFICATIONS:
MIL-E-5400, MIL-STD-202, MIL-E-16400
Operating Temp: -65°C to +100°C
Storage Temp: -65°C to +100°C
Humidity: MIL-STD-202F, M103, Cond B
Shock: MIL-STD-202F, M213, Cond B
Altitude: MIL-STD-202F, M105, Cond B
Vibration : MIL-STD-202F, M204, Cond B
Thermal Shock: MIL-STD-202F, M107, Cond A
Temperature Cycle: MIL-STD-202F, M105C, Cond D
Maximum Input Power: +14dBm
(This allows for 3dB margin from possible burnout at +17dBm)
SCREENING :
Standard Screening:
Internal Visual per MIL-STD-883, Method 2017
Temperature Cycle: -65°C to +100°C, 10 cycles
Optional High-Rel Screening (Ref MIL-PRF-38534):
Internal Visual per MIL-STD-883, Method 2017
Stabilization Bake per MIL-STD-883, Method 1008
Temperature Cycle per MIL-STD-883, Method 1010
Constant Acceleration per MIL-STD-883, Method 2001
Burn-in per MIL-STD-883, Method 1015
Leak Test per MIL-STD-883, Method 1014
External Visual per MIL-STD-883, Method 2009
(0.440 REF.)
0.320
0.050
(4) PLCS.
1
2
0.270
SQ. MAX.
10
9
8
7
6
0.015±.002
TYP.
0.200
3
4
5
PIN
1
2
3
4
5
0.045
0.085
CONNECTION
N/C
INPUT
N/C
N/C
GND
PIN
10
9
8
7
6
CONNECTION
GND
N/C
N/C
OUTPUT
N/C
0.080
MAX.
0.005±.002
M10
0.400 MAX.
0.210
0.050
(3) PLCS.
1
0.180
SQ. MAX.
8
0.015±.003
TYP.
PIN
1
2
3
4
5
6
7
8
FUNCTION
N/C
RF INPUT
N/C
GROUND
N/C
OUTPUT
N/C
GROUND
2
7
0.150
3
4
6
5
0.080
MAX.
0.005±.002
M47
Part Number Ordering Information:
Example: ACTM1130NM4720
ACTM1130 Surface Mount Tunnel Detector, 2 - 4GHz
N: Negative output polarity
M47: Package Type
20: 20pF custom video capacitance (omit for standard value)
TMSM-0205
611 Industrial Way West, Eatontown, NJ 07724
tel: 732-460-0212 fax: 732-460-0214
sales@advanced-control.com
www.advanced-control.com
