JANTX2N7330H datasheet, PDF - EEWORLD Datasheet

JANTX2N7330H: DescriptionPower Field-Effect Transistor, 26A I(D), 200V, 0.2ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AE, TO-204AE, 2 PIN; CategoryDiscrete semiconductor The transistor; File Size99KB，4 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric View All

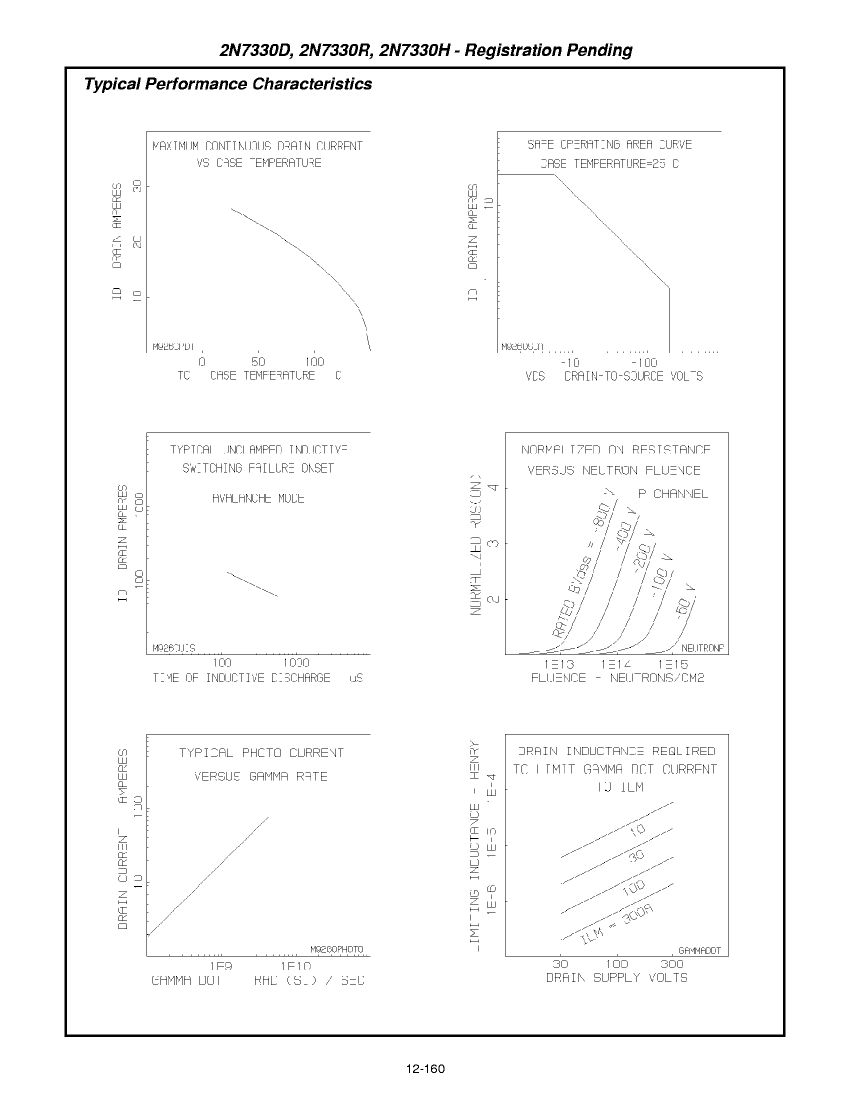

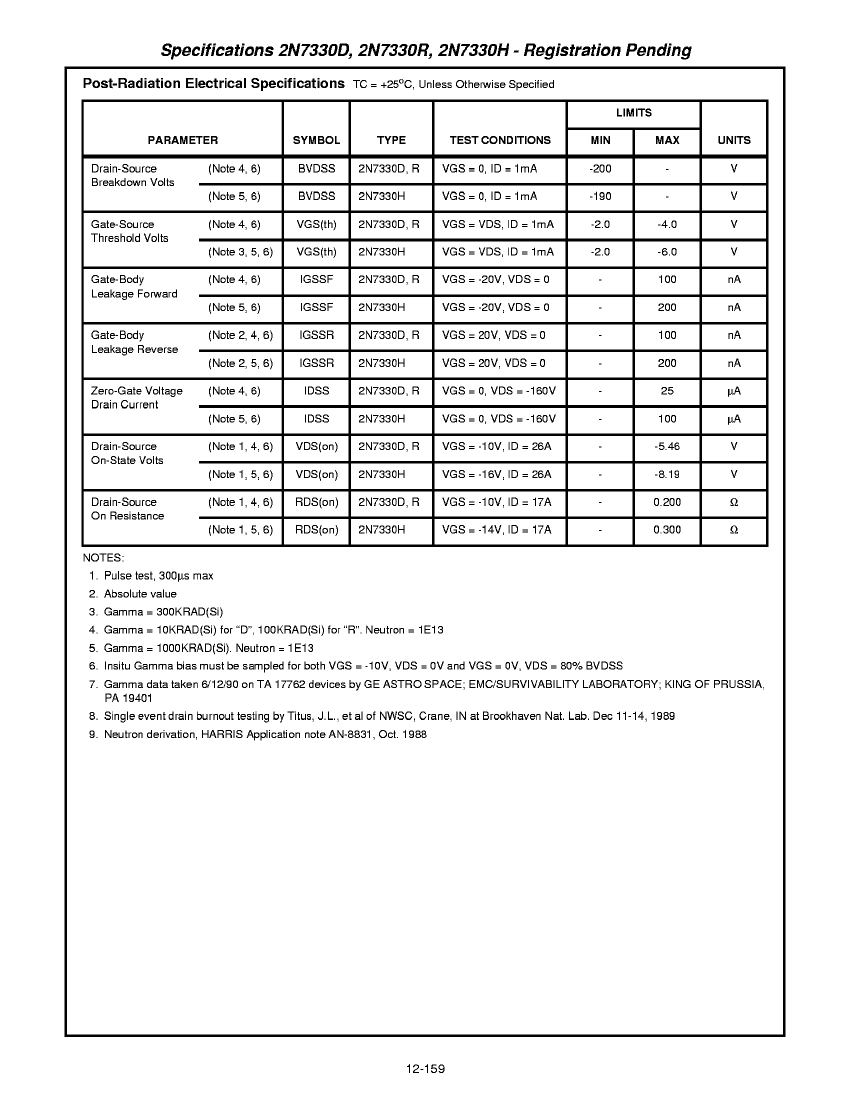

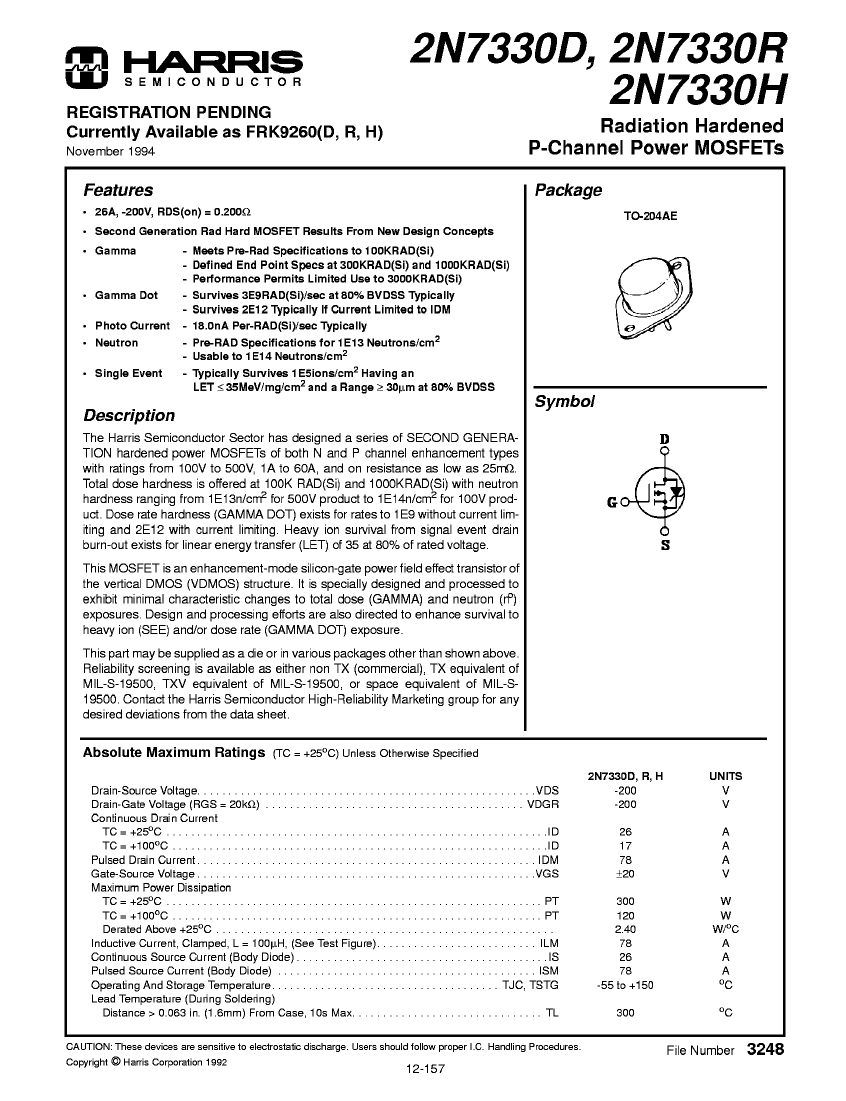

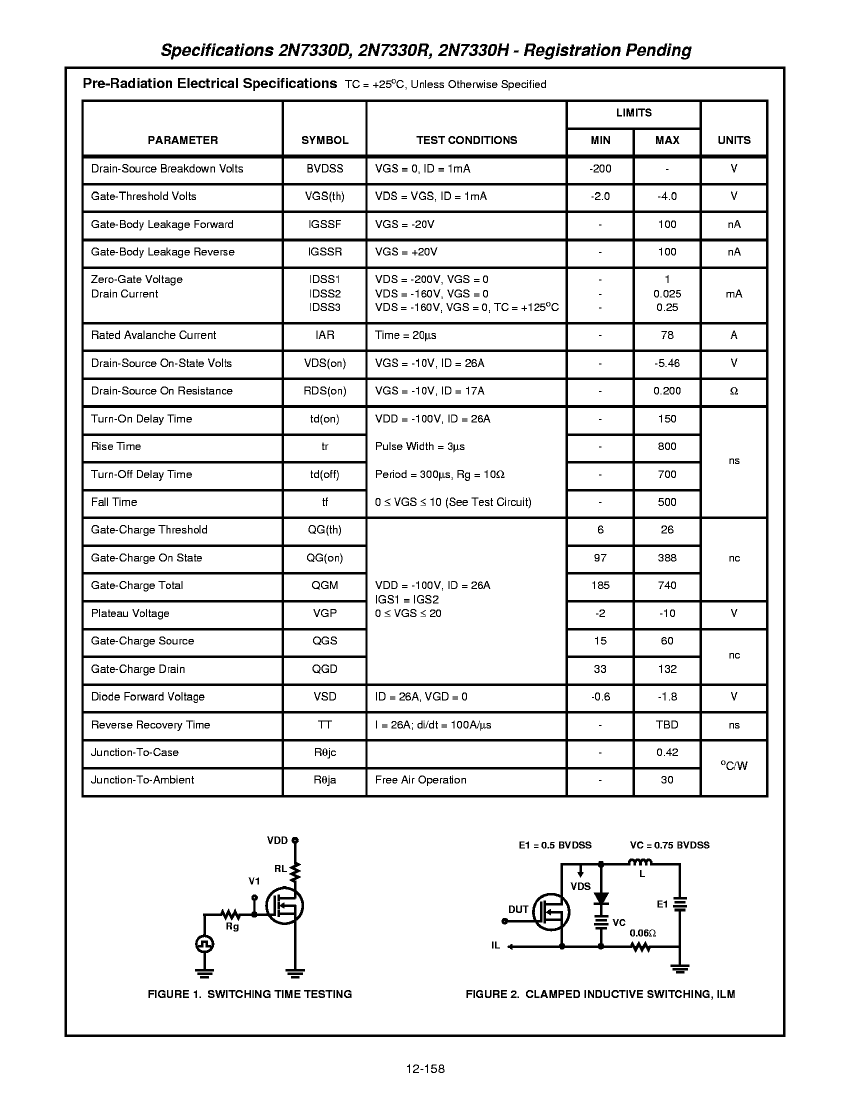

JANTX2N7330H Overview

Power Field-Effect Transistor, 26A I(D), 200V, 0.2ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AE, TO-204AE, 2 PIN

Parameter Name	Attribute value
package instruction	FLANGE MOUNT, O-MBFM-P2
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	RADIATION HARDENED
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	200 V
Maximum drain current (ID)	26 A
Maximum drain-source on-resistance	0.2 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-204AE
JESD-30 code	O-MBFM-P2
Number of components	1
Number of terminals	2
Operating mode	ENHANCEMENT MODE
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Polarity/channel type	P-CHANNEL
Maximum pulsed drain current (IDM)	78 A
Certification status	Not Qualified
surface mount	NO
Terminal form	PIN/PEG
Terminal location	BOTTOM
Transistor component materials	SILICON
Base Number Matches	1
