DG526AK/883B: DescriptionSingle-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28, CERAMIC, DIP-28; CategoryAnalog mixed-signal IC The signal circuit; File Size360KB，16 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

DG526AK/883B Overview

Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28, CERAMIC, DIP-28

DG526AK/883B Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-GDIP-T28
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	16
Number of functions	1
Number of terminals	28
Nominal off-state isolation	55 dB
On-state resistance matching specifications	16.2 Ω
Maximum on-state resistance (Ron)	400 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	1000 ns
Maximum connection time	1500 ns
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL

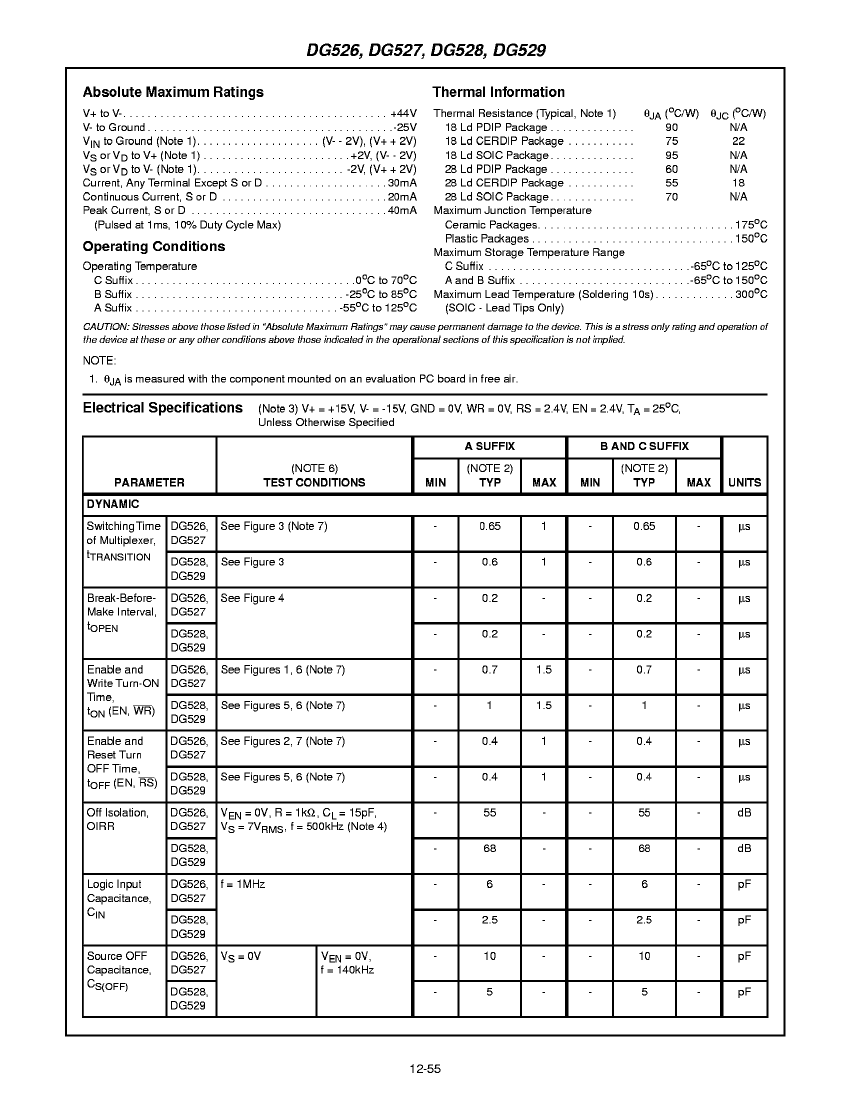

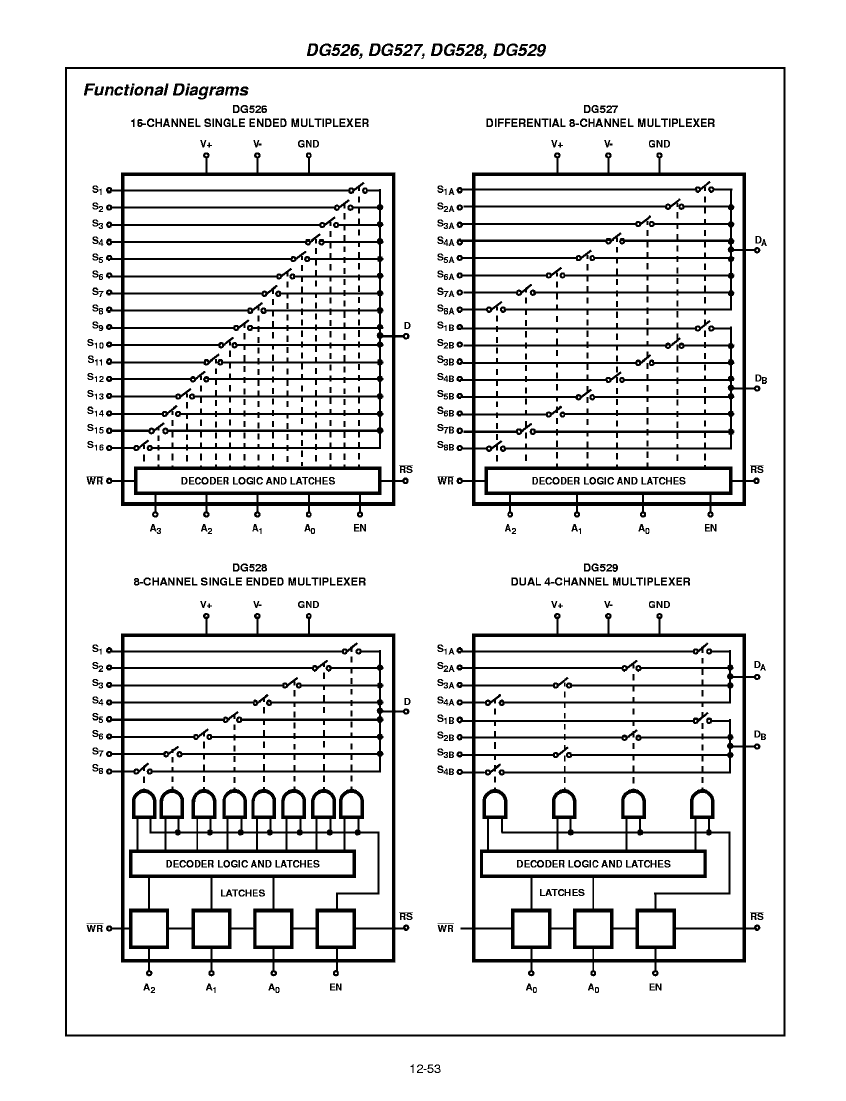

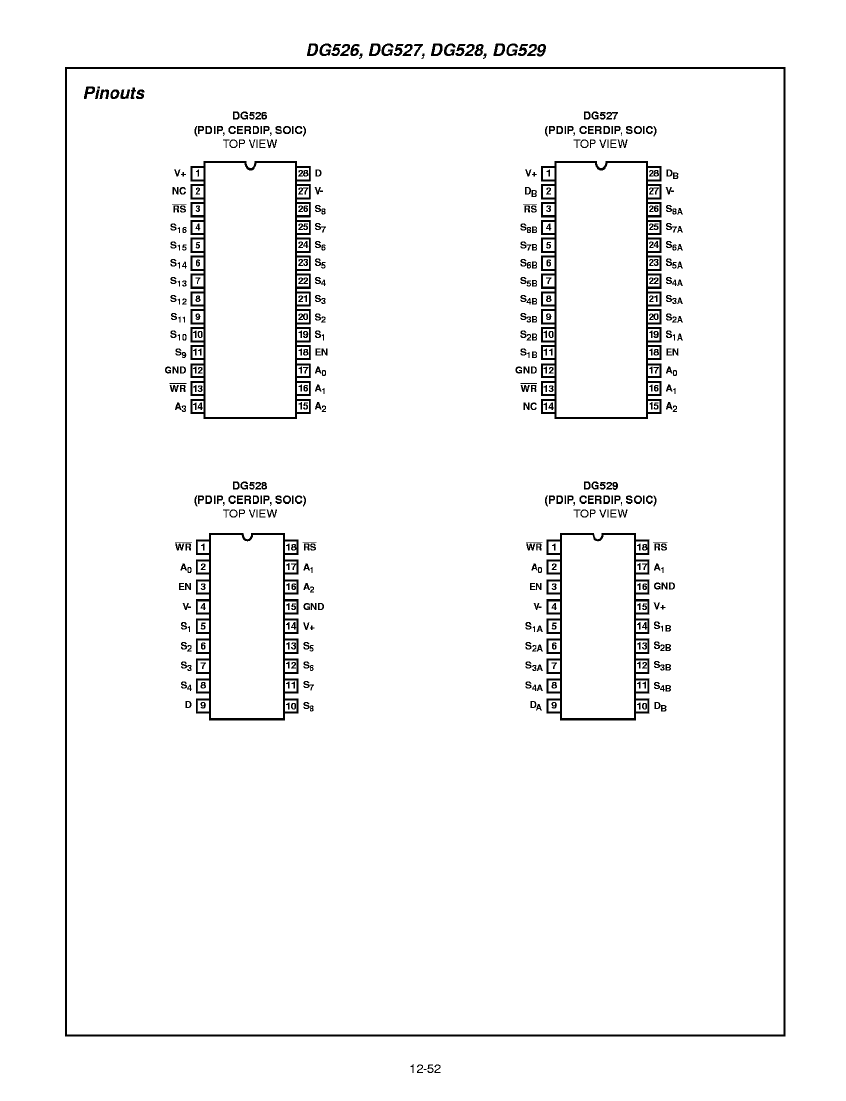

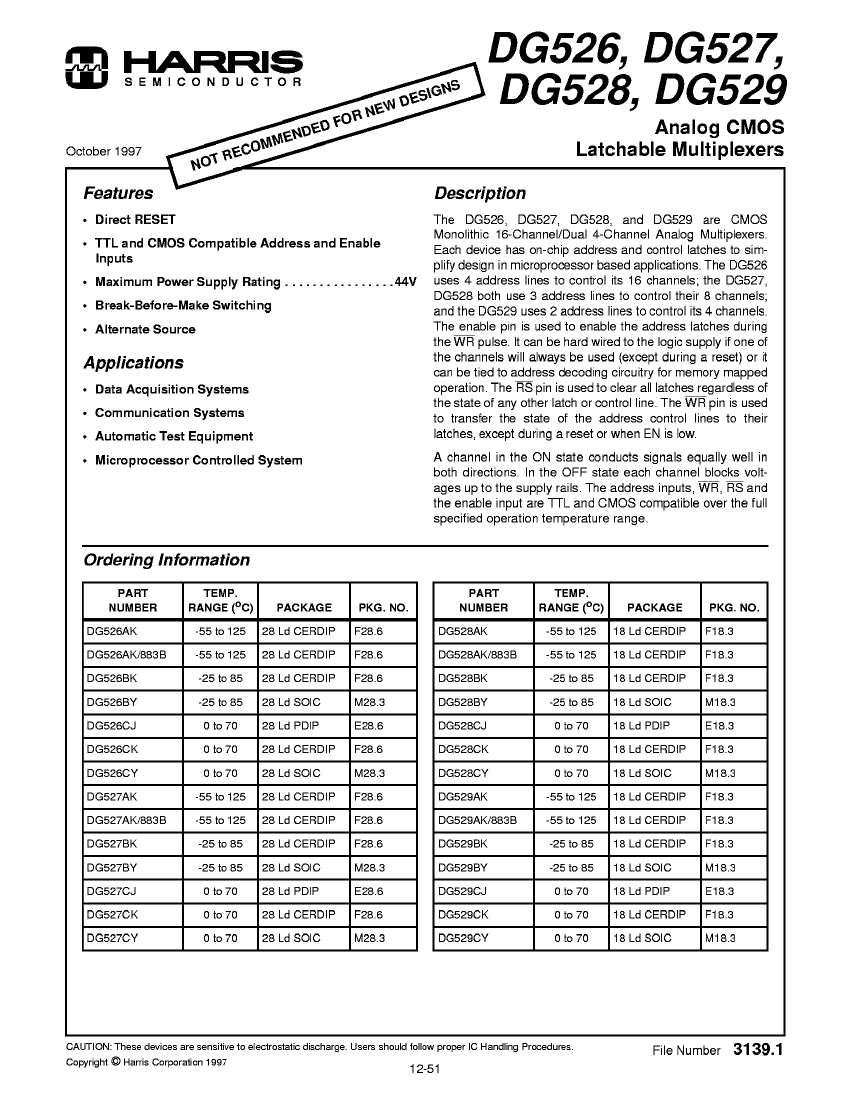

Preview

Download Datasheet

View All

DG526AK/883B Related Products

	DG526AK/883B	DG528BK	DG527CJ	DG527CY	DG529CY	DG526BK	DG526AK
Description	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28, CERAMIC, DIP-28	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP18, CERAMIC, DIP-18	Differential Multiplexer, 1 Func, 8 Channel, CMOS, PDIP28, PLASTIC, DIP-28	Differential Multiplexer, 1 Func, 8 Channel, CMOS, PDSO28, SOIC-28	Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDSO18, SOIC-18	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28, CERAMIC, DIP-28	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28, CERAMIC, DIP-28
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
package instruction	DIP,	DIP,	DIP,	SOP,	SOP,	DIP,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-GDIP-T28	R-GDIP-T18	R-PDIP-T28	R-PDSO-G28	R-PDSO-G18	R-GDIP-T28	R-GDIP-T28
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of channels	16	8	8	8	4	16	16
Number of functions	1	1	1	1	1	1	1
Number of terminals	28	18	28	28	18	28	28
Nominal off-state isolation	55 dB	68 dB	55 dB	55 dB	68 dB	55 dB	55 dB
On-state resistance matching specifications	16.2 Ω	16.2 Ω	16.2 Ω	16.2 Ω	16.2 Ω	16.2 Ω	16.2 Ω
Maximum on-state resistance (Ron)	400 Ω	450 Ω	450 Ω	450 Ω	450 Ω	450 Ω	400 Ω
Maximum operating temperature	125 °C	85 °C	70 °C	70 °C	70 °C	85 °C	125 °C
Minimum operating temperature	-55 °C	-25 °C	-	-	-	-25 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP	SOP	SOP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	OTHER	COMMERCIAL	COMMERCIAL	COMMERCIAL	OTHER	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum disconnect time	1000 ns	-	1000 ns	-	-	1000 ns	1000 ns
Maximum connection time	1500 ns	-	1000 ns	-	-	1000 ns	1500 ns
