DG271AZ/883 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> DG271AZ/883

DG271AZ/883: DescriptionSPST, 4 Func, 1 Channel, CMOS, CQCC20,; CategoryAnalog mixed-signal IC The signal circuit; File Size128KB，5 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

DG271AZ/883 Overview

SPST, 4 Func, 1 Channel, CMOS, CQCC20,

DG271AZ/883 Parametric

Parameter Name	Attribute value
Maker	TEMIC
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	S-CQCC-N20
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	4
Number of terminals	20
Nominal off-state isolation	85 dB
Maximum on-state resistance (Ron)	50 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum supply current (Isup)	9 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	65 ns
Maximum connection time	65 ns
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD

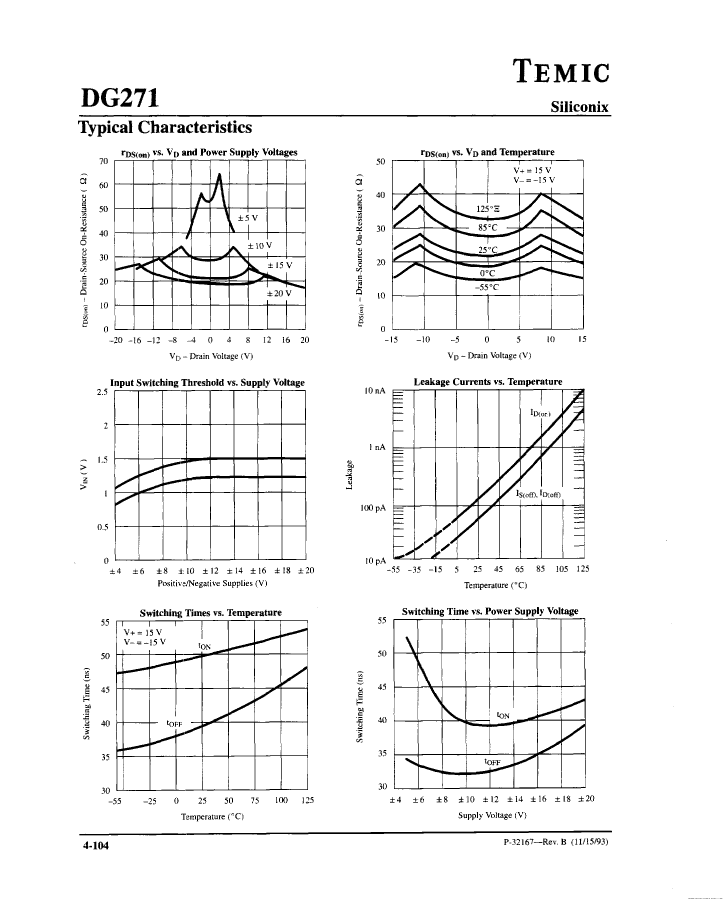

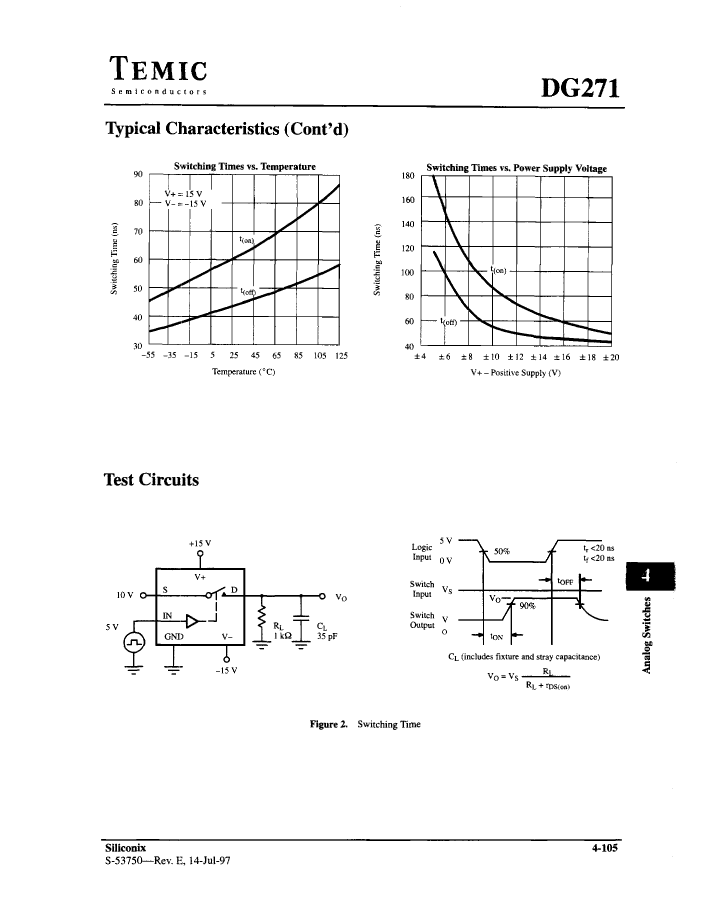

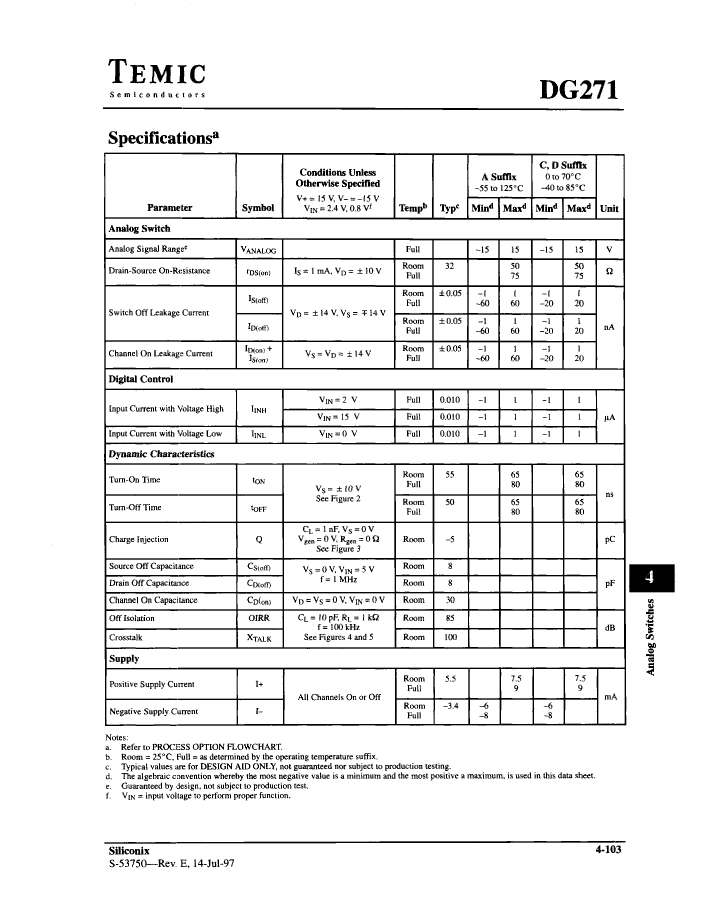

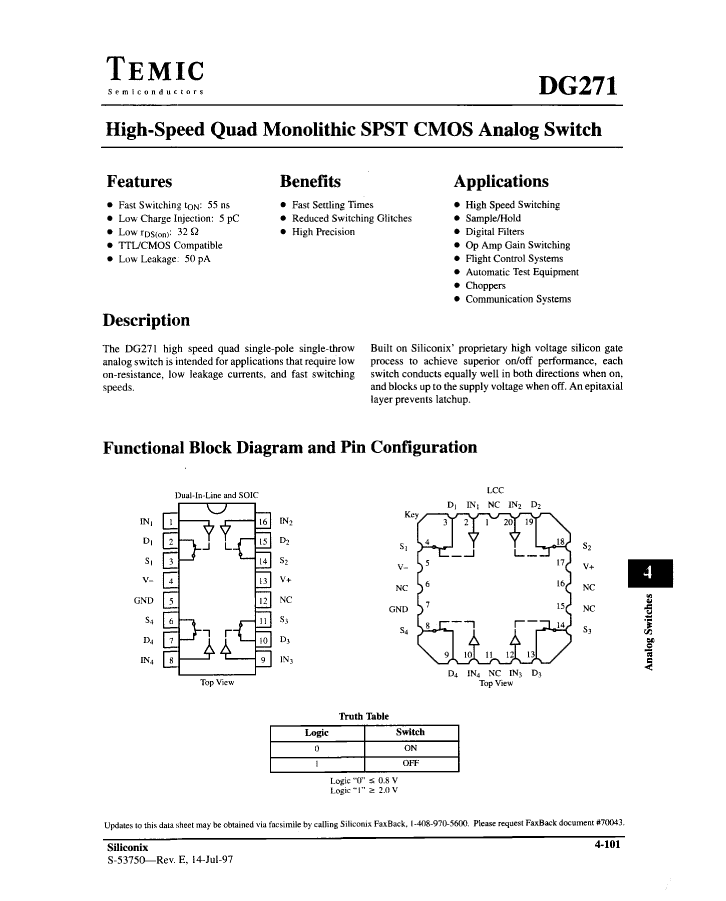

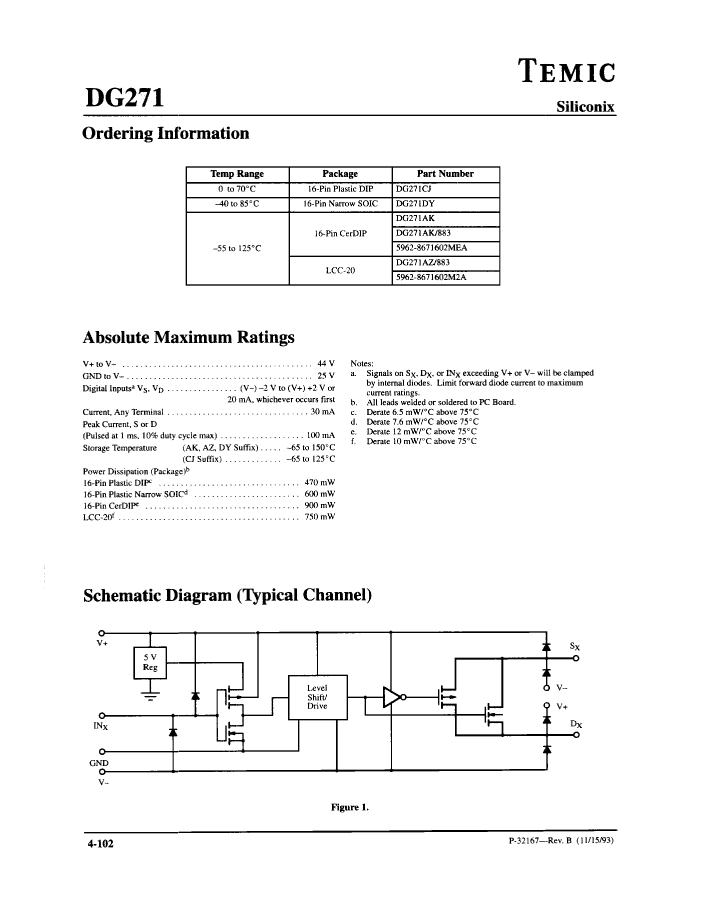

Preview

Download Datasheet

View All

DG271AZ/883 Related Products

	DG271AZ/883	5962-8671602MEA	DG271AK/883	5962-8671602M2A	DG271DY-T1	DG271AK
Description	SPST, 4 Func, 1 Channel, CMOS, CQCC20,	SPST, 4 Func, 1 Channel, CMOS, CDIP16,	SPST, 4 Func, 1 Channel, CMOS, CDIP16,	SPST, 4 Func, 1 Channel, CMOS, CQCC20,	SPST, 4 Func, 1 Channel, CMOS, PDSO16,	SPST, 4 Func, 1 Channel, CMOS, CDIP16,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	SPST	SPST	SPST
JESD-30 code	S-CQCC-N20	R-GDIP-T16	R-GDIP-T16	S-CQCC-N20	R-PDSO-G16	R-GDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of channels	1	1	1	1	1	1
Number of functions	4	4	4	4	4	4
Number of terminals	20	16	16	20	16	16
Nominal off-state isolation	85 dB	85 dB	85 dB	85 dB	85 dB	85 dB
Maximum on-state resistance (Ron)	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	85 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-40 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	9 mA	9 mA	9 mA	9 mA	9 mA	9 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	YES	NO	NO	YES	YES	NO
Maximum disconnect time	65 ns	65 ns	65 ns	65 ns	65 ns	65 ns
Maximum connection time	65 ns	65 ns	65 ns	65 ns	65 ns	65 ns
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	INDUSTRIAL	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	GULL WING	THROUGH-HOLE
Terminal location	QUAD	DUAL	DUAL	QUAD	DUAL	DUAL
Maker	TEMIC	-	TEMIC	TEMIC	TEMIC	TEMIC
