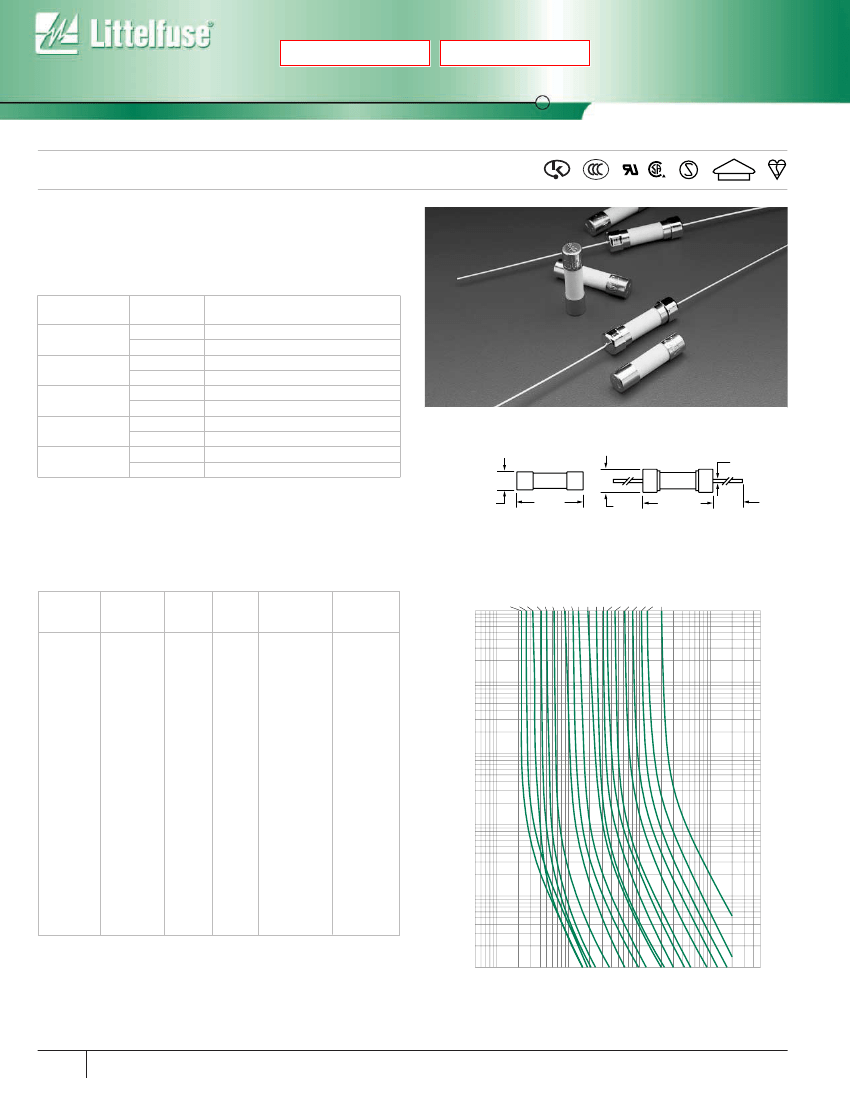

Axial Lead and Cartridge Fuses
Designed to IEC Standard
5 x 20 mm
Fast-Acting Fuse 216/226 Series
• Designed to International (IEC) Standards for use globally.
• Meets the IEC 60127-2, Sheet 1 specification for Fast Acting Fuses.
• Available in Cartridge and Axial Lead Form.
• Available in ratings of 0.050 to 10 amperes.
• High breaking capacity.
®
®
D
V
E
ELECTRICAL CHARACTERISTICS:
% of Ampere
Rating
150%
210%
275%
400%
1000%
Ampere
Rating
.05 – 3.15
4– 6.3
.05 – 3.15
4– 6.3
.05 – 3.15
4– 6.3
.05 – 3.15
4– 6.3
.05 – 3.15
4– 6.3
Opening
Time
60 minutes,
Minimum
60 minutes,
Minimum
30 minutes,
Maximum
30 minutes,
Maximum
0.01 sec.,
Min.;
2 sec.
Max.
0.01 sec.,
Min.;
3 sec.
Max.
.003 sec.,
Min.;
0.3 sec.
Max.
.003 sec.,
Min.;
0.3 sec.
Max.
.02 seconds,
Maximum
.02 seconds,
Maximum
5
(.197")
216
000
Series
216
000
XE
226
000
Series
1
.635
(.025")
AGENCY APPROVALS:
Sheet I IEC 60127-2:* SEMKO approved
thru 6.3 amps. Recognized under the Components Program of
Underwriters Laboratories and recognized by CSA. BSI approved 1A to
6.3A. VDE approved .05-6.3.
20
(.787")
5.25
(.207")
22.5 MAX
(.886)
40
(1.58")
INTERRUPTING RATING:
1500 amperes.
ORDERING INFORMATION:
Cartridge
Catalog
Number
216.050
216.063
216.080
216.100
216.125
216.160
216.200
216.250
216.315
216.400
216.500
216.630
216.800
216
001
216
1.25
216
01.6
216
002
216
02.5
216
3.15
216
004
216
005
216
06.3
216
008
216
010
Axial Lead
Catalog
Number
226.050
226.063
226.080
226.100
226.125
226.160
226.200
226.250
226.315
226.400
226.500
226.630
226.800
226
001
226
1.25
226
01.6
226
002
226
02.5
226
3.15
226
004
226
005
226
06.3
226
008
226
010
Ampere
Rating
.050
.063
.080
.100
.125
.160
.200
.250
.315
.400
.500
.630
.800
1
1.25
1.6
2
2.5
3.15
4
5
6.3
8*
10*
Voltage
Rating
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
Nominal
Resistance
Cold Ohms
15.90
10.45
7.89
5.42
3.68
5.20
3.35
2.35
1.85
1.67
1.20
0.790
0.588
0.228
0.153
0.108
0.0770
0.0575
0.0333
0.0243
0.0168
0.0125
0.0120
0.00775
Nominal
Melting I
2
t
A
2
Sec.
0.00019
0.00055
0.00086
0.0033
0.0056
0.0018
0.0045
0.0092
0.015
0.028
0.045
0.097
0.18
0.19
0.49
1.04
1.92
2.77
7.85
15.4
28.2
57.9
66.1
158.5
Average Time Current Curves
.100A
.125A
.160A
.200A
.250A
.315A
.500A
.630A
.800A
1A
1.25A
1.6A
2A
2.5A
3.15A
4A
5A
6.3A
10A
1
10
CURRENT IN AMPERES
100
10
TIME IN SECONDS
1
0.1
0.01
*IEC Standards for 5 x 20mm fuses do not include ratings above
6.3 amperes, but are under consideration.
0.001
0.05 0.1
100
500
1
226 Series is used for North American ordering.
