MDU-28F-150MD4 datasheet, PDF - EEWORLD Datasheet

MDU-28F-150MD4: DescriptionActive Delay Line, 2-Func, 1-Tap, True Output, TTL,; Categorylogic logic; File Size105KB，1 Pages; ManufacturerData Delay Devices

Download Datasheet Parametric View All

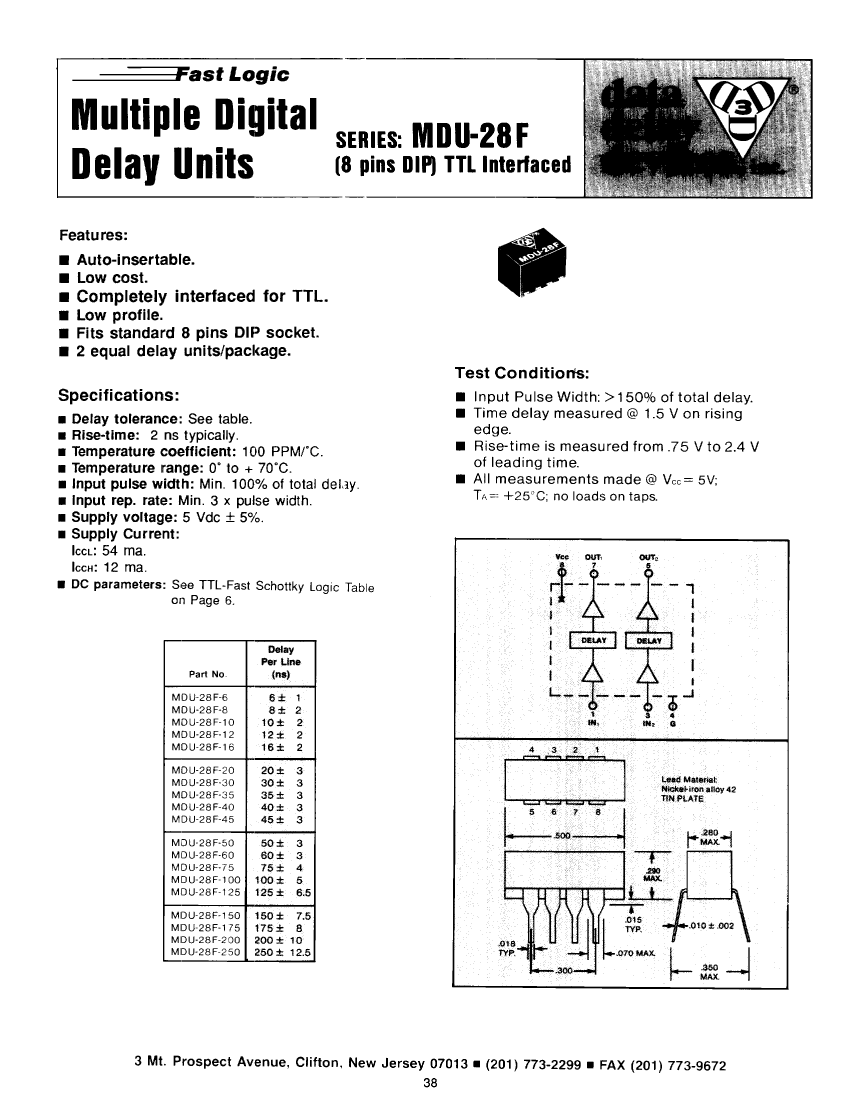

MDU-28F-150MD4 Overview

Active Delay Line, 2-Func, 1-Tap, True Output, TTL,

Parameter Name	Attribute value
Maker	Data Delay Devices
package instruction	SOP,
Reach Compliance Code	compliant
Other features	MEETS MIL-D-23859; IN-HOUSE BURN-IN AND THERMAL SHOCK; COEFF. SPECIFIED OVER 0 TO 70 DEG. CEL.
series	F
Input frequency maximum value (fmax)	2.22222 MHz
JESD-30 code	S-XDSO-G14
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	2
Number of taps/steps	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	SOP
Package shape	SQUARE
Package form	SMALL OUTLINE
Maximum supply current (ICC)	54 mA
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	5.2578 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Total delay nominal (td)	150 ns
