HALF SIZE DIP LOW VOLTAGE 2.5V
CRYSTAL CLOCK OSCILLATOR
ACHL1 Series
Pb
RoHS
Compliant
13.2 x 11.0 x 5.5mm
| | | | | | | | | | | | | | |
FEATURES:
• Tri-state Enable/Disable option.
• Low voltage 2.5Vdc.
• HCMOS and TTL compatible.
• Tight symmetry option.
APPLICATIONS:
• Clock signal sources for digital chips and microprocessors.
• Low power applications.
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N
Frequency:
Operating temperature:
Storage temperature:
Overall frequency stability*:
Supply voltage (Vdd):
Input current:
Symmetry:
Rise and Fall Times (Tr/Tf):
Output load:
Output Voltage:
Tri State Function:
Start-up-time:
Output Disable/ Enable time:
ACHL1 Series
1.00MHz to 80.00 MHz
-10°C to +60°C (see options)
- 55°C to + 125°C
± 100ppm max. (see options)
2.5Vdc ± 10%
See Table 1
40/60% max. (see option)
See Table 1
5 TTL or 15 pF
VOH = 2.4V min.
VOL = 0.4V max.
"1" (VIH >= 2.2 Vdc) or open: Oscillation
"0" (VIL < 0.8V): Hi Z
10 ms max
100 ns max. (for Option "-A" ONLY)
Table 1
1.00MHzHz≤F<24.9MHz
25.0MHz≤F<80.00MHz
(MHz)
(mA)
20
40
Rise/Fall time
(ns)
10
10
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
ACHL1 - Frequency -
-
- -
-
Temperature Options
I
0°C to +50°C
E
-20°C to +70°C
F
-30°C to +70°C
N
-30°C to +85°C
L
-40°C to +85°C
Symmetry Options
S
45/55%@1/2Vdd
Tristate Enable Funct
A
Tristate Function
Value Added Option
G
Gull Wing
G2
Gull Wing
Q 30
0.30(7.62)
Q25
0.25(6.35)
Q20
0.20(5.08)
Q15
0.15(3.81)
Q10
0.10(2.54)
Freq. Stability
R*
±25 ppm max.
K
±30 ppm max.
H
±35 ppm max.
C
±50 ppm max.
* Temp option D, E, F, N and 0°C to +70°C only
ABRACON IS
ISO9001:2008
CERTIFIED
CERTIFIED
Revised: 08.18.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
HALF SIZE DIP LOW VOLTAGE 2.5V
CRYSTAL CLOCK OSCILLATOR
ACHL1 Series
Pb
RoHS
Compliant
13.2 x 11.0 x 5.5mm
| | | | | | | | | | | | | | |

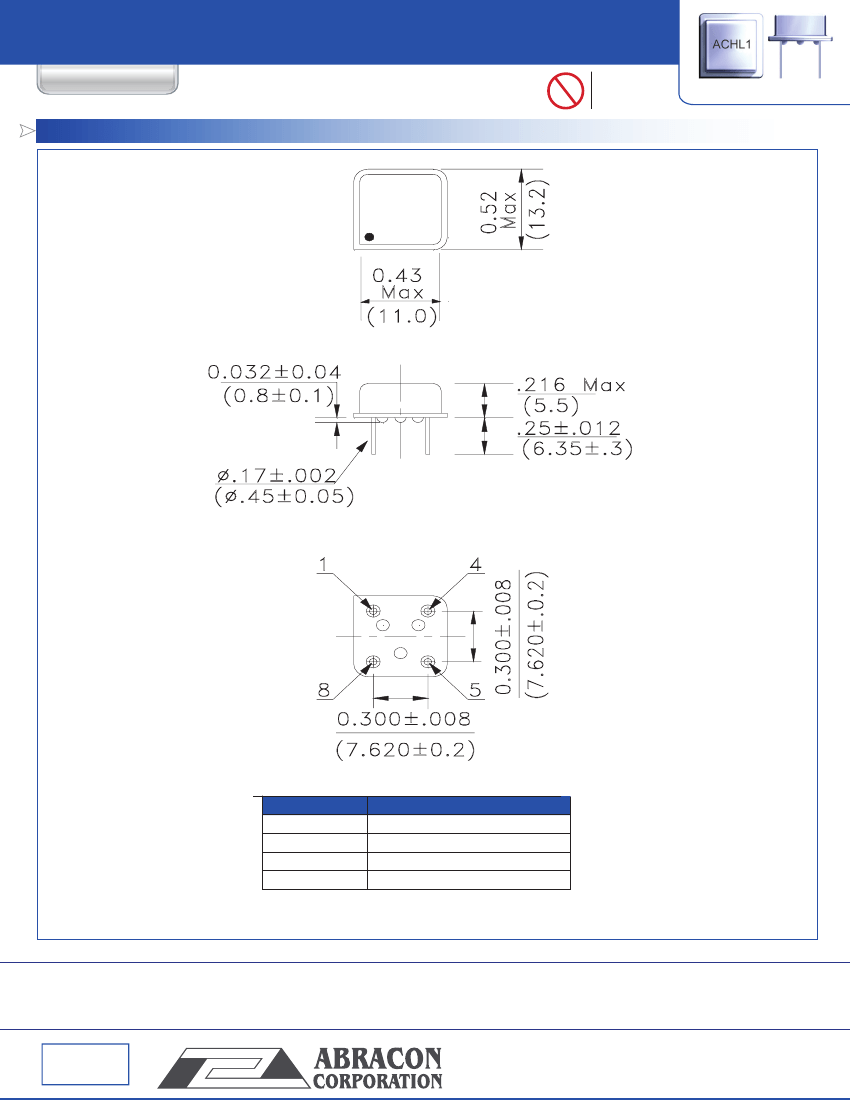

OUTLINE DIMENSIONS:
PIN
1
4
5
8
NC or Tristate Enable/ Disable
FUNCTION
GND/Case
Output
VDD
Note: Recommended using an approximately 0.01uF bypass
capacitor between PIN 4 and 8.
Dimensions: inches (mm)
ATTENTION:
