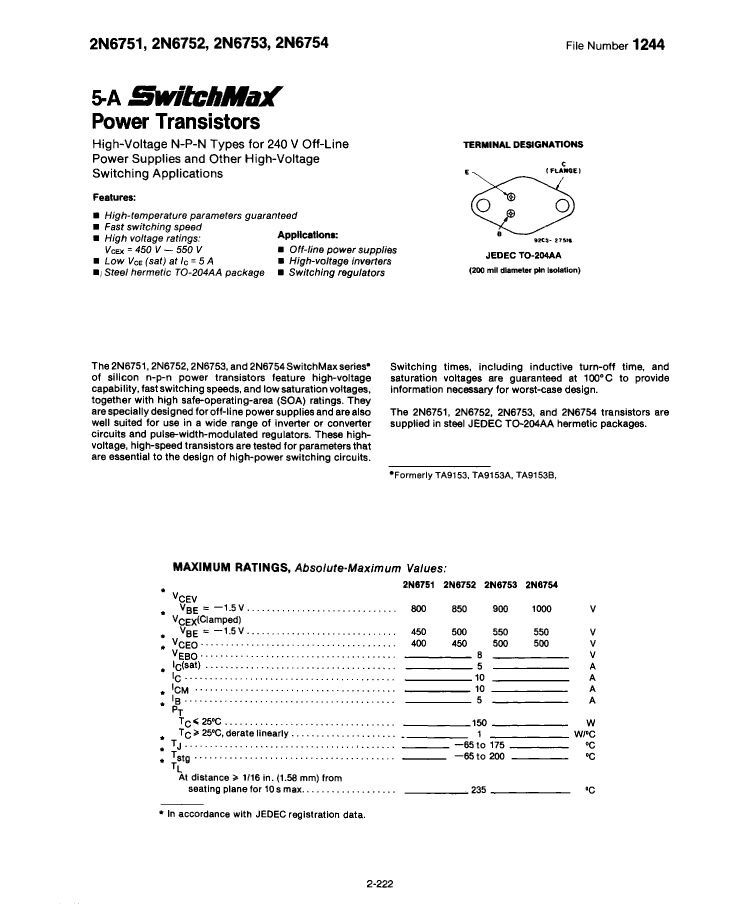

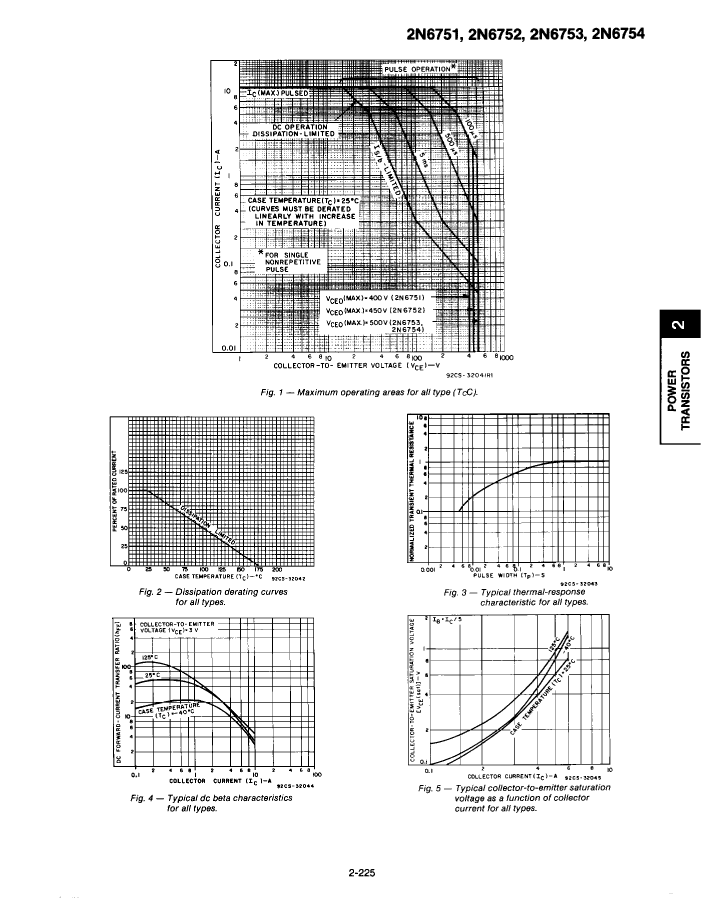

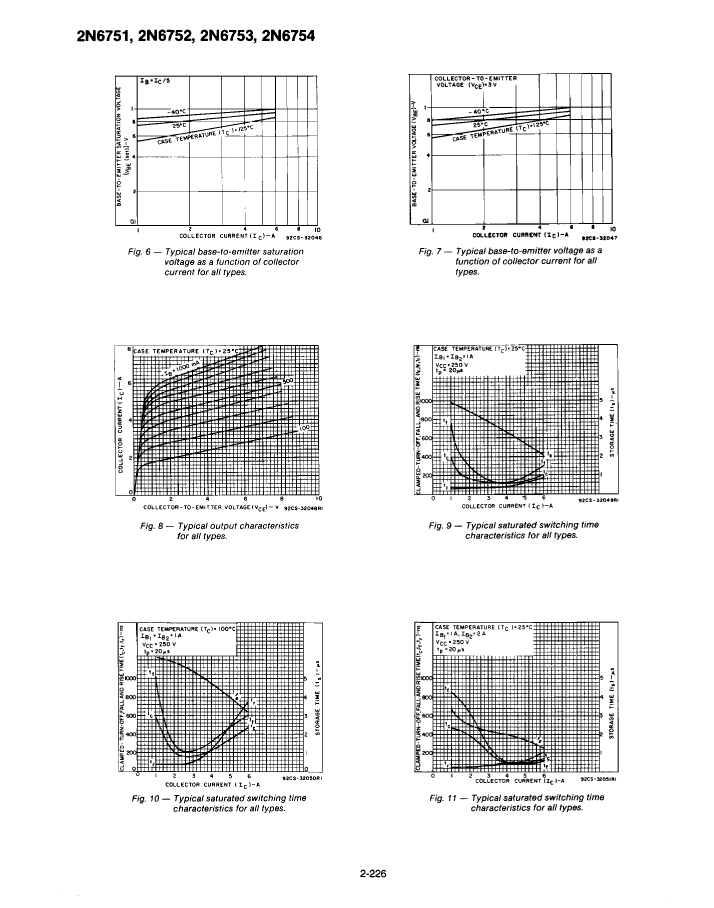

Power Bipolar Transistor, 10A I(C), 450V V(BR)CEO, 1-Element, NPN, Silicon, TO-204AA, Metal, 2 Pin

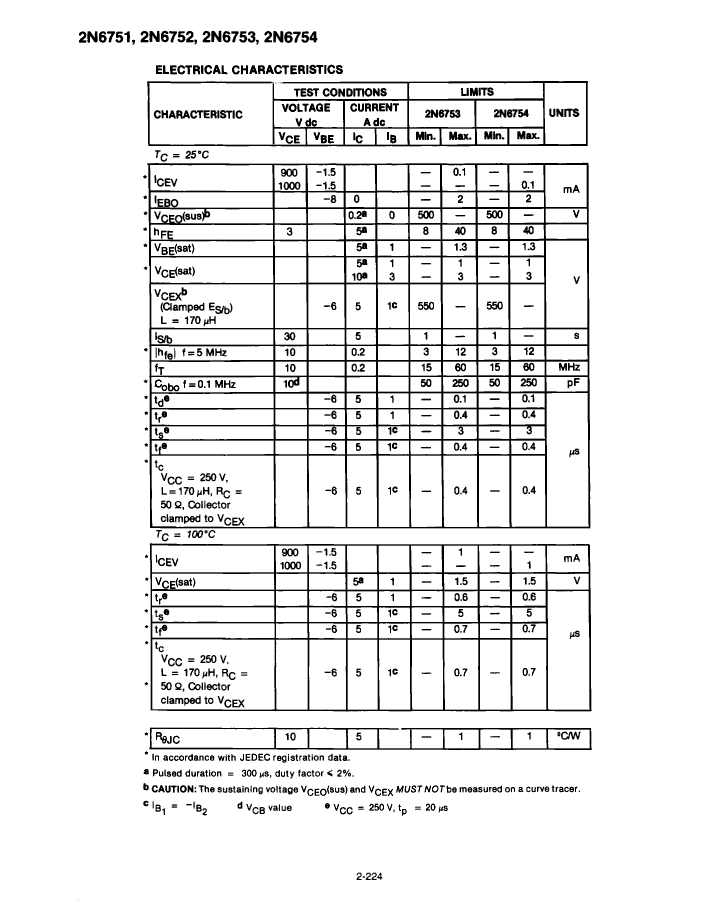

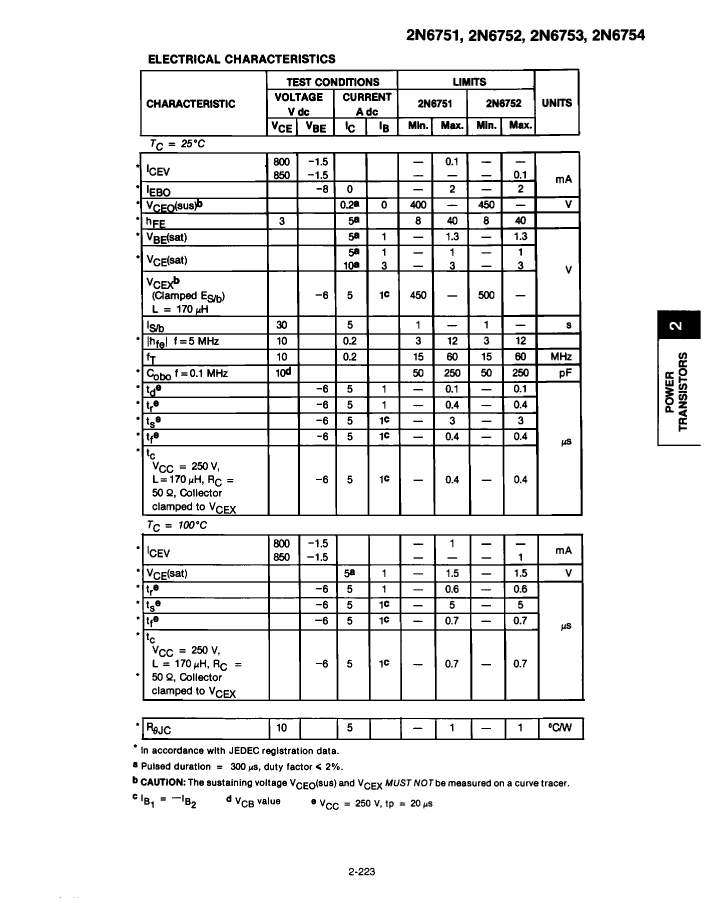

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | FLANGE MOUNT, O-MBFM-P2 |
| Reach Compliance Code | unknow |
| Shell connection | COLLECTOR |
| Maximum collector current (IC) | 10 A |
| Collector-based maximum capacity | 250 pF |
| Collector-emitter maximum voltage | 450 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 8 |
| JEDEC-95 code | TO-204AA |
| JESD-30 code | O-MBFM-P2 |
| JESD-609 code | e0 |
| Number of components | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 175 °C |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | NPN |
| Maximum power consumption environment | 150 W |
| Maximum power dissipation(Abs) | 75 W |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | PIN/PEG |
| Terminal location | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 15 MHz |
| Maximum off time (toff) | 3400 ns |
| Maximum opening time (tons) | 500 ns |
| VCEsat-Max | 3 V |
| Base Number Matches | 1 |
| 2N6752 | 2N6753 | 2N6754 | 2N6751 | |
|---|---|---|---|---|
| Description | Power Bipolar Transistor, 10A I(C), 450V V(BR)CEO, 1-Element, NPN, Silicon, TO-204AA, Metal, 2 Pin | Power Bipolar Transistor, 10A I(C), 500V V(BR)CEO, 1-Element, NPN, Silicon, TO-204AA, Metal, 2 Pin | Power Bipolar Transistor, 10A I(C), 500V V(BR)CEO, 1-Element, NPN, Silicon, TO-204AA, Metal, 2 Pin | Power Bipolar Transistor, 10A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon, TO-204AA, Metal, 2 Pin |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| package instruction | FLANGE MOUNT, O-MBFM-P2 | FLANGE MOUNT, O-MBFM-P2 | FLANGE MOUNT, O-MBFM-P2 | FLANGE MOUNT, O-MBFM-P2 |
| Reach Compliance Code | unknow | unknow | unknow | unknow |
| Shell connection | COLLECTOR | COLLECTOR | COLLECTOR | COLLECTOR |
| Maximum collector current (IC) | 10 A | 10 A | 10 A | 10 A |
| Collector-based maximum capacity | 250 pF | 250 pF | 250 pF | 250 pF |
| Collector-emitter maximum voltage | 450 V | 500 V | 500 V | 400 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 8 | 8 | 8 | 8 |
| JEDEC-95 code | TO-204AA | TO-204AA | TO-204AA | TO-204AA |
| JESD-30 code | O-MBFM-P2 | O-MBFM-P2 | O-MBFM-P2 | O-MBFM-P2 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| Number of components | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 175 °C | 175 °C | 175 °C | 175 °C |
| Package body material | METAL | METAL | METAL | METAL |
| Package shape | ROUND | ROUND | ROUND | ROUND |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Polarity/channel type | NPN | NPN | NPN | NPN |
| Maximum power consumption environment | 150 W | 150 W | 150 W | 150 W |
| Maximum power dissipation(Abs) | 75 W | 75 W | 75 W | 75 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG |
| Terminal location | BOTTOM | BOTTOM | BOTTOM | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| transistor applications | SWITCHING | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 15 MHz | 15 MHz | 15 MHz | 15 MHz |
| Maximum off time (toff) | 3400 ns | 3400 ns | 3400 ns | 3400 ns |
| Maximum opening time (tons) | 500 ns | 500 ns | 500 ns | 500 ns |
| VCEsat-Max | 3 V | 3 V | 3 V | 3 V |
| Base Number Matches | 1 | 1 | 1 | 1 |
