LFSPXO009686RL3K datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> LFSPXO009686RL3K

Preview

LFSPXO009686RL3K: DescriptionCMOS Output Clock Oscillator, 0.032768MHz Nom; CategoryPassive components oscillator; File Size261KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO009686RL3K Overview

CMOS Output Clock Oscillator, 0.032768MHz Nom

LFSPXO009686RL3K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IQD Frequency Products
Reach Compliance Code	compliant
Other features	ENABLE/DISABLE FUNCTION; TR
maximum descent time	50 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	0.032768 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	2.6mm x 2.1mm x 0.95mm
longest rise time	50 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

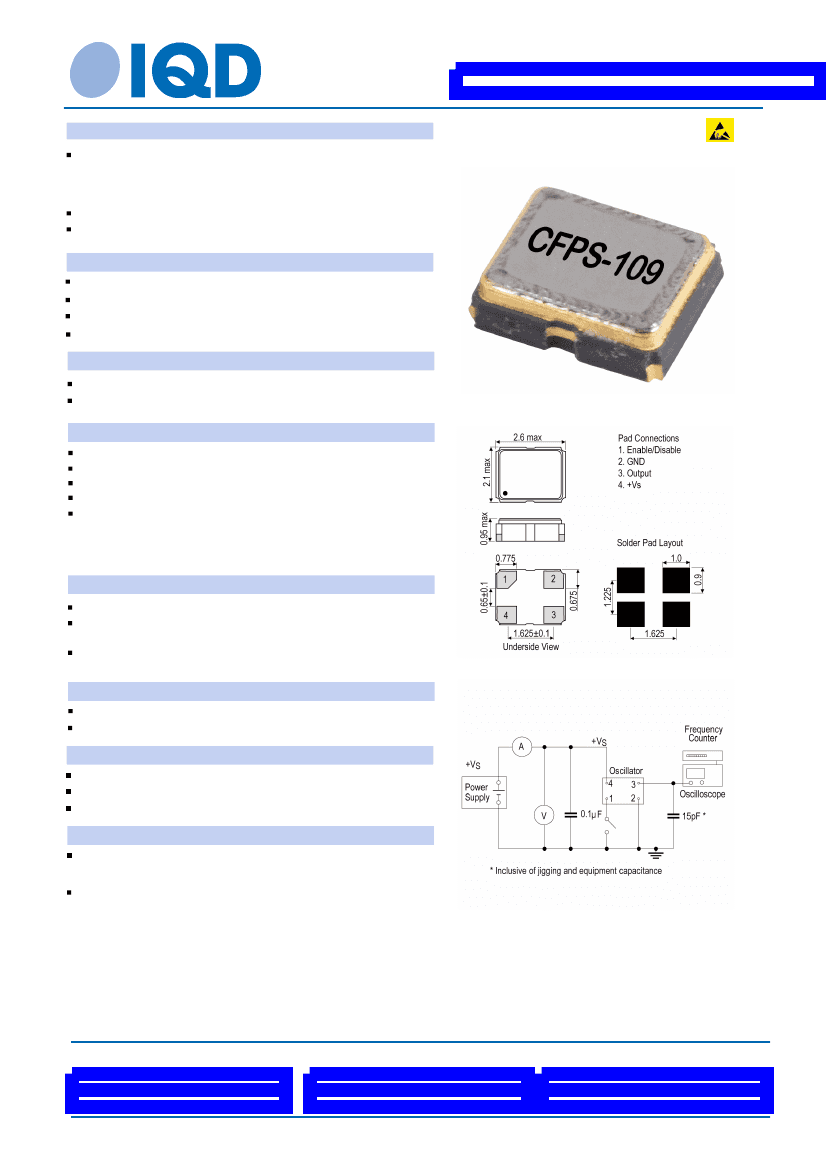

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO009686RL3K

Description

Suitable for real time clock applications

32.768kHz output crystal oscillators

Ceramic package with a seam sealed metal lid, hermetically

sealed

Model

CFPS-109

Model Issue number

4

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

32.7680kHz

±50.00ppm

-40.00 to 85.00°C

±3ppm max per year

Supply Voltage

Current Draw

Output Details

3.3V ±5%

3.500mA

Outline (mm)

CMOS

Output Compatibility

Drive Capability

15pF max

Rise and Fall Time

50.0ns max

40/60%

Duty Cycle

Logic ‘1’ to pad 1 enables oscillator output

Logic ‘0’ to pad 1 disables oscillator output; when disabled the

oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Environmental Parameters

Storage Temperature Range: –55 to 125°C

Shock: MIL-STD-883F, Method 2002.4: 1500G, 0.5ms, 3

times in each of 3 mutually perpendicular planes.

Vibration: MIL-STD-883F, Method 2007.3: 20G

(20Hz-2000Hz), 1.52mm amplitude

Manufacturing Details

Test Circuit

RoHS Terminations

RoHS Reflow Temp

Compliance

NiAu

260degC 10s

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: RL3K

Pack Size: 3,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 7 Jan 19 12:49 using Part Data Sheet V1.00015
