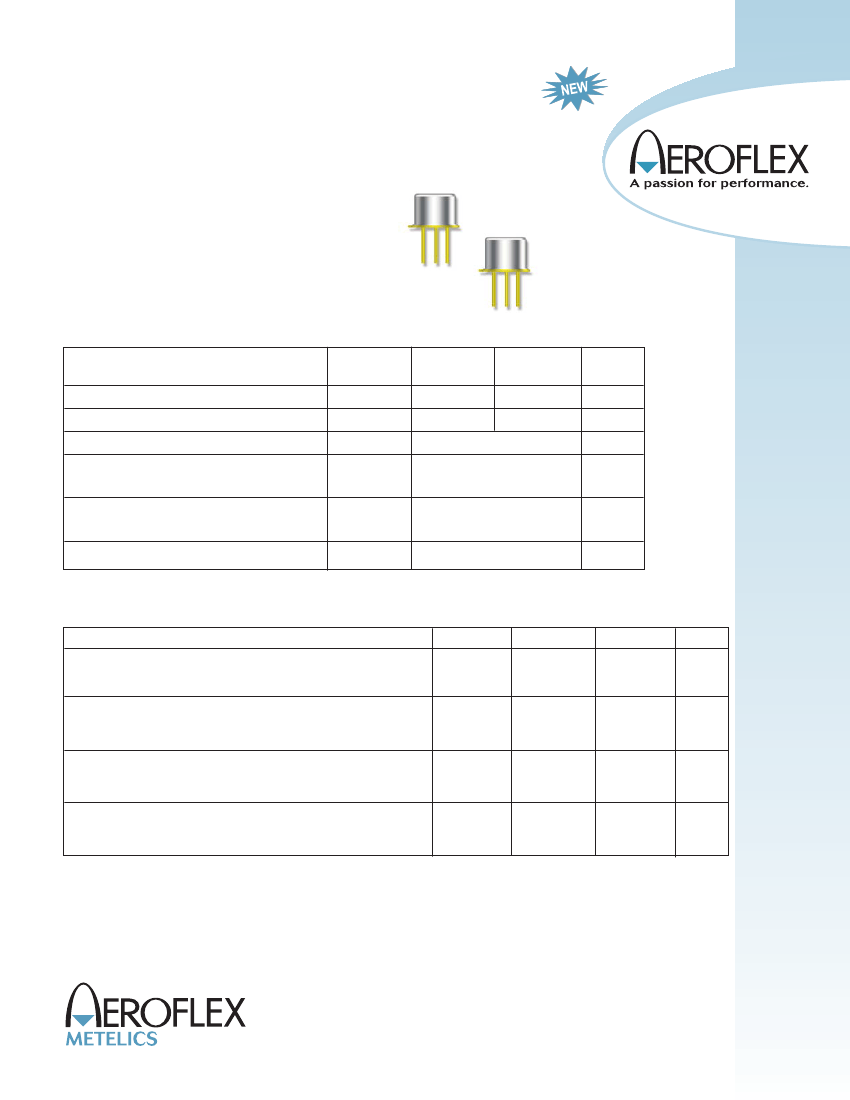

NPN Meduim Power Silicon Transistor
2N3418, 2N3419, 2N3420 & 2N3421
2N3418S, 2N3419S, 2N3420S & 2N3421S
Features
•
•
Available in JAN, JANTX and JANTXV
per MIL-PRF-19500/393
TO-5, TO-39 (TO-205AD) Package
Maximum Ratings
Ratings
Collector - Emitter Voltage
Collector - Base Voltage
Emitter - Base Voltage
Collector Current
TP
≤
1.0 ms, duty cycle
≤
50%
Total Power Dissipation @ TA = +25 °C
@ TC = +100 °C
Operating & Storage Temperature Range
Top, Tstg
PT
Symbol
VCEO
VCBO
VEBO
IC
2N3418, S
2N3420, S
60
85
8.0
3.0
5.0
1.0
10.0
-65 to +200
W
W
°C
2N3419, S
2N3421, S
80
125
Units
Vdc
Vdc
Vdc
Adc
Electrical Characteristics
OFF Characteristics
Collector - Emitter Breakdown Voltage
IC = 50 mAdc
2N3418, S, 2N3420, S
2N3419, S, 2N3421, S
Collector - Emitter Cutoff Current
VCE = 80 Vdc, VBE = -0.5 Vdc
VCE = 120 Vdc, VBE = -0.5 Vdc
Collector - Emitter Cutoff Current
VCE = 45 Vdc
VCE = 60 Vdc
Emitter - Base Cutoff Current
VEB = 6.0 Vdc, IC = 0
VEB = 8.0 Vdc, I
C
= 0
2N3418, S, 2N3420, S
2N3419, S, 2N3421, S
2N3418, S, 2N3420, S
2N3419, S, 2N3421, S
Symbol
V(BR)CEO
Mimimum
60
80
---
Maximum
---
Units
Vdc
ICEX
0.3
0.3
5.0
5.0
0.5
10.0
μAdc
ICEO
---
μAdc
IEBO
---
μAdc
Revision Date: 2/26/2013
New Product
1
2N3418, S, 2N3420, S &
2N3419, S, 2N3421, S
Electrical Characteristics -con’t
ON Characteristics (1)
Forward Current Transfer Ratio
IC = 100 mAdc, VCE = 2.0 Vdc
IC = 1.0 Adc, VCE = 2.0 Vdc
IC = 2.0 Adc, VCE = 2.0 Vdc
IC = 5.0 Adc, VCE = 5.0 Vdc
Base - Emitter Voltage
IC = 1.0 Adc, IB = 0.1 Adc
IC = 52.0 Adc, IB = 0.2 Adc
Collector - Emitter Saturation Voltage
IC = 250 mAdc, IB = 25 mAdc
IC = 500 mAdc, IB = 50 mAdc
2N3418, S, 2N3419, S
2N3420, S, 2N3421, S
2N3418, S, 2N3419, S
2N3420, S, 2N3421, S
2N3418, S, 2N3419, S
2N3420, S, 2N3421, S
2N3418, S, 2N3419, S
2N3420, S, 2N3421, S
VBE(sat)
HFE
Symbol
Minimum
Maximum
Unit
20
40
20
40
15
30
10
15
0.6
0.7
VCE(on)
---
---
1.2
1.4
0.25
0.5
Vdc
Vdc
60
120
DYNAMIC Characteristics
Magnitude of Common Emitter Small-Signal Short-Circuit
Forward Current Transfer Ratio
IC = 0.1 Adc, VCE = 10.0 Vdc, f = 20 MHz
Output Capacitance
VCB = 10 Vdc, IE = 0, 100 kHz
≤
f
≤
1.0 MHz
| hfe |
Cobo
1.3
---
8.0
150
pF
Switching Characteristics
Delay Time
Rise Time
Storage Time
Fall Time
VBE(off) = -3.7 Vdc
IC = 1.0 Adc, IB2 = 100 mAdc
VBE(off) = -3.7 Vdc
IC = 1.0 Adc, IB2 = -100 mAdc
td
tr
ts
tf
---
---
---
---
0.08
0.22
1.10
0.20
μs
μs
μs
μs
SAFE OPERATING AREA
DC Tests:
Test 1:
Test 2:
Test 3:
TC = 100 °C, 1 Cycle, t = 1.0 s s
VCE = 5.0 Vdc, IC = 3.0 Adc
VCE = 37 Vdc, IC = 0.4 Adc
VCE = 60 Vdc,
VCE = 80 Vdc,
IC = 0.185 mAdc 2N3418, S; 2N3420, S
IC = 0.12 mAdc
2N3419, S; 2N3421, S
2
603-641-3800 • 888-641--SEMI (7364) • metelics-sales@aeroflex.com • www.aeroflex.com/metelics
Revision Date: 2/26/2013
2N3418, S, 2N3420, S &
2N3419, S, 2N3421, S

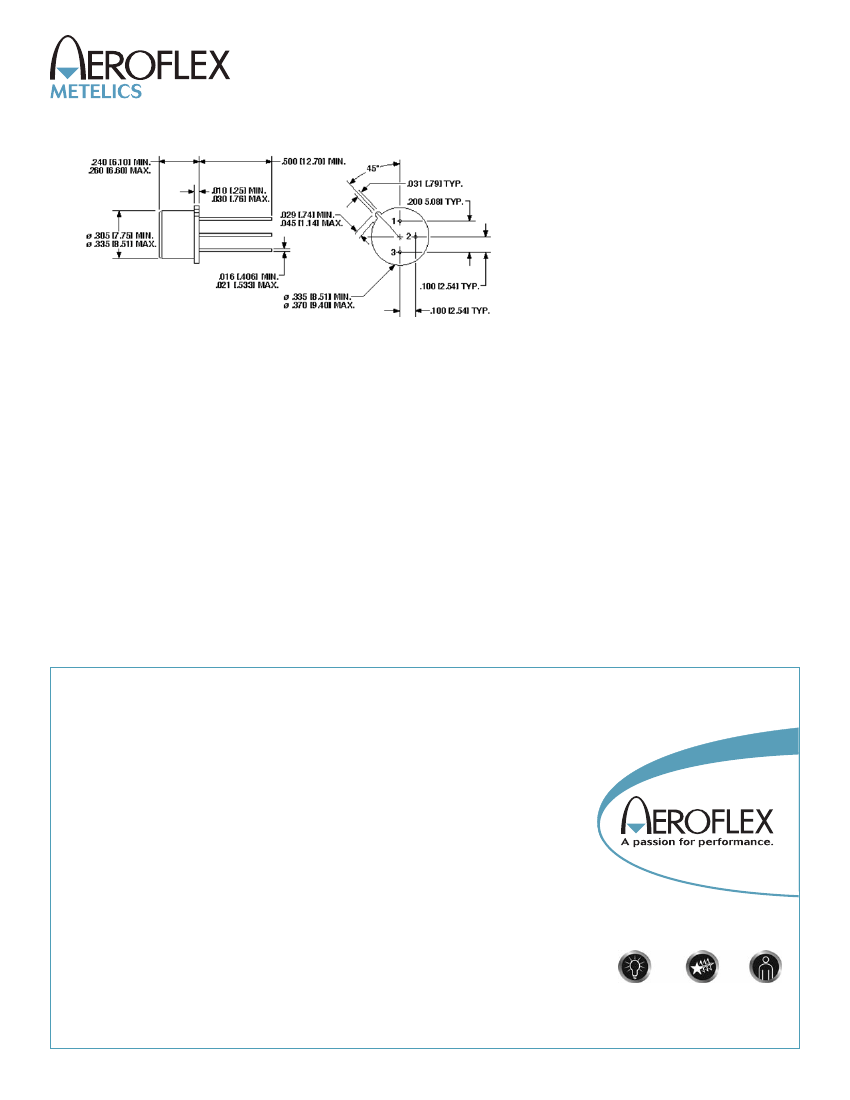

Outline Drawing
NOTE: Dimensions in Inches [mm]
Aeroflex / Metelics, Inc.
975 Stewart Drive,
Sunnyvale, CA 94085
Tel: (408) 737-8181
Fax: (408) 733-7645
Sales: 888-641-SEMI (7364)
Hi-Rel Components
9 Hampshire Street,
Lawrence, MA 01840
Tel: (603) 641-3800
Fax: (978) 683-3264
www.aeroflex.com/metelicsHRC
54 Grenier Field Road,
Londonderry, NH 03053
Tel: (603) 641-3800
Fax: (603)-641-3500
ISO 9001: 2008 certified companies
www.aeroflex.com/metelics
metelics-sales@aeroflex.com
Aeroflex / Metelics, Inc. reserves the right to make changes to any products and services
herein at any time without notice. Consult Aeroflex or an authorized sales representative to
verify that the information in this data sheet is current before using this product. Aeroflex
does not assume any responsibility or liability arising out of the application or use of any
product or service described herein, except as expressly agreed to in writing by Aeroflex;
nor does the purchase, lease, or use of a product or service from Aeroflex convey a license
under any patent rights, copyrights, trademark rights, or any other of the intellectual rights
of Aeroflex or of third parties.
Copyright 2013 Aeroflex / Metelics. All rights reserved.
Revision Date: 2/26/2013
