FEATURES
PRV Ratings from 50 to 1000 Volts
MECHANICAL SPECIFICATION
ACTUAL SIZE OF
THE DI PACKAGE
DT
+
SERIES DI100 - DI110
_
DT
DI104
Surge overload rating to 50 Amps peak
DI104
+
A1
A
Reliable low cost molded plastic construction
Ideal for printed circuit board applications
C
UL RECOGNIZED - FILE #E124962
MECHANICAL DATA
Case: Molded plastic, U/L Flammability Rating 94V-0
D
L1
L
B
B1
B2
Minimum
mm
in
0.290
7.4
0.245
6.2
0.41
0.016
0.195
5.0
0.300
7.6
9.3
0.355
3.2
0.125
3.9
0.155
0.060* 1.5*
Maximum
mm
in
7.9
0.310
6.5
0.255
0.51
0.020
0.205
5.2
8.9
0.350
9.3
0.365
3.4
0.135
0.165
4.3
Terminals: Rectangular pins
_
Soldering: Per MIL-STD 202 Method 208 guaranteed
+
Sym
A
A1
B
B1
B2
C
D
L
L1
Polarity: Marked on case
Mounting Position: Any
Weight: 0.05 Ounces (1.3 Grams)
* This dimension is "Typical".
MAXIMUM RATINGS & ELECTRICAL CHARACTERISTICS
Ratings at 25 °C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive loads, derate current by 20%.
PARAMETER (TEST CONDITIONS)
Series Number
Maximum DC Blocking Voltage
Maximum RMS Voltage
Maximum Peak Recurrent Reverse Voltage
Average Forward Rectified Current @ T
A
= 40 C
Peak Forward Surge Current. Single 60Hz Half-Sine Wave
Superimposed on Rated Load (JEDEC Method).
Maximum Forward Voltage (Per Diode) at 1 Amp DC
@ T
A
= 25 C
Maximum Average DC Reverse Current
@ T
A
= 100
o
C
At Rated DC Blocking Voltage
Junction to Ambient (Note 1)
Typical Thermal Resistance
Junction to Lead (Note 1)
Operating and Storage Temperature Range
NOTES: (1) Bridge mounted on PC Board with 0.5" sq. (13 mm sq.) copper pads
o
o
SYMBOL
RATINGS
DI100 DI101 DI102 DI104 DI106 DI108 DI110
UNITS
V
RM
V
RMS
V
RRM
I
O
I
FSM
V
FM
I
RM
R
θJA
R
θJL
T
J,
T
STG
50
35
50
100
70
100
200
140
200
400
280
400
1
50
1.1
5.0
0.5
40
15
600
420
600
800
560
800
1000
700
1000
AMPS
VOLTS
µA
mA
°C/W
°C
3.01 01di
VOLTS
-55 to +150
E1
DIOTEC ELECTRONICS CORP.
18020 Hobart Blvd., Unit B
Gardena, CA 90248 U.S.A
Tel.: (310) 767-1052 Fax: (310) 767-7958
Data Sheet No. BRDI-100-2C
1 AMP MINIATURE BRIDGE RECTIFIERS

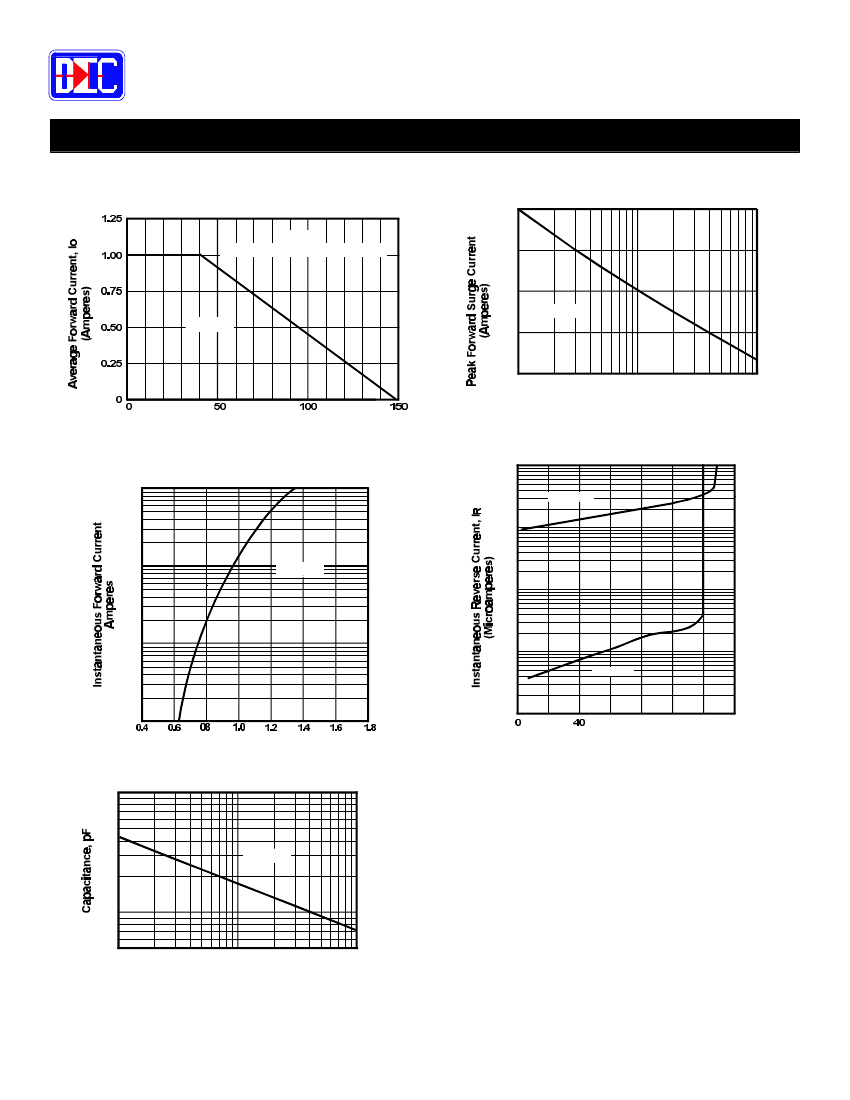

RATING & CHARACTERISTIC CURVES FOR SERIES DI100 - DI110
50
60Hz
Resistive or Inductive Loads
40
30
NOTE 2
NOTE 1
20
10
1
10
100
Number of Cycles at 60 Hz
Ambient Temperature,
o
C
FIGURE 1. FORWARD CURRENT DERATING CURVE
100
10
FIGURE 2. MAXIMUM NON-REPETITIVE SURGE CURRENT
T
A
= 125
o
C
10
1.0
NOTE 3
1.0
0.1
0.1
T
J
= 25
o
C
0.01
.01
20
60
80
100
120
140
Instantaneous Forward Voltage (Volts)
FIGURE 3. TYPICAL FORWARD CHARACTERISTIC PER DIODE
100
Percent of Rated Peak Reverse Voltage
FIGURE 4. TYPICAL REVERSE CHARACTERISTICS
NOTES
(1) Mounted on PC Board With 0.5" Sq. (13 mm Sq,) Copper Pads
And Bridge Lead Length of 0.06" (1.5 mm)
NOTE 4
(2) T
J
= 150
o
C
(3) T
J
= 25
o
C; Pulse Width = 300
µ
Sec, 1% Duty Cycle
10
(4) T
J
= 25
o
C; f = 1 MHz; Vsig = 50mVp-p
5
1
10
100
Reverse Voltage, (Volts)
FIGURE 5. TYPICAL JUNCTION CAPACITANCE PER DIODE
