CDP1852CD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> CDP1852CD

CDP1852CD: DescriptionParallel IO Port, 8-Bit, CMOS, CDIP24,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size276KB，5 Pages; ManufacturerRCA

Download Datasheet Parametric Compare View All

CDP1852CD Overview

Parallel IO Port, 8-Bit, CMOS, CDIP24,

CDP1852CD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	RCA
package instruction	DIP, DIP24,.6
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
Number of digits	8
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

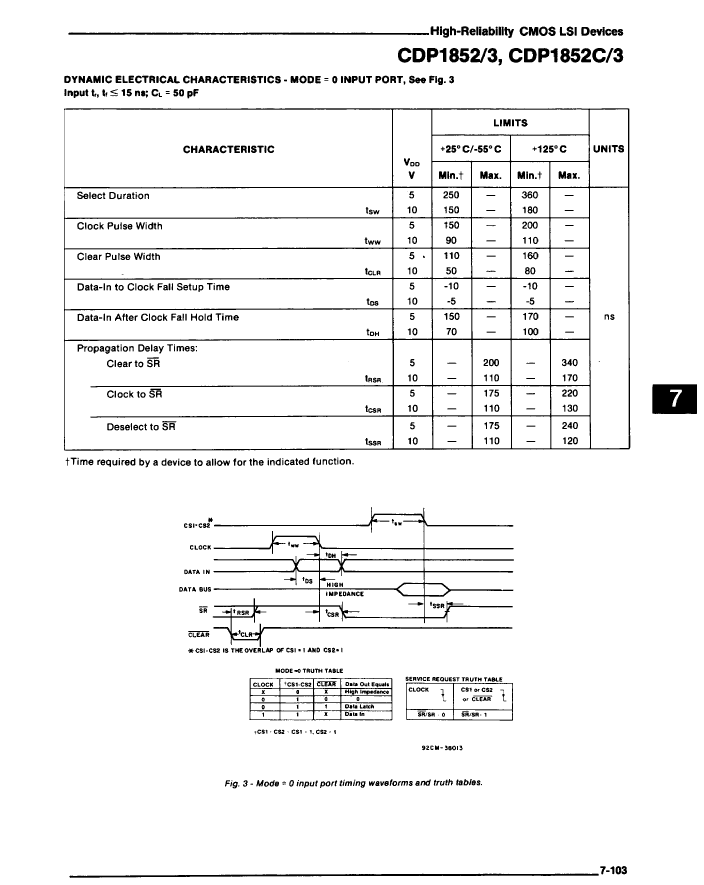

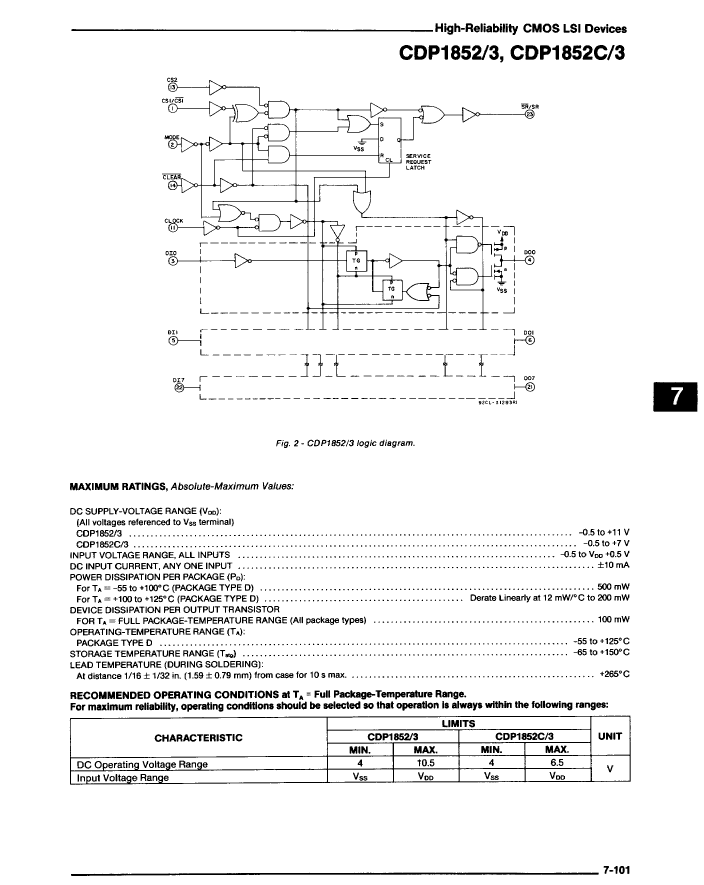

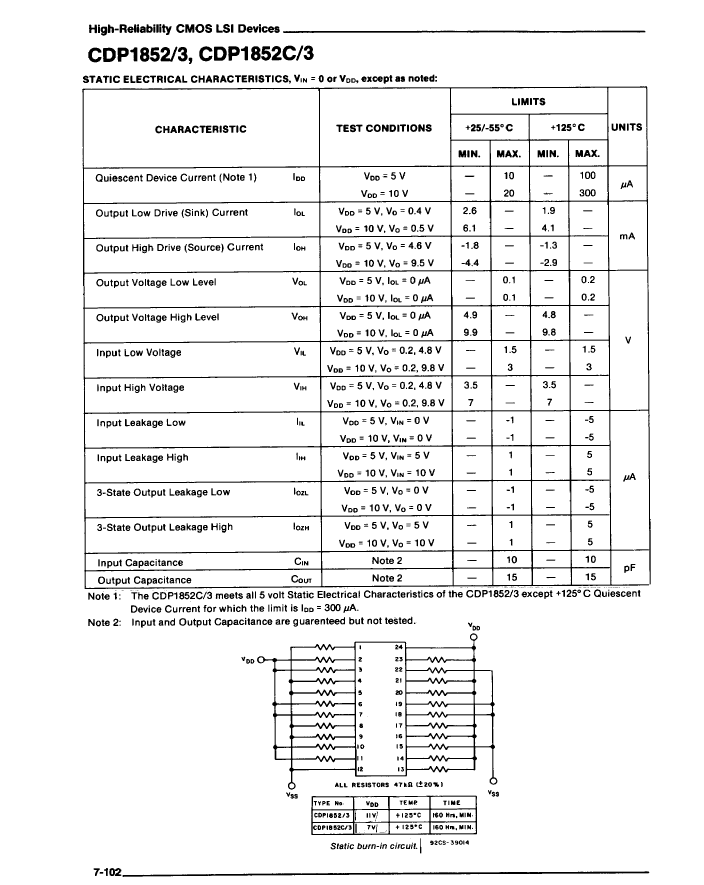

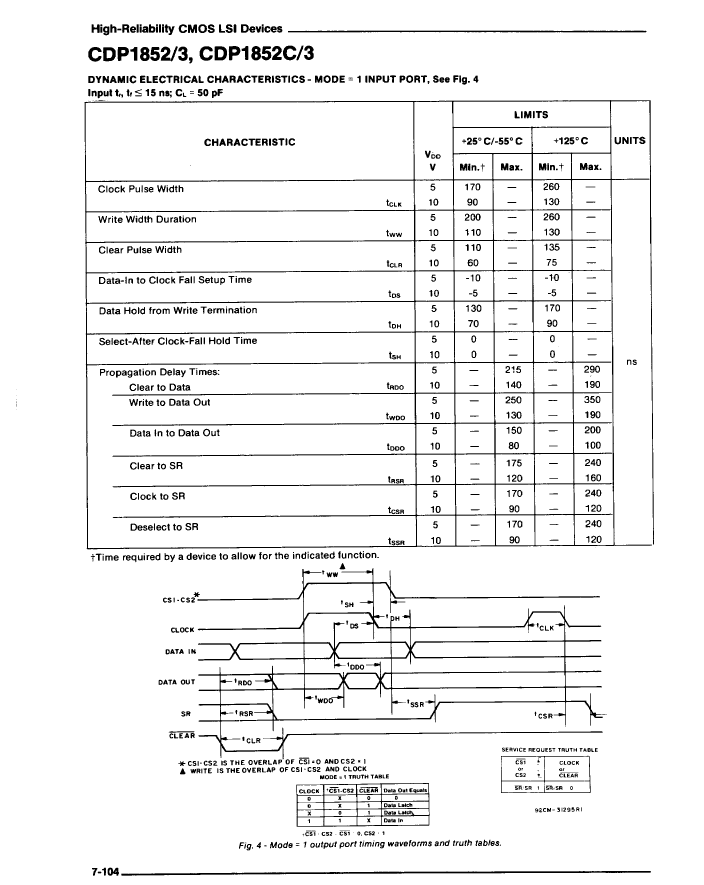

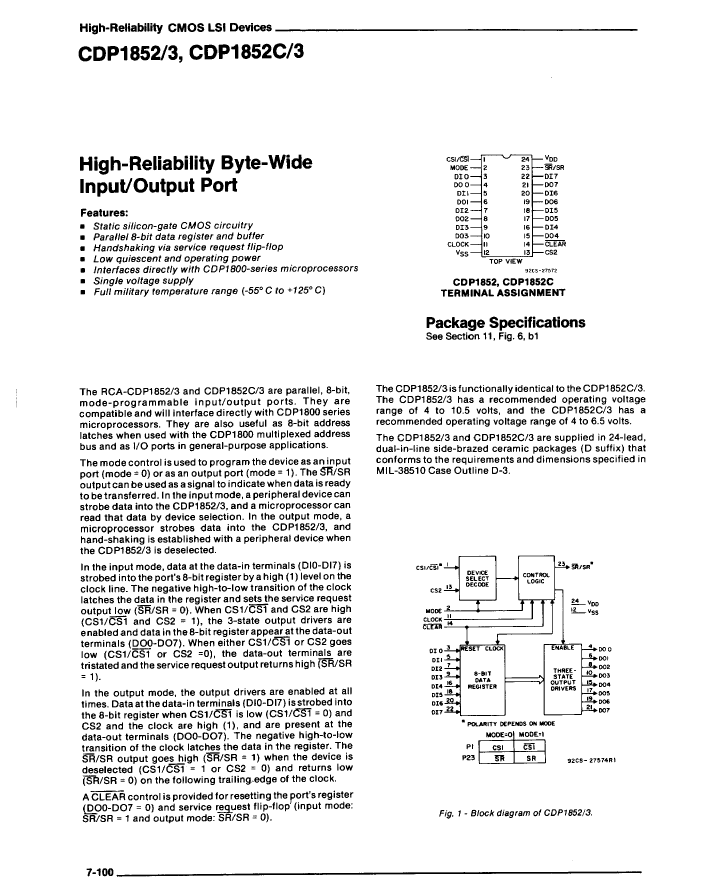

Preview

Download Datasheet

View All

CDP1852CD Related Products

	CDP1852CD	CDP1852EX	CDP1852CD/3	CDP1852CDX	CDP1852CD/3W	CDP1852CE	CDP1852CEX	CDP1852D	CDP1852DX	CDP1852E
Description	Parallel IO Port, 8-Bit, CMOS, CDIP24,	Parallel IO Port, 8-Bit, CMOS, PDIP24,	Parallel IO Port, 8-Bit, CMOS, CDIP24	Parallel IO Port, 8-Bit, CMOS, CDIP24,	Parallel IO Port, 8-Bit, CMOS, CDIP24	Parallel IO Port, 8-Bit, CMOS, PDIP24,	Parallel IO Port, 8-Bit, CMOS, PDIP24,	Parallel IO Port, 8-Bit, CMOS, CDIP24,	Parallel IO Port, 8-Bit, CMOS, CDIP24,	Parallel IO Port, 8-Bit, CMOS, PDIP24,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	RCA	RCA	RCA	RCA	RCA	RCA	RCA	RCA	RCA	RCA
package instruction	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-XDIP-T24	R-PDIP-T24	R-XDIP-T24	R-XDIP-T24	R-XDIP-T24	R-PDIP-T24	R-PDIP-T24	R-XDIP-T24	R-XDIP-T24	R-PDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of digits	8	8	8	8	8	8	8	8	8	8
Number of terminals	24	24	24	24	24	24	24	24	24	24
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Certification status	Not Qualified	-	Not Qualified	-	Not Qualified	Not Qualified	-	Not Qualified	-	Not Qualified
