CDP1878CE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> CDP1878CE

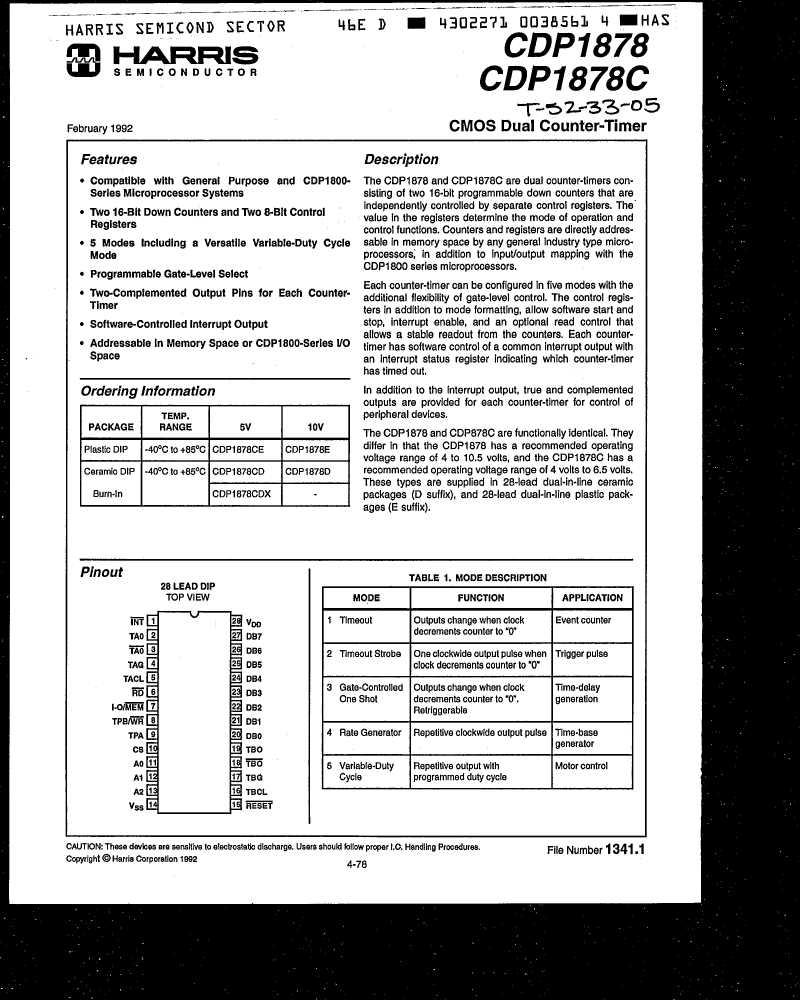

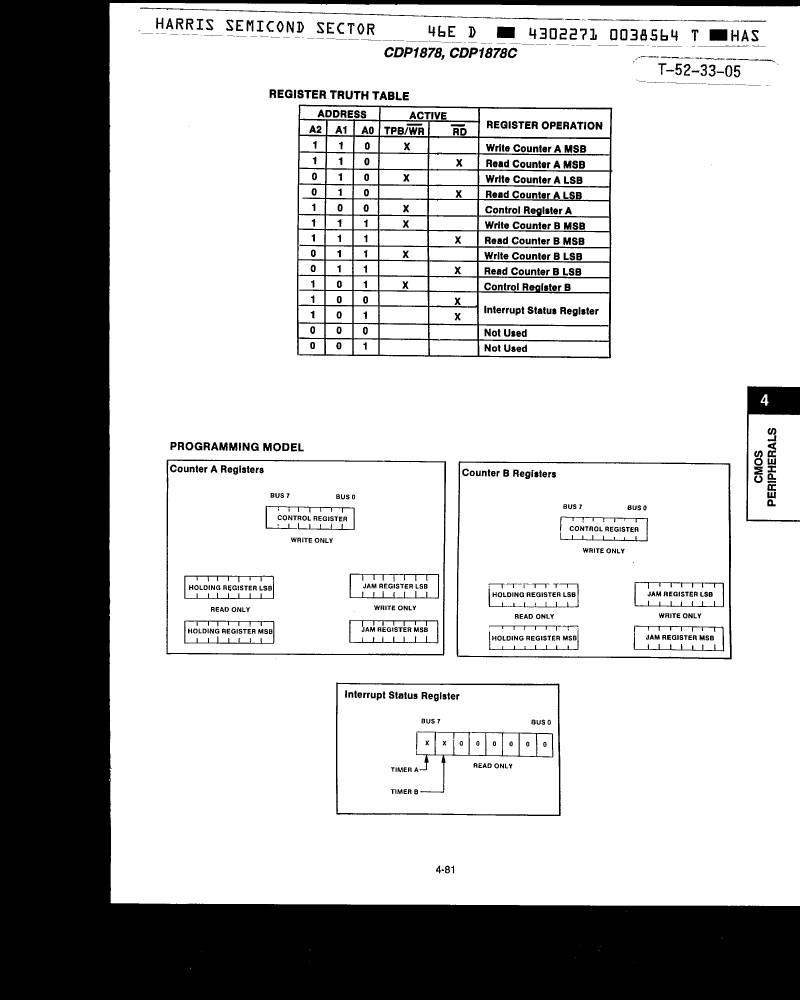

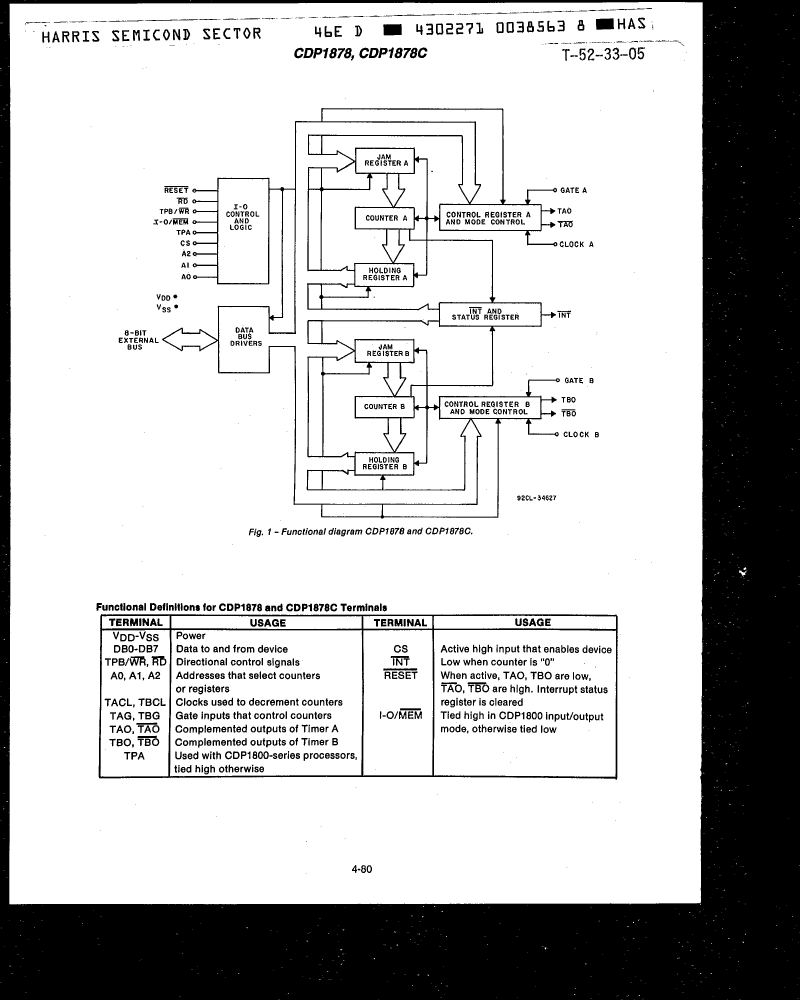

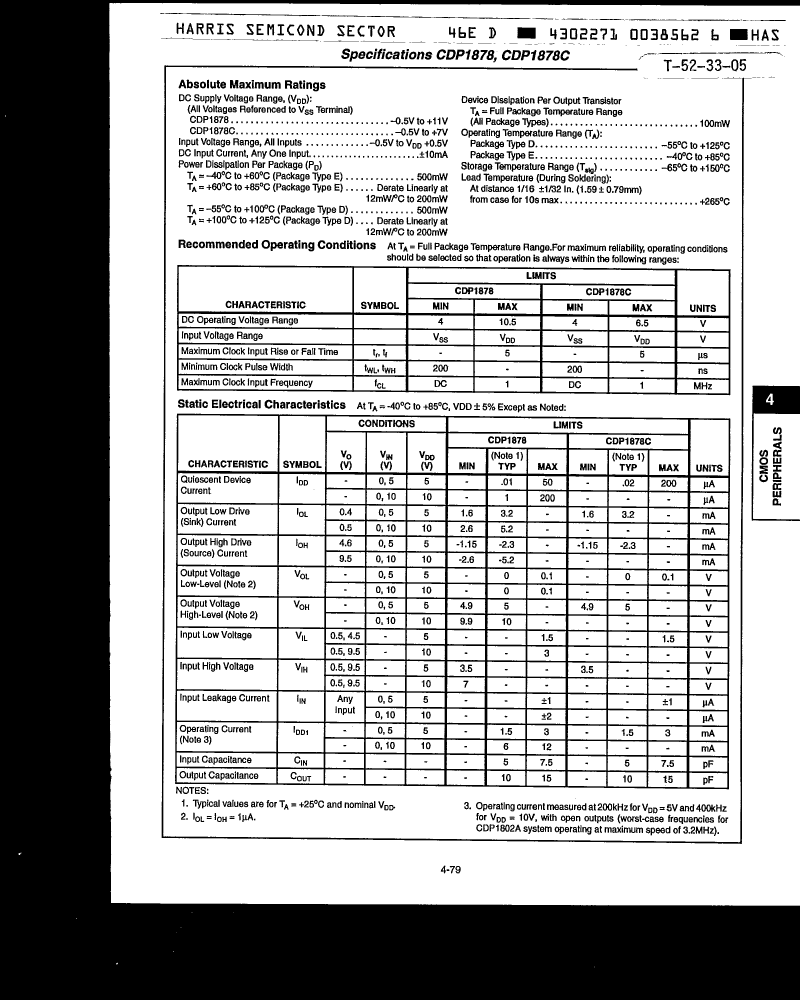

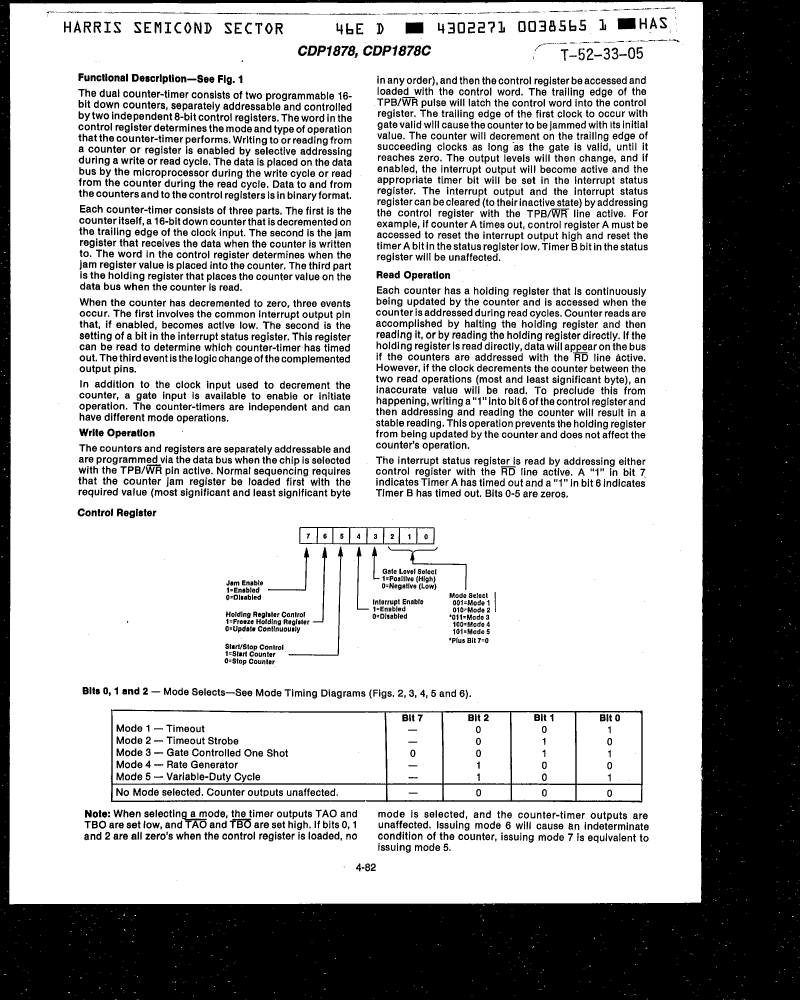

CDP1878CE: DescriptionProgrammable Timer, 2 Timer(s), CMOS, PDIP28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size843KB，13 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

CDP1878CE Overview

Programmable Timer, 2 Timer(s), CMOS, PDIP28

CDP1878CE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	5 PROGRAMMABLE MODES
Bus compatibility	CDP1802
External data bus width	8
Information access methods	PARALLEL, DIRECT ADDRESS
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
Number of digits	16
Number of terminals	28
Number of timers	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum slew rate	3 mA
Maximum supply voltage	6.5 V
Minimum supply voltage	4 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	TIMER, PROGRAMMABLE

Preview

Download Datasheet

View All

CDP1878CE Related Products

	CDP1878CE	CDP1878CDX	CDP1878CD	CDP1878D	CDP1878E
Description	Programmable Timer, 2 Timer(s), CMOS, PDIP28	Programmable Timer, 2 Timer(s), CMOS, CDIP28	Programmable Timer, 2 Timer(s), CMOS, PDIP28	Programmable Timer, 2 Timer(s), CMOS, CDIP28	Programmable Timer, 2 Timer(s), CMOS, PDIP28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Harris	Harris	Harris	Harris	Harris
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	5 PROGRAMMABLE MODES	5 PROGRAMMABLE MODES	5 PROGRAMMABLE MODES	5 PROGRAMMABLE MODES	5 PROGRAMMABLE MODES
Bus compatibility	CDP1802	CDP1802	CDP1802	CDP1802	CDP1802
External data bus width	8	8	8	8	8
Information access methods	PARALLEL, DIRECT ADDRESS	PARALLEL, DIRECT ADDRESS	PARALLEL, DIRECT ADDRESS	PARALLEL, DIRECT ADDRESS	PARALLEL, DIRECT ADDRESS
JESD-30 code	R-PDIP-T28	R-CDIP-T28	R-PDIP-T28	R-CDIP-T28	R-PDIP-T28
JESD-609 code	e0	e0	e0	e0	e0
Number of digits	16	16	16	16	16
Number of terminals	28	28	28	28	28
Number of timers	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	3 mA	3 mA	3 mA	3 mA	3 mA
Maximum supply voltage	6.5 V	6.5 V	6.5 V	10.5 V	10.5 V
Minimum supply voltage	4 V	4 V	4 V	4 V	4 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Maximum time at peak reflow temperature	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
