CDP1881CE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> CDP1881CE

CDP1881CE: DescriptionD Latch, 1800 Series, 1-Func, High Level Triggered, 6-Bit, True Output, CMOS, PDIP20; Categorylogic logic; File Size161KB，7 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

CDP1881CE Overview

D Latch, 1800 Series, 1-Func, High Level Triggered, 6-Bit, True Output, CMOS, PDIP20

CDP1881CE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
series	1800
JESD-30 code	R-PDIP-T20
JESD-609 code	e0
Logic integrated circuit type	D LATCH
Number of digits	6
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	175 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	6.5 V
Minimum supply voltage (Vsup)	4 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	HIGH LEVEL

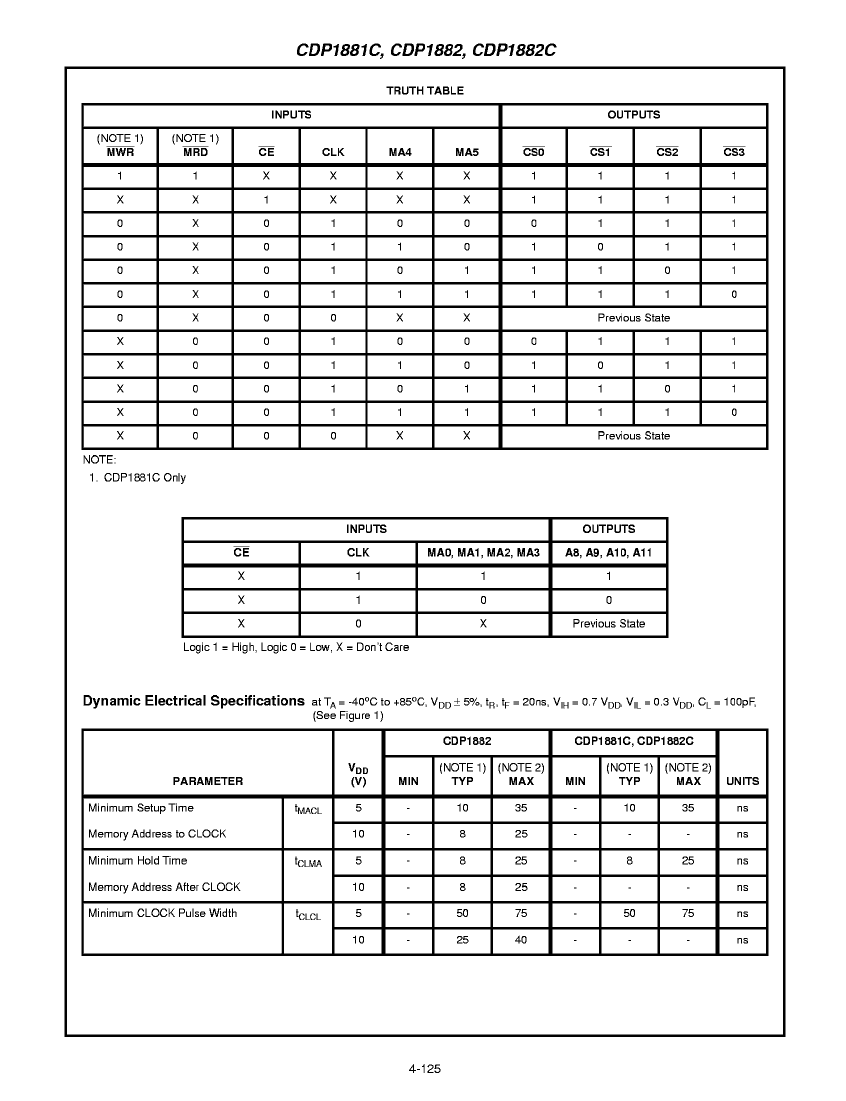

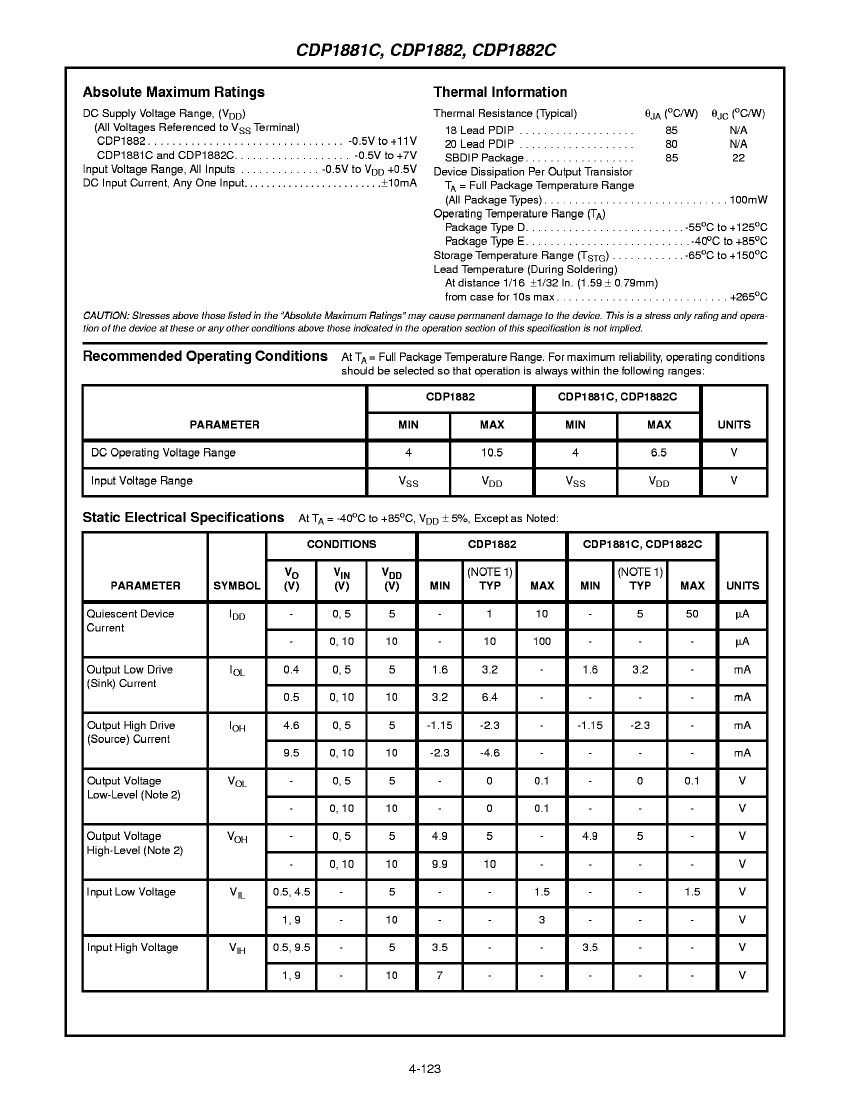

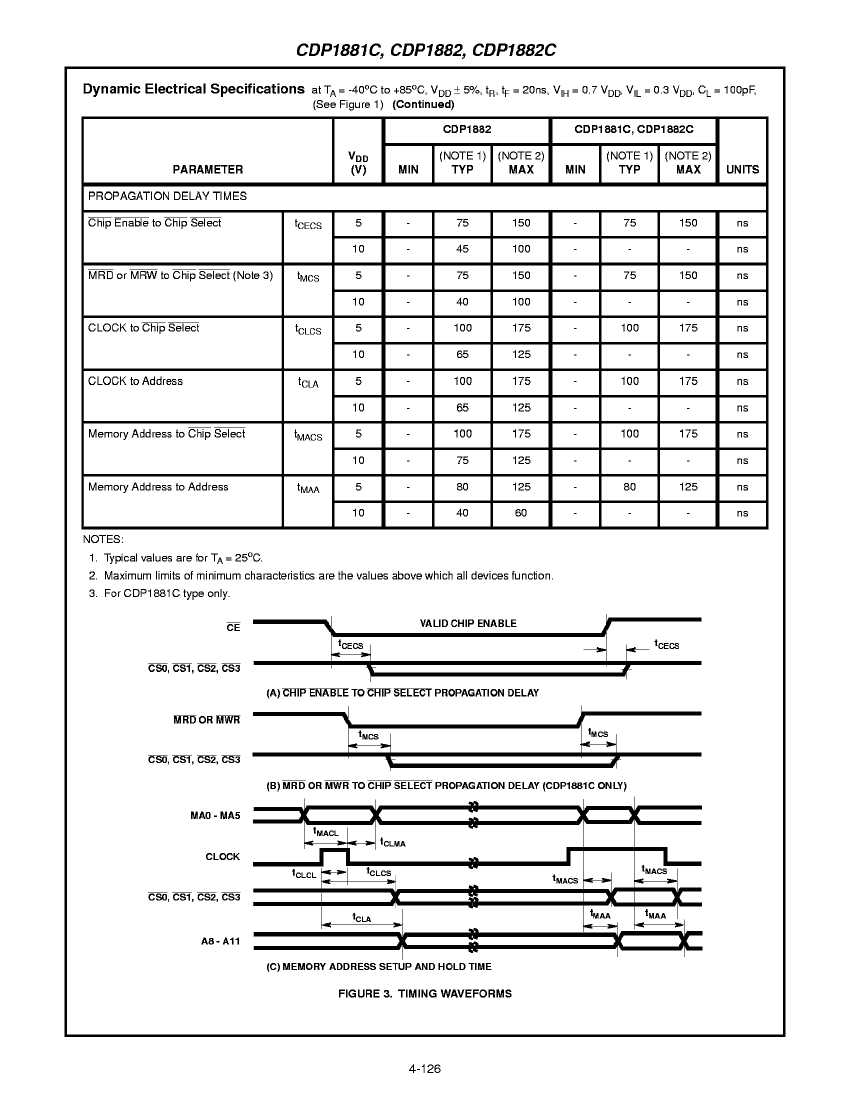

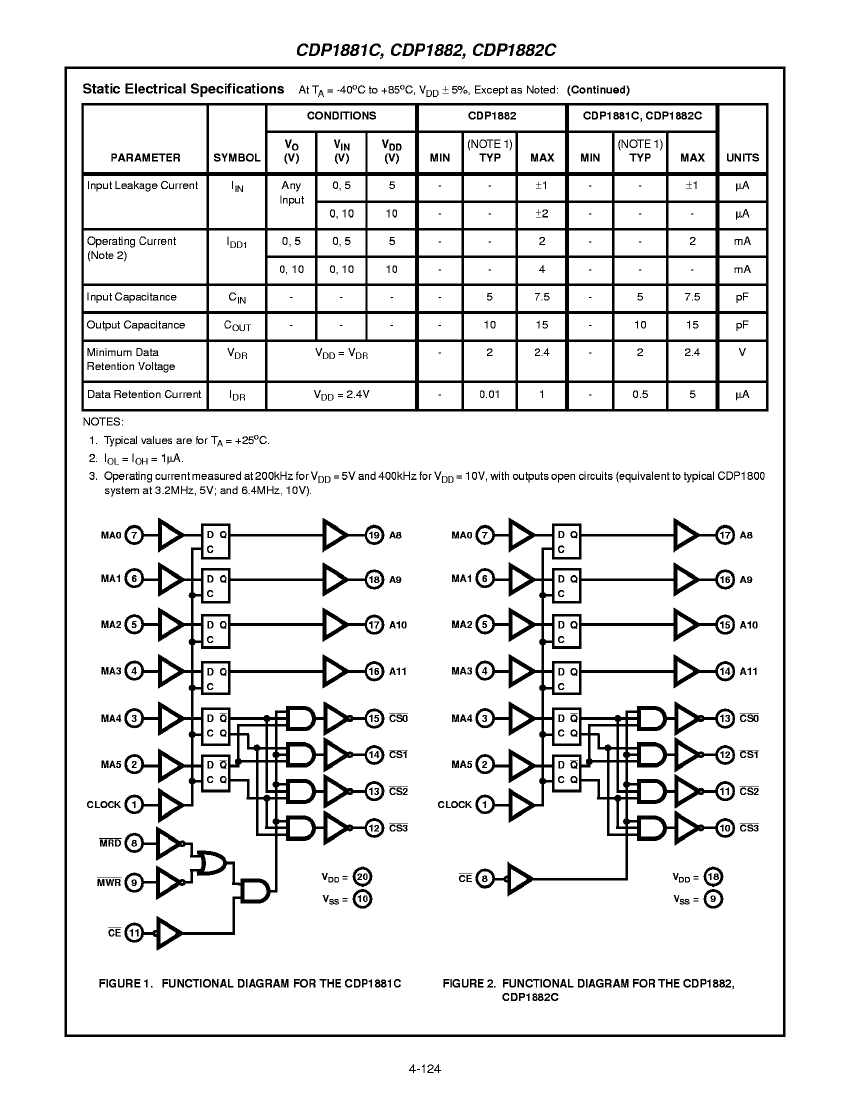

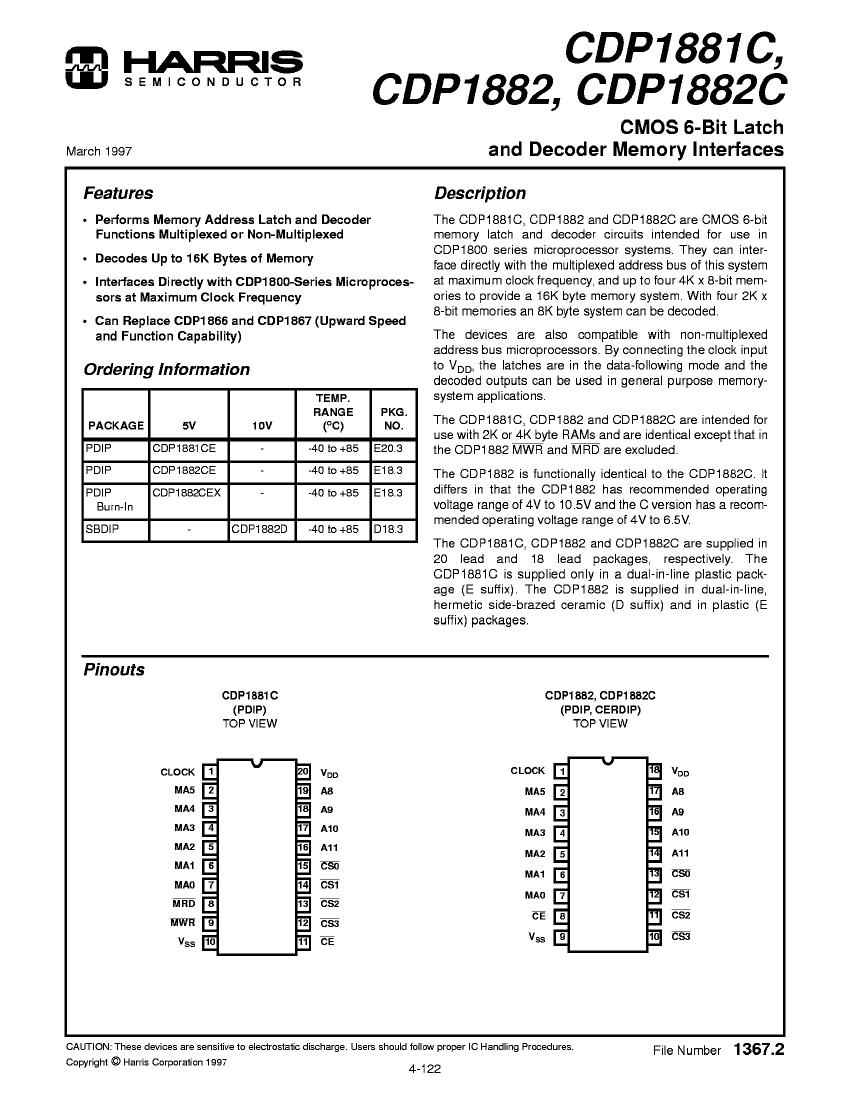

Preview

Download Datasheet

View All

CDP1881CE Related Products

	CDP1881CE	CDP1882CE	CDP1882CEX	CDP1882D
Description	D Latch, 1800 Series, 1-Func, High Level Triggered, 6-Bit, True Output, CMOS, PDIP20	D Latch, 1800 Series, 1-Func, High Level Triggered, 6-Bit, True Output, CMOS, PDIP18	D Latch, 1800 Series, 1-Func, High Level Triggered, 6-Bit, True Output, CMOS, PDIP18	D Latch, 1800 Series, 1-Func, High Level Triggered, 6-Bit, True Output, CMOS, CDIP18
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Harris	Harris	Harris	Harris
package instruction	DIP, DIP20,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3
Reach Compliance Code	unknown	unknown	unknown	unknown
series	1800	1800	1800	1800
JESD-30 code	R-PDIP-T20	R-PDIP-T18	R-PDIP-T18	R-CDIP-T18
JESD-609 code	e0	e0	e0	e0
Logic integrated circuit type	D LATCH	D LATCH	D LATCH	D LATCH
Number of digits	6	6	6	6
Number of functions	1	1	1	1
Number of terminals	20	18	18	18
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP20,.3	DIP18,.3	DIP18,.3	DIP18,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5/10 V
propagation delay (tpd)	175 ns	175 ns	175 ns	125 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	6.5 V	6.5 V	6.5 V	10.5 V
Minimum supply voltage (Vsup)	4 V	4 V	4 V	4 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	10 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger type	HIGH LEVEL	HIGH LEVEL	HIGH LEVEL	HIGH LEVEL
