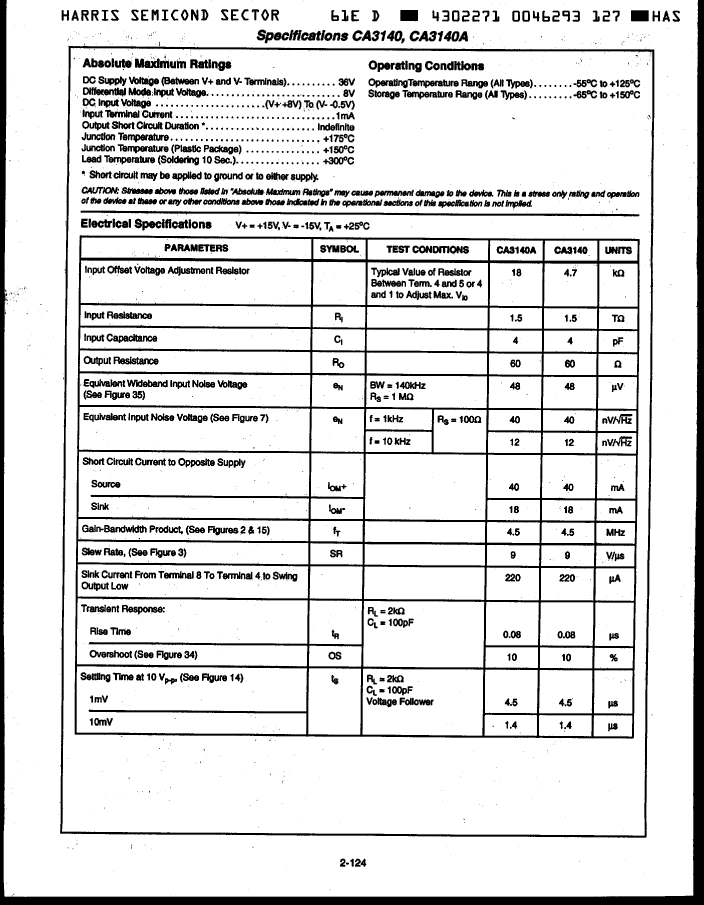

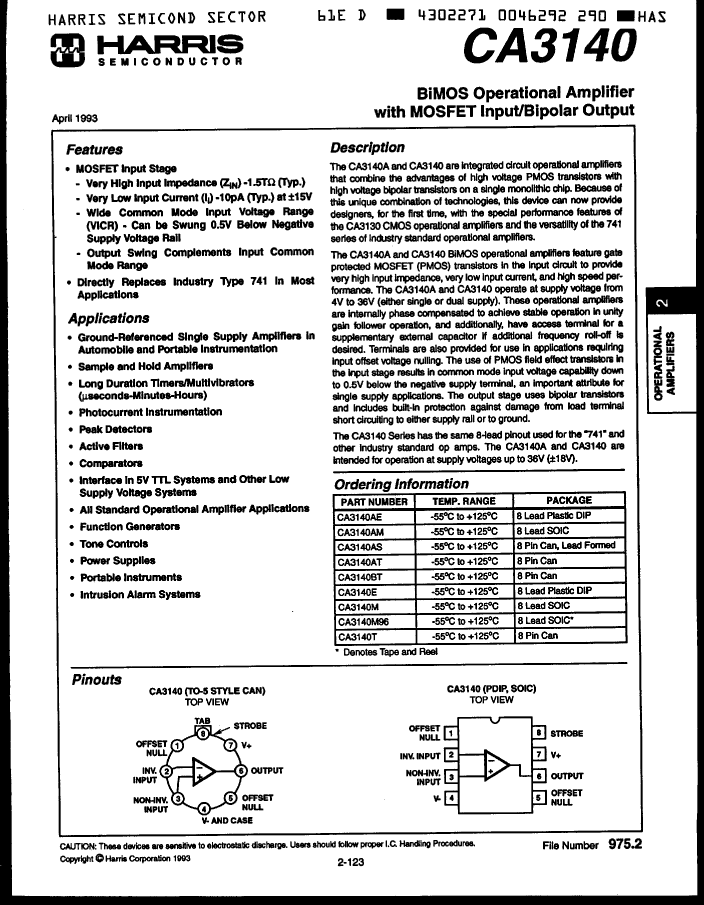

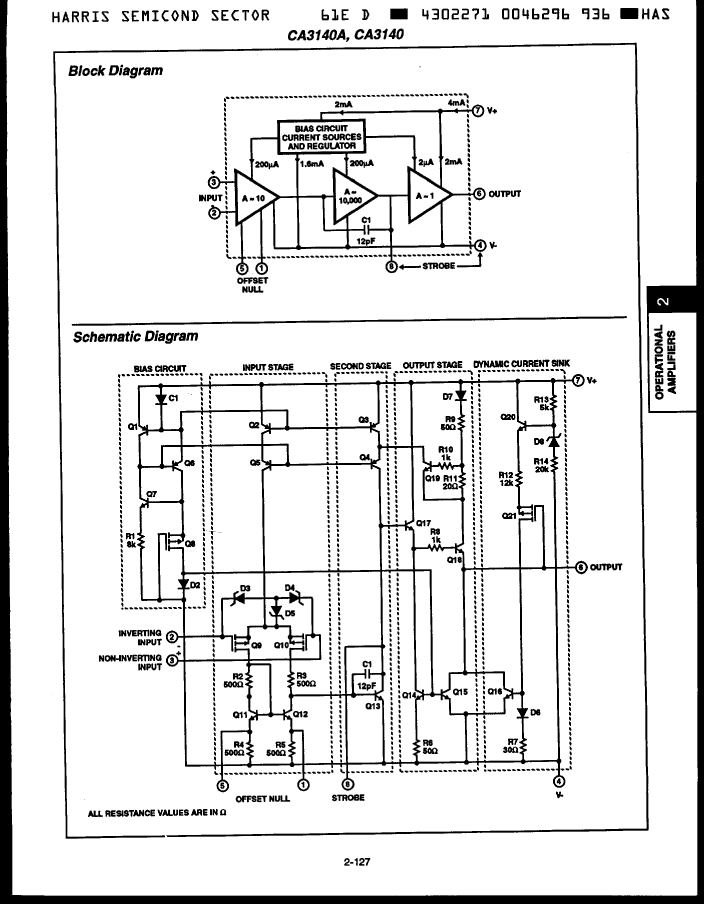

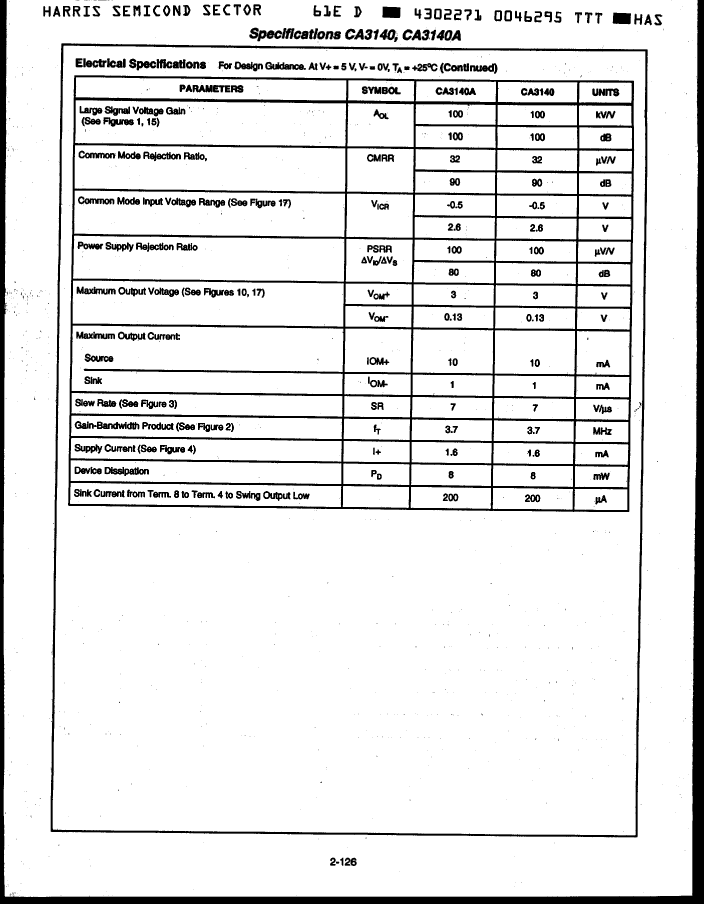

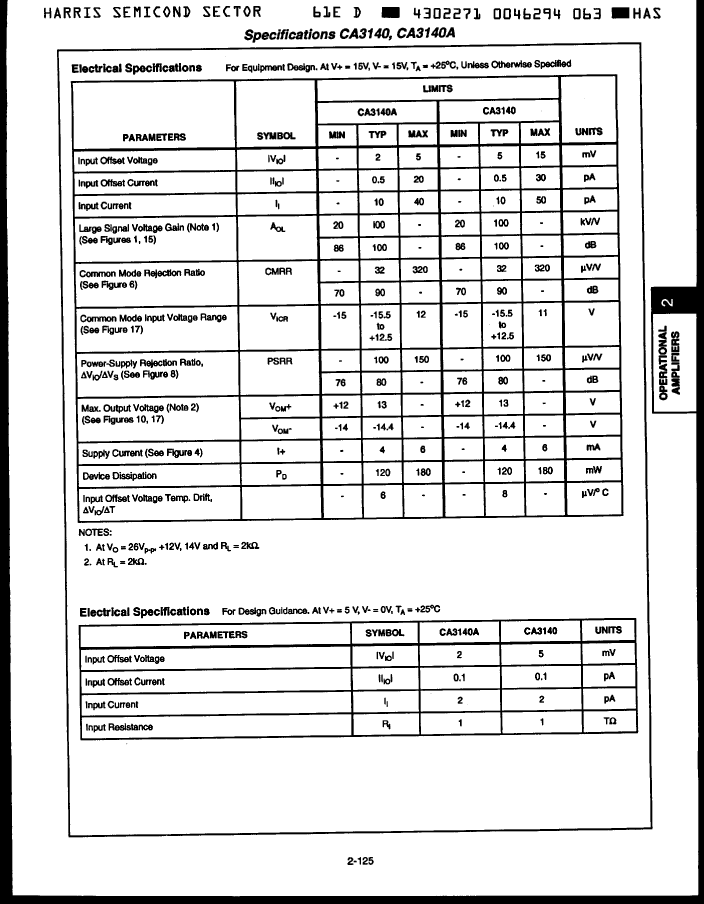

Preview

CA3140E: DescriptionOperational Amplifier, 1 Func, 15000uV Offset-Max, BIMOS, PDIP8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size2MB，20 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

CA3140E Overview

Operational Amplifier, 1 Func, 15000uV Offset-Max, BIMOS, PDIP8

CA3140E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.00005 µA
Minimum Common Mode Rejection Ratio	70 dB
Nominal Common Mode Rejection Ratio	90 dB
frequency compensation	YES
Maximum input offset voltage	15000 µV
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
low-bias	YES
low-dissonance	NO
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/+-15 V
Certification status	Not Qualified
Nominal slew rate	7 V/us
Maximum slew rate	6 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	4500 kHz
Minimum voltage gain	20000

Preview

Download Datasheet

View All

CA3140E Related Products

	CA3140E	CA3140AM	CA3140AS
Description	Operational Amplifier, 1 Func, 15000uV Offset-Max, BIMOS, PDIP8	Operational Amplifier, 1 Func, 5000uV Offset-Max, BIMOS, PDSO8	Operational Amplifier, 1 Func, 5000uV Offset-Max, BIMOS, MBCY8
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.00005 µA	0.00004 µA	0.00004 µA
Minimum Common Mode Rejection Ratio	70 dB	70 dB	70 dB
Nominal Common Mode Rejection Ratio	90 dB	90 dB	90 dB
frequency compensation	YES	YES	YES
Maximum input offset voltage	15000 µV	5000 µV	5000 µV
JESD-30 code	R-PDIP-T8	R-PDSO-G8	O-MBCY-W8
JESD-609 code	e0	e0	e0
low-bias	YES	YES	YES
low-dissonance	NO	NO	NO
Negative supply voltage upper limit	-18 V	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V
Number of functions	1	1	1
Number of terminals	8	8	8
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	METAL
Encapsulate equivalent code	DIP8,.3	SOP8,.25	TO-5,8PIN,DIL
Package shape	RECTANGULAR	RECTANGULAR	ROUND
Package form	IN-LINE	SMALL OUTLINE	CYLINDRICAL
power supply	5/+-15 V	5/+-15 V	5/+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal slew rate	7 V/us	7 V/us	7 V/us
Maximum slew rate	6 mA	6 mA	6 mA
Supply voltage upper limit	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V
surface mount	NO	YES	NO
technology	BIMOS	BIMOS	BIMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	WIRE
Terminal location	DUAL	DUAL	BOTTOM
Nominal Uniform Gain Bandwidth	4500 kHz	4500 kHz	4500 kHz
Minimum voltage gain	20000	20000	20000
encapsulated code	DIP	SOP	-
Terminal pitch	2.54 mm	1.27 mm	-
package instruction	-	SOP, SOP8,.25	, TO-5,8PIN,DIL
Base Number Matches	-	1	1
