CA3193EX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> CA3193EX

CA3193EX: DescriptionOperational Amplifier, 1 Func, 725uV Offset-Max, PDIP8,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size564KB，11 Pages; ManufacturerRCA

Download Datasheet Parametric Compare View All

CA3193EX Overview

Operational Amplifier, 1 Func, 725uV Offset-Max, PDIP8,

CA3193EX Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	RCA
package instruction	DIP, DIP8,.3
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.04 µA
frequency compensation	YES
Maximum input offset voltage	725 µV
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
low-dissonance	YES
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Maximum slew rate	3.5 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Minimum voltage gain	100000

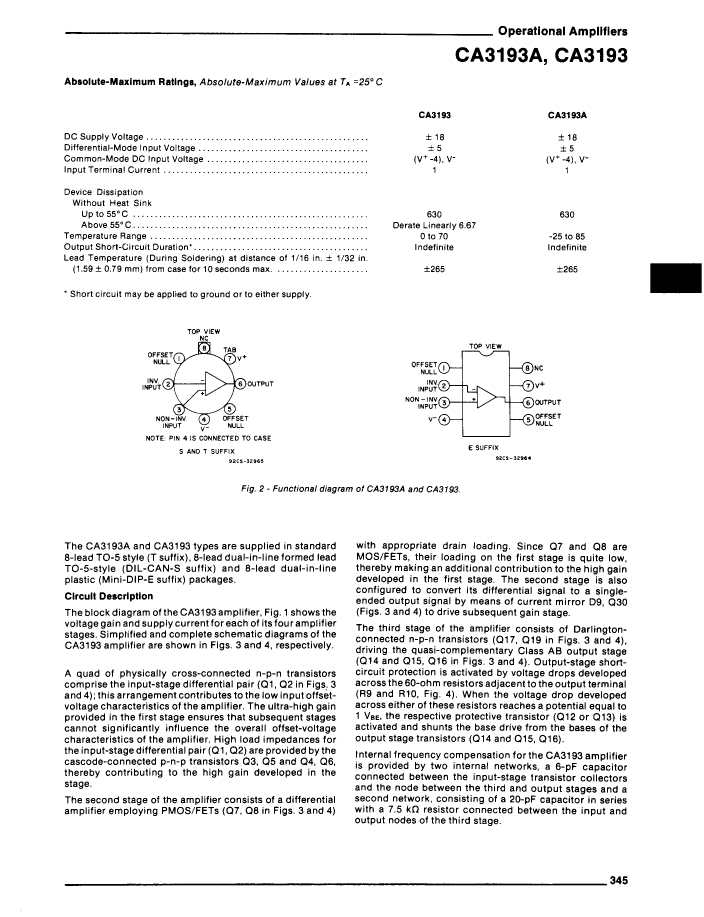

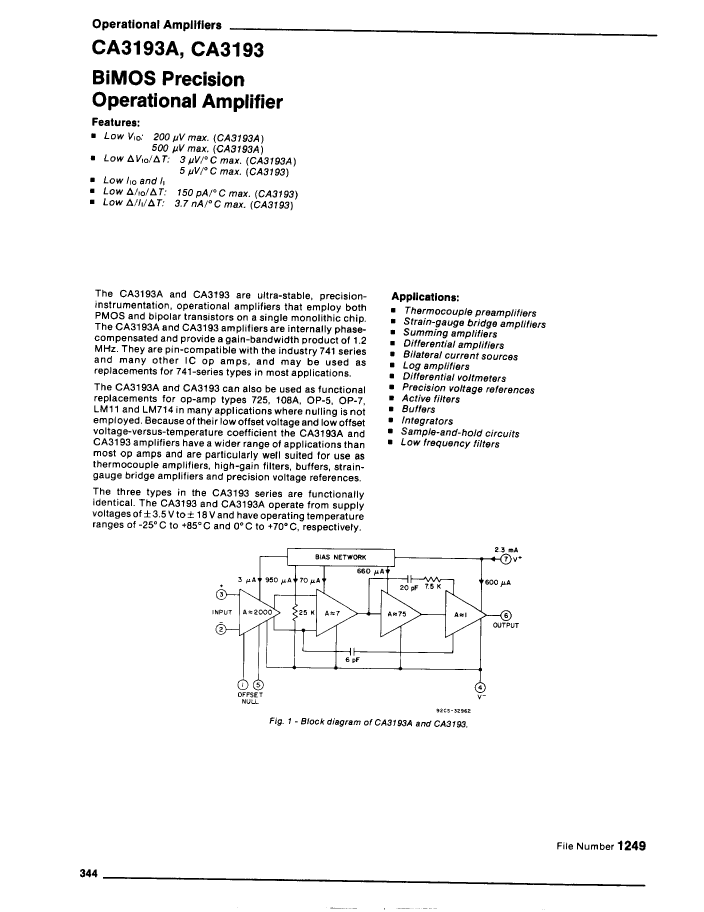

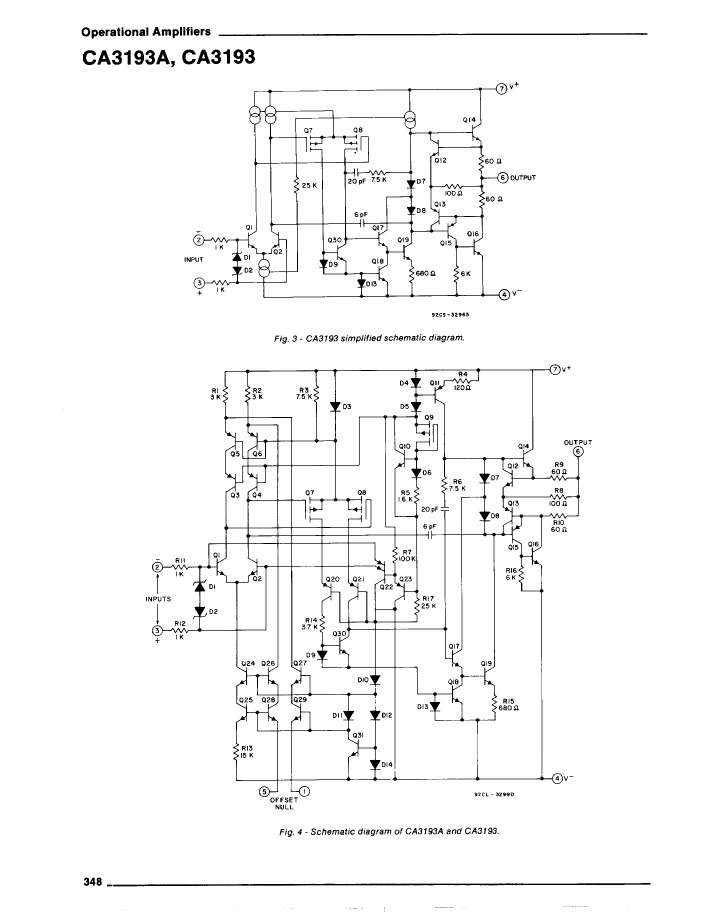

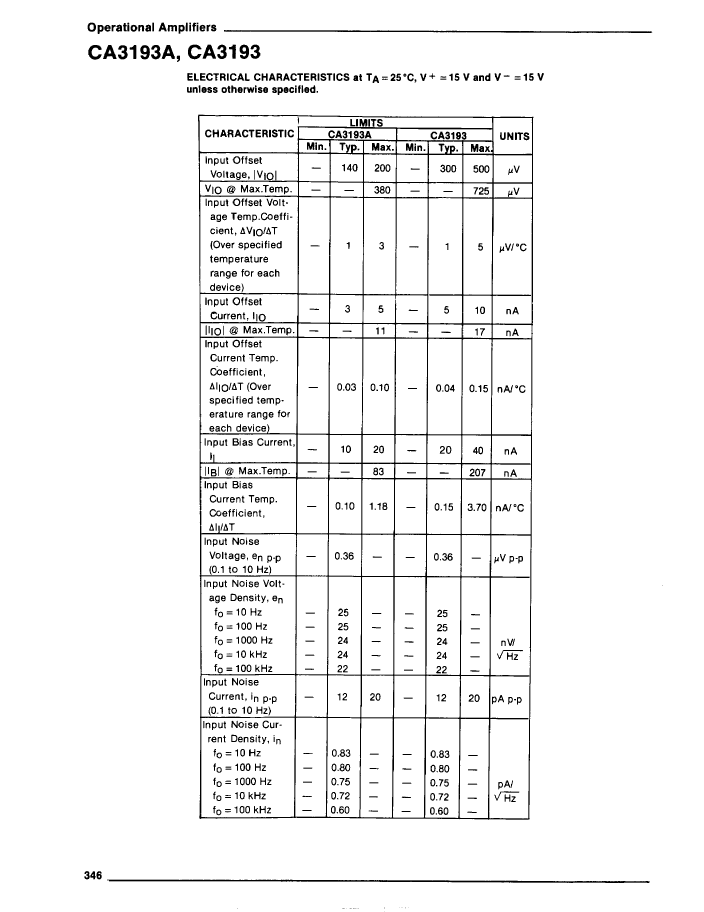

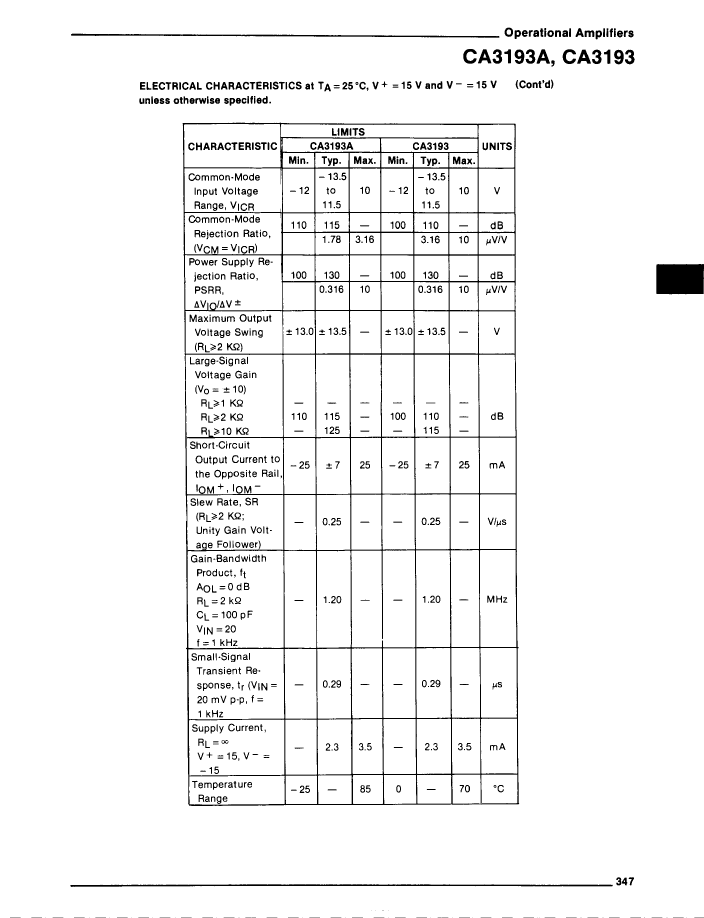

Preview

Download Datasheet

View All

CA3193EX Related Products

	CA3193EX	CA3193AE	CA3193ASX	CA3193AT/3	CA3193S	CA3193TX	CA3193T/4	CA3193T/3	CA3193E
Description	Operational Amplifier, 1 Func, 725uV Offset-Max, PDIP8,	Operational Amplifier, 1 Func, 380uV Offset-Max, PDIP8,	Operational Amplifier, 1 Func, 380uV Offset-Max,	Operational Amplifier, 1 Func, 380uV Offset-Max, MBCY8	Operational Amplifier, 1 Func, 725uV Offset-Max,	Operational Amplifier, 1 Func, 725uV Offset-Max, MBCY8,	Operational Amplifier, 1 Func, 725uV Offset-Max, MBCY8	Operational Amplifier, 1 Func, 725uV Offset-Max, MBCY8	Operational Amplifier, 1 Func, 725uV Offset-Max, PDIP8,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.04 µA	0.02 µA	0.02 µA	0.02 µA	0.04 µA	0.04 µA	0.04 µA	0.04 µA	0.04 µA
frequency compensation	YES	YES	YES	YES	YES	YES	YES	YES	YES
Maximum input offset voltage	725 µV	380 µV	380 µV	380 µV	725 µV	725 µV	725 µV	725 µV	725 µV
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
low-dissonance	YES	YES	YES	YES	YES	YES	YES	YES	YES
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8	8	8
Maximum operating temperature	70 °C	85 °C	85 °C	85 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	METAL	METAL	METAL	METAL	METAL	METAL	PLASTIC/EPOXY
Encapsulate equivalent code	DIP8,.3	DIP8,.3	TO-5,8PIN,DIL	CAN8,.2	TO-5,8PIN,DIL	CAN8,.2	CAN8,.2	CAN8,.2	DIP8,.3
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Maximum slew rate	3.5 mA	3.5 mA	3.5 mA	3.5 mA	3.5 mA	3.5 mA	3.5 mA	3.5 mA	3.5 mA
Supply voltage upper limit	18 V	18 V	18 V	18 V	18 V	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
Temperature level	COMMERCIAL	OTHER	OTHER	OTHER	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Minimum voltage gain	100000	320000	320000	320000	100000	100000	100000	100000	100000
package instruction	DIP, DIP8,.3	DIP, DIP8,.3	, TO-5,8PIN,DIL	-	, TO-5,8PIN,DIL	, CAN8,.2	-	-	DIP, DIP8,.3
JESD-30 code	R-PDIP-T8	R-PDIP-T8	-	O-MBCY-W8	-	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	R-PDIP-T8
Package shape	RECTANGULAR	RECTANGULAR	-	ROUND	-	ROUND	ROUND	ROUND	RECTANGULAR
Package form	IN-LINE	IN-LINE	-	CYLINDRICAL	-	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	IN-LINE
Terminal form	THROUGH-HOLE	THROUGH-HOLE	-	WIRE	-	WIRE	WIRE	WIRE	THROUGH-HOLE
Terminal location	DUAL	DUAL	-	BOTTOM	-	BOTTOM	BOTTOM	BOTTOM	DUAL
Certification status	-	Not Qualified	-	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Base Number Matches	-	1	1	1	1	1	1	1	-
