DFH10TJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DFH10TJ

DFH10TJ: DescriptionRectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size54KB，2 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

DFH10TJ Overview

Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon,

DFH10TJ Parametric

Parameter Name	Attribute value
Maker	SANYO
package instruction	O-PALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V
JESD-30 code	O-PALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	800 V
Maximum reverse recovery time	0.3 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

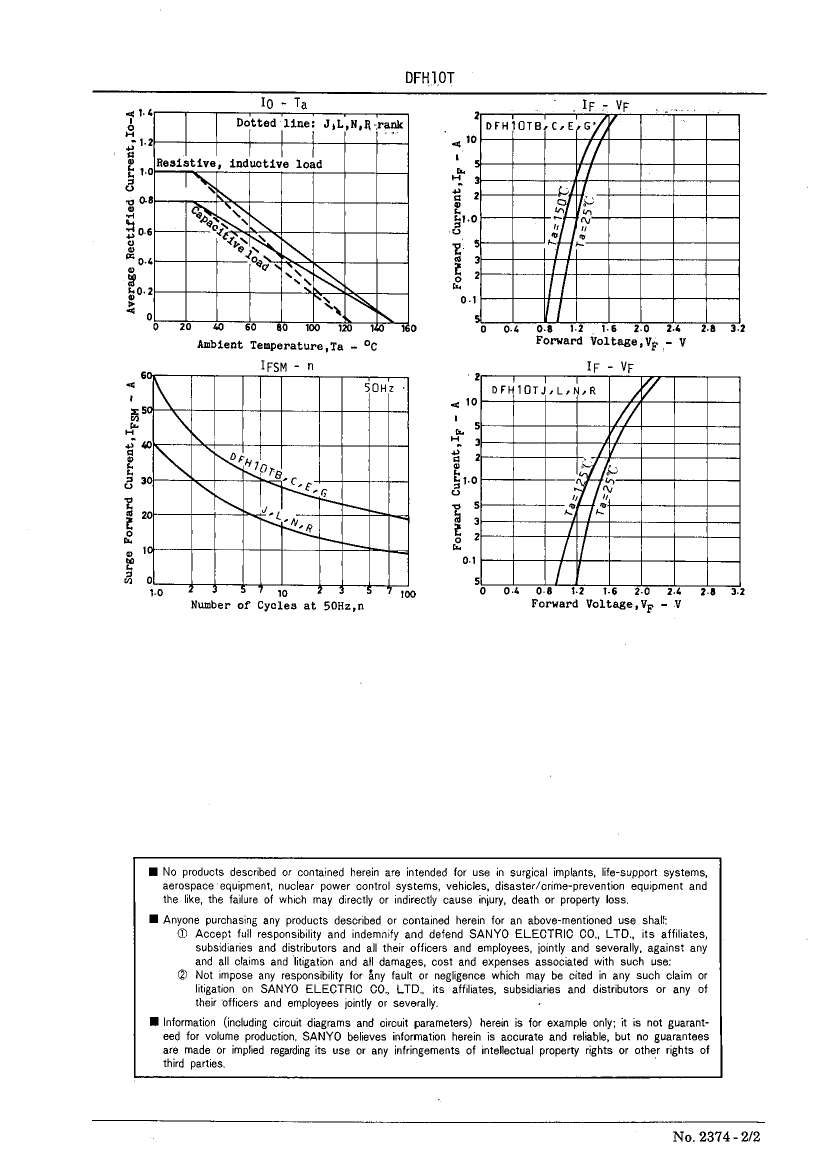

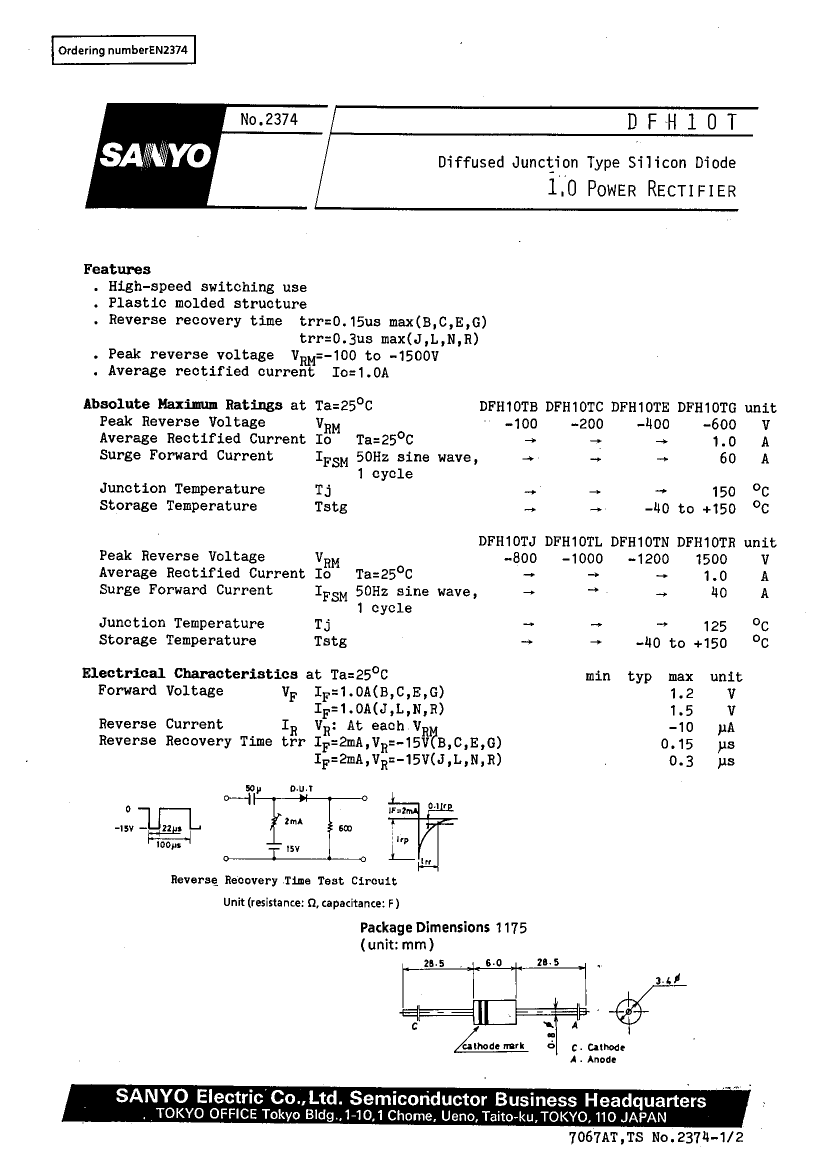

Preview

Download Datasheet

View All

DFH10TJ Related Products

	DFH10TJ	DFH10TE	DFH10TG	DFH10TB	DFH10TR	DFH10TN	DFH10TL
Description	Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon,	Rectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon,	Rectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon,	Rectifier Diode, 1 Element, 1A, 1500V V(RRM), Silicon,	Rectifier Diode, 1 Element, 1A, 1200V V(RRM), Silicon,	Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon,
Maker	SANYO	SANYO	SANYO	SANYO	SANYO	SANYO	SANYO
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V	1.2 V	1.2 V	1.2 V	1.5 V	1.5 V	1.5 V
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Number of components	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	800 V	400 V	600 V	100 V	1500 V	1200 V	1000 V
Maximum reverse recovery time	0.3 µs	0.15 µs	0.15 µs	0.15 µs	0.3 µs	0.3 µs	0.3 µs
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
