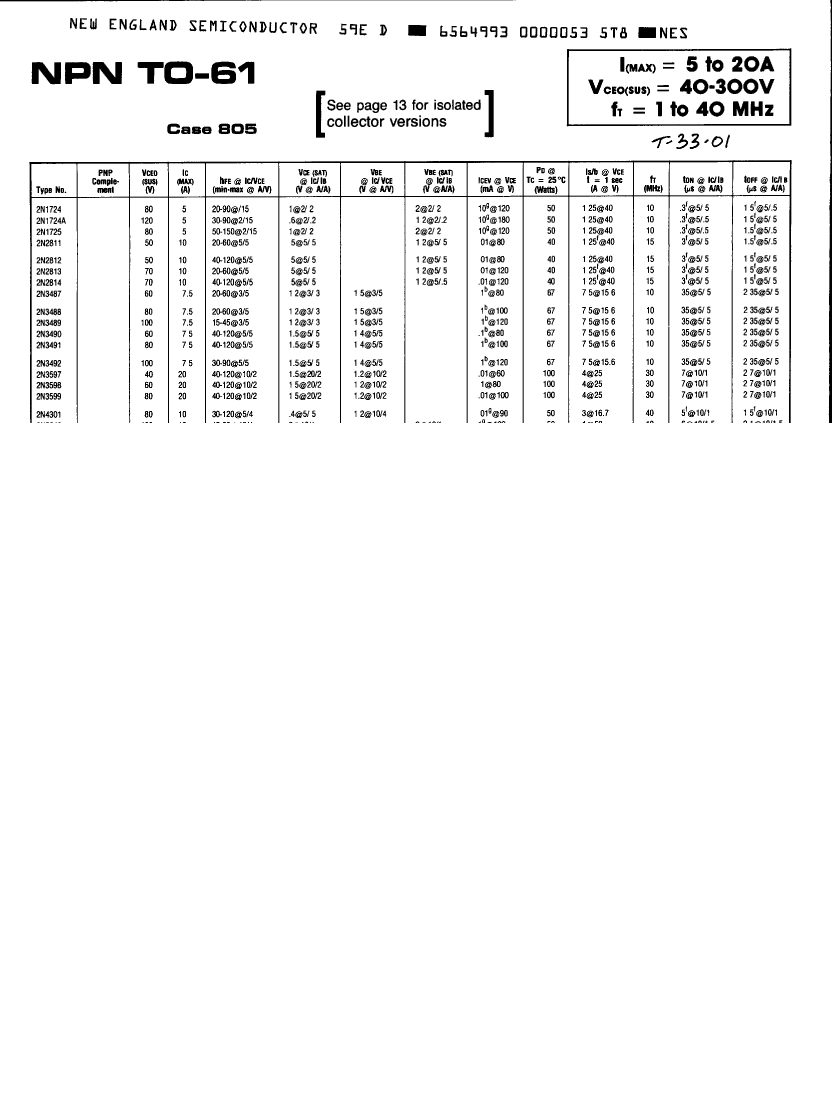

Power Bipolar Transistor, 10A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-61, Metal, 3 Pin, TO-61, 3 PIN
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Objectid | 1439169140 |
| Parts packaging code | TO-61 |
| package instruction | TO-61, 3 PIN |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Maximum collector current (IC) | 10 A |
| Collector-emitter maximum voltage | 60 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 40 |
| JEDEC-95 code | TO-61 |
| JESD-30 code | O-MUPM-X3 |
| JESD-609 code | e0 |
| Number of components | 1 |
| Number of terminals | 3 |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | POST/STUD MOUNT |
| Polarity/channel type | NPN |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal surface | TIN LEAD |
| Terminal form | UNSPECIFIED |
| Terminal location | UPPER |
| Transistor component materials | SILICON |
| 2N2812 | 2N2814 | 2N3490 | 2N3597 | 2N1725 | |
|---|---|---|---|---|---|
| Description | Power Bipolar Transistor, 10A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-61, Metal, 3 Pin, TO-61, 3 PIN | Power Bipolar Transistor, 10A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-61, Metal, 3 Pin, TO-61, 3 PIN | Power Bipolar Transistor, 7.5A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-61, Metal, 3 Pin, TO-61, 3 PIN | Power Bipolar Transistor, 20A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-61, Metal, 3 Pin, | Power Bipolar Transistor, 5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-61, Metal, 3 Pin, TO-61, 3 PIN |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | TO-61 | TO-61 | TO-61 | TO-63 | TO-61 |
| package instruction | TO-61, 3 PIN | POST/STUD MOUNT, O-MUPM-X3 | POST/STUD MOUNT, O-MUPM-X3 | POST/STUD MOUNT, O-MUPM-D3 | TO-61, 3 PIN |
| Contacts | 3 | 3 | 3 | 3 | 3 |
| Reach Compliance Code | unknown | compli | compli | compli | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maximum collector current (IC) | 10 A | 10 A | 7.5 A | 20 A | 5 A |
| Collector-emitter maximum voltage | 60 V | 80 V | 60 V | 40 V | 80 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 40 | 40 | 40 | 40 | 50 |
| JEDEC-95 code | TO-61 | TO-61 | TO-61 | TO-61 | TO-61 |
| JESD-30 code | O-MUPM-X3 | O-MUPM-X3 | O-MUPM-X3 | O-MUPM-D3 | O-MUPM-X3 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 |
| Number of components | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 |
| Package body material | METAL | METAL | METAL | METAL | METAL |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT |
| Polarity/channel type | NPN | NPN | NPN | NPN | NPN |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO |
| Terminal surface | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD |
| Terminal form | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | SOLDER LUG | UNSPECIFIED |
| Terminal location | UPPER | UPPER | UPPER | UPPER | UPPER |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON |
| Peak Reflow Temperature (Celsius) | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - |
| Maximum time at peak reflow temperature | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - |
| Base Number Matches | - | 1 | 1 | 1 | - |
