2SA1318-U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SA1318-U

2SA1318-U: Description200mA, 50V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92; CategoryDiscrete semiconductor The transistor; File Size127KB，3 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

2SA1318-U Overview

200mA, 50V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92

2SA1318-U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1445390134
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown
Maximum collector current (IC)	0.2 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE
Minimum DC current gain (hFE)	280
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz

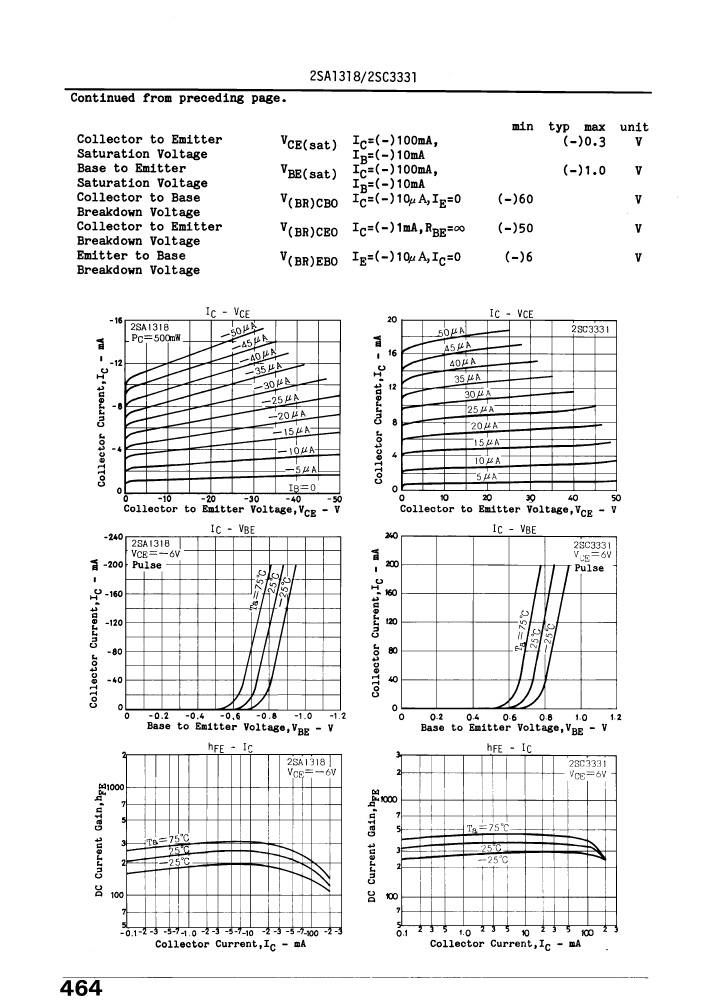

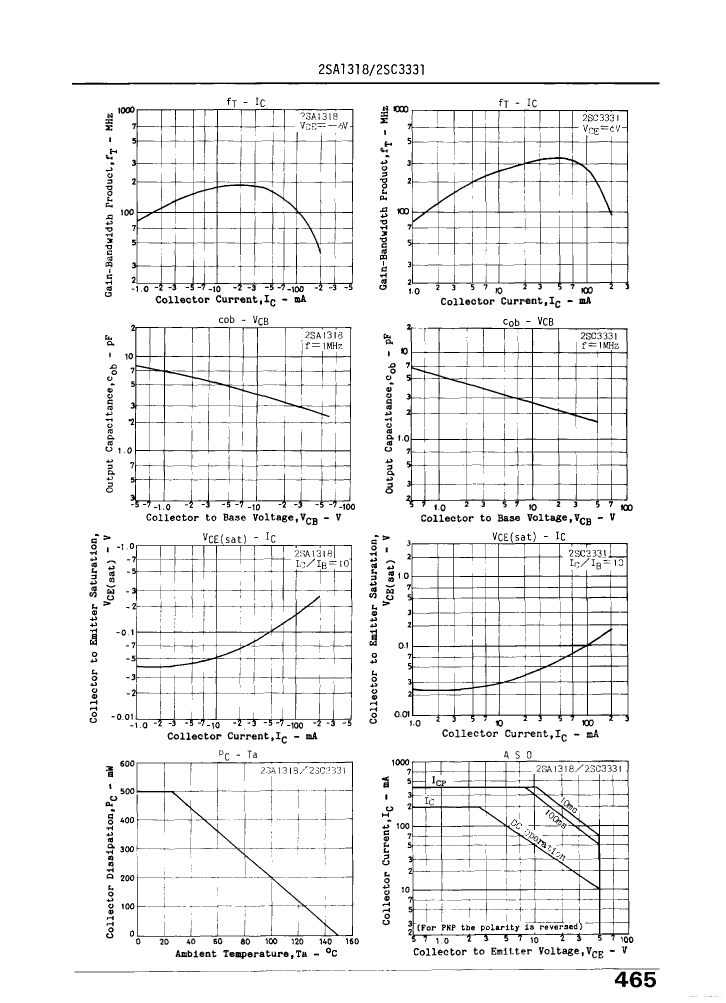

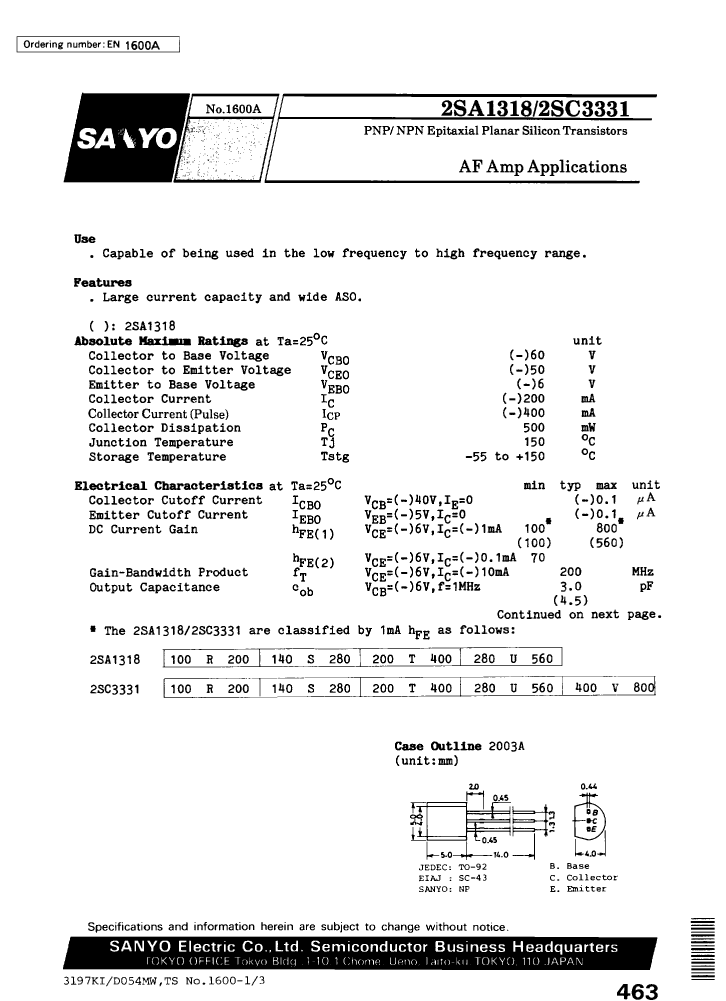

Preview

Download Datasheet

View All

2SA1318-U Related Products

	2SA1318-U	2SA1318-S	2SA1318-T	2SA1318-R	2SC3331-R	2SC3331-S	2SC3331-U	2SC3331-V	2SC3331-T
Description	200mA, 50V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92	200mA, 50V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92	200mA, 50V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92	200mA, 50V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92	200mA, 50V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92	200mA, 50V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92	200mA, 50V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92	200mA, 50V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92	200mA, 50V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow	unknown	unknown	unknown
Maximum collector current (IC)	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A
Collector-emitter maximum voltage	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	280	140	200	100	100	140	280	400	200
JEDEC-95 code	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92
JESD-30 code	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	PNP	PNP	PNP	PNP	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz
Objectid	1445390134	1445390125	1445390129	1445390120	1445390143	-	1445390158	1445390162	1445390153
