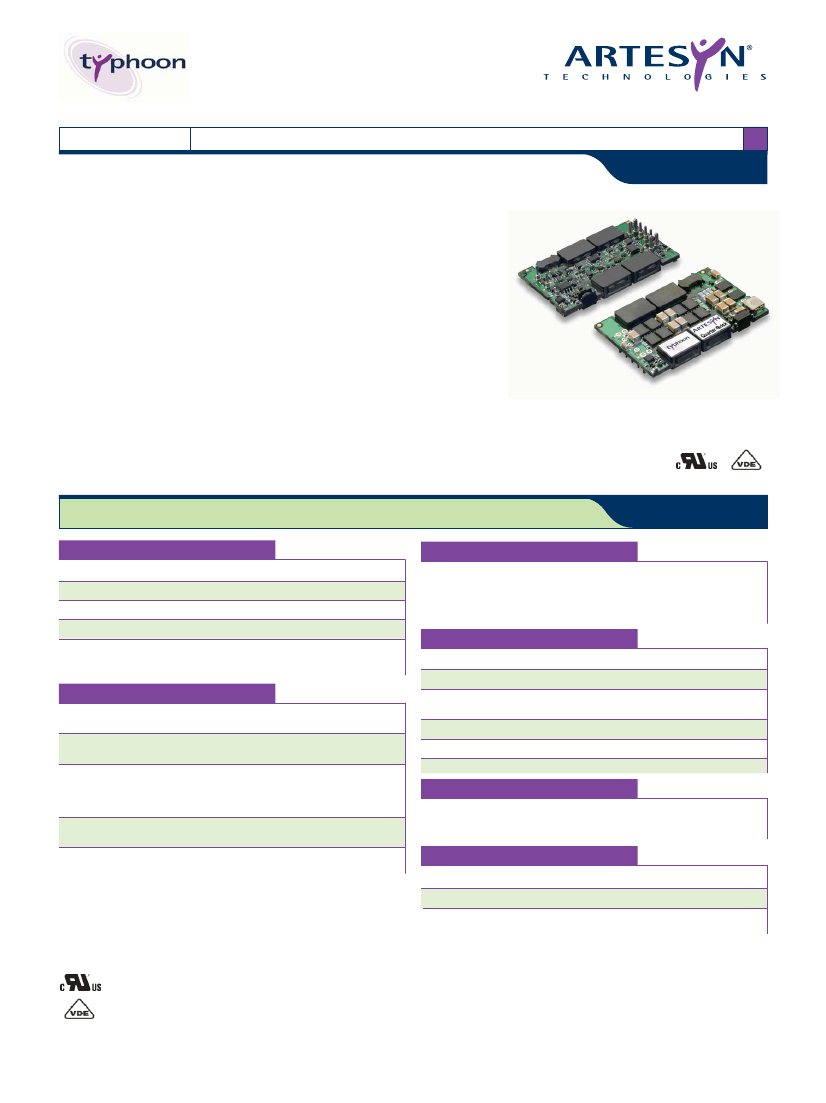

Quarter-Brick Series
Single output
DC/DC CONVERTERS
•
•
•
•
•
•
•
•
•
High Current, High Efficiency, Low Profile
NEW Product
1
Ultra high efficiency topology
Unprecedented useable output power levels
High power density (200W/in
3
) open-frame technology
Wide ambient temperature range, -40ºC to +85ºC
80% to 110% output trim
Monotonic start-up in normal and prebiased loads
Basic insulation system
Overvoltage and overtemperature protection
Secondary side control, no optocouplers,
fast transient response
•
100V, 100ms input transient rated
This is a new high efficiency, open-frame, low profile, single board, isolated DC/DC converter
series in an industry standard quarter-brick package that provides up to 200W of output power.
The series delivers very high output current at low voltages, and excellent useable power for
today’s high performance applications. The series features two input voltage ranges of 18 to
36VDC and 36 to 75VDC and is available with output voltages of 1.2V, 1.5V, 1.8V, 2.5V, 3.3V
and 5.0V. The output voltage is adjustable from 80% to 110% of the nominal value. The series
also has a remote ON/OFF capability. Overcurrent, overvoltage and overtemperature protection
features are included as standard. Full international safety approval including EN60950-1 VDE
and UL/cUL60950, reduces compliance costs and time to market.
All specifications are typical at nominal input, full load at 25°C ambient unless otherwise stated
Patent No. 6,765,810
Other Patents Pending
2 YEAR WARRANTY
SPECIFICATIONS
OUTPUT SPECIFICATIONS
Voltage adjustability
Minimum load
Overshoot
Undershoot
Transient response
(See Note 1)
INPUT SPECIFICATIONS
Input voltage range
Input current
Active high remote ON/OFF
Logic compatibility
ON
OFF
Undervoltage lockout
Start-up time
(See Note 2)
Power up
Power down
Power up
Remote ON/OFF
24V nominal
48V nominal
No load
Remote OFF
18 to 36VDC
36 to 75VDC
85mA to 150mA
5mA
Open collector ref to -input
Open circuit or >2.4VDC
<0.4VDC
35.5V (typ.)
33.5V (typ.)
10ms (typ.)
10ms (typ.)
At turn-on and turn-off
80% to 110%
0%
None
None
70mV,
typ. deviation
20µs recovery
EMC CHARACTERISTICS
Immunity:
ESD air enclosure
Radiated field enclosure
Conducted
Input transients
EN61000-4-2 8kV/6kV (O/P within spec.)
EN61000-4-3 10V/m (O/P within spec.)
EN61000-4-6 10V
(O/P within spec.)
100V, 100ms
GENERAL SPECIFICATIONS
Basic insulation
Switching frequency
Approvals and
standards
Material flammability
Weight
MTBF
Input/output
Fixed
(See Note 3)
2250VDC
480kHz
EN60950-1 VDE
UL/cUL 60950
UL94V-0
37g (1.30oz)
Telcordia Tech SR-332 3,866,933 hours
ENVIRONMENTAL SPECIFICATIONS
Thermal performance
Operating ambient,
temperature
Non-operating
-40°C to +85°C
-55°C to +125°C
PROTECTION
Short-circuit
Over-voltage
Thermal
Continuous
Non-latching
125ºC hot spot temperature
with automatic recovery
International Safety Standard Approvals
UL/cUL CAN/CSA 22.2 No. 60950-00 : UL 60950
File No. E135734
VDE Certificate No. 10401-3336-0197
File Name: quarter_brick_single.pdf Rev (06): 09 Nov 2004
Quarter-Brick Series
Single output
DC/DC CONVERTERS
High Current, High Efficiency, Low Profile
NEW Product
2
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
INPUT
CURRENT
(MAX.)
(4)
INPUT
RIPPLE
CURRENT
(5)
OUTPUT
CURRENT
(MAX.)
REGULATION
EFFICIENCY
(TYP.)
SET POINT
ACCURACY
MAX
LINE
LOAD
RIPPLE &
NOISE
(pk - pk)
MODEL
NUMBER
(6)
OUTPUT
VOLTAGE
48Vin VALUE MODELS
1.2V
1.5V
1.8V
1.92A
2.36A
2.82A
150mA
150mA
150mA
50A
50A
50A
88.5%
89.5%
90.4%
±1.5%
±1.5%
±1.5%
±0.1%
±0.1%
±0.1%
±0.2%
±0.2%
±0.2%
60mV
60mV
60mV
LQS50A48-1V2
LQS50A48-1V5
LQS50A48-1V8
48Vin PERFORMANCE MODELS
1.2V
1.5V
1.8V
2.5V
3.3V
4.05A
3.80A
4.60A
4.10A
5.20A
250mA
200mA
200mA
200mA
200mA
100A
80A
80A
50A
50A
86.0%
88.8%
90.0%
90.0%
91.0%
±1.5%
±1.5%
±1.5%
±1.5%
±1.5%
±0.1%
±0.1%
±0.1%
±0.1%
±0.1%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
60mV
60mV
60mV
60mV
60mV
LQS100A48-1V2
LQS80A48-1V5
LQS80A48-1V8
LQS50A48-2V5
LQS50A48-3V3
48Vin ULTRA MODELS
1.5V
1.8V
2.5V
3.3V
5.0V
4.80A
5.70A
6.20A
6.20A
6.20A
200mA
200mA
200mA
200mA
200mA
100A
100A
80A
60A
40A
88.5%
89.5%
91.0%
91.0%
92.0%
24Vin MODELS
1.8V
3.3V
3.4A
6.5A
200mA
300mA
30A
30A
91.0%
89.5%
±1.5%
±1.5%
±0.1%
±0.1%
±0.2%
±0.2%
60mV
60mV
LQS30A24-1V8
LQS30A24-3V3
±1.5%
±1.5%
±1.5%
±1.5%
±1.5%
±0.1%
±0.1%
±0.1%
±0.1%
±0.1%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
60mV
60mV
60mV
60mV
60mV
LQS100A48-1V5
LQS100A48-1V8
LQS80A48-2V5
LQS60A48-3V3
LQS40A48-5V0
Part Number System with Options
LQS60A48-3V3RAN
Pin Length Options
Blank = 0.188” (4.78mm)
N = 0.145” (3.68mm)
K = 0.110” (2.79mm)
Body Height, Package Type and Pin Length
A = 0.300” (7.62 mm), Through Hole,
0.188” (4.78 mm) Pins
E = 0.340” (8.64 mm), Through Hole,
0.188” (4.78 mm) Pins
S = 0.28” (7.11mm), Surface Mount
(6)
Remote ON/OFF Logic
Blank = Positive
R = Negative
Output Voltage
1V5 = 1.5 Volts, 1V8 = 1.8 Volts etc.
L
= Low Profile
Q
= 1/4 Brick
Type of output
S = Single
Rated Output Current
40A = 40Amps, 60A = 60Amps etc.
Nominal Rated Input Voltage
24 = 24Volts (18 to 36V range)
48 = 48Volts (36 to 75V range)
Notes
1
di/dt = 1A/µs, Vin = 48VDC, Tc = 25°C, load change = 50% to 75% lo
max. and 75% to 50% lo max. Deviation varies by model. For further
details see longform datasheet.
Start-up into resistive load.
This product is only for inclusion by professional installers within other
equipment and must not be operated as a stand alone product.
Recommended input fusing is up to 10A HRC 200V rated fuse.
5
6
7
8
Peak to peak measured without external π filter. Significant reduction
possible with external filter. See Application Note 141 for further details.
‘S’ option applies to the 24V models only.
Except LQS40A48-5V0 which has the double output pins.
Active low Remote ON/OFF is available. Standard product is Active
High. When ordering active low parts, designate wit the Suffix ‘R’ e.g.
LQS100A48-1V8RA.
File Name: quarter_brick_single.pdf Rev (06): 09 Nov 2004
2
3
4
Quarter-Brick Series
Single output
DC/DC CONVERTERS
High Current, High Efficiency, Low Profile
NEW Product
3
For the most current data and application support visit www.artesyn.com/powergroup/products.htm

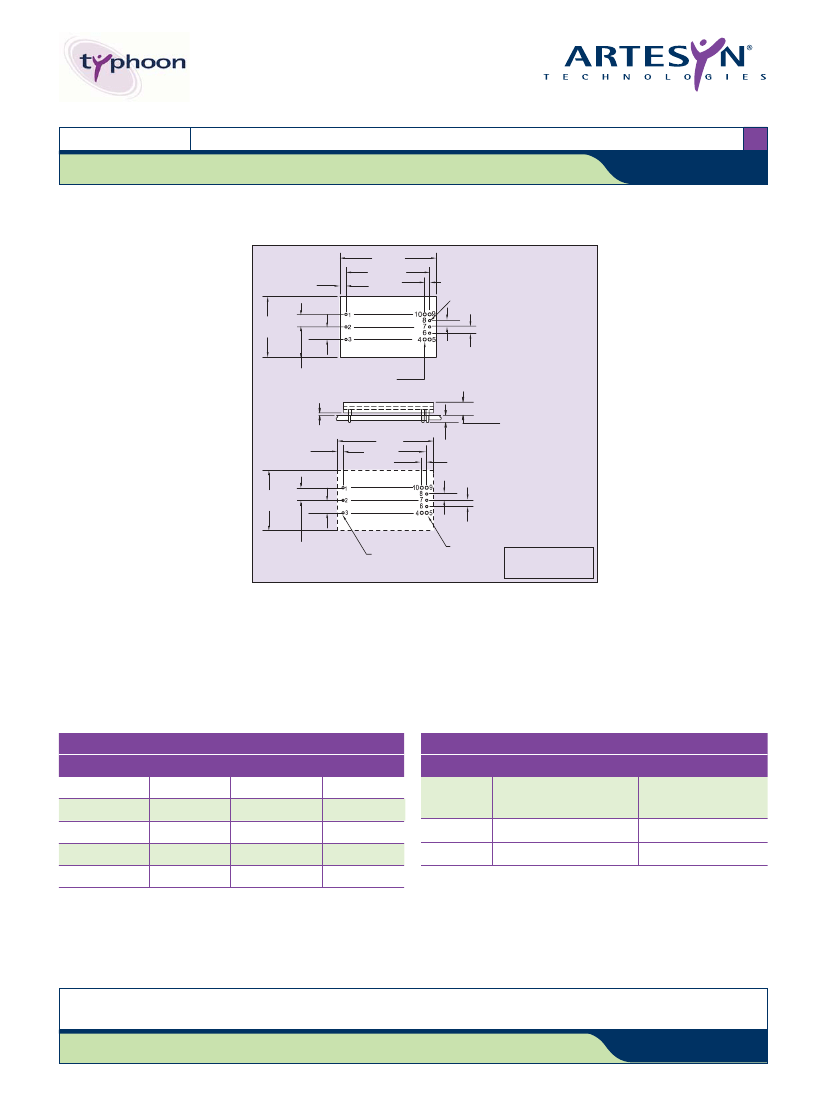

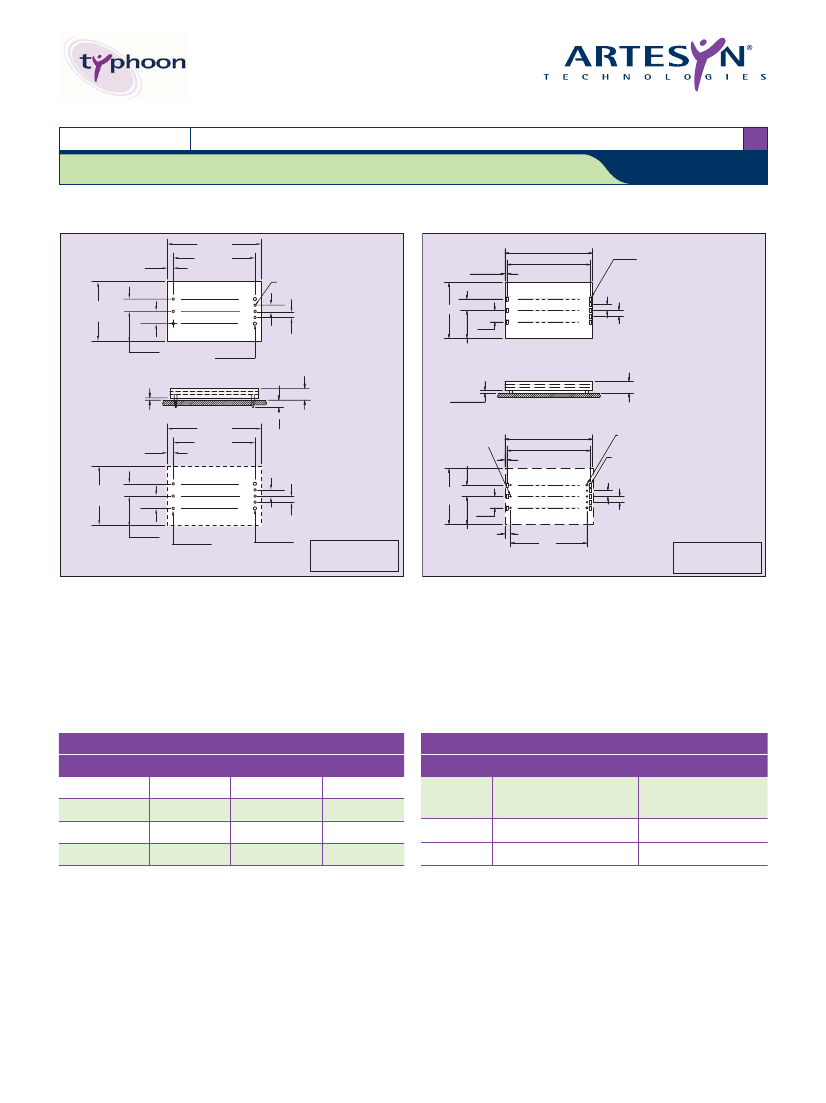

2.30 (58.4)
2.000 (50.80)
0.15
(3.8)
2.30
(58.4)
0.057±0.020
(1.45±0.51)
2.186
(55.52)
0.055 (1.40) x 0.105 (2.67)
(8 pls)
ø
0.040
±0.002
(
ø
1.02
±0.05)
(6 pls)
0.300
(7.62)
0.300
(7.62)
1
8
7
6
5
4
0.150
(3.81)
0.725
±0.020
(18.42
±0.51)
0.150
(3.81)
TOP VIEW
1.45 (7.62)
(36.8)
0.300
(7.62)
0.725±0.020
(18.42±0.51)
0.300
0.150
(3.81)
1
2
3
1.45
(36.8)
TOP VIEW
2
3
8
7
6
5
4
0.150
(3.81)
ø
0.062
±0.002
(
ø
1.57
±0.05)
(2 pls)
HEIGHT
0.28 (7.1)
CLEARANCE
(See Option Table)
0.188 (4.78)
2.30 (58.4)
2.000 (50.80)
0.15
(3.8)
HEIGHT
(See Option Table)
CLEARANCE
0.015 (0.38)
ø0.080±0.008
(ø2.03±0.02)
(2 pls)
Ref IPC-2222
Level B
0.067(1.70) x 0.118(3.00)
(8 pls)
0.150
(3.81)
8
7
6
5
4
0.150
(3.81)
0.15
(3.8)
Lead coplanarity within 0.006 (0.15) max.
2.000
(50.80)
Dimensions in Inches (mm)
Tolerances (unless otherwise specified)
x.xx
±0.02
(x.x
±0.5)
x.xxx
±0.010
(x.xx
±0.25)
ø0.058±0.008
(ø1.47±0.02)
(6 PLS)
Ref IPC-2222
Level B
2.30
(58.4)
0.057±0.020
(1.45±0.51)
2.186
(55.52)
TOP VIEW
1.45
(36.8)
0.300
(7.62)
0.300
(7.62)
1
2
3
8
7
6
5
4
1.45
(36.8)
0.150
(3.81)
0.150
(3.81)
0.300
(7.62)
0.300
(7.62)
1
2
3
0.725
±0.020
(18.42
±0.51)
ø
0.054
±0.003
(
ø
1.37
±0.08)
(6 pls)
ø
0.074
±0.003
(
ø
1.88
±0.08)
(2 pls)
RECOMMENDED HOLE PATTERN
Dimensions in Inches (mm)
Tolerances (unless otherwise specified)
x.xx
±0.02
(x.x
±0.5)
x.xxx
±0.010
(x.xx
±0.25)
0.725±0.020
(18.42±0.51)
RECOMMENDED PCB LAYOUT
24V/48V Mechanical Drawing for Output Current of 50A or Less
(See Note 7)
24V Surface-mount Mechanical Drawing and Pinout Table
PIN CONNECTIONS
PIN NUMBER
1
2
3
4
FUNCTION
+Vin
ON/OFF
-Vin
-Vout
PIN NUMBER
5
6
7
8
FUNCTION
-Sense
Trim
+Sense
+Vout
A
E
OPTION
DIMENSION OPTIONS
CLEARANCE
±0.016 (0.41)
0.030 (0.76)
0.070 (1.78)
HEIGHT
+0.022 (0.56)
-0.030 (0.76)
0.300 (7.62)
0.340 (8.64)
Pin Connection Table
Dimension Options Table
File Name: quarter_brick_single.pdf Rev (06): 09 Nov 2004
Quarter-Brick Series
Single output
DC/DC CONVERTERS
High Current, High Efficiency, Low Profile
NEW Product
4
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
2.30 (58.4)
2.000 (50.80)
0.15
(3.8)
0.118
(3.00)
ø
0.040
±0.002
(
ø
1.02
±0.05)
(6 pls)
1.45
(36.8)
0.300
(7.62)
0.300
(7.62)
TOP VIEW
0.150
(3.81)
0.725
±0.020
(18.42
±0.51)
0.150
(3.81)
ø
0.062
±0.002
(
ø
1.57
±0.05)
(4 pls)
CLEARANCE
(See Option Table)
0.188 (4.78)
2.30 (58.4)
0.15
(3.8)
2.000 (50.80)
0.118
(3.00)
HEIGHT
(See Option Table)
1.45
(36.8)
0.300
(7.62)
0.300
(7.62)
0.150
(3.81)
0.725
±0.020
(18.42
±0.51)
0.150
(3.81)
ø
0.058
±0.008
(
ø
1.47
±0.02)
(6 pls)
Ref IPC-2222 Level B
ø
0.074
±0.003
(
ø
1.88
±0.08)
(4 pls)
Ref IPC-2222 Level B
RECOMMENDED HOLE PATTERN
Dimensions in Inches (mm)
Tolerances (unless otherwise specified)
x.xx
±0.02
(x.x
±0.5)
x.xxx
±0.010
(x.xx
±0.25)
48V Mechanical Drawing for Output Current Greater than 50A
“The Double P” Pinout
PIN CONNECTIONS
PIN NUMBER
1
2
3
4
5
FUNCTION
+Vin
ON/OFF
-Vin
-Vout
-Vout
PIN NUMBER
6
7
8
9
10
FUNCTION
-Sense
Trim
+Sense
+Vout
+Vout
A
E
OPTION
DIMENSION OPTIONS
CLEARANCE
±0.016 (0.41)
0.030 (0.76)
0.070 (1.78)
HEIGHT
+0.022 (0.56)
-0.030 (0.76)
0.300 (7.62)
0.340 (8.64)
Pin Connection Table
Dimension Options Table
Datasheet © Artesyn Technologies® 2004
The information and specifications contained in this datasheet are believed to be correct at time of publication. However, Artesyn Technologies accepts no responsibility for consequences arising
from printing errors or inaccuracies. The information and specifications contained or described herein are subject to change in any manner at any time without notice. No rights under any patent
accompany the sale of any such product(s) or information contained herein.
Please consult our website for the following items:
✔
Application Note
✔
Longform Datasheets
www.artesyn.com
File Name: quarter_brick_single.pdf Rev (06): 09 Nov 2004
京公网安备 11010802033920号
EEWORLD
