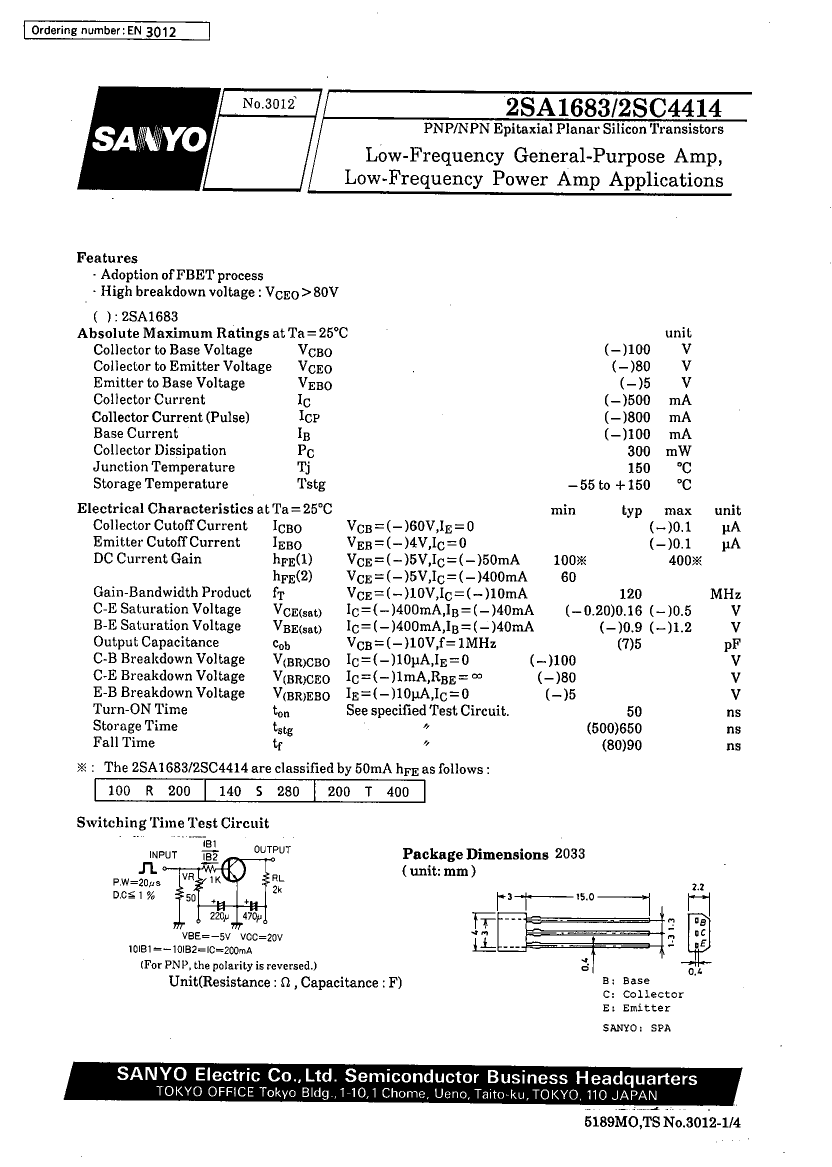

2SA1683T datasheet, PDF - EEWORLD Datasheet

2SA1683T: Description500mA, 80V, PNP, Si, SMALL SIGNAL TRANSISTOR, SPA, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size115KB，4 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

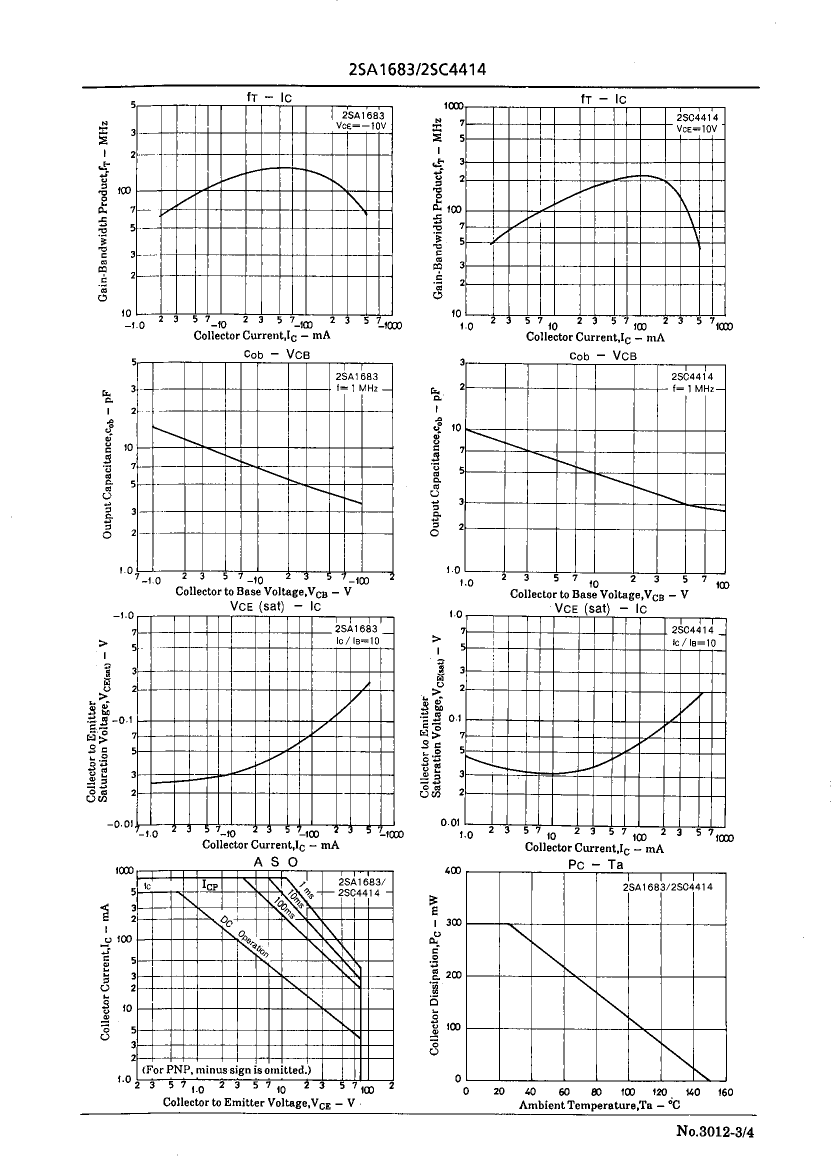

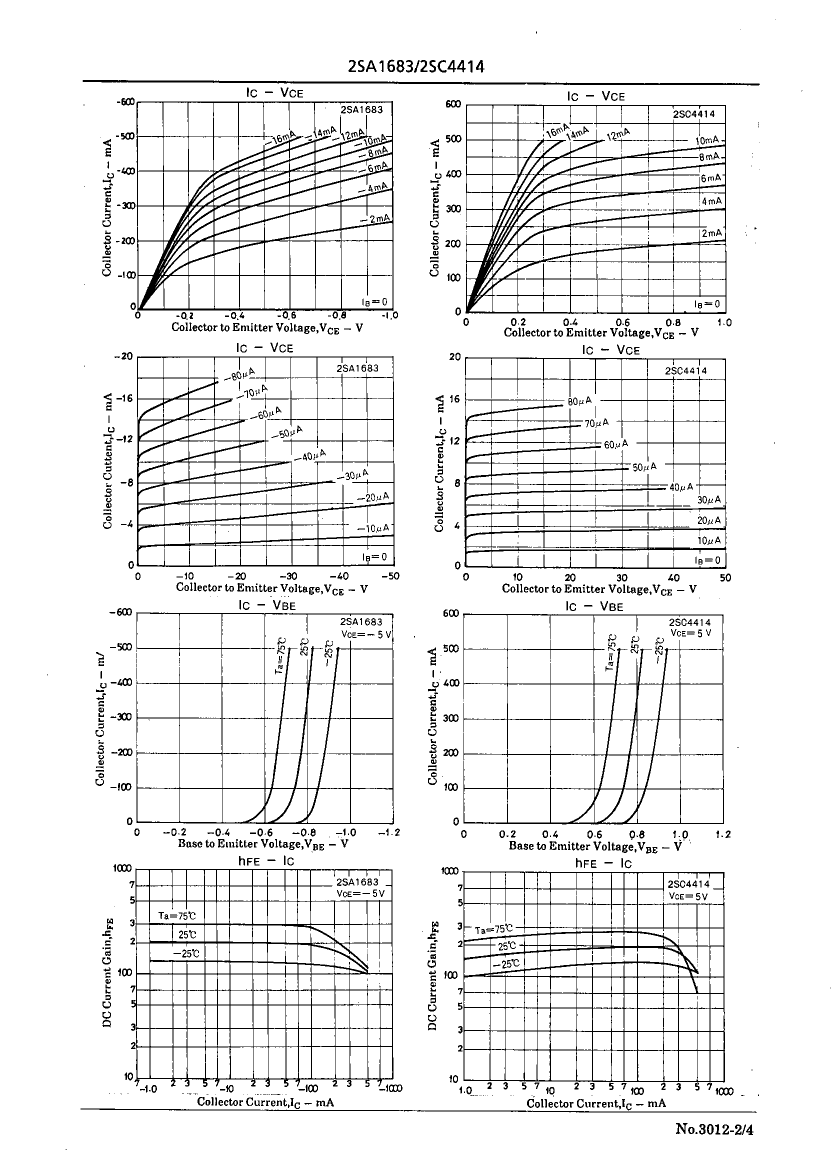

2SA1683T Overview

500mA, 80V, PNP, Si, SMALL SIGNAL TRANSISTOR, SPA, 3 PIN

Parameter Name	Attribute value
Objectid	1482934079
package instruction	IN-LINE, R-PSIP-T3
Contacts	3
Reach Compliance Code	unknown
Maximum collector current (IC)	0.5 A
Collector-emitter maximum voltage	80 V
Configuration	SINGLE
Minimum DC current gain (hFE)	200
JESD-30 code	R-PSIP-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.3 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	120 MHz

	2SA1683T	2SA1683R	2SC4414R
Description	500mA, 80V, PNP, Si, SMALL SIGNAL TRANSISTOR, SPA, 3 PIN	500mA, 80V, PNP, Si, SMALL SIGNAL TRANSISTOR, SPA, 3 PIN	500mA, 80V, NPN, Si, SMALL SIGNAL TRANSISTOR, SPA, 3 PIN
package instruction	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3
Contacts	3	3	3
Reach Compliance Code	unknown	unknow	unknown
Maximum collector current (IC)	0.5 A	0.5 A	0.5 A
Collector-emitter maximum voltage	80 V	80 V	80 V
Configuration	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	200	100	100
JESD-30 code	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3
Number of components	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Polarity/channel type	PNP	PNP	NPN
Maximum power dissipation(Abs)	0.3 W	0.3 W	0.3 W
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	120 MHz	120 MHz	120 MHz
Objectid	1482934079	-	1482934085
