3191BB472S035MPT1 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 3191BB472S035MPT1

3191BB472S035MPT1: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size362KB，4 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance; Related ProductsFound20parts with similar functions to 3191BB472S035MPT1

Download Datasheet Parametric View All

3191BB472S035MPT1 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT

3191BB472S035MPT1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	4700 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	35.408 mm
dielectric materials	ALUMINUM (WET)
ESR	21.2 mΩ
length	67.513 mm
Manufacturer's serial number	3191
Installation features	STUD MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Screw Ends
polarity	POLARIZED
positive tolerance	30%
Rated (DC) voltage (URdc)	35 V
ripple current	8900 mA
series	3191
surface mount	NO
Terminal pitch	12.7 mm
Terminal shape	BINDING POST
Base Number Matches	1

Preview

Download Datasheet

View All

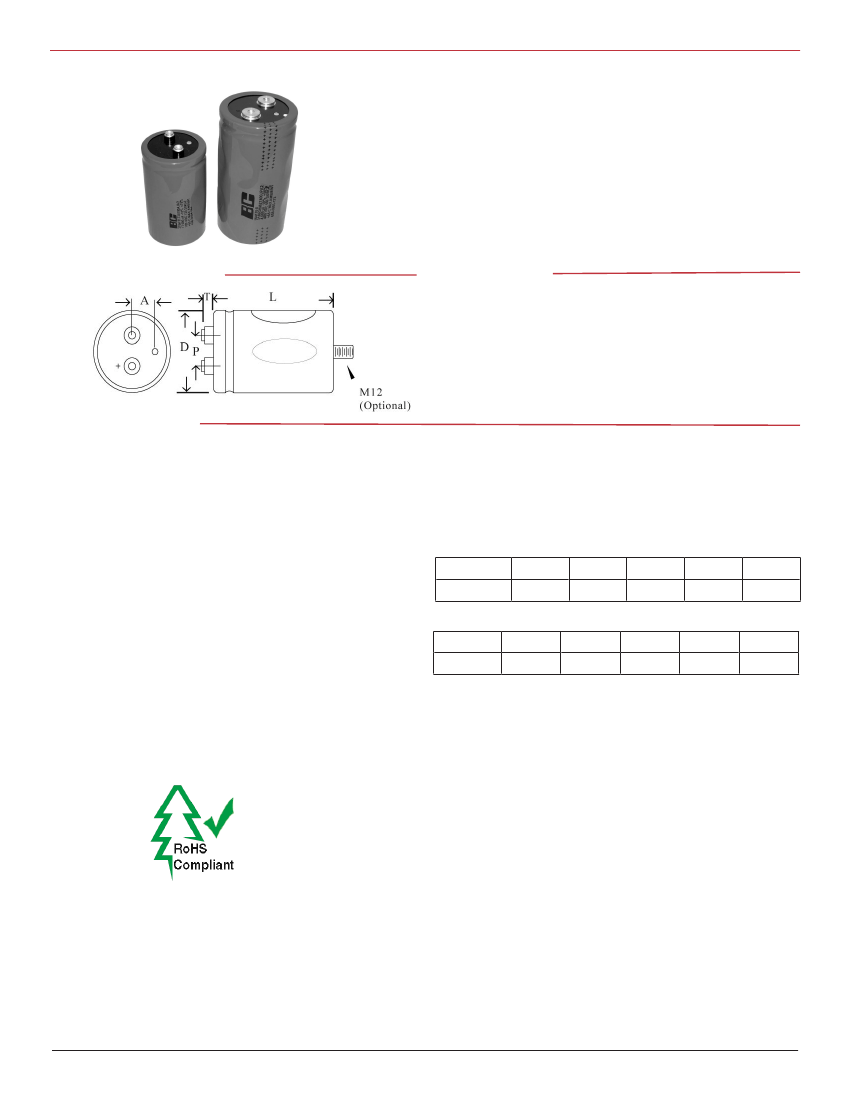

Type 3191

Aluminum Electrolytic, Screw Terminals, Switching and Audio Output

Screw Terminal Capacitors for Power Output Filtering

The low ESR of Type 3191 capacitors makes them

a great choice for output ﬁltering in switching and

audio power supplies. It’s available with the capacitor

element potted in place for lowest cost or secured by

rill, spoon shaped dimples in the side of the can. Rilled

construction offers high vibration and shock with-

standing and excellent heat transfer for higher ripple

current.

Outline Drawing

Highlights

•

Stud mount available

High current application

Industrial applications

Smoothing and ﬁltering

Audio power supplies

Speciﬁcations

Operating Temperature:

Rated Voltage:

Capacitance Range:

Capacitance Tolerance:

Ripple Current Multipliers

–40 to + 85 ºC

7.5 Vdc to 55 Vdc

2700 µF to 150000 µF

–10 to + 30%; –10 to +50%; ±20%

Ambient Temperature

Temperature

Multiplier

45 ºC

2.24

60 Hz

0.90

55 ºC

2.00

120 Hz

1.00

65 ºC

1.73

300 Hz

1.05

75 ºC

1.41

85 ºC

1.00

Frequency

Multiplier

1000 Hz

≥10

Khz

1.10

1.15

Life Test:

Shelf Life:

Vibration:

Complies with the EU Directive

2002/95/EC requirement restricting

the use of Lead (Pb), Mercury (Hg),

Cadmium (Cd), Hexavalent chromium

(Cr(VI)), PolyBrominated Biphenyls

(PBB) and PolyBrominated Diphenyl

Ethers (PBDE).

Endurance, 1500 h at rated voltage and 85 ºC

Δ Capacitance: ±10%

ESR ≤ 200% of limit

DCL ≤ 100% of limit

Storage, 500 h at 85 ºC

Δ Capacitance: ±10%

ESR ≤ 175% of limit

DCL ≤ 200% of limit

10 to 500 Hz, 0.75 mm or 10 g* if less,

3 directions, 2 h ea

Δ Capacitance: ±5%

no visible damage or leakage

*15 g if rilled construction

CDM Cornell Dubilier • 140 Technology Place. • Liberty, SC • 29657 • Phone: (864)843-2277 • Fax: (864)843-3800 • www.cde.com

Recommended Resources

Temperature controllable electric blanket temperature controller circuit

Telephone charging control circuit

Integrated regulated power supply circuit

white noise generator circuit

Precision square wave to precision sine wave conversion circuit

Application connection diagram of TX-KDl02

3191BB472S035MPT1 Similar Products

Part Number	Manufacturer	Description
3191BB472S035BRT1	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT
3191BB472S035BRS1	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT
3191BB472S035BPT1	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT
3191BB472S035BPA1	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT
3191BB472S035BPS1	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT
3191BB472S035BPR1	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT
3191BB472S035BRA1	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT
3191BB472S035BRR1	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT
3191BB472S035MRT1	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT
3191BB472S035MPS1	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT
3191BB472S035MPA1	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT
3191BB472S035MPR1	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT
3191BB472S035MRS1	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT
3191BB472S035MRR1	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT
3191BB472S035MRA1	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT
3191BB472S035ARR1	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT
3191BB472S035ARS1	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT
3191BB472S035ART1	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT
3191BB472S035APT1	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT
3191BB472S035ARA1	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 30% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT
