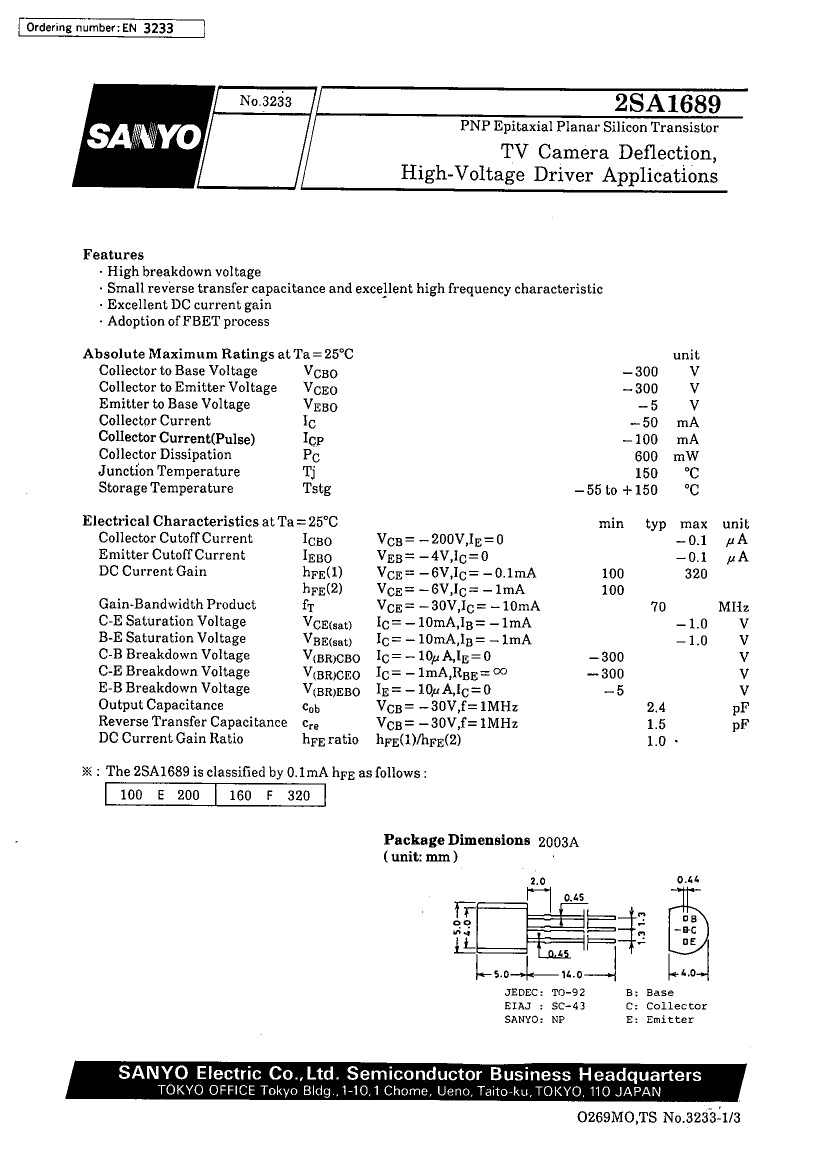

2SA1689F datasheet, PDF - EEWORLD Datasheet

2SA1689F: Description50mA, 300V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, SC-43, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size75KB，3 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

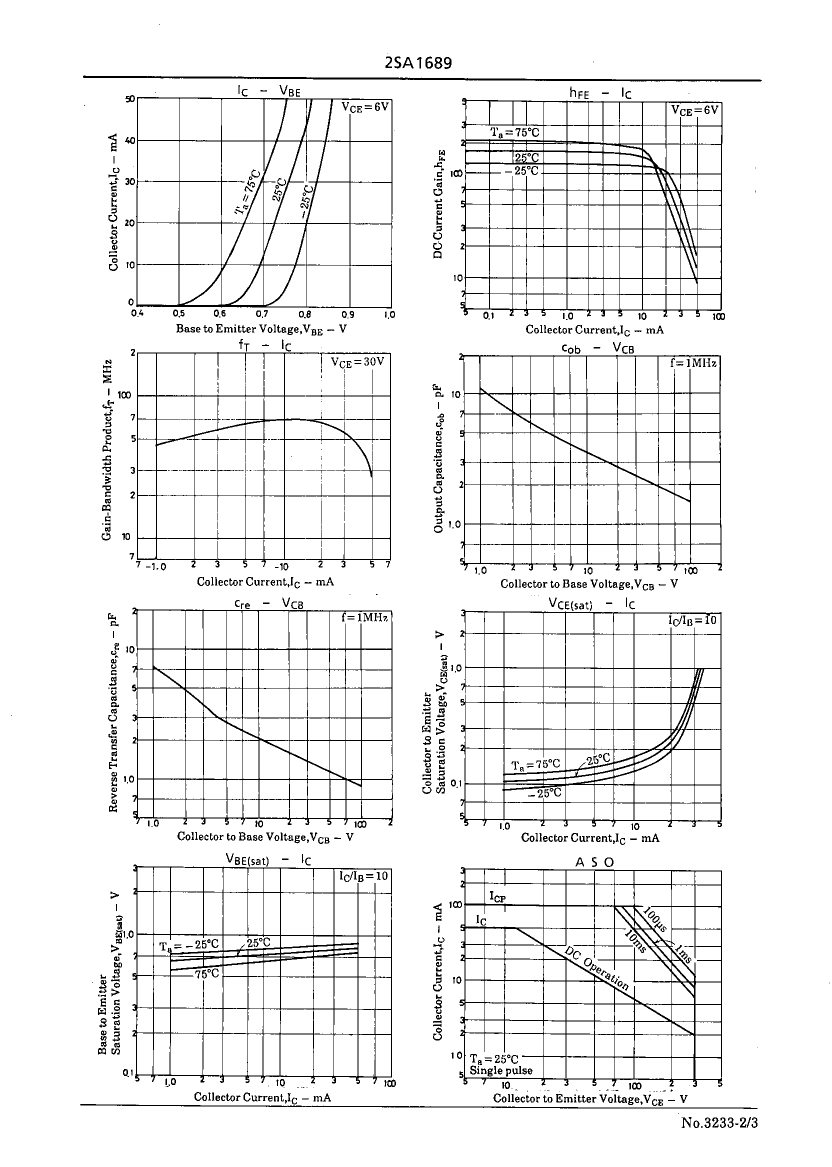

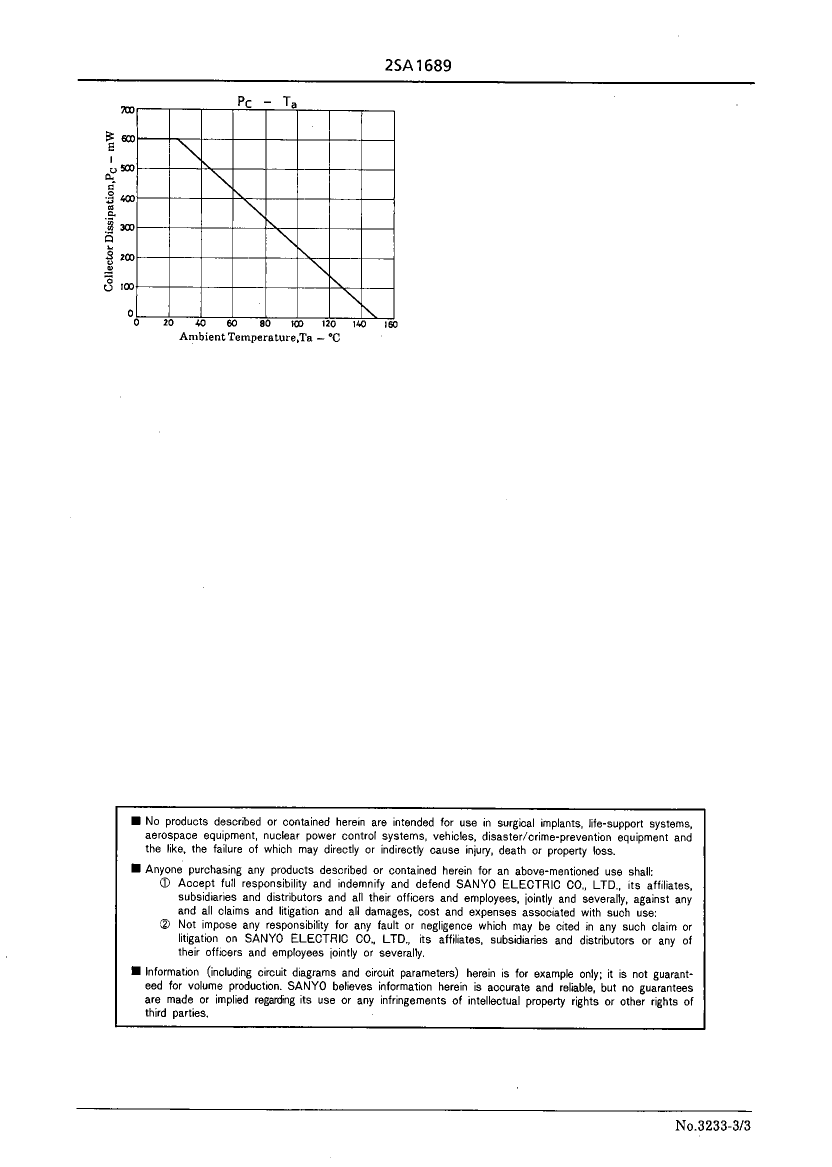

2SA1689F Overview

50mA, 300V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, SC-43, 3 PIN

Parameter Name	Attribute value
Objectid	1481157735
Parts packaging code	TO-92
package instruction	CYLINDRICAL, O-PBCY-T3
Contacts	3
Reach Compliance Code	unknown
Maximum collector current (IC)	0.05 A
Collector-emitter maximum voltage	300 V
Configuration	SINGLE
Minimum DC current gain (hFE)	160
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.6 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	70 MHz

	2SA1689F	2SA1689E
Description	50mA, 300V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, SC-43, 3 PIN	50mA, 300V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, SC-43, 3 PIN
Objectid	1481157735	1481157732
Parts packaging code	TO-92	TO-92
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Contacts	3	3
Reach Compliance Code	unknown	unknown
Maximum collector current (IC)	0.05 A	0.05 A
Collector-emitter maximum voltage	300 V	300 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	160	100
JEDEC-95 code	TO-92	TO-92
JESD-30 code	O-PBCY-T3	O-PBCY-T3
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	PNP	PNP
Maximum power dissipation(Abs)	0.6 W	0.6 W
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM
transistor applications	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	70 MHz	70 MHz
