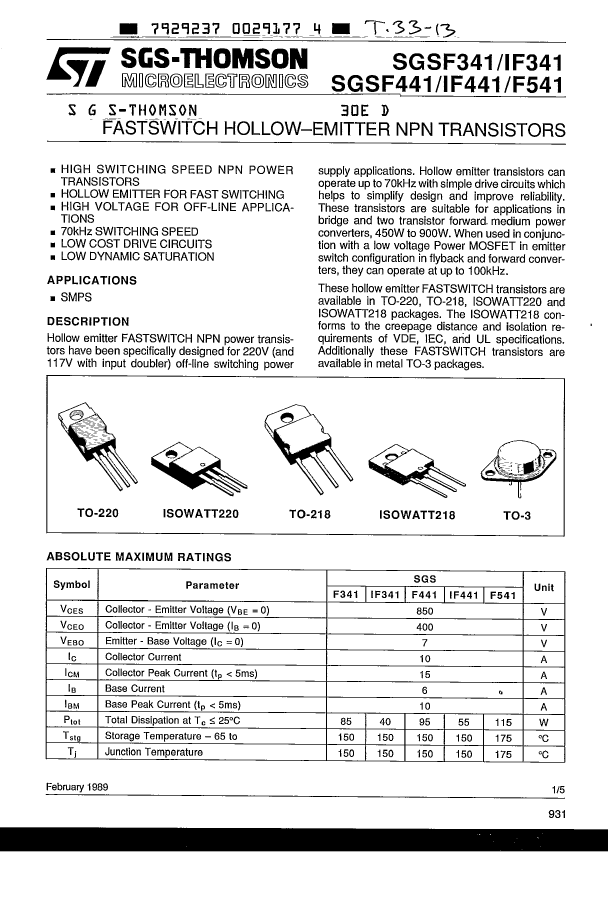

10A, 400V, NPN, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN

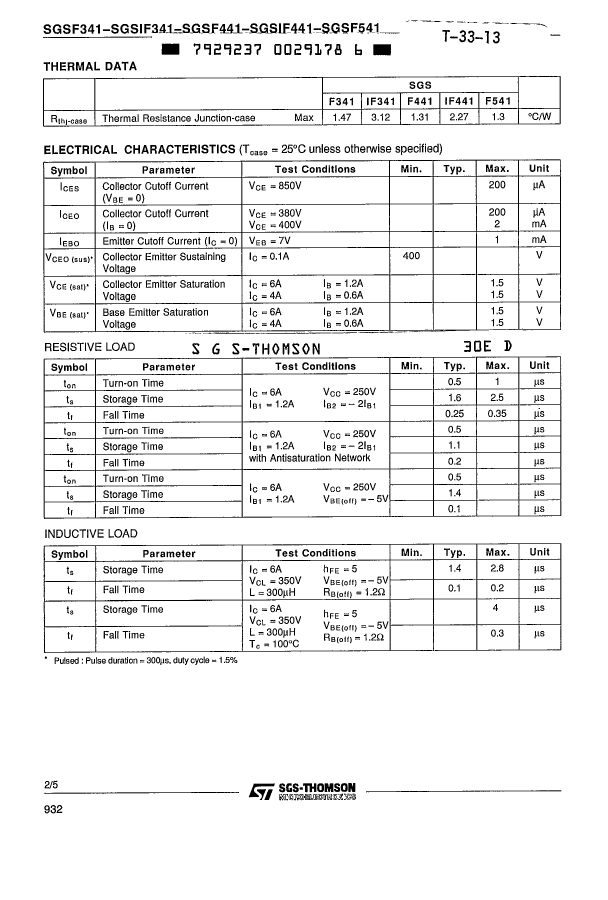

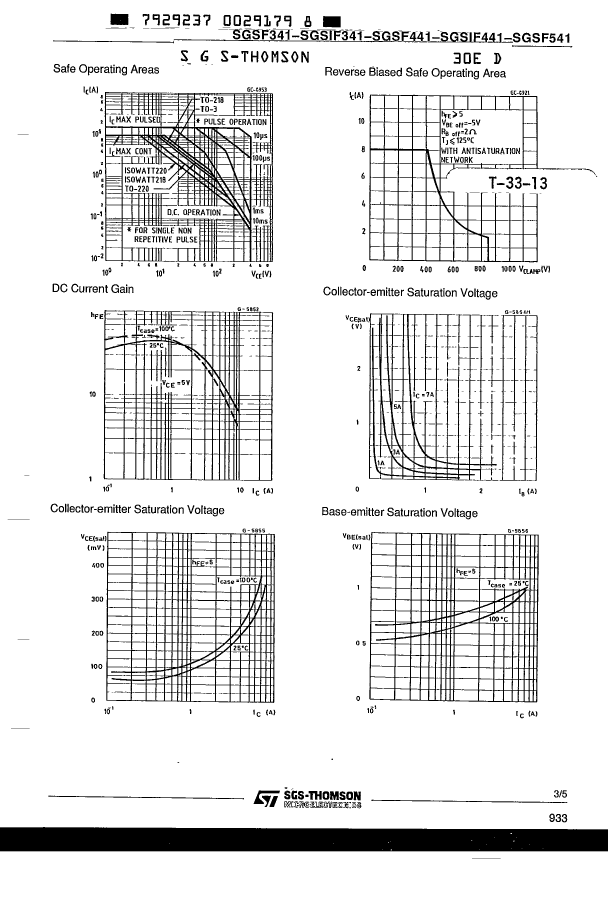

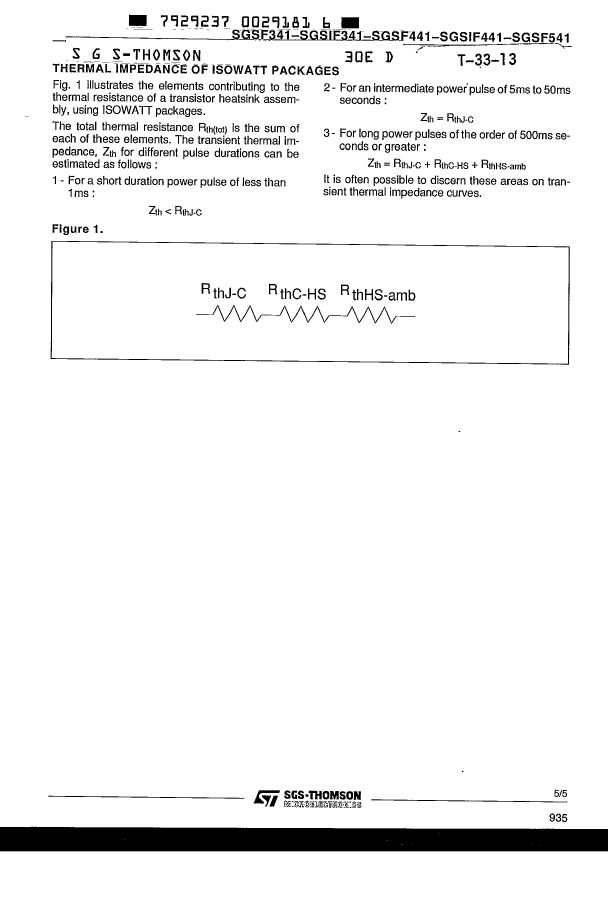

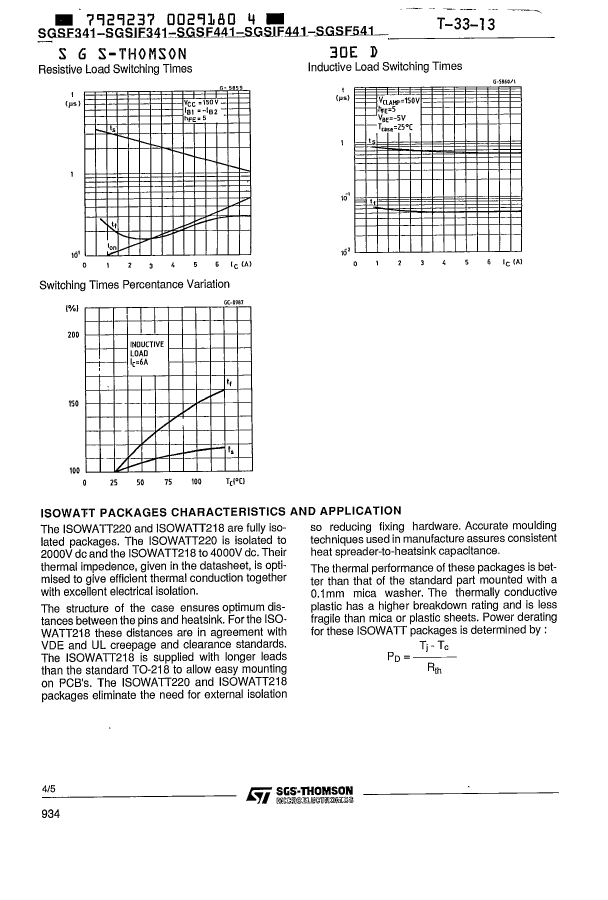

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | STMicroelectronics |
| Parts packaging code | SFM |
| package instruction | TO-220, 3 PIN |
| Contacts | 3 |
| Reach Compliance Code | not_compliant |
| Other features | HOLLOW-EMITTER |
| Maximum collector current (IC) | 10 A |
| Collector-emitter maximum voltage | 400 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 5 |
| JEDEC-95 code | TO-220AB |
| JESD-30 code | R-PSFM-T3 |
| JESD-609 code | e3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | NPN |
| Maximum power consumption environment | 85 W |
| Maximum power dissipation(Abs) | 95 W |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal surface | Matte Tin (Sn) |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Maximum off time (toff) | 2850 ns |
| Maximum opening time (tons) | 1000 ns |
| VCEsat-Max | 1.5 V |
| SGSF341 | SGSIF441 | SGSF441 | SGSIF341 | SGSF541 | |
|---|---|---|---|---|---|
| Description | 10A, 400V, NPN, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN | 10A, 400V, NPN, Si, POWER TRANSISTOR, TO-218 | 10A, 400V, NPN, Si, POWER TRANSISTOR, TO-218 | 10A, 400V, NPN, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN | 10A, 400V, NPN, Si, POWER TRANSISTOR, TO-3 |
| Is it Rohs certified? | conform to | incompatible | incompatible | incompatible | incompatible |
| package instruction | TO-220, 3 PIN | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 | TO-220, 3 PIN | FLANGE MOUNT, O-MBFM-P2 |
| Reach Compliance Code | not_compliant | not_compliant | compli | _compli | compliant |
| Other features | HOLLOW-EMITTER | HOLLOW-EMITTER | HOLLOW-EMITTER | HOLLOW-EMITTER | HOLLOW-EMITTER |
| Maximum collector current (IC) | 10 A | 10 A | 10 A | 10 A | 10 A |
| Collector-emitter maximum voltage | 400 V | 400 V | 400 V | 400 V | 400 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| JEDEC-95 code | TO-220AB | TO-218 | TO-218 | TO-220AB | TO-3 |
| JESD-30 code | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | O-MBFM-P2 |
| Number of components | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 2 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 175 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | METAL |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | ROUND |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Polarity/channel type | NPN | NPN | NPN | NPN | NPN |
| Maximum power consumption environment | 85 W | 55 W | 95 W | 40 W | 115 W |
| Maximum power dissipation(Abs) | 95 W | 44 W | 115 W | 40 W | 105 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | PIN/PEG |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | BOTTOM |
| transistor applications | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON |
| Maximum off time (toff) | 2850 ns | 2850 ns | 2850 ns | 2850 ns | 2850 ns |
| Maximum opening time (tons) | 1000 ns | 1000 ns | 1000 ns | 1000 ns | 1000 ns |
| VCEsat-Max | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V |
| Maker | STMicroelectronics | - | STMicroelectronics | STMicroelectronics | - |
| Minimum DC current gain (hFE) | 5 | 5 | 5 | - | 5 |
| JESD-609 code | e3 | e0 | - | e0 | e0 |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | - |
| Terminal surface | Matte Tin (Sn) | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | - |
| Shell connection | - | ISOLATED | - | ISOLATED | COLLECTOR |
