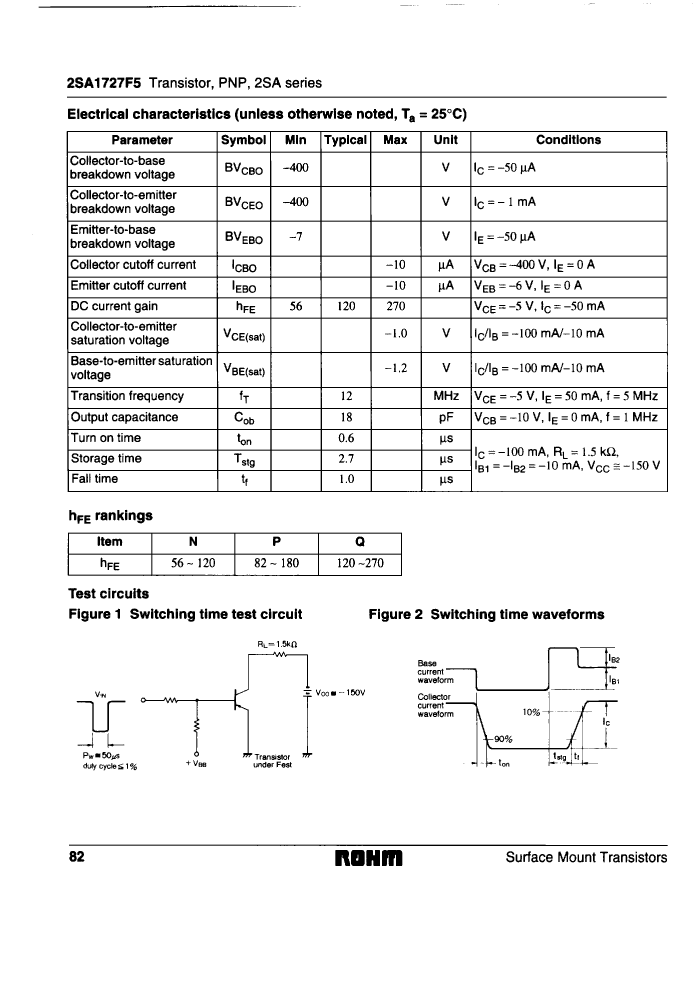

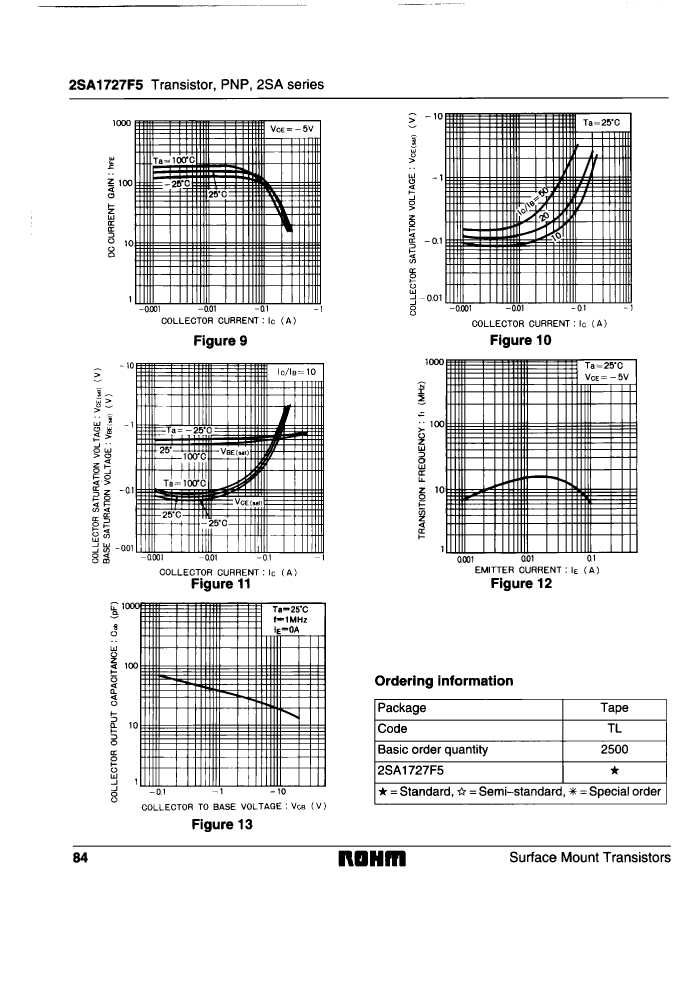

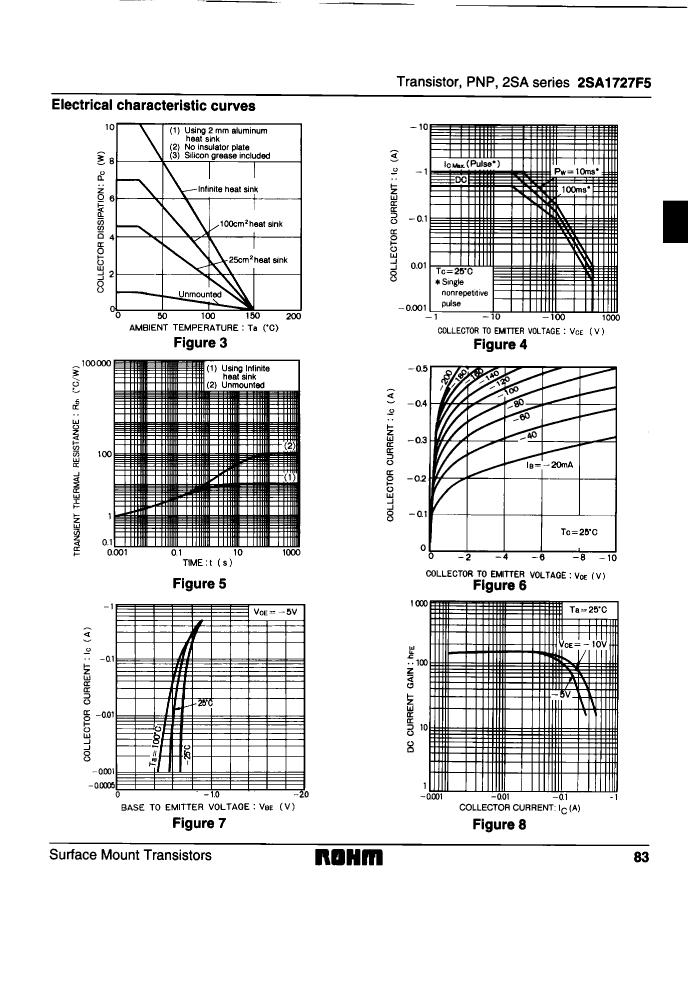

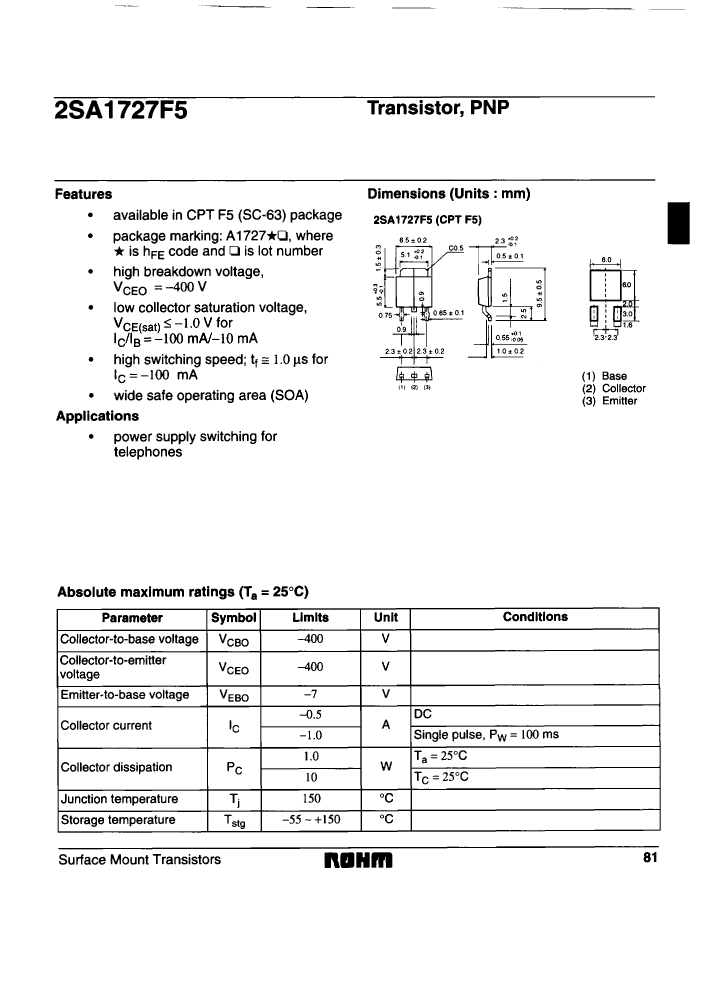

Small Signal Bipolar Transistor, 0.5A I(C), 400V V(BR)CEO, 1-Element, PNP, Silicon,
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| package instruction | SMALL OUTLINE, R-PSSO-G2 |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Maximum collector current (IC) | 0.5 A |
| Collector-emitter maximum voltage | 400 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 56 |
| JESD-30 code | R-PSSO-G2 |
| JESD-609 code | e2 |
| Number of components | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 260 |
| Polarity/channel type | PNP |
| Maximum power consumption environment | 10 W |
| Certification status | Not Qualified |
| surface mount | YES |
| Terminal surface | TIN COPPER |
| Terminal form | GULL WING |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | 10 |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 12 MHz |
| VCEsat-Max | 1 V |
| Base Number Matches | 1 |
| 2SA1727F5TLNP | 2SA1727F5TLP | 2SA1727F5TLN | 2SA1727F5TLNQ | 2SA1727F5TLQ | 2SA1727F5TLPQ | |
|---|---|---|---|---|---|---|
| Description | Small Signal Bipolar Transistor, 0.5A I(C), 400V V(BR)CEO, 1-Element, PNP, Silicon, | Small Signal Bipolar Transistor, 0.5A I(C), 400V V(BR)CEO, 1-Element, PNP, Silicon, | Small Signal Bipolar Transistor, 0.5A I(C), 400V V(BR)CEO, 1-Element, PNP, Silicon, | Small Signal Bipolar Transistor, 0.5A I(C), 400V V(BR)CEO, 1-Element, PNP, Silicon, | Small Signal Bipolar Transistor, 0.5A I(C), 400V V(BR)CEO, 1-Element, PNP, Silicon, | Small Signal Bipolar Transistor, 0.5A I(C), 400V V(BR)CEO, 1-Element, PNP, Silicon, |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to |
| Reach Compliance Code | compli | compli | compli | compli | compli | compli |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maximum collector current (IC) | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A |
| Collector-emitter maximum voltage | 400 V | 400 V | 400 V | 400 V | 400 V | 400 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 56 | 82 | 56 | 56 | 120 | 82 |
| JESD-30 code | R-PSSO-G2 | R-PSSO-G2 | R-PSSO-G2 | R-PSSO-G2 | R-PSSO-G2 | R-PSSO-G2 |
| JESD-609 code | e2 | e2 | e2 | e2 | e2 | e2 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 260 | 260 | 260 | 260 | 260 | 260 |
| Polarity/channel type | PNP | PNP | PNP | PNP | PNP | PNP |
| Maximum power consumption environment | 10 W | 10 W | 10 W | 10 W | 10 W | 10 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | YES | YES | YES | YES | YES |
| Terminal surface | TIN COPPER | TIN COPPER | TIN COPPER | TIN COPPER | TIN COPPER | TIN COPPER |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum time at peak reflow temperature | 10 | 10 | 10 | 10 | 10 | 10 |
| transistor applications | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 12 MHz | 12 MHz | 12 MHz | 12 MHz | 12 MHz | 12 MHz |
| VCEsat-Max | 1 V | 1 V | 1 V | 1 V | 1 V | 1 V |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
